User Manual for ProAm USA 7" Iris Pro Wireless HD On Camera Crane LCD Monitor Click to enlarge the picture
Contents of the user manual for the ProAm USA 7" Iris Pro Wireless
- Product category: On Camera Monitors ProAm USA
- Brand: ProAm USA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ProAm USA On Camera Monitors
 |
User manual for the ProAm USA 7" Iris Pro Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ProAm USA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ProAm USA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ProAm USA product will considerably shorten its lifespan!
|

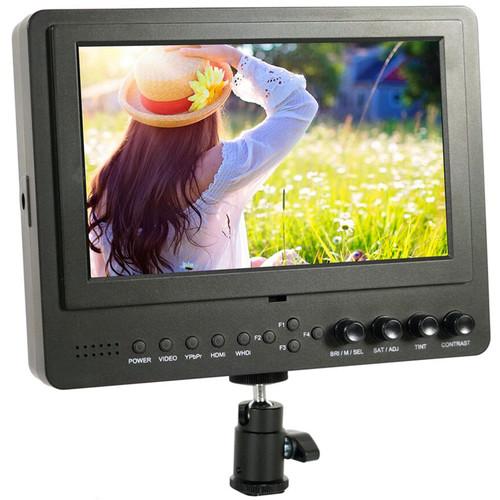

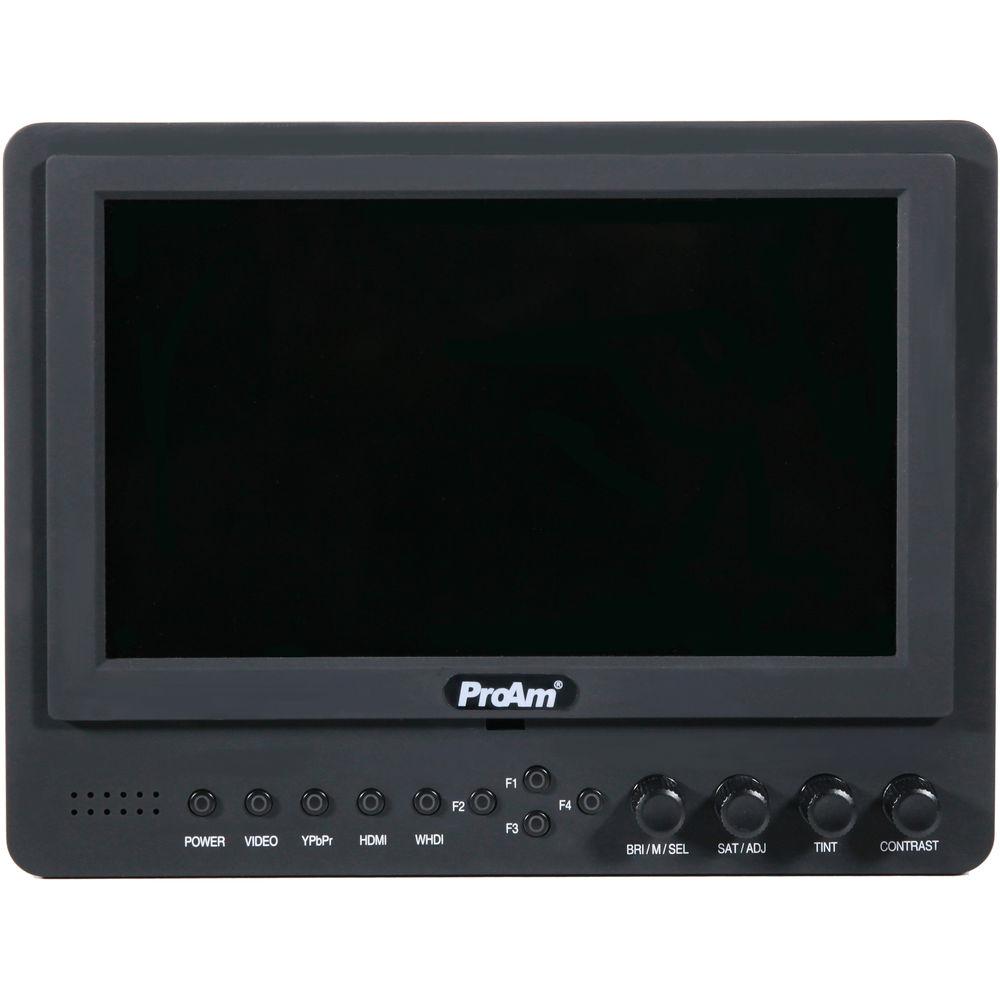

Product description The 7" Iris Pro Wireless HD On Camera/Crane LCD Monitor from ProAm USA features WHDI (Wireless Home Digital Interface), so you get the fast, no-cable connection to your camera, without any delay. It can transmit 1080i/p signals up to 100' away. The monitor offers a resolution of 1024 x 600 and a contrast ratio of 800:1. The Iris Pro Wireless HD LCD Monitor features WHDI, YPbPr, and HDMI inputs as well as HDMI output for connecting multiple monitors together when needed. - Built-in speaker and headphones output jack

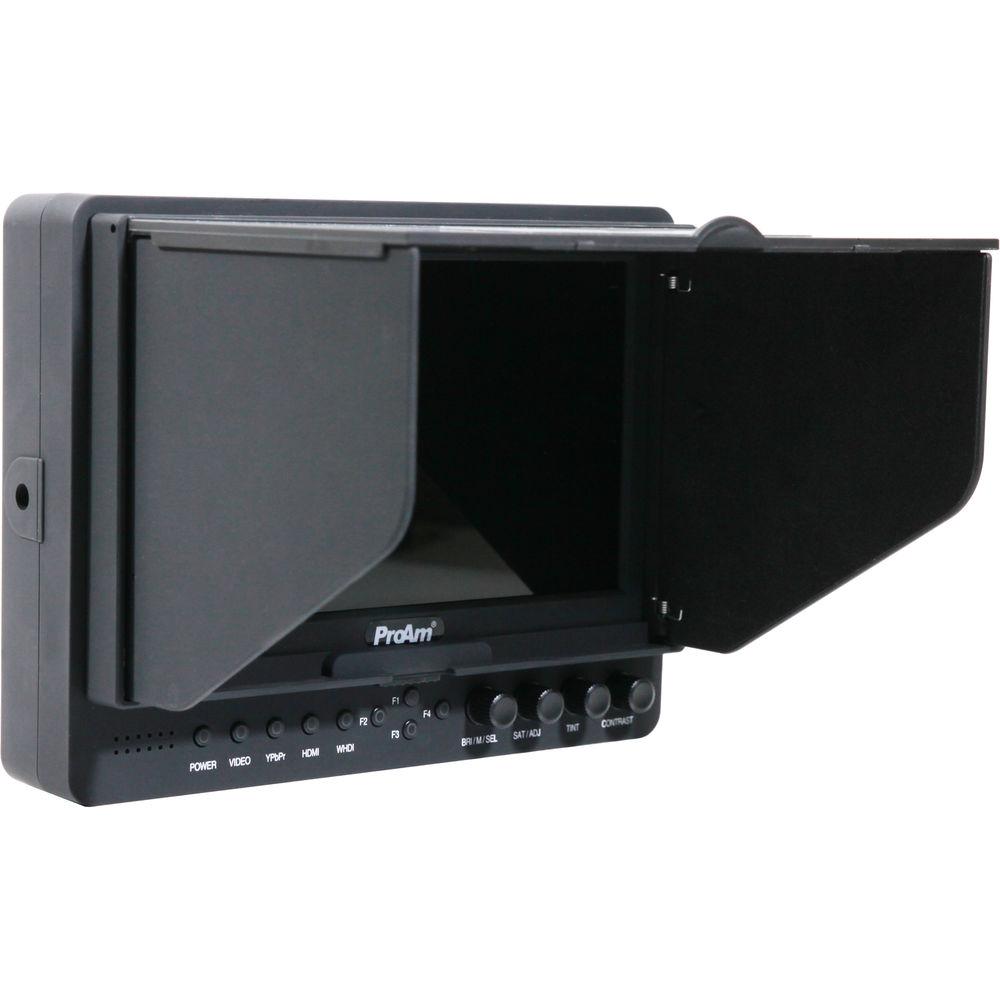

- Includes a flexible, folding sunshade
- Composite BNC video input

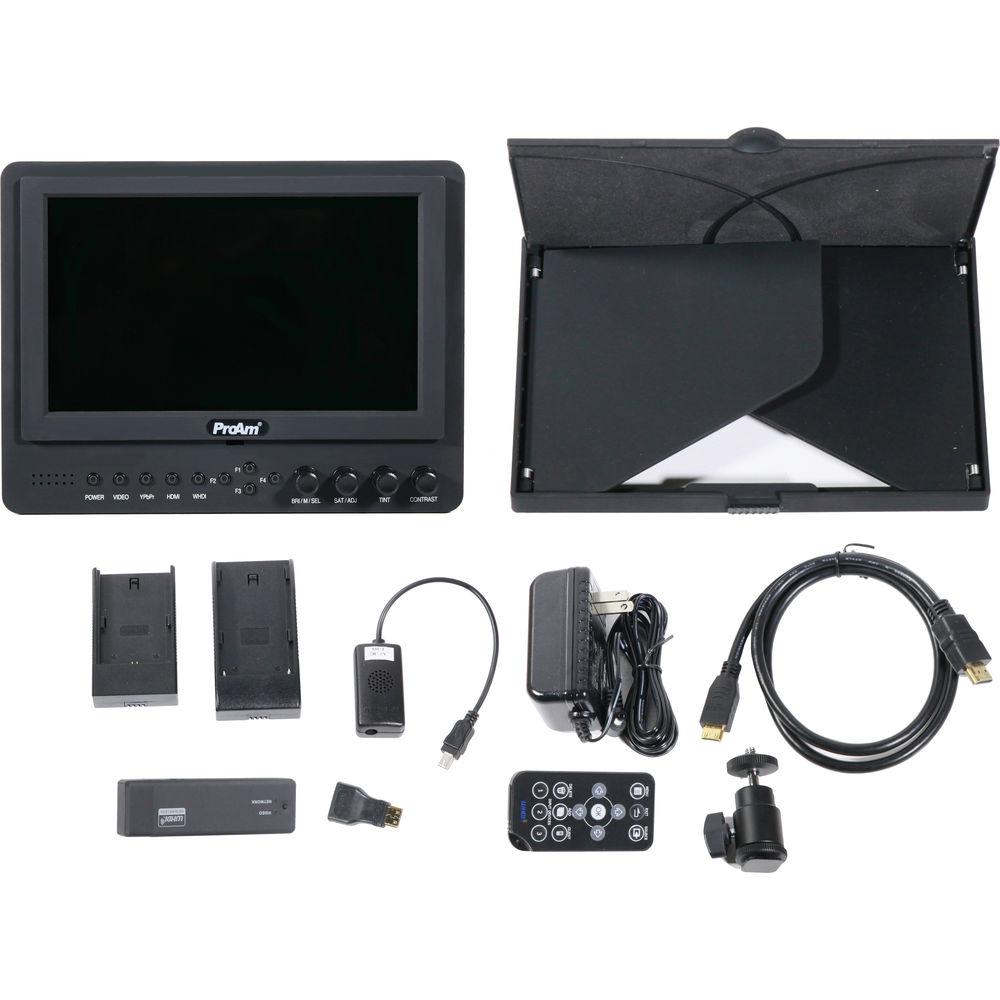

UPC: 013964711424 In the Box ProAm USA 7" Iris Pro Wireless HD On Camera/Crane LCD Monitor Accessory Shoe Mounting Adapter HDMI Cable WHDI Accessories Battery Adapter Plate for F-Type and LP-E6 (Battery not Included) Anton Bauer/V-Mount Adapter Panel AC Adapter Hard Sunshade Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProAm USA 7" Iris Pro Wireless HD On Camera Crane LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

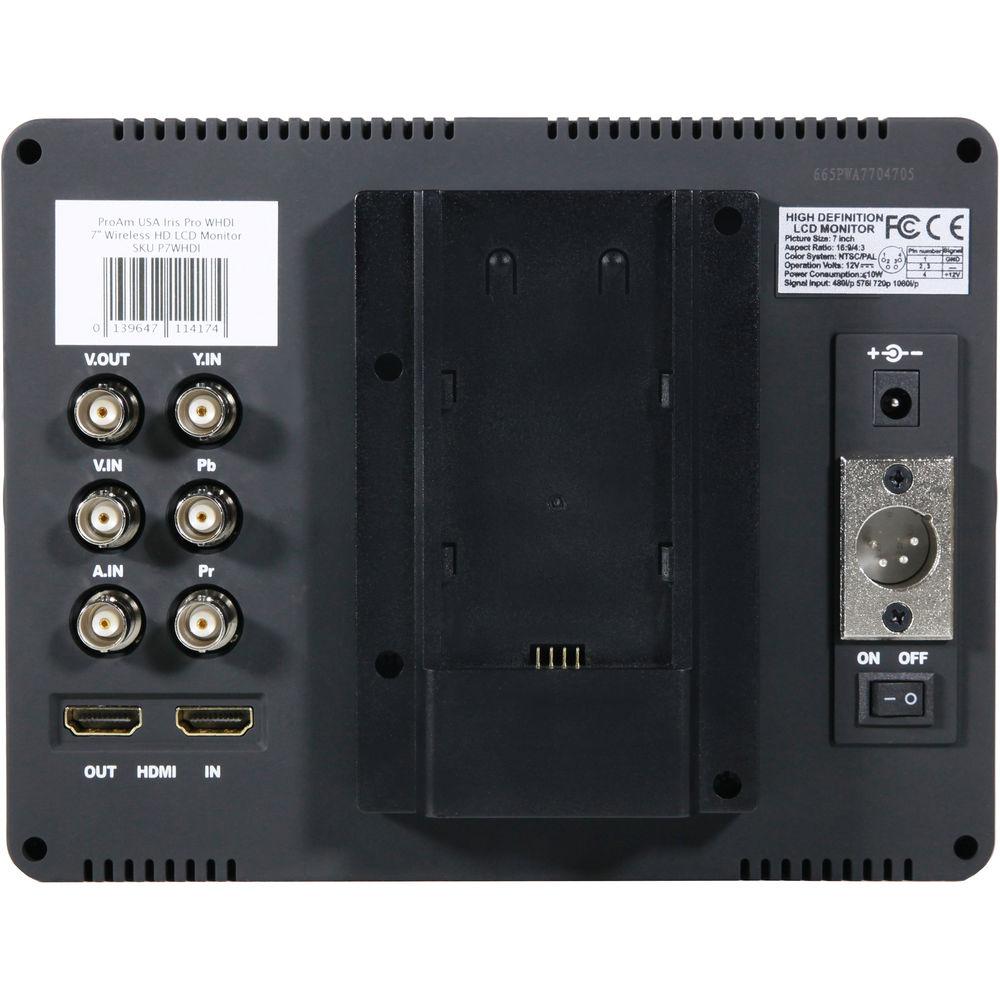

Technical parametersProAm USA P7WHDI Specs | LCD Size | 7" (17.8 cm) | | Display | 480p, 486i, 576i, 720p, 1035i, 1080i/p | | Resolution | 1024 x 600 (supports up to 1920 x 1080) | | Aspect Ratio | 16:9/4:3 | | Viewing Angle (H/V) | 160°/150° (IPS) | | Input and Output Connectors | Inputs:
XLR DC connector
WHDI, HDMI, YPbPr (BNC), composite AV (BNC), RGB component
Output:
HDMI, composite AV (BNC) | | Audio | Built-in speaker (1 W)
Headphones output jack (3.5 mm)
Composite RCA | | Brightness | 250 cd/m2 | | Contrast | 800:1 | | Adjustments | Underscan, Zoom, Peaking, Check Field, H/V Delay, Camera, False Color, Freeze Input, Color Bar, Pixel-to-Pixel, Exposure, Center Marker, Screen Marker, PIP, Histogram, Saturation, Tint, Volume, Sharpness, Color Temp, Input Format OSD, LOGO, Image Flip, Assistant Function, Manufacturer Default | | Power Requirements | 12 VDC | | Power Consumption | ≤ 12 W | | Battery Plate | V-mount, Anton Bauer mount, Sony L-Type, Canon LP-E6 | | Menu Languages | English, Chinese | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Dimensions (L x W x D) | Without Cover: 7.6 x 5.9 x 1.5" (194.5 x 150.0 x 38.5 mm)
With Cover Closed: 7.6 x 5.9 x 1.9" (194.5 x 150.0 x 48.5 mm)
With Cover Open: 7.6 x 5.9 x 6.2" (194.5 x 150.0 x 158.5 mm) | | Weight | Without Cover: 19.75 oz (560 g)
With Cover: 25.39 oz (720 g) |
