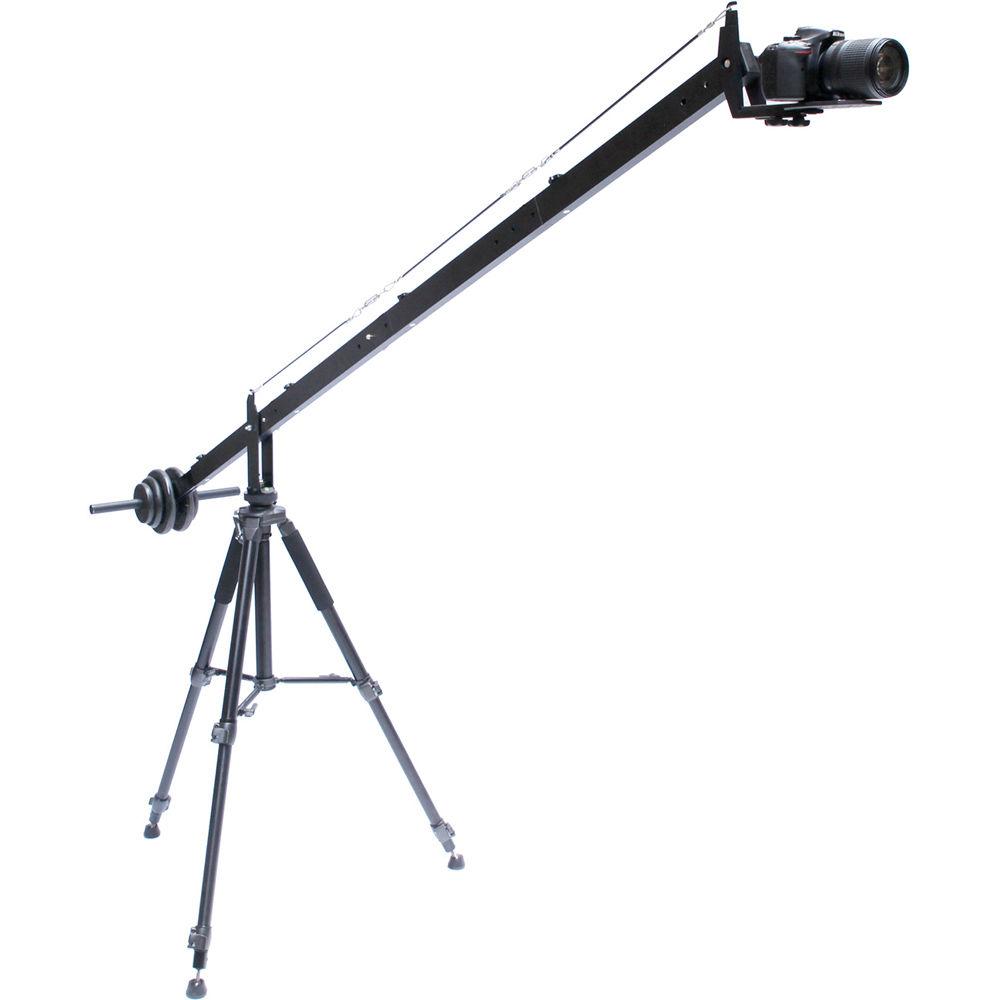

Product description With the 6' CarryOn Camera Crane from ProAm USA, traveling or shooting in remote locations no longer has to mean leaving your jib at home. Built with the traveler and solo shooter in mind, the 3-section CarryOn Camera Crane supports loads up to 10 lb and expands from 4' up to 6.3' in length, all while collapsing down to only 22" to fit inside an included canvas carry bag. An optional extension will even bring the total length of the arm to 8', an impressive feat for a package weighing less than 10 lb. The jib mounts to 3/8"-16 threaded tripods, with an optional 75mm bowl mount also available. Sliding 1" diameter counterweight bars at the rear of the jib accepts standard dumbbell/barbell weights, with clamps provided to keep the weights in place.
Note: Counterweights not included. - Features
-
- 3-section mini jib
- Each section is 19.5" long
- Length: 56.5", 76", 95.5" (with optional extension kit)
- Reach from Fulcrum: 33", 52.5", 71.5" (with optional extension kit)
- Supports loads up to 10 lb
- Auto-tilting of camera
- Vinyl-coated steel tilt cables
- Crane tilt lock
- 360° panning with lock

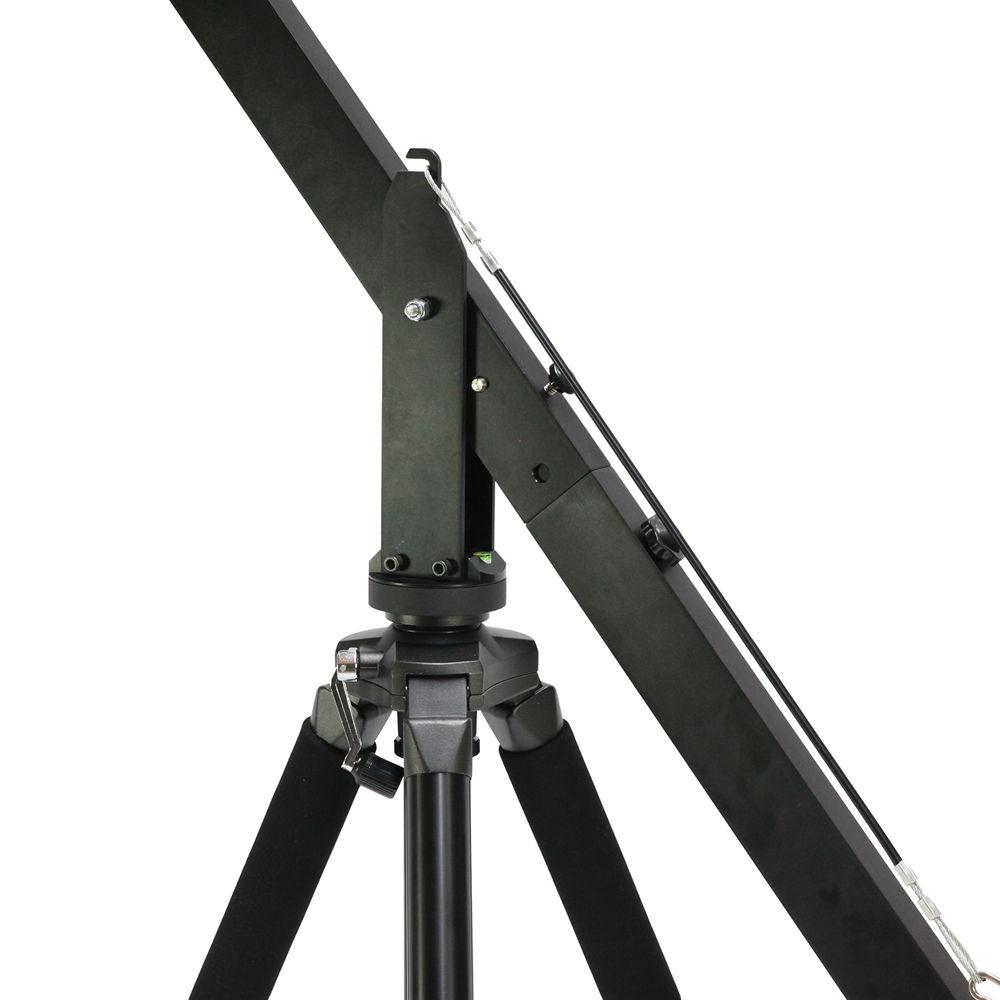

- Mounts to flat base tripods with 3/8"-16 threaded screw
- Optional 75mm bowl mount available

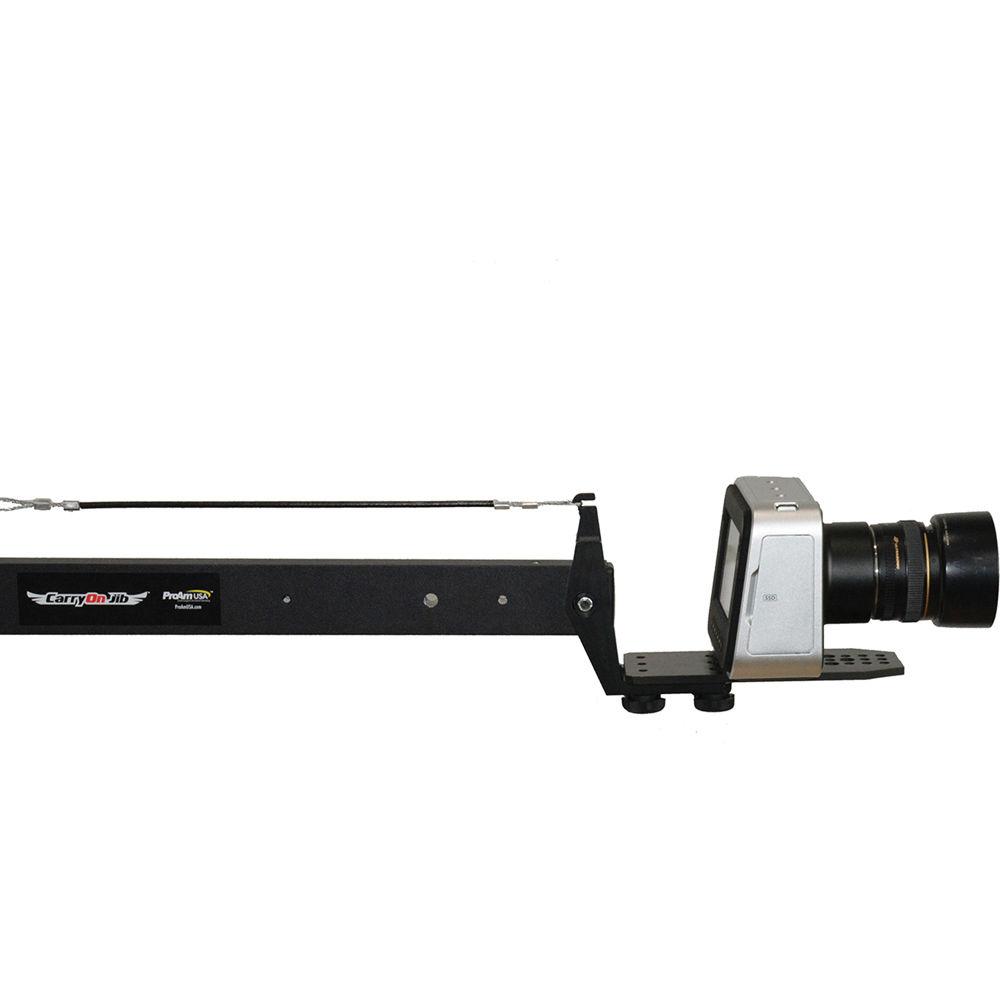

- 1/4"-20 and 3/8"-16 camera mounting holes

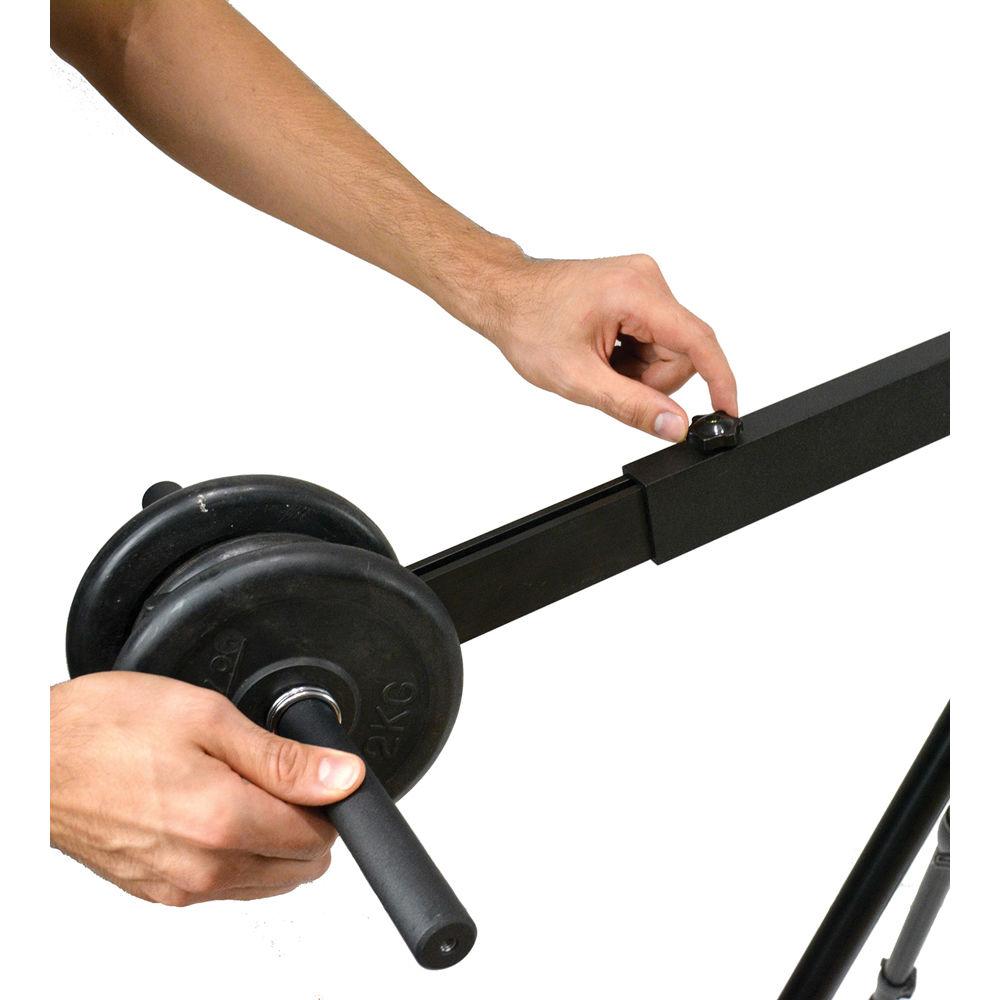

- Sliding 1" diameter counterweight bar with weight clamps
- Accepts standard dumbbell weights
- Anodized CNC-machined aluminum construction

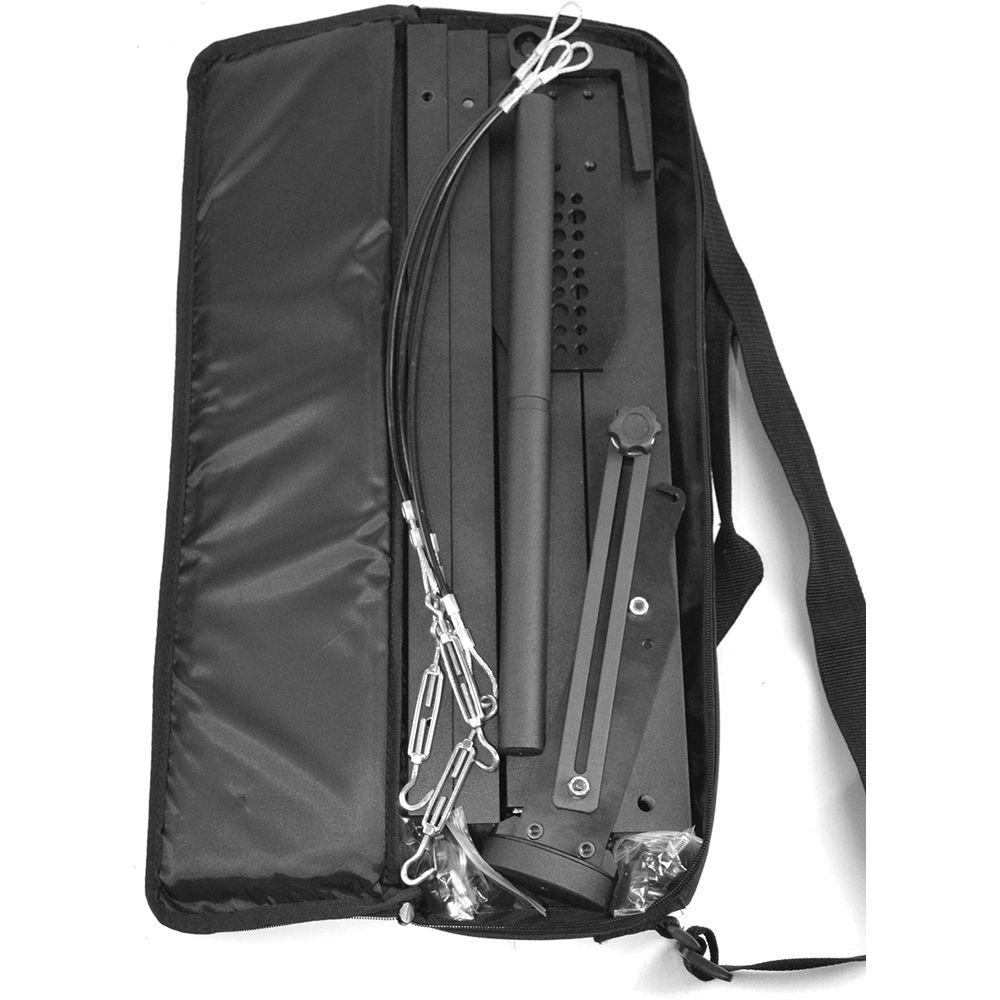

- Canvas carry bag
In the Box ProAm USA CarryOn Camera Crane (6') Tilt Cable (24") Tilt Cable (20") 2 x Counterweight Bar Clamp Horizontal Counterweight Bar Counterweight Connecting Bar (12") 2 x Connecting Bar (8") Camera Plate Front Section Middle Section Fulcrum Section Counterweight Locking Knob Camera Plate Attaching Screws 3 x Hex Head Bolt (2.25") 3 x Hand Knob 2 x Locking Pin Camera Screw, Washer, and Wing Nut Carrying Bag Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProAm USA CarryOn Camera Crane in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProAm USA DVCCO_8 Specs | Construction | Anodized CNC-machined aluminum | | Load Capacity | 10 lb (4.5 kg) | | Counterbalance System | 1" (2.54 cm) diameter counterweight bar | | Pan Range | 360° | | Tripod Attachment | 3/8"-16 threaded tripods | | Mounting Holes | 1/4"-20 & 3/8"-16 | | Arm Reach | From Fulcrum to End of Platform:
Compact: 33" (84 cm)
Standard: 52.5" (133 cm)
Extended: 71.5" (182 cm), with optional extension kit | | Length | Compact: 56.5" (144 cm)
Standard: 76" (193 cm)
Extended: 95.5" (243 cm), with optional extension kit | | Weight | Compact: 6.2 lb (2.8 kg)
Standard: 8.2 lb (3.7 kg)
Extended: 9.4 lb (4.3 kg), with optional extension kit | | Bag Dimensions | 22 x 3 x 6.5" (55.9 x 7.6 x 16.5 cm) | | | | Package Weight | 13.25 lb | | Box Dimensions (LxWxH) | 24.0 x 10.4 x 4.5" |
