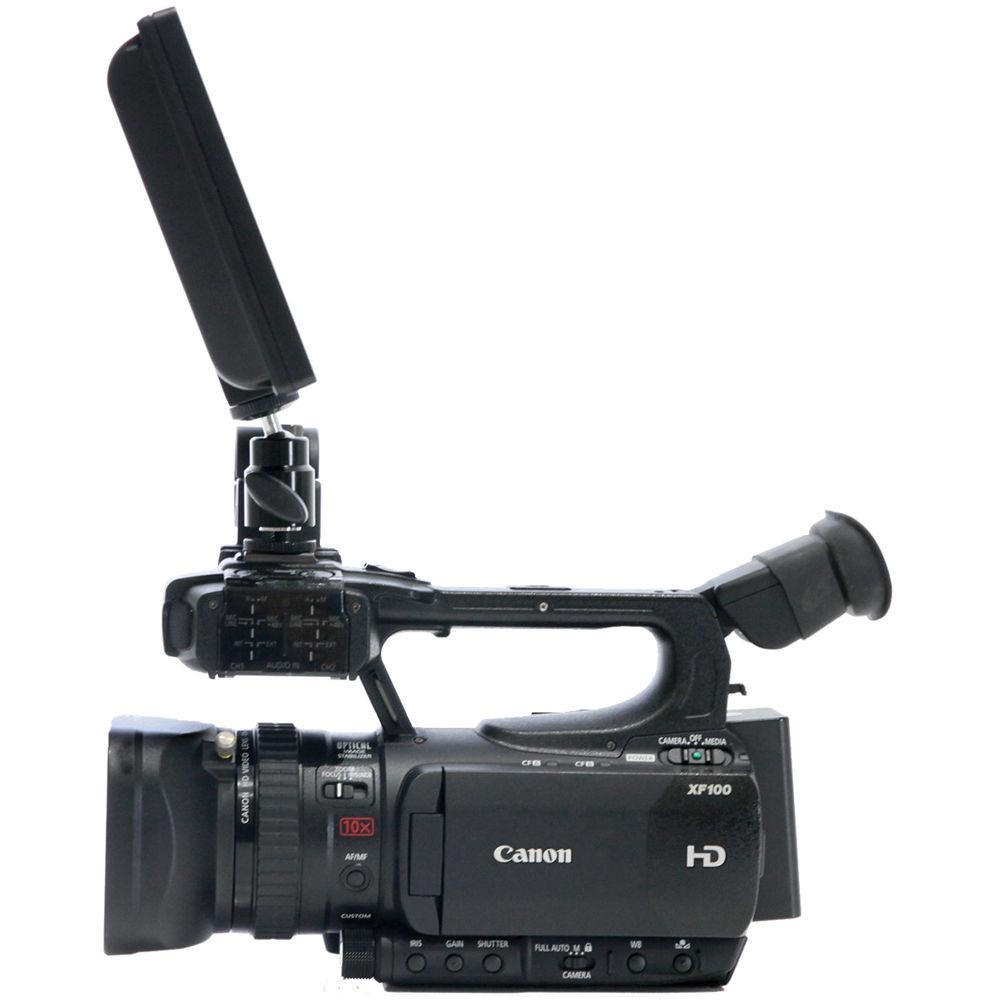

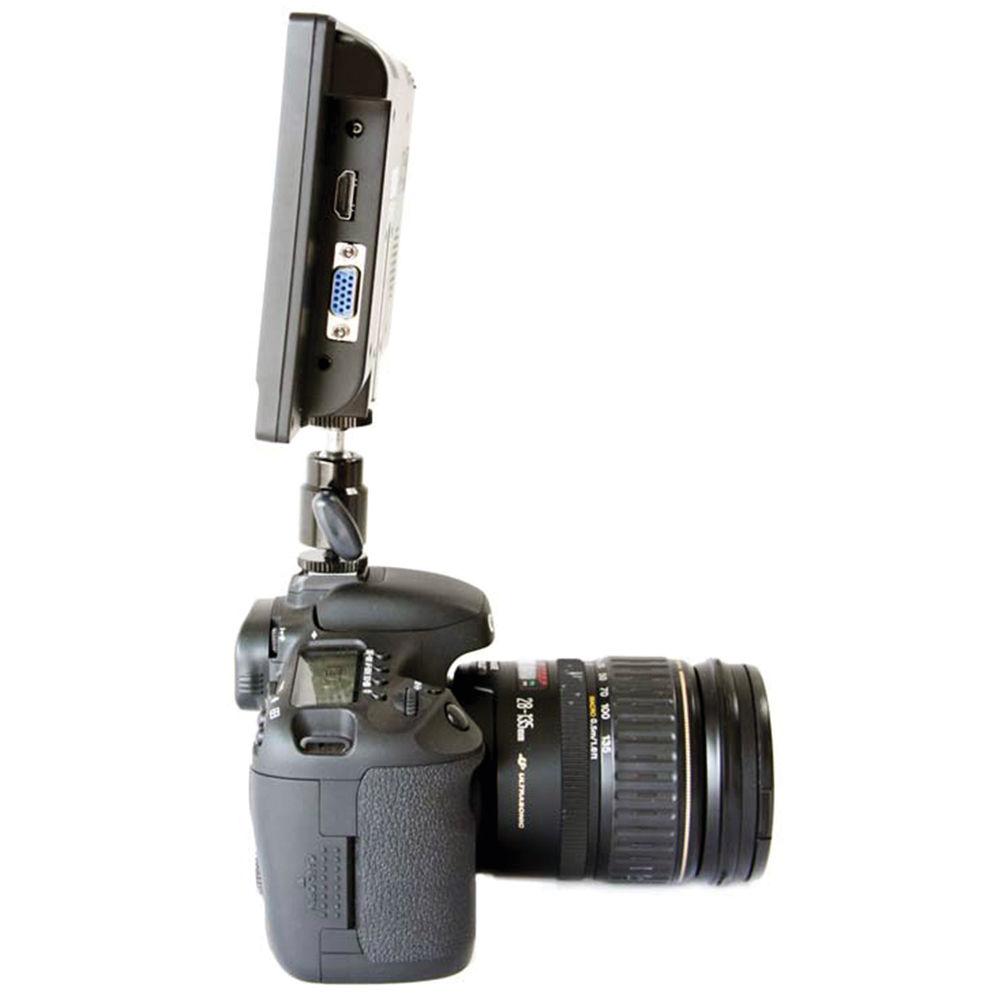

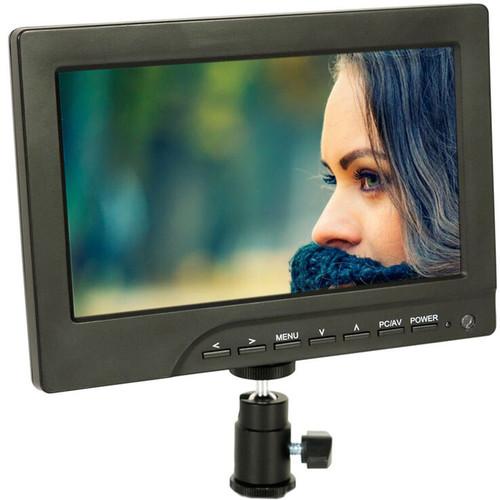

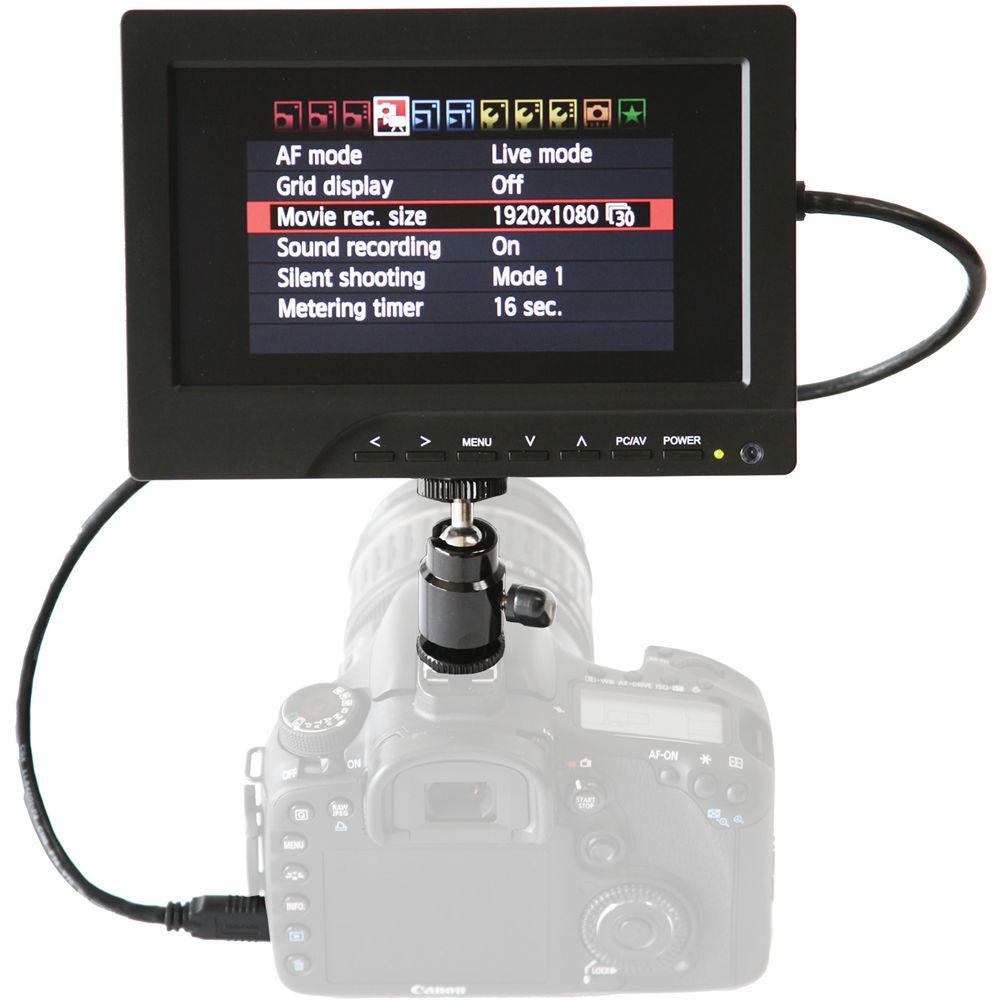

Product description Display your camera signal on a 7" screen. The Iris Pro 7" On-Camera Monitor Basic Kit from ProAm USA offers HDMI, VGA, and Composite inputs, supports up to 1080p60 signals, and includes several useful accessories, providing for comprehensive 7" monitoring solution. Accessories include a shoe-mount, tabletop stand, and a remote control. HDMI and RCA cables are also included to get you started right away.
The Iris Pro features a 800 x 480 display resolution and can show an image in 16:9 and 4:3 aspect ratios. The viewing angles are 120 and 140°, and the image can be flipped left/right and up/down to accommodate different shooting scenarios. Additionally, the display can be set to show picture information on one side of the screen without obstructing the image. Furthermore, the display can be configured with brightness, contrast, color temperature, saturation, and hue/tint controls to suit your preferences.
The Iris Pro comes with an AC adapter for continuous power in a studio environment and also includes a Canon BP-900 Series battery plate. Attach any BP-900 Series battery, such as a Canon or third-party BP-970 battery, and you're set for a battery-operated workflow. - Key Features
-
- HDMI, VGA, and Composite RCA inputs
- Supports up to 1080p60 HD camera signals
- 800 x 480 display resolution
- 16:9 and 4:3 aspect ratios
- 120/140° viewing angle
- Includes an AC adapter, Canon BP-900 battery plate, and car lighter adapter
- Includes a shoe-mount, tabletop stand, remote control, and HDMI and RCA cables

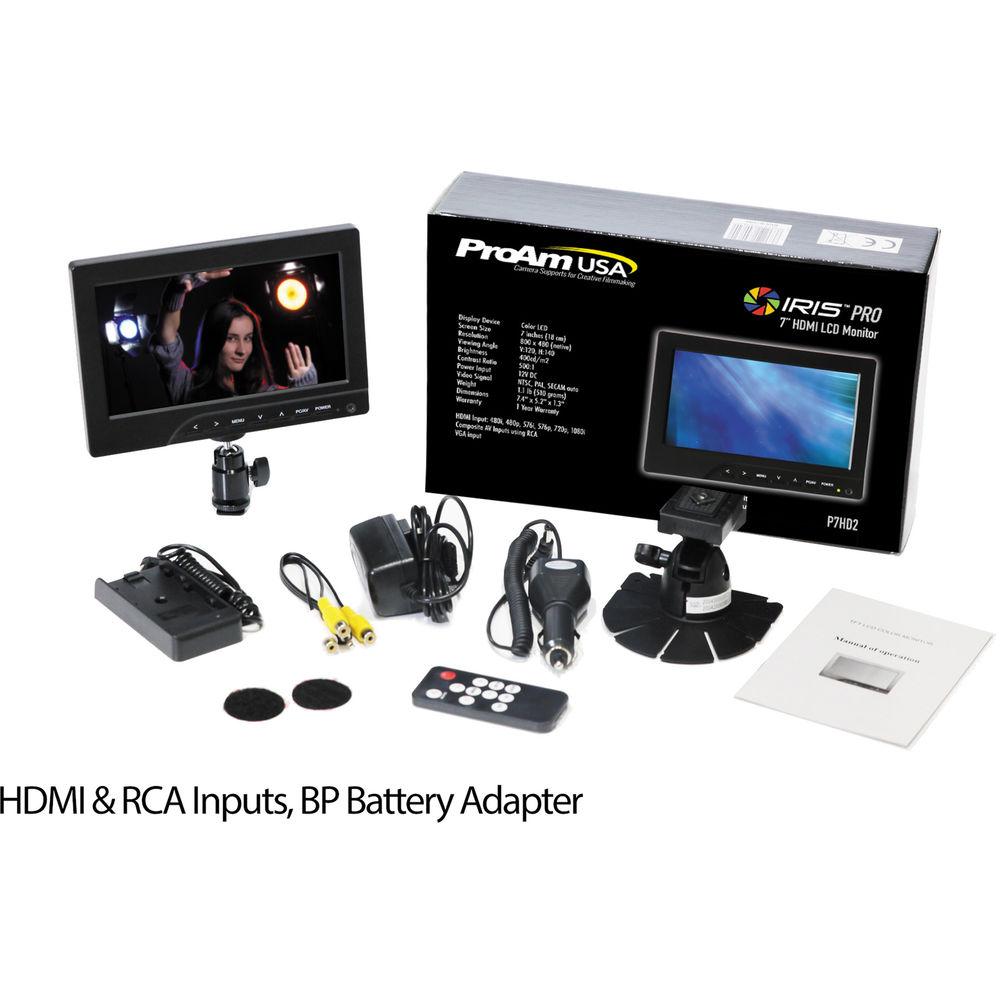

UPC: 728028184082 In the Box ProAm USA Iris Pro 7" On-Camera Monitor Basic Kit AC Adapter Canon BP Battery Plate for 12V Monitor/LED Light Car Lighter Adapter Accessory Shoe Mount for LCD Monitors Tabletop Mounting Stand Remote Control Mini-HDMI Type-C to HDMI Type-A Cable (3') RCA / AV Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProAm USA Iris Pro 7" On-Camera Monitor Basic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProAm USA P7HD2 Specs | Panel | 7" (25.4 cm) LED backlit | | Brightness | 400 cd/m2 | | Contrast | 500:1 | | Viewing Angle | H/V: 140 / 120° | | Aspect Ratio | 16:9 / 4:3 | | Display Resolution | 800 x 48 | | Supported Resolutions | 1280 x 720 at 24p, 25/30p, 50/60p
1920 x 1080 at 24p, 25/30p, 50/60i/p | | Input Connectors | 1 x HDMI
1 x Composite AV via 3-RCA
1 x VGA | | Power Input | 1 x DC barrel
Canon BP-900 Series battery plate included | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Input Voltage | 12 VDC | | Current | 500 mA (under 800 x 600 - 60 Hz) | | Power Consumption | ≤ 8 W | | Dimensions | 7.4 x 5.2 x 1.3" (18.8 x 13.1 x 3.3 cm) | | Weight | 18 oz (510 g) | | | | Package Weight | 2.49 lb | | Box Dimensions (LxWxH) | 12.45 x 7.85 x 2.85" |
