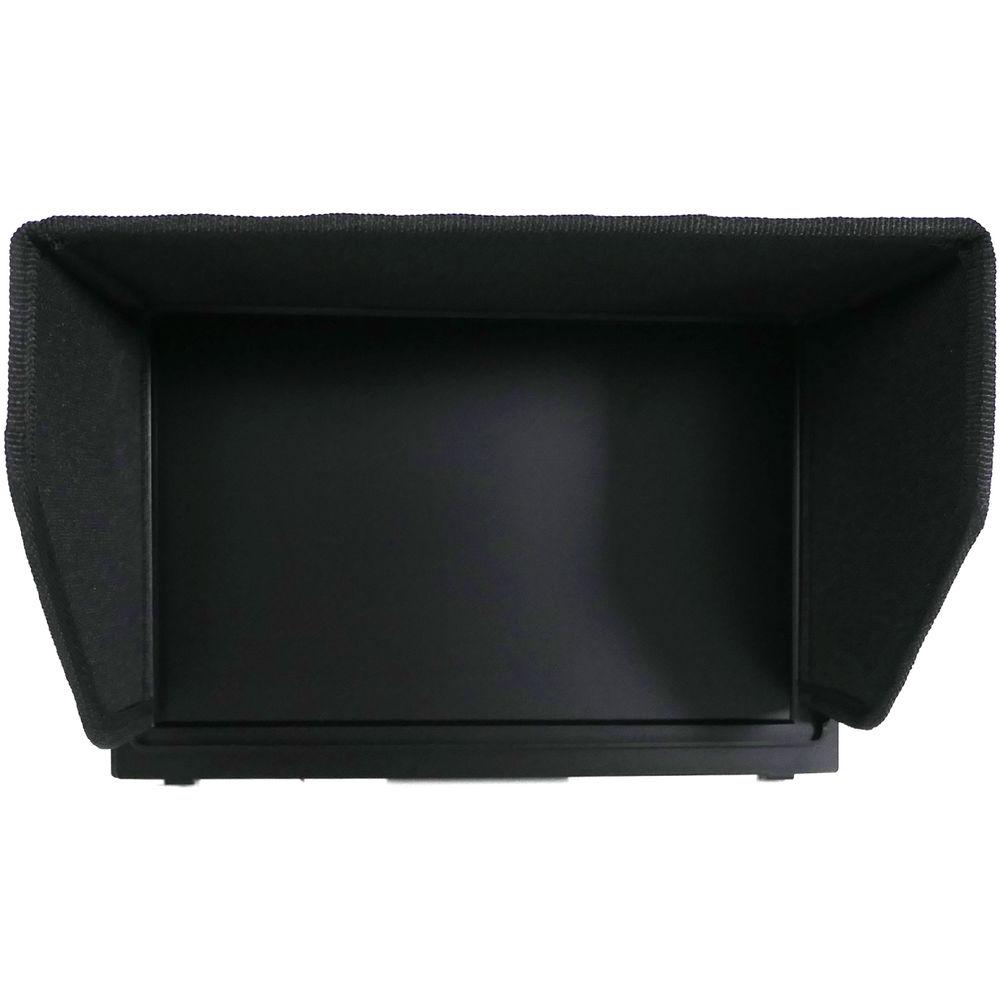

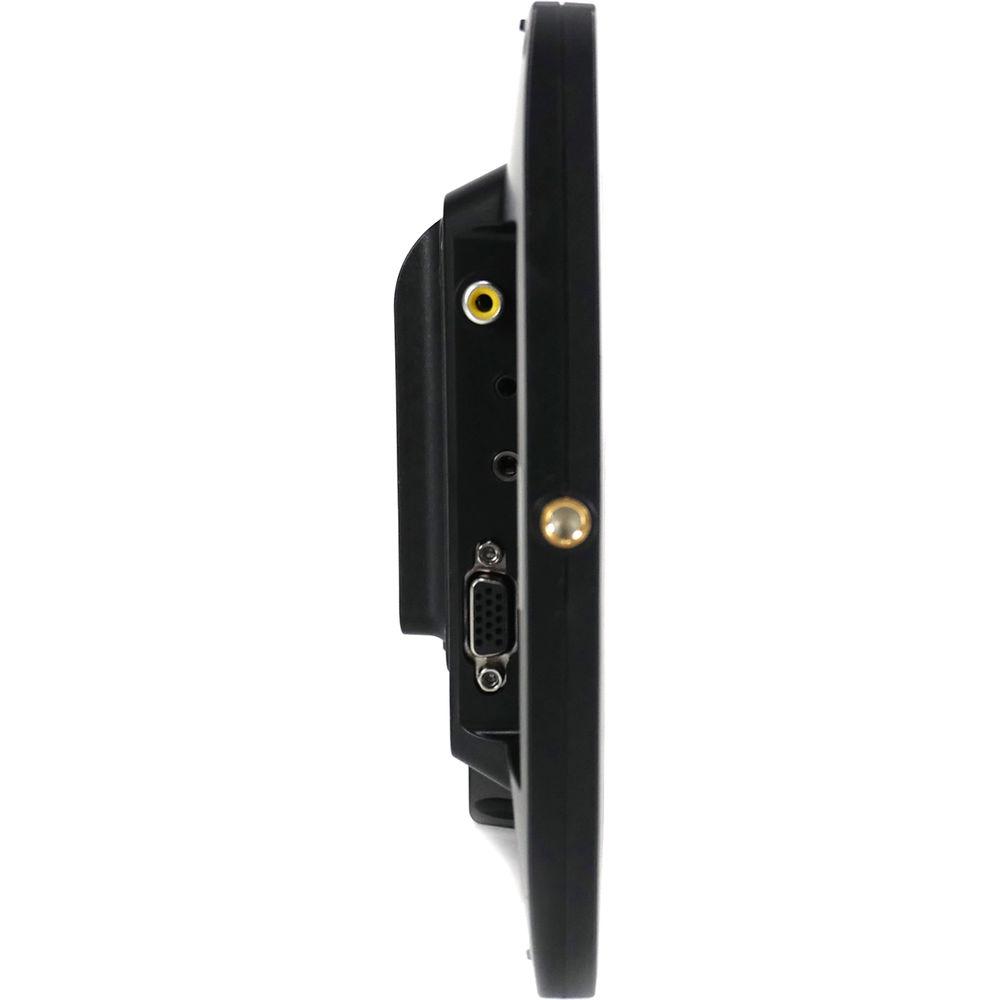

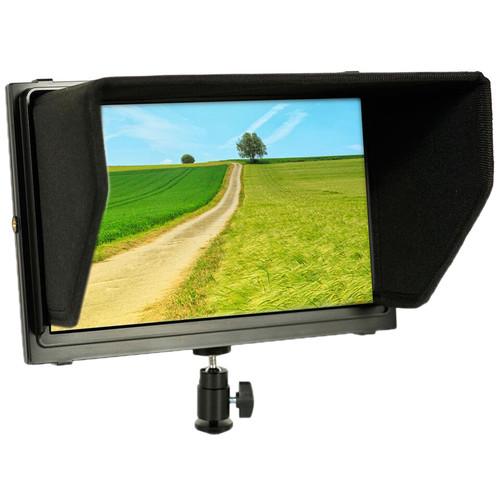

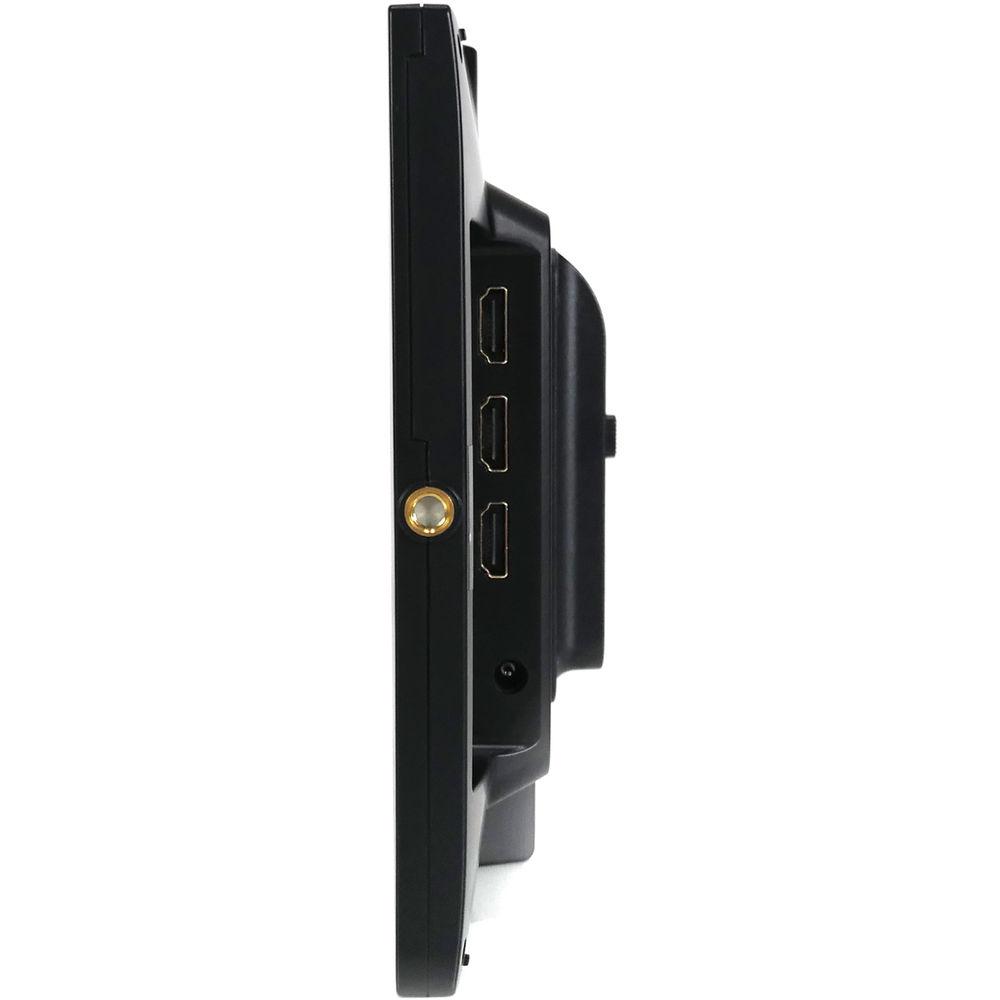

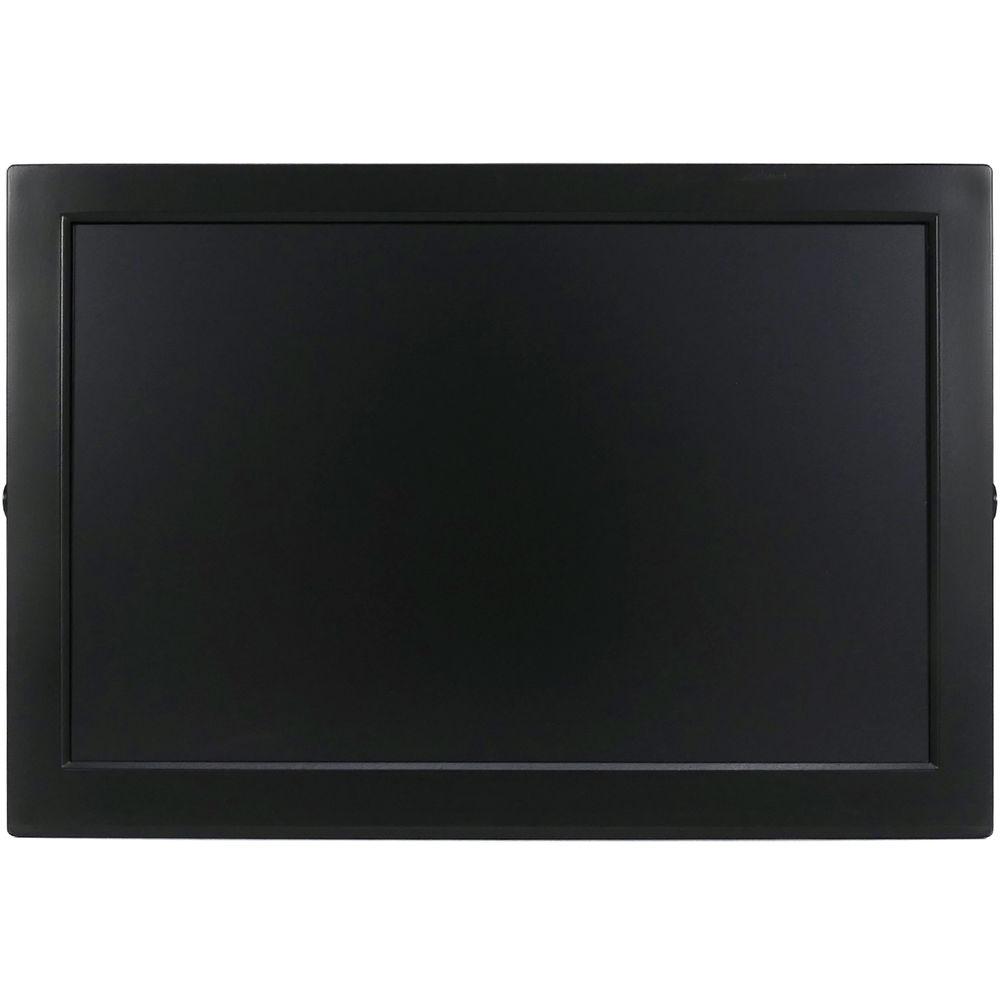

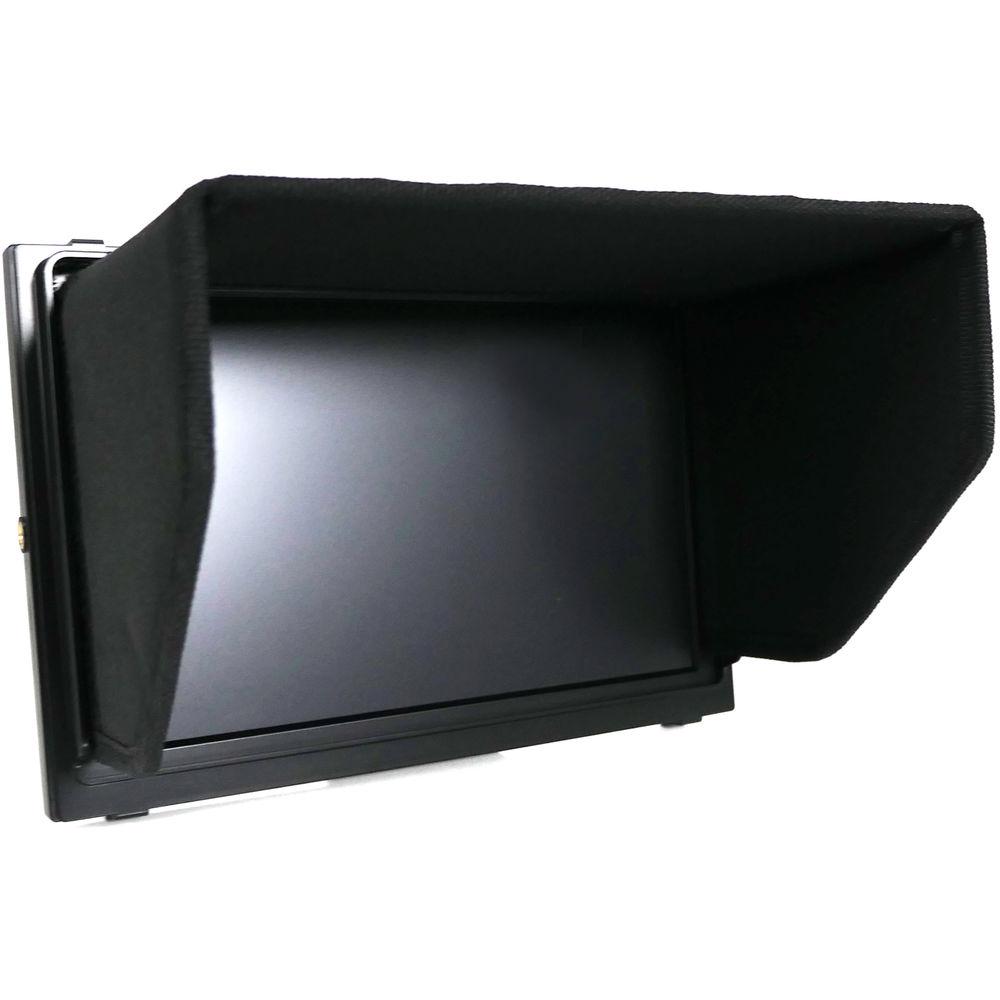

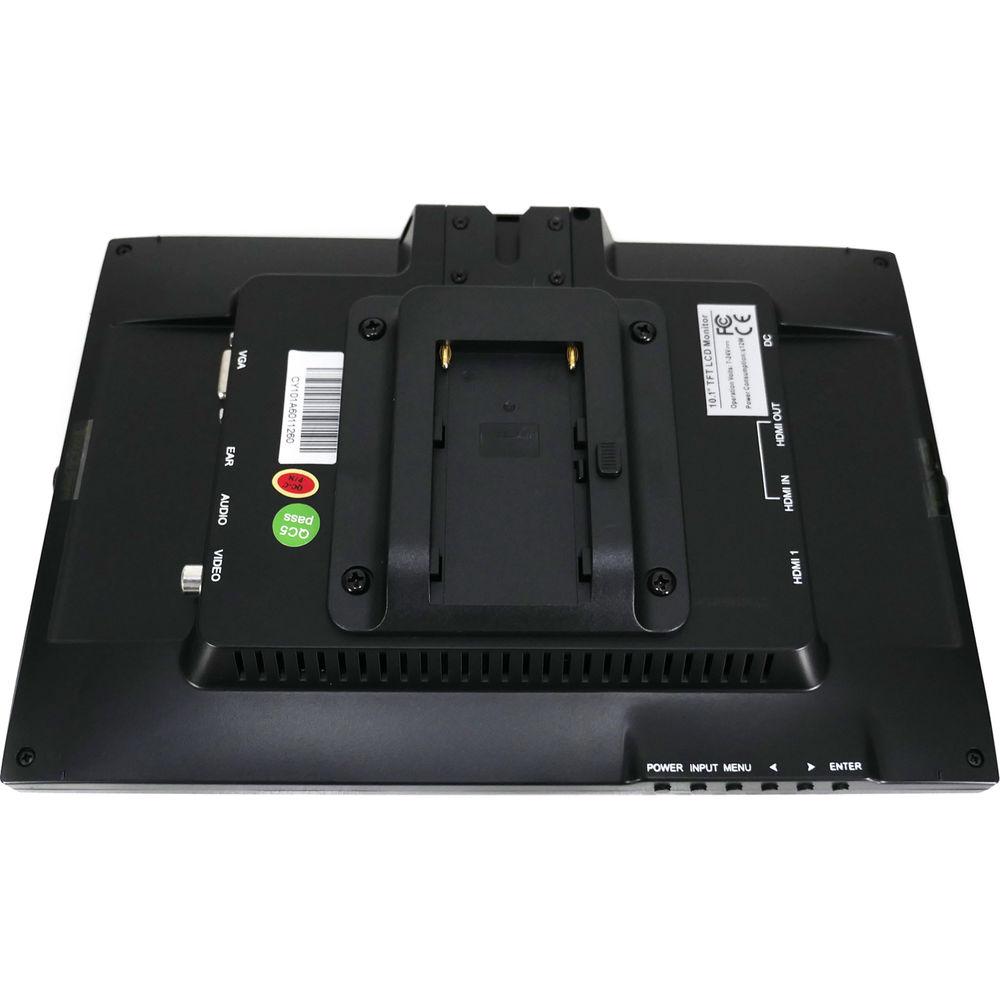

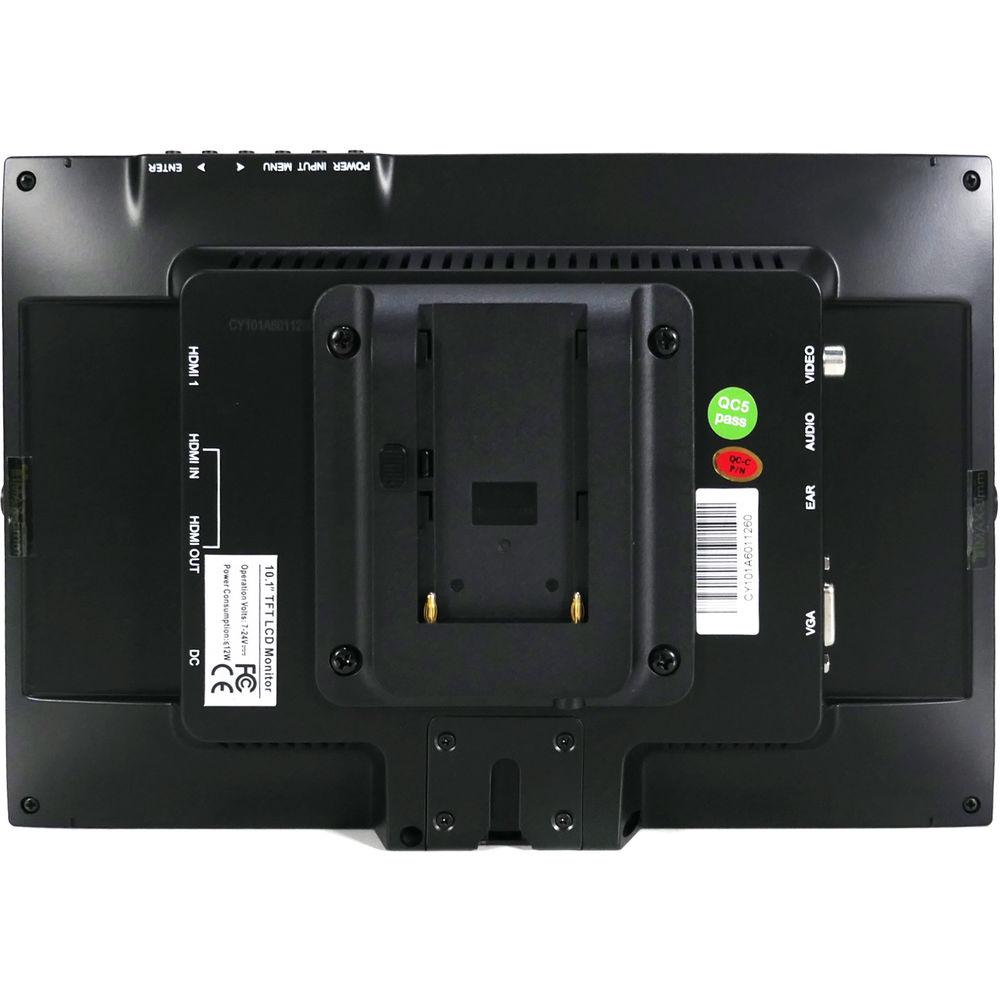

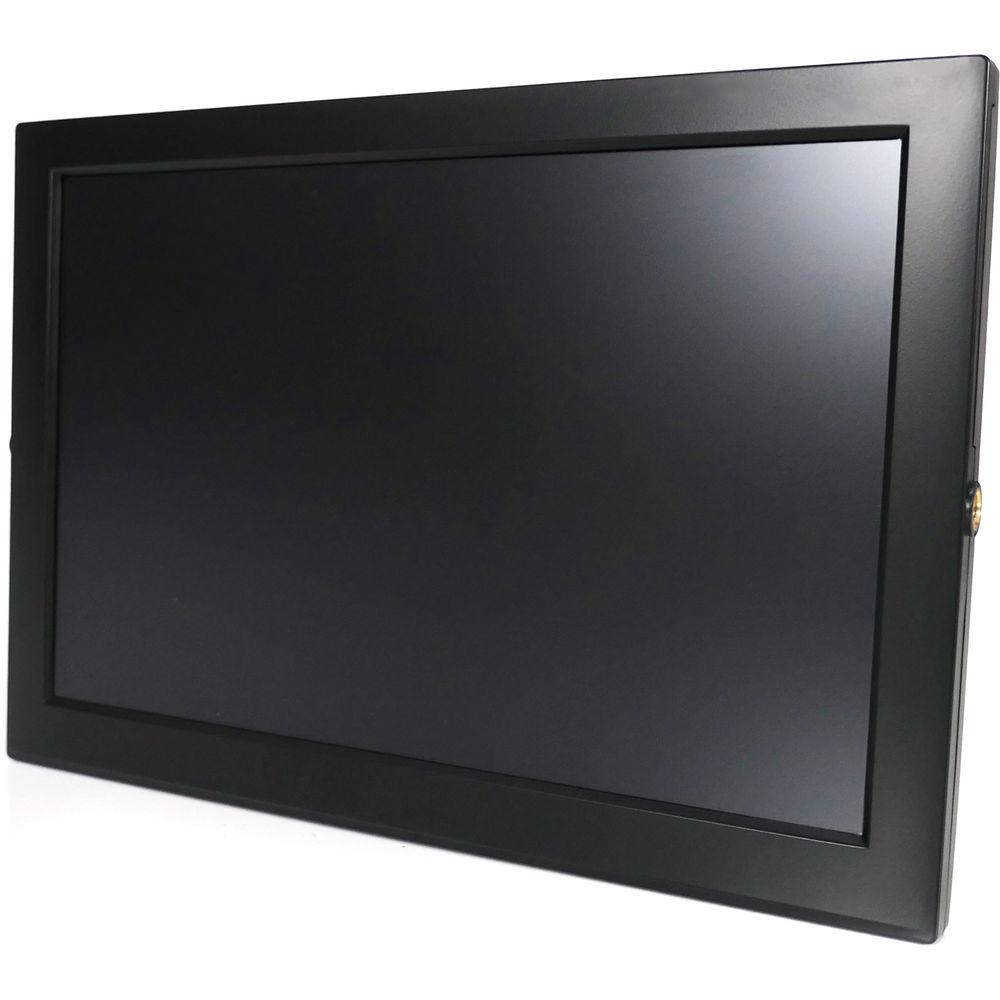

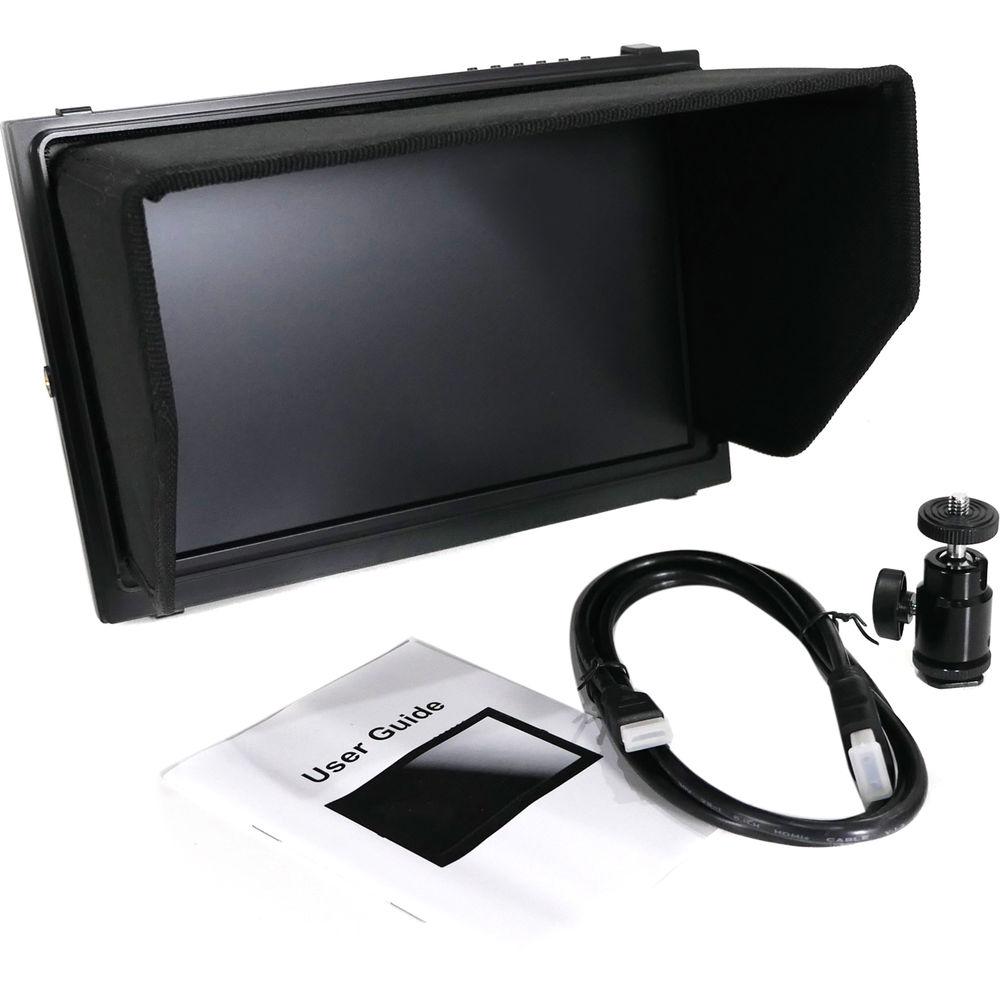

Product description The Iris XL2 10.1" Dual-HDMI On-Camera LCD Monitor from ProAm USA offers a native resolution of 1280 x 800 and supports resolutions up to 1920 x 1080. It has an aspect ratio of 16:9, with a brightness of 350 cd/m2 and 800:1 contrast ratio. It features two HDMI inputs, as well as HDMI out, and one each RCA composite video and VGA inputs. You can mount this monitor on your camera using the included shoe mount adapter. It accepts 7 to 24 VDC power input, and can be powered using a Sony L-series type battery (not included) mounted onto the included VESA battery plate. UPC: 013964711509 In the Box ProAm USA Iris XL2 10.1" Dual-HDMI On-Camera LCD Monitor Shoe Mount Ball Adapter Foldable Sunshade VESA Battery Plate 5' HDMI Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProAm USA Iris XL2 10.1" Dual-HDMI On-Camera LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProAm USA P10DHD Specs | Signal System | PAL / NTSC | | Monitor Type | TFT LCD | | Screen Size | 10.1" (25.7 cm) | | Resolution | 1280 x 800 (native) | | Supported Resolutions | HDMI
1080p, 1080i
720p
576p, 576i
480p, 480i | | Display Colors | Not specified by the manufacturer | | Viewing Angle (H/V) | 170° / 170° | | Brightness | 350 cd/m2 | | Contrast Ratio | 800:1 | | Response Time | Not specified by the manufacturer | | Inputs | 2 x HDMI
1 x 15-pin VGA
1 x RCA, composite video
1 x DC power | | Outputs | 1 x HDMI
1 x 3.5 mm jack, headphones
1 x Speaker | | Remote Control | No | | Operating Temperature | Not specified by the manufacturer | | Power Requirements | Input Voltage: 7 to 24 VDC
Current: 950 mAh | | Power Consumption | ≤10 W | | Mounting | 2.95" (75 mm) standard VESA sockets | | Dimensions | 9.8 x 6.7 x 1.2" (25.0 x 17.0 x 3.1 cm) | | Weight | 1.2 lb (550 g) | | | | Package Weight | 2.83 lb | | Box Dimensions (LxWxH) | 11.6 x 11.2 x 3.75" |
