Product description

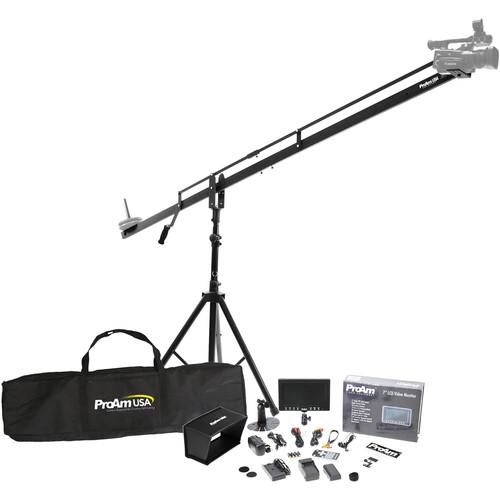

• Orion DVC200 8' Camera Crane/Jib Capture smooth, dynamic sweeping pans and camera rises with the Orion DVC200 8' Camera Crane/Jib from ProAm USA. Supporting loads up to 8 lb, the 8' arm adds 5' of reach from the fulcrum point, with an optional 4' extension available for additional length. It is constructed from 1" and 2" aluminum tubing, setting up quickly and without tools to benefit on-location productions. At the end of your shoot, the jib breaks down into two 4' long sections for easier travel and storage. To balance your load, a 1" counterweight bar at the rear of the arm accepts standard and readily available dumbbell weights.
  Features
  • • 8' arm jib arm
    • Supports loads up to 8 lb
    • Adds 5' of reach from fulcrum
    • Optional 4' extension bar for increased length
    • Constructed from 6061 aluminum with powder-coated finish
    • Stainless steel bearings for smooth motion
    • Quick, tool-less setup
    • Breaks down into two 4' sections for storage and travel
    • Camera can auto-tilt to remain level, or use can remove a pin to manually tilt the camera
    • 1" counterweight bar to hold standard dumbbell weights
    • 1/4"-20 and 3/8"-16 tripod mounting thread
  UPC: 728028003970
• Camera Crane Stand Support The Camera Crane Stand Support from ProAm USA is a custom-built 4' to 6' support designed specifically for the ProAm camera crane line of products and is not intended for use with other crane brands. The stand's all-aluminum mount can hold up to 100 lb and features 360° panning motion. It can be used with any ProAm Camera Crane, including the 8' to 12' DVC210, 8' to 12' DVC200, DVC60, and DVC50 models. UPC: 728028105452
• Camera Crane and Jib Carrying Bag The Camera Crane and Jib Carrying Bag from ProAm USA is a lightly padded and zippered carrying bag which securely stores and transports the DVC50, DVC60, DVC210, DVC300, DVC250, or DVC500 camera crane. It is made of durable padded canvas with nylon handle straps and has a large zippered pouch on the front. UPC: 728028184099
• Iris 7" LCD Video Monitor Featuring a 7" 480 x 234-resolution TFT LCD panel, this Iris LCD Video Monitor from ProAm USA accepts standard-definition NTSC or PAL composite video sources for easy viewing. If your camera is mounted on a jib or a crane, a monitor is essential for checking your composition. This monitor is also useful mounted atop your camera. The 7" LCD provides more screen real estate than the LCDs available on most cameras. Having a larger screen makes it easier to check your composition as well as focus your camera's lens to ensure that your subject is consistently sharp.

  The LCD panel is capable of displaying 16:9 footage as well as legacy 4:3 footage from older camcorders. You can also adjust the color, brightness, and contrast of the display to match your workflow. Audio from your camera can be played back through integrated stereo speakers or separately available headphones via the 3.5mm stereo jack. Mounting hardware for securing the monitor to a jib or the top of your DSLR or camcorder is included. For power, use the included battery mount for separately available Canon BP batteries, or use the included AC adapter and power cable. A wireless remote control is also included for making necessary adjustments on-the-fly.
  • Vertical and mirror image flipping
  • Headphone jack
  • High output stereo speakers
  • Wireless remote control
  • 360° swivel mount
  • NTSC & PAL compatible
  • 480 x 234 resolution display
  • Attaches to camera's accessory shoe or to crane or tripod
  • Battery power lasts up to 5 hours (battery not included)
  UPC: 728028003987
• Canon BP Battery Plate for 12V Monitor/LED Light Power your 12V monitor or LED light off a Canon battery with this Canon BP Battery Adapter Plate from ProAm USA. It uses a standard barrel jack connector for compatibility with most devices that will accept a 12V power source. The plate itself mounts to the rear of your device using the included touch fastener pads.
  • Converts camcorder battery to 12V
  • Up to five hours of power depending on battery
  UPC: 728028195255
• Canon BP-915 Equivalent 2000mAh Battery & Charger The Canon BP-915 Equivalent 2000mAh Battery & Charger from ProAm USA is used for powering an LCD monitor when using the Canon BP series adapter plate. The battery can power an LCD monitor for up to 5 hours and can also be used for powering Canon XL series camcorders. UPC: 728028207583
• LCD Monitor Mounting Bracket and Ball Mount Attach your LCD monitor to your crane with this Mounting Bracket and Ball Mount from ProAm USA in order to easily check your exposure and composition while your camera is mounted atop the crane. The mounting bracket itself is an L-bracket which secures to the side of the crane, while the included articulating ball mount secures the monitor to the L-bracket. The ball mount affixes to the bracket via a standard shoe mount, while the monitor is secured via the 1/4"-20 screw on top of the ball mount. UPC: 013964711035
• 7" LCD Video Monitor Hood / Sunshade View your 7" monitor's screen in bright daylight with the ProAm USA 7" LCD Video Monitor Hood / Sunshade. Attaching via hook-and-loop straps, this hood is easy to apply and remove as needed, and folds for easy storage when not in use. The bottom layer is separate from the top and sides, so you can move it in order to minimize light leak. Since this hood only requires front-mounting, side controls will remain accessible while the hood is attached. UPC: 728028023039
• 8" Hook-and-Loop Fastener Cable Ties (4-Pack) The 4-pack of 8" Hook-and-Loop Fastener Cable Ties from ProAm USA is designed to secure loose audio, video, or LANC cables. The cable ties can also be used on tripod legs to secure camera cables, or to keep loose cables out of the way of your camera shot. The cable ties are 8" in length. UPC: 013964711097

• Limited Lifetime Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Accessory Shoe Mount for LCD Monitors

• Remote Control

• AV Cable

• 6" RCA Extension Cable

• Canon BP Battery Plate for 12V Monitor/LED Light

• DC Power Connector

• Hook-and-Loop Fastener

• Tabletop Mounting Stand

• DC Car Power Adapter

• AC Adapter

• Limited 1-Year Warranty

• Set of Hook-and-Loop Fastener Tabs

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Accessory Shoe Mount for LCD Monitors

• Limited 1-Year Warranty

• Set of Hook-and-Loop Fasteners

• Limited 1-Year Warranty

• Limited 90-Day Warranty
