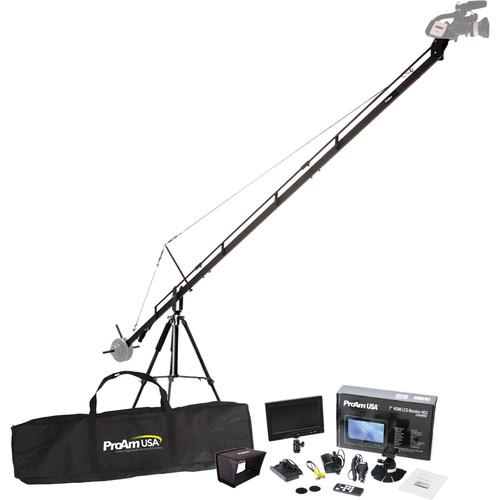

Product description Assembled for wedding videographers shooting with cameras weighing up to 10 lb, the Orion DVC210 12' Camera Crane Wedding Production Package from ProAm USA lets you see above the crowd and add dynamic camera motion when capturing your clients' special day. It features the 8' DVC210 jib arm which provides a reach of 5' from its fulcrum, a 4' extension, and professional tripod legs to support the arm. The tripod legs have a working height range from 27 to 63" and come with a bearing mount that enables 360° jib arm panning. Stainless steel support cables are included for maximum support of heavy loads, as well as a tilt brake to lock the jib's vertical tilt at any angle.
To monitor your shots while you operate, a 7" ProAM LCD screen is included that mounts onto the jib using a mounting bracket and is powered by a Canon LP-E6 battery. Also included is a battery charger, 10' HDMI cable, hook-and-loop cable ties, and a sun hood. For storage, the 8' arm breaks down into two 4' pieces, making the entire system fit inside the included carrying bag for convenient storage and transport.
Note: Counterweights not included. - Orion DVC210 8' DSLR Camera Crane / Jib Capture smooth, dynamic sweeping pans and camera rises with the Orion DVC210 8' DSLR Camera Crane / Jib from ProAm USA. Features an overslung platform, the jib is designed with DSLR and mirrorless cameras in mind, supporting camera and lens combinations weighing up to 10 lb. The 8' arm adds 5' of reach from the fulcrum point, with an optional 4' extension available for additional length. The jib is constructed from 1" and 2" aluminum tubing, setting up quickly and without tools to benefit on-location productions. At the end of your shoot, the jib breaks down into two 4' long sections for easier travel and storage. To balance your load, a 1" counterweight bar at the rear of the arm accepts standard and readily available dumbbell weights.
- Features
-
- 8' arm jib arm
- Supports loads up to 10 lb
- Overslung platform designed for use with DSLR and mirrorless cameras
- Adds 5' of reach from fulcrum
- Optional 4' extension bar for increased length
- Constructed from 6061 aluminum with powder-coated finish
- Stainless steel bearings for smooth motion
- Quick, tool-less setup
- Breaks down into two 4' sections for storage and travel
- Camera can auto-tilt to remain level, or use can remove a pin to manually tilt the camera
- 1" counterweight bar to hold standard dumbbell weights
- 1/4"-20 and 3/8"-16 tripod mounting thread
UPC: 728028195194 - Camera Crane and Jib Carrying Bag The Camera Crane and Jib Carrying Bag from ProAm USA is a lightly padded and zippered carrying bag which securely stores and transports the DVC50, DVC60, DVC210, DVC300, DVC250, or DVC500 camera crane. It is made of durable padded canvas with nylon handle straps and has a large zippered pouch on the front. UPC: 728028184099
- Iris Pro 7" On-Camera Monitor Basic Kit Display your camera signal on a 7" screen. The Iris Pro 7" On-Camera Monitor Basic Kit from ProAm USA offers HDMI, VGA, and Composite inputs, supports up to 1080p60 signals, and includes several useful accessories, providing for comprehensive 7" monitoring solution. Accessories include a shoe-mount, tabletop stand, and a remote control. HDMI and RCA cables are also included to get you started right away.
The Iris Pro features a 800 x 480 display resolution and can show an image in 16:9 and 4:3 aspect ratios. The viewing angles are 120 and 140°, and the image can be flipped left/right and up/down to accommodate different shooting scenarios. Additionally, the display can be set to show picture information on one side of the screen without obstructing the image. Furthermore, the display can be configured with brightness, contrast, color temperature, saturation, and hue/tint controls to suit your preferences.
The Iris Pro comes with an AC adapter for continuous power in a studio environment and also includes a Canon BP-900 Series battery plate. Attach any BP-900 Series battery, such as a Canon or third-party BP-970 battery, and you're set for a battery-operated workflow. - Key Features
-
- HDMI, VGA, and Composite RCA inputs
- Supports up to 1080p60 HD camera signals
- 800 x 480 display resolution
- 16:9 and 4:3 aspect ratios
- 120/140° viewing angle
- Includes an AC adapter, Canon BP-900 battery plate, and car lighter adapter
- Includes a shoe-mount, tabletop stand, remote control, and HDMI and RCA cables
UPC: 728028184082 - Canon BP Battery Plate for 12V Monitor/LED Light Power your 12V monitor or LED light off a Canon battery with this Canon BP Battery Adapter Plate from ProAm USA. It uses a standard barrel jack connector for compatibility with most devices that will accept a 12V power source. The plate itself mounts to the rear of your device using the included touch fastener pads.
- Converts camcorder battery to 12V
- Up to five hours of power depending on battery
UPC: 728028195255 - Canon BP-915 Equivalent 2000mAh Battery & Charger The Canon BP-915 Equivalent 2000mAh Battery & Charger from ProAm USA is used for powering an LCD monitor when using the Canon BP series adapter plate. The battery can power an LCD monitor for up to 5 hours and can also be used for powering Canon XL series camcorders. UPC: 728028207583
- Mini-HDMI Type-C to HDMI Type-A Cable (10') The 10' Mini-HDMI Type-C to HDMI Type-A Cable from ProAm USA allows you to connect devices with a Mini-HDMI output to displays with an HDMI input, such as a Canon 5D II to ProAm's HD LCD. The cable features gold-plated connectors. UPC: 013964711264
- LCD Monitor Mounting Bracket and Ball Mount Attach your LCD monitor to your crane with this Mounting Bracket and Ball Mount from ProAm USA in order to easily check your exposure and composition while your camera is mounted atop the crane. The mounting bracket itself is an L-bracket which secures to the side of the crane, while the included articulating ball mount secures the monitor to the L-bracket. The ball mount affixes to the bracket via a standard shoe mount, while the monitor is secured via the 1/4"-20 screw on top of the ball mount. UPC: 013964711035
- 7" LCD Video Monitor Hood / Sunshade View your 7" monitor's screen in bright daylight with the ProAm USA 7" LCD Video Monitor Hood / Sunshade. Attaching via hook-and-loop straps, this hood is easy to apply and remove as needed, and folds for easy storage when not in use. The bottom layer is separate from the top and sides, so you can move it in order to minimize light leak. Since this hood only requires front-mounting, side controls will remain accessible while the hood is attached. UPC: 728028023039
- 8" Hook-and-Loop Fastener Cable Ties (4-Pack) The 4-pack of 8" Hook-and-Loop Fastener Cable Ties from ProAm USA is designed to secure loose audio, video, or LANC cables. The cable ties can also be used on tripod legs to secure camera cables, or to keep loose cables out of the way of your camera shot. The cable ties are 8" in length. UPC: 013964711097
- Camera Crane Tilt Brake The Camera Crane Tilt Brake from ProAm USA is designed to enable you to set your crane's vertical tilt at any angle. The tilt brake is compatible with the ProAm USA Orion DVC200, DVC210, and DVC250 cranes.
- Adjusts crane's vertical tilt
UPC: 728028207613 - PROAMFT Pro Tripod Legs & Bag Kit The PROAMFT from ProAm USA is a pro tripod legs & bag kit. The tripod legs are capable of supporting up to 80 lb. The tripod legs weigh 8.5 lb and extend from 27" to 63" tall. A 3/8" screw mount on the top of the tripod provides easy mounting for a camera crane. A geared telescopic center column, bubble level, and spreader are featured for added stability and level shots. A tripod carrying bag is included with the package.
- Legs extend up to 63" tall
UPC: 728028006124 - 4' Extension for DVC200 and DVC210 Camera Cranes The 4' Extension from ProAm USA allows the 8' DVC200 and DVC210 Camera Cranes to be extended to 12'. Note: This extension is only compatible with DVC200 models that were purchased AFTER March 12, 2007. While it allows the 8' model to have a 12' reach, it is NOT intended to bring the DVC250 to 16'. UPC: 728028003994
- 360° Pan Lockable Bearing Mount to 3/8" Tripod Legs Use the ProAm USA 360° Pan Lockable Bearing Mount to replace your standard tripod head atop your tripod using the standard 3/8"-16 screw. Most video fluid heads don't have sufficient capacity to reliably hold a jib with a camera mounted to it. The Bearing Mount supports 50 pounds and has full 360° operation for smooth complex camera movements.
- Allows you to pan your camera crane smoothly a full 360° using two sets of integrated steel bearings
- Features a knob to lock the pan of the mount
UPC: 728028195262 - Support Cables for Orion DVC250 Camera Cranes Give your ProAm USA Orion DVC250 Camera Crane extra support with these Support Cables. All necessary mounting equipment is included to secure and tighten the cables to provide stability against unwanted movement. UPC: 728028184075
In the Box Bundle Items Orion DVC210 8' DSLR Camera Crane / Jib vbybcyqtzerafvsbuvsbxtxrvaecfb - Limited Lifetime Warranty
Camera Crane and Jib Carrying Bag Iris Pro 7" On-Camera Monitor Basic Kit - Canon BP Battery Plate for 12V Monitor/LED Light
- Accessory Shoe Mount for LCD Monitors
- Mini-HDMI Type-C to HDMI Type-A Cable (3')
Canon BP Battery Plate for 12V Monitor/LED Light - Set of Hook-and-Loop Fastener Tabs
Canon BP-915 Equivalent 2000mAh Battery & Charger Mini-HDMI Type-C to HDMI Type-A Cable (10') vbybcyqtzerafvsbuvsbxtxrvaecfb LCD Monitor Mounting Bracket and Ball Mount - Accessory Shoe Mount for LCD Monitors
7" LCD Video Monitor Hood / Sunshade vbybcyqtzerafvsbuvsbxtxrvaecfb - Set of Hook-and-Loop Fasteners
8" Hook-and-Loop Fastener Cable Ties (4-Pack) Camera Crane Tilt Brake PROAMFT Pro Tripod Legs & Bag Kit 4' Extension for DVC200 and DVC210 Camera Cranes 360° Pan Lockable Bearing Mount to 3/8" Tripod Legs Support Cables for Orion DVC250 Camera Cranes - Aluminum Support Rod and Bolt
- 2 x Heavy-Duty Turnbuckle
Table of Contents
|
Upload User Manual
Have you got an user manual for the ProAm USA Orion DVC210 12' Camera Crane Wedding Production Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Orion DVC210 8' DSLR Camera Crane / Jib
| Material | 6061 powered-coated aluminum | | Load Capacity | 10 lb (4.5 kg) | | Arm Reach | 5' (1.5 m) | | Mounting Threads | 1/4"-20 and 3/8"-16 | | Length | 8' (2.4 m) | | Weight | 12 lb (5.4 kg) | | | | Box Dimensions (LxWxH) | 53.0 x 10.0 x 8.0" | - Camera Crane and Jib Carrying Bag
| Compatible Models | DVC50, DVC60, DVC210, DVC300, 3-section DVC250 or DVC500 | | Dimensions | 54.0 x 12.0 x 6.0" (137.2 x 30.5 x 15.2 cm) | | | | Box Dimensions (LxWxH) | 19.3 x 18.2 x 2.0" | - Iris Pro 7" On-Camera Monitor Basic Kit
| Panel | 7" (25.4 cm) LED backlit | | Brightness | 400 cd/m2 | | Contrast | 500:1 | | Viewing Angle | H/V: 140 / 120° | | Aspect Ratio | 16:9 / 4:3 | | Display Resolution | 800 x 48 | | Supported Resolutions | 1280 x 720 at 24p, 25/30p, 50/60p
1920 x 1080 at 24p, 25/30p, 50/60i/p | | Input Connectors | 1 x HDMI
1 x Composite AV via 3-RCA
1 x VGA | | Power Input | 1 x DC barrel
Canon BP-900 Series battery plate included | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Input Voltage | 12 VDC | | Current | 500 mA (under 800 x 600 - 60 Hz) | | Power Consumption | ≤ 8 W | | Dimensions | 7.4 x 5.2 x 1.3" (18.8 x 13.1 x 3.3 cm) | | Weight | 18 oz (510 g) | | | | Box Dimensions (LxWxH) | 12.45 x 7.85 x 2.85" | - Canon BP Battery Plate for 12V Monitor/LED Light
| Compatibility | Canon BP-911, BP-915, BP-930, and BP-945 | | Power Connector Size | Outer Diameter: 0.2" (5.5 mm)
Inner Diameter: 0.1" (2.1 mm) | | Weight | 3 oz (85 g) | | | | Box Dimensions (LxWxH) | 4.0 x 2.9 x 0.9" | - Canon BP-915 Equivalent 2000mAh Battery & Charger
| Compatibility | Canon BP series battery adapter plate
Canon XL series camcorders | | Amp Hours | 2000 mAh | | Battery Type | Canon BP-915 type lithium-ion | | Battery Life | Up to 5 hours | | | | Box Dimensions (LxWxH) | 4.3 x 3.1 x 2.0" | - Mini-HDMI Type-C to HDMI Type-A Cable (10')
| Connector 1 | HDMI Type-C Male | | Connector 2 | HDMI Type-A Male | | Cable Length | 10' / 3 m | | Connector Plating | Gold | | Wire Gauge | 30 AWG | | Weight | 6.0 oz / 170.1 g | | | | Box Dimensions (LxWxH) | 10.5 x 7.0 x 2.3" | - LCD Monitor Mounting Bracket and Ball Mount
| Dimensions | 7.13 x 1.00 x 2.75" (18.1 x 2.5 x 7.0 cm) | | Weight | 5.8 oz (164.4 g) | | | | Box Dimensions (LxWxH) | 8.6 x 3.4 x 2.3" | - 7" LCD Video Monitor Hood / Sunshade
| Materials | Nylon / foam | | Mounting | Hook-and-loop fasteners | | Height | Not specified by manufacturer | | Width | Not specified by manufacturer | | Depth | 5" / 127 mm | | | | Box Dimensions (LxWxH) | 16.3 x 5.2 x 0.6" | - 8" Hook-and-Loop Fastener Cable Ties (4-Pack)
| Length | 8" (20 cm), each | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 5.5 x 3.0 x 0.35" | - Camera Crane Tilt Brake
| Compatibility | DVC200
DVC210
DVC250 For cranes purchased after October 2011 | | Material | Aluminum | | Dimensions | 9.50 x 1.00 x 0.25" (24.1 x 2.5 x 0.6 cm) | | Weight | 4.5 oz (127.6 g) | | | | Box Dimensions (LxWxH) | 10.8 x 4.4 x 2.3" | - PROAMFT Pro Tripod Legs & Bag Kit
| | | Head Mount Type | 3/8"-16 Male | | Load Capacity | 80 lb / 36 kg | | Maximum Working Height | 63" / 160 cm | | Minimum Working Height | 27" / 69 cm | | Materials | Aluminum | | | | Box Dimensions (LxWxH) | 28.0 x 8.0 x 7.5" | - 4' Extension for DVC200 and DVC210 Camera Cranes
| Compatibility | DVC200 and DVC210 camera cranes | | | | Box Dimensions (LxWxH) | 59.0 x 5.0 x 4.5" | - 360° Pan Lockable Bearing Mount to 3/8" Tripod Legs
| Mounting Hole | 3/8"-16 | | Material | Aluminum | | Coating | Scratch-resistant black matte powder-coating | | | | Box Dimensions (LxWxH) | 3.3 x 3.2 x 3.0" | - Support Cables for Orion DVC250 Camera Cranes
| | | Box Dimensions (LxWxH) | 16.5 x 6.0 x 2.8" |
