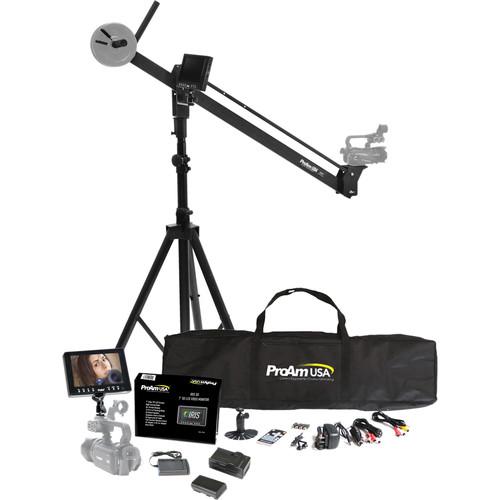

Product description The 4' Orion Jr. DVC60 Basic Crane Package from ProAm USA is a camera crane production package designed for use with a DSLR weighing up to 12 lb. You can use the four foot crane in tight spaces or extend the base support for a reach of up to nine feet in the air. The auto-tilt feature of the ProAm DVC60 enables you to move the crane while maintaining the level and horizontal position of the camera thus allowing for smooth and professional shots. The crane is constructed with CNC machined 6061 aluminum and features a scratch-resistant, powder-coated finish for durability.
The package includes a 7" HD2 LCD monitor, a sun hood, a battery adapter plate, a crane stand, and a transport/storage bag, as well as other accessories. The LCD monitor and sun hood enable you to preview your shots even outdoors when your camera is in the air. The Canon BP Battery Adapter Plate provides you with portable power (Sony plate also available, sold separately). The crane-stand features a smooth 360° panning motion (counterweights not included). - Orion Jr DVC60 4' Compact DSLR Camera Crane/Jib The Orion Jr DVC60 4' Compact DSLR Camera Crane/Jib from ProAm USA is a compact, travel-friendly solution that will boost the production value of your videos by letting you capture dynamic, sweeping camera motion. It supports loads up to 12 lb and extends to provide 2 to 3' of reach from its fulcrum point. While designed with DSLRs in mind, its load capacity coupled with a longer camera plate makes the jib also suitable for compact camcorders and cinema cameras. The arm features one vertical and dual horizontal counterweight bars at the rear that accept standard, readily available dumbbell weights, and has an auto-leveling design that keeps your camera horizontally level as you operate. An optional manual tilt handle is available.
- Features
-
- 4' arm jib arm
- Supports loads up to 12 lb
- Extends to add 2 to 3' of reach from fulcrum
- Extended camera plate to accommodate larger cameras
- Constructed from powder-coated aluminum with steel tripod mount
- Auto-tilting design keeps camera horizontally level as you operate
- Dual counterweight bars hold standard dumbbell weights
- Comes pre-assembled with no tools required
UPC: 728028207620 - Camera Crane Stand Support The Camera Crane Stand Support from ProAm USA is a custom-built 4' to 6' support designed specifically for the ProAm camera crane line of products and is not intended for use with other crane brands. The stand's all-aluminum mount can hold up to 100 lb and features 360° panning motion. It can be used with any ProAm Camera Crane, including the 8' to 12' DVC210, 8' to 12' DVC200, DVC60, and DVC50 models. UPC: 728028105452
- Camera Crane and Jib Carrying Bag The Camera Crane and Jib Carrying Bag from ProAm USA is a lightly padded and zippered carrying bag which securely stores and transports the DVC50, DVC60, DVC210, DVC300, DVC250, or DVC500 camera crane. It is made of durable padded canvas with nylon handle straps and has a large zippered pouch on the front. UPC: 728028184099
- Iris Pro 7" On-Camera Monitor Basic Kit Display your camera signal on a 7" screen. The Iris Pro 7" On-Camera Monitor Basic Kit from ProAm USA offers HDMI, VGA, and Composite inputs, supports up to 1080p60 signals, and includes several useful accessories, providing for comprehensive 7" monitoring solution. Accessories include a shoe-mount, tabletop stand, and a remote control. HDMI and RCA cables are also included to get you started right away.
The Iris Pro features a 800 x 480 display resolution and can show an image in 16:9 and 4:3 aspect ratios. The viewing angles are 120 and 140°, and the image can be flipped left/right and up/down to accommodate different shooting scenarios. Additionally, the display can be set to show picture information on one side of the screen without obstructing the image. Furthermore, the display can be configured with brightness, contrast, color temperature, saturation, and hue/tint controls to suit your preferences.
The Iris Pro comes with an AC adapter for continuous power in a studio environment and also includes a Canon BP-900 Series battery plate. Attach any BP-900 Series battery, such as a Canon or third-party BP-970 battery, and you're set for a battery-operated workflow. - Key Features
-
- HDMI, VGA, and Composite RCA inputs
- Supports up to 1080p60 HD camera signals
- 800 x 480 display resolution
- 16:9 and 4:3 aspect ratios
- 120/140° viewing angle
- Includes an AC adapter, Canon BP-900 battery plate, and car lighter adapter
- Includes a shoe-mount, tabletop stand, remote control, and HDMI and RCA cables
UPC: 728028184082 - Canon BP Battery Plate for 12V Monitor/LED Light Power your 12V monitor or LED light off a Canon battery with this Canon BP Battery Adapter Plate from ProAm USA. It uses a standard barrel jack connector for compatibility with most devices that will accept a 12V power source. The plate itself mounts to the rear of your device using the included touch fastener pads.
- Converts camcorder battery to 12V
- Up to five hours of power depending on battery
UPC: 728028195255 - Canon BP-915 Equivalent 2000mAh Battery & Charger The Canon BP-915 Equivalent 2000mAh Battery & Charger from ProAm USA is used for powering an LCD monitor when using the Canon BP series adapter plate. The battery can power an LCD monitor for up to 5 hours and can also be used for powering Canon XL series camcorders. UPC: 728028207583
- Mini-HDMI Type-C to HDMI Type-A Cable (6') The 6' Mini-HDMI Type-C to HDMI Type-A Cable from ProAm USA allows you to connect devices with a Mini-HDMI output to displays with an HDMI input, such as a Canon 5D II to ProAm's HD LCD. The cable features gold-plated connectors. UPC: 013964711073
- LCD Monitor Mounting Bracket and Ball Mount Attach your LCD monitor to your crane with this Mounting Bracket and Ball Mount from ProAm USA in order to easily check your exposure and composition while your camera is mounted atop the crane. The mounting bracket itself is an L-bracket which secures to the side of the crane, while the included articulating ball mount secures the monitor to the L-bracket. The ball mount affixes to the bracket via a standard shoe mount, while the monitor is secured via the 1/4"-20 screw on top of the ball mount. UPC: 013964711035
- 7" LCD Video Monitor Hood / Sunshade View your 7" monitor's screen in bright daylight with the ProAm USA 7" LCD Video Monitor Hood / Sunshade. Attaching via hook-and-loop straps, this hood is easy to apply and remove as needed, and folds for easy storage when not in use. The bottom layer is separate from the top and sides, so you can move it in order to minimize light leak. Since this hood only requires front-mounting, side controls will remain accessible while the hood is attached. UPC: 728028023039
- 8" Hook-and-Loop Fastener Cable Ties (4-Pack) The 4-pack of 8" Hook-and-Loop Fastener Cable Ties from ProAm USA is designed to secure loose audio, video, or LANC cables. The cable ties can also be used on tripod legs to secure camera cables, or to keep loose cables out of the way of your camera shot. The cable ties are 8" in length. UPC: 013964711097
In the Box Bundle Items Orion Jr DVC60 4' Compact DSLR Camera Crane/Jib ebfrqrvbwb - 1/4"-20 Camera Mounting Screw
- Limited Lifetime Warranty
Camera Crane Stand Support Camera Crane and Jib Carrying Bag Iris Pro 7" On-Camera Monitor Basic Kit - Canon BP Battery Plate for 12V Monitor/LED Light
- Accessory Shoe Mount for LCD Monitors
- Mini-HDMI Type-C to HDMI Type-A Cable (3')
Canon BP Battery Plate for 12V Monitor/LED Light - Set of Hook-and-Loop Fastener Tabs
Canon BP-915 Equivalent 2000mAh Battery & Charger Mini-HDMI Type-C to HDMI Type-A Cable (6') ebfrqrvbwb LCD Monitor Mounting Bracket and Ball Mount - Accessory Shoe Mount for LCD Monitors
7" LCD Video Monitor Hood / Sunshade - Set of Hook-and-Loop Fasteners
8" Hook-and-Loop Fastener Cable Ties (4-Pack) Table of Contents
|
Upload User Manual
Have you got an user manual for the ProAm USA Orion Jr. DVC60 Basic Crane Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Orion Jr DVC60 4' Compact DSLR Camera Crane/Jib
| Material | Powder coated aluminum with steel tripod mount | | Maximum Load Capacity | 12 lb (5.4 kg) | | Maximum Reach | 2 to 3' (0.6 to 0.9 m) | | Tripod Mounting Threads | 1/4"-20 and 3/8"-16 | | Camera Mounting Screw | 1/4"-20 | | Length | 4' (1.2 m) | | Weight | 10 lb (4.5 kg) | | | | Box Dimensions (LxWxH) | 53.0 x 10.0 x 8.0" | - Camera Crane Stand Support
| Compatibility | All ProAm camera cranes | | Maximum Load Capacity | 100.0 lb (45.4 kg) | | Height | Minimum: 4.0' (1.2 m)
Maximum: 6.0' (1.8 m) | | | | Box Dimensions (LxWxH) | 48.0 x 6.5 x 6.5" | - Camera Crane and Jib Carrying Bag
| Compatible Models | DVC50, DVC60, DVC210, DVC300, 3-section DVC250 or DVC500 | | Dimensions | 54.0 x 12.0 x 6.0" (137.2 x 30.5 x 15.2 cm) | | | | Box Dimensions (LxWxH) | 19.3 x 18.2 x 2.0" | - Iris Pro 7" On-Camera Monitor Basic Kit
| Panel | 7" (25.4 cm) LED backlit | | Brightness | 400 cd/m2 | | Contrast | 500:1 | | Viewing Angle | H/V: 140 / 120° | | Aspect Ratio | 16:9 / 4:3 | | Display Resolution | 800 x 48 | | Supported Resolutions | 1280 x 720 at 24p, 25/30p, 50/60p
1920 x 1080 at 24p, 25/30p, 50/60i/p | | Input Connectors | 1 x HDMI
1 x Composite AV via 3-RCA
1 x VGA | | Power Input | 1 x DC barrel
Canon BP-900 Series battery plate included | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Input Voltage | 12 VDC | | Current | 500 mA (under 800 x 600 - 60 Hz) | | Power Consumption | ≤ 8 W | | Dimensions | 7.4 x 5.2 x 1.3" (18.8 x 13.1 x 3.3 cm) | | Weight | 18 oz (510 g) | | | | Box Dimensions (LxWxH) | 12.45 x 7.85 x 2.85" | - Canon BP Battery Plate for 12V Monitor/LED Light
| Compatibility | Canon BP-911, BP-915, BP-930, and BP-945 | | Power Connector Size | Outer Diameter: 0.2" (5.5 mm)
Inner Diameter: 0.1" (2.1 mm) | | Weight | 3 oz (85 g) | | | | Box Dimensions (LxWxH) | 4.0 x 2.9 x 0.9" | - Canon BP-915 Equivalent 2000mAh Battery & Charger
| Compatibility | Canon BP series battery adapter plate
Canon XL series camcorders | | Amp Hours | 2000 mAh | | Battery Type | Canon BP-915 type lithium-ion | | Battery Life | Up to 5 hours | | | | Box Dimensions (LxWxH) | 4.3 x 3.1 x 2.0" | - Mini-HDMI Type-C to HDMI Type-A Cable (6')
| Connector 1 | HDMI Type-C Male | | Connector 2 | HDMI Type-A Male | | Cable Length | 6' / 1.8 m | | Connector Plating | Gold | | Wire Gauge | 30 AWG | | Weight | 4.0 oz / 113.4 g | | | | Box Dimensions (LxWxH) | 5.9 x 4.0 x 1.0" | - LCD Monitor Mounting Bracket and Ball Mount
| Dimensions | 7.13 x 1.00 x 2.75" (18.1 x 2.5 x 7.0 cm) | | Weight | 5.8 oz (164.4 g) | | | | Box Dimensions (LxWxH) | 8.6 x 3.4 x 2.3" | - 7" LCD Video Monitor Hood / Sunshade
| Materials | Nylon / foam | | Mounting | Hook-and-loop fasteners | | Height | Not specified by manufacturer | | Width | Not specified by manufacturer | | Depth | 5" / 127 mm | | | | Box Dimensions (LxWxH) | 16.3 x 5.2 x 0.6" | - 8" Hook-and-Loop Fastener Cable Ties (4-Pack)
| Length | 8" (20 cm), each | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 5.5 x 3.0 x 0.35" |
