Product description

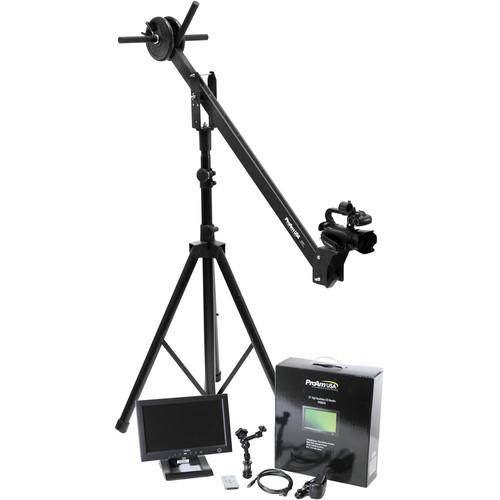

• Orion Jr DVC60 4' Compact DSLR Camera Crane/Jib The Orion Jr DVC60 4' Compact DSLR Camera Crane/Jib from ProAm USA is a compact, travel-friendly solution that will boost the production value of your videos by letting you capture dynamic, sweeping camera motion. It supports loads up to 12 lb and extends to provide 2 to 3' of reach from its fulcrum point. While designed with DSLRs in mind, its load capacity coupled with a longer camera plate makes the jib also suitable for compact camcorders and cinema cameras. The arm features one vertical and dual horizontal counterweight bars at the rear that accept standard, readily available dumbbell weights, and has an auto-leveling design that keeps your camera horizontally level as you operate. An optional manual tilt handle is available.
  Features
  • • 4' arm jib arm
    • Supports loads up to 12 lb
    • Extends to add 2 to 3' of reach from fulcrum
    • Extended camera plate to accommodate larger cameras
    • Constructed from powder-coated aluminum with steel tripod mount
    • Auto-tilting design keeps camera horizontally level as you operate
    • Dual counterweight bars hold standard dumbbell weights
    • Comes pre-assembled with no tools required
  UPC: 728028207620
• Mini-HDMI Type-C to HDMI Type-A Cable (6') The 6' Mini-HDMI Type-C to HDMI Type-A Cable from ProAm USA allows you to connect devices with a Mini-HDMI output to displays with an HDMI input, such as a Canon 5D II to ProAm's HD LCD. The cable features gold-plated connectors. UPC: 013964711073
• Iris Pro XL TFT LCD Monitor (10") The 10" Iris Pro XL TFT LCD Monitor from ProAm USA is an on-camera/on-crane mounted TFT monitor. This monitor features video inputs via HDMI and composite AV BNC connectors. It has a native resolution of 1024 x 600 WSVGA, and can be configured to deliver a maximum resolution of 1920 x 1080. The Iris Pro is compatible with PAL and NTSC color systems, and has a 140° horizontal viewing angle. Mount the Iris Pro XL to your camera or crane using the included articulating arm, and power it with the Canon BP 900 Series Battery Adapter Plate (included).
  • HDMI input
  • RGB input for HD signals using BNC
  • Composite AV Inputs using BNC
  • Remote controllable
  • Built-in speaker on back of monitor
• Camera Crane Stand Support The Camera Crane Stand Support from ProAm USA is a custom-built 4' to 6' support designed specifically for the ProAm camera crane line of products and is not intended for use with other crane brands. The stand's all-aluminum mount can hold up to 100 lb and features 360° panning motion. It can be used with any ProAm Camera Crane, including the 8' to 12' DVC210, 8' to 12' DVC200, DVC60, and DVC50 models. UPC: 728028105452
• LCD Monitor Mounting Bracket and Ball Mount Attach your LCD monitor to your crane with this Mounting Bracket and Ball Mount from ProAm USA in order to easily check your exposure and composition while your camera is mounted atop the crane. The mounting bracket itself is an L-bracket which secures to the side of the crane, while the included articulating ball mount secures the monitor to the L-bracket. The ball mount affixes to the bracket via a standard shoe mount, while the monitor is secured via the 1/4"-20 screw on top of the ball mount. UPC: 013964711035
• Camera Crane Tilt Brake The Camera Crane Tilt Brake from ProAm USA is designed to enable you to set your crane's vertical tilt at any angle. The tilt brake is compatible with the ProAm USA Orion DVC200, DVC210, and DVC250 cranes.
  • Adjusts crane's vertical tilt
  UPC: 728028207613
• 8" Hook-and-Loop Fastener Cable Ties (4-Pack) The 4-pack of 8" Hook-and-Loop Fastener Cable Ties from ProAm USA is designed to secure loose audio, video, or LANC cables. The cable ties can also be used on tripod legs to secure camera cables, or to keep loose cables out of the way of your camera shot. The cable ties are 8" in length. UPC: 013964711097

• 1/4"-20 Camera Mounting Screw

• Limited Lifetime Warranty

• Accessory Shoe Mounting Adapter

• Canon BP Battery Plate for 12V Monitor/LED Light

• Remote Control

• Micro HDMI Cable

• Tabletop Mounting Stand

• AC Adapter

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Accessory Shoe Mount for LCD Monitors

• Limited 1-Year Warranty

• 1/4"-20 x 1" Screw

• 1/4"-20 x 3" Screw

• Limited 1-Year Warranty

• Limited 90-Day Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Orion Jr DVC60 4' Compact DSLR Camera Crane/Jib

  Material	Powder coated aluminum with steel tripod mount
  Maximum Load Capacity	12 lb (5.4 kg)
  Maximum Reach	2 to 3' (0.6 to 0.9 m)
  Tripod Mounting Threads	1/4"-20 and 3/8"-16
  Camera Mounting Screw	1/4"-20
  Length	4' (1.2 m)
  Weight	10 lb (4.5 kg)

  Box Dimensions (LxWxH)	53.0 x 10.0 x 8.0"

• Mini-HDMI Type-C to HDMI Type-A Cable (6')

  Connector 1	HDMI Type-C Male
  Connector 2	HDMI Type-A Male
  Cable Length	6' / 1.8 m
  Connector Plating	Gold
  Wire Gauge	30 AWG
  Weight	4.0 oz / 113.4 g

  Box Dimensions (LxWxH)	5.9 x 4.0 x 1.0"

• Iris Pro XL TFT LCD Monitor (10")

  Panel	10" / 25.4 cm TFT LCD 16:9
  Brightness	250 cd/m2
  Contrast	500:1
  Viewing Angle	H/V: 140°/110°
  Video System	PAL, NTSC
  Resolution	Native: 1024 x 600 Max: 1920 x 1080 HDMI / YPbPr Mode: 1080p (60, 50, 30, 25sF) 1080i (60, 50, 30, 25) 720p (60, 59.94, 50, 30, 25) 576p (50, 30, 25) 576i (50, 30, 25) 480p (60, 59.94, 30, 25) 486i (60, 59.94, 30, 25)
  Input Signal	HDMI YPbPr (RGB) Composite AV1/AV2
  Audio Output	≥250 mW
  Connectors	1 x HDMI, type A 3 x BNC, RGB HD input 1 x BNC, composite input 1 x DC power input 1 x Earphone jack
  Mounting	Standard VESA (75 mm) sockets
  Power Requirements	12 VDC, 500 mA (under 800*600 - 60 Hz) Standby Current: ≤ 50 mA
  Power Consumption	≤ 6 W
  Dimensions	10.2 x 6.7 x 14.4" / 25.9 x 17.0 x 36.5 cm
  Weight	2.5 lb / 1.1 kg

  Box Dimensions (LxWxH)	12.6 x 11.2 x 3.7"

• Camera Crane Stand Support

  Compatibility	All ProAm camera cranes
  Maximum Load Capacity	100.0 lb (45.4 kg)
  Height	Minimum: 4.0' (1.2 m) Maximum: 6.0' (1.8 m)

  Box Dimensions (LxWxH)	48.0 x 6.5 x 6.5"

• LCD Monitor Mounting Bracket and Ball Mount

  Dimensions	7.13 x 1.00 x 2.75" (18.1 x 2.5 x 7.0 cm)
  Weight	5.8 oz (164.4 g)

  Box Dimensions (LxWxH)	8.6 x 3.4 x 2.3"

• Camera Crane Tilt Brake

  Compatibility	DVC200 DVC210 DVC250 For cranes purchased after October 2011
  Material	Aluminum
  Dimensions	9.50 x 1.00 x 0.25" (24.1 x 2.5 x 0.6 cm)
  Weight	4.5 oz (127.6 g)

  Box Dimensions (LxWxH)	10.8 x 4.4 x 2.3"

• 8" Hook-and-Loop Fastener Cable Ties (4-Pack)

  Length	8" (20 cm), each
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	5.5 x 3.0 x 0.35"
