User Manual for ProAm USA Slideways Pro Slider Kit with Tandem Leg Tripod & Fluid Head Click to enlarge the picture
Contents of the user manual for the ProAm USA Slideways Pro Slider Kit
- Product category: Camera Sliders ProAm USA
- Brand: ProAm USA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ProAm USA Camera Sliders
 |
User manual for the ProAm USA Slideways Pro Slider Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ProAm USA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ProAm USA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ProAm USA product will considerably shorten its lifespan!
|

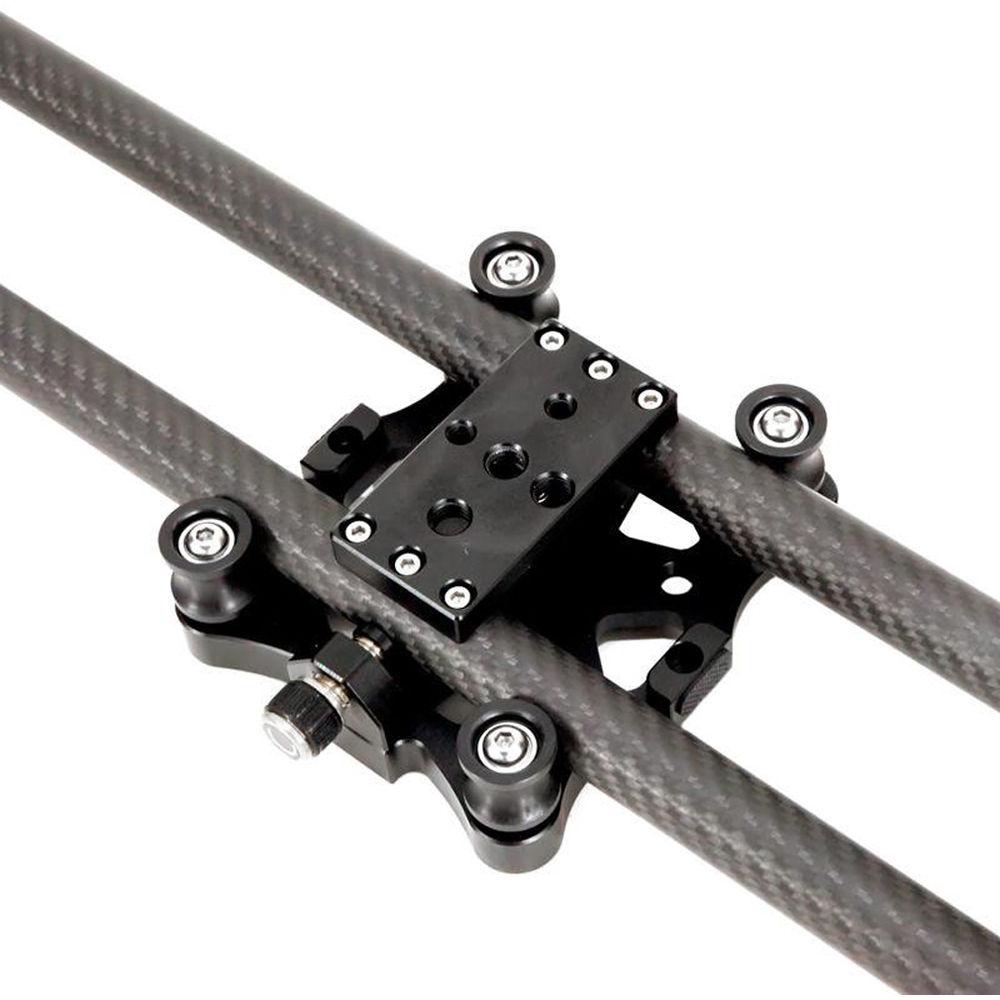

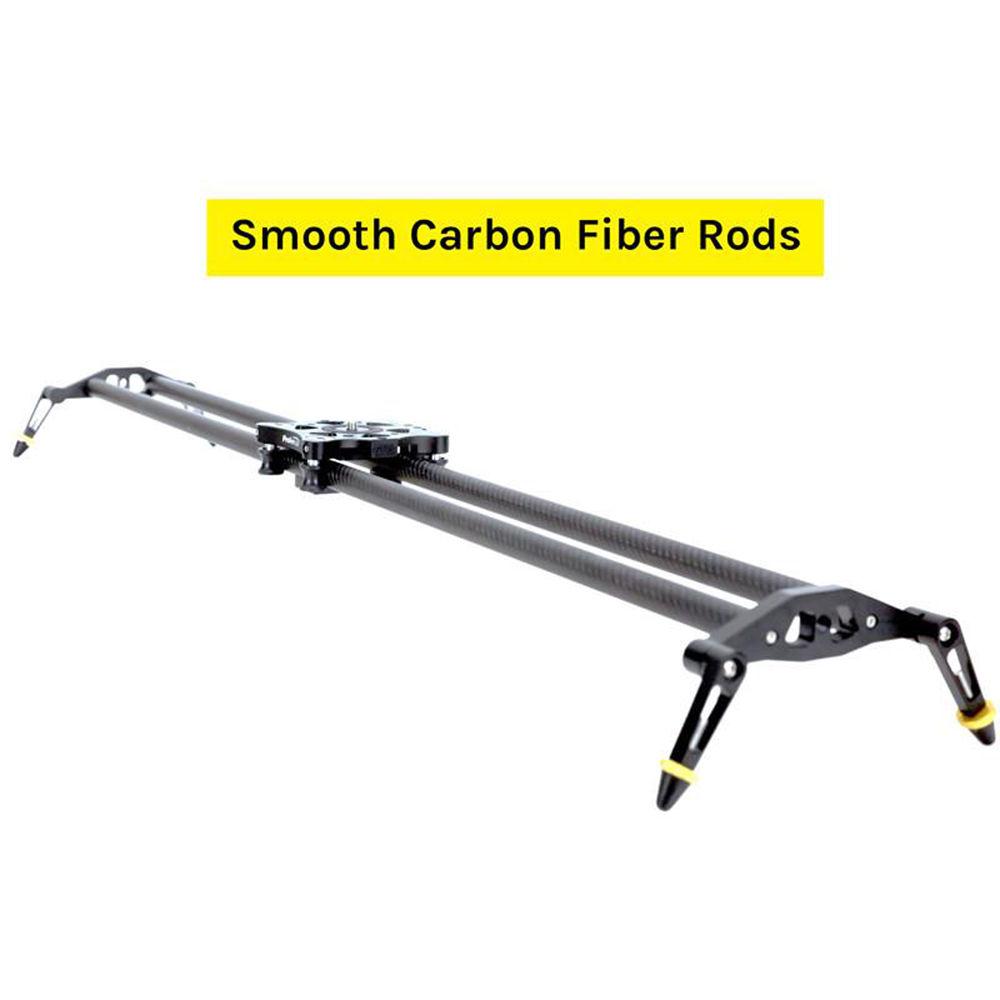

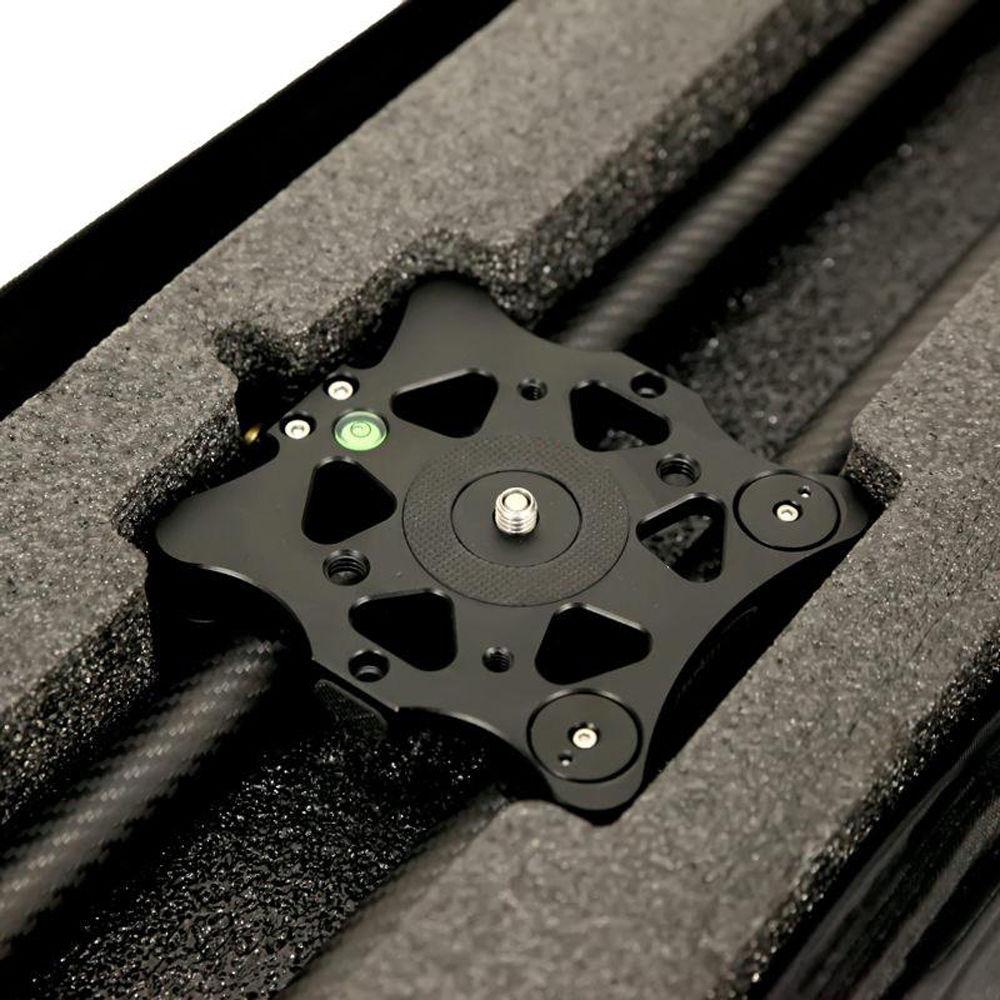

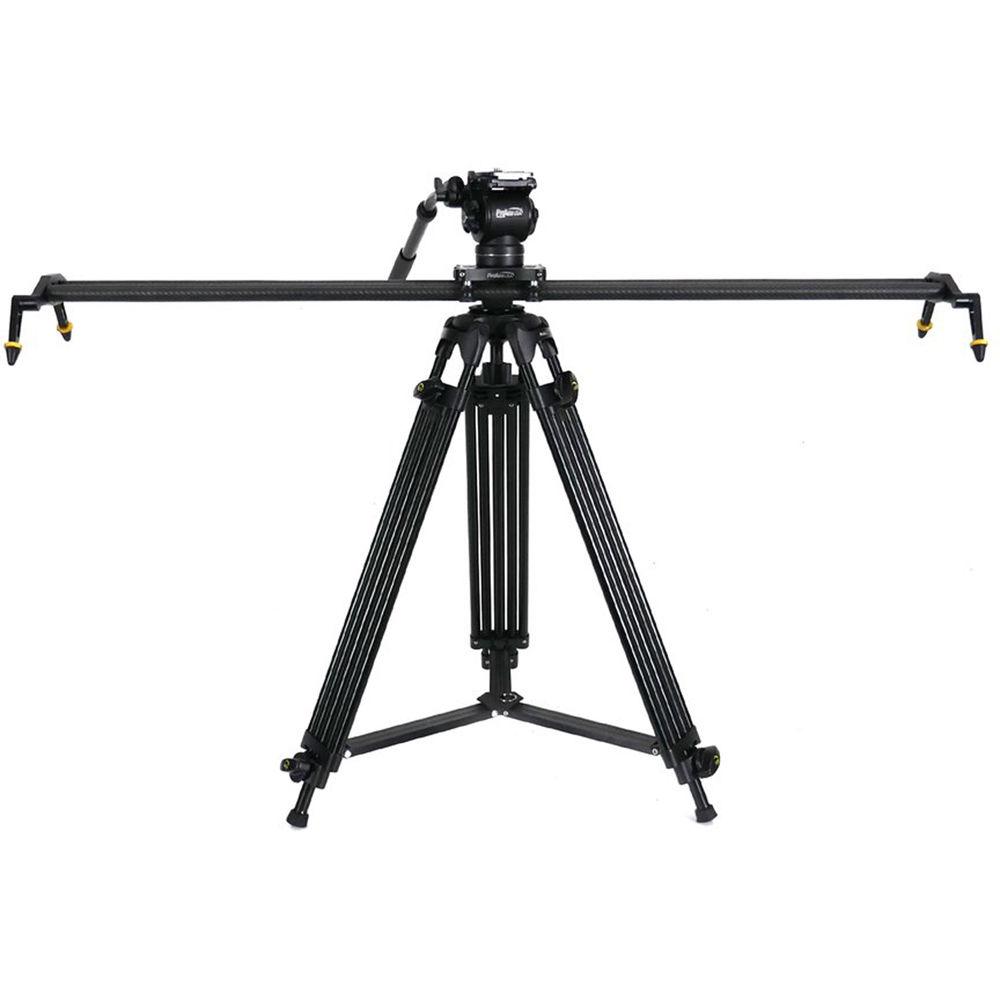

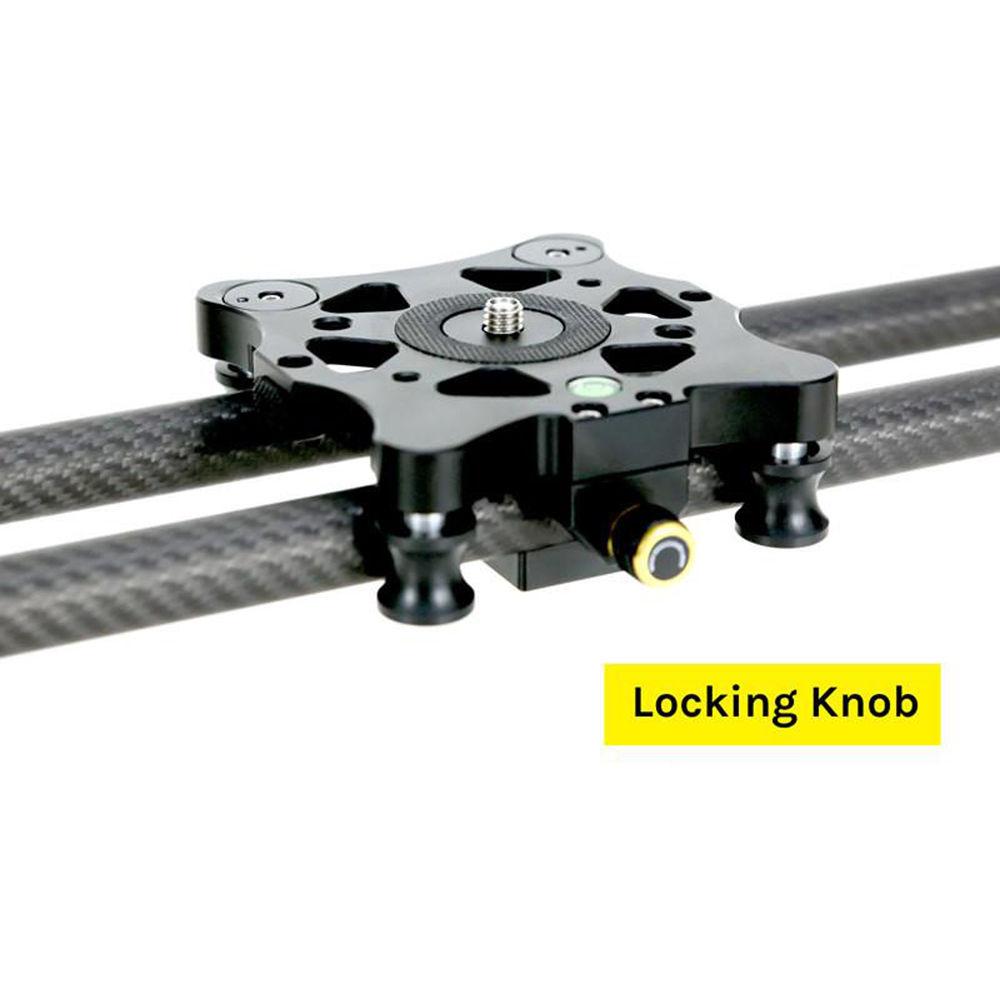

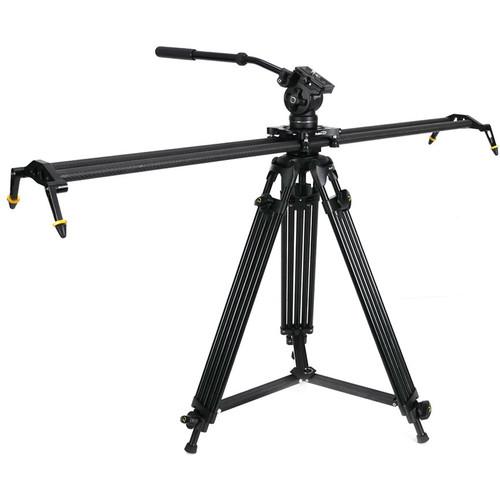

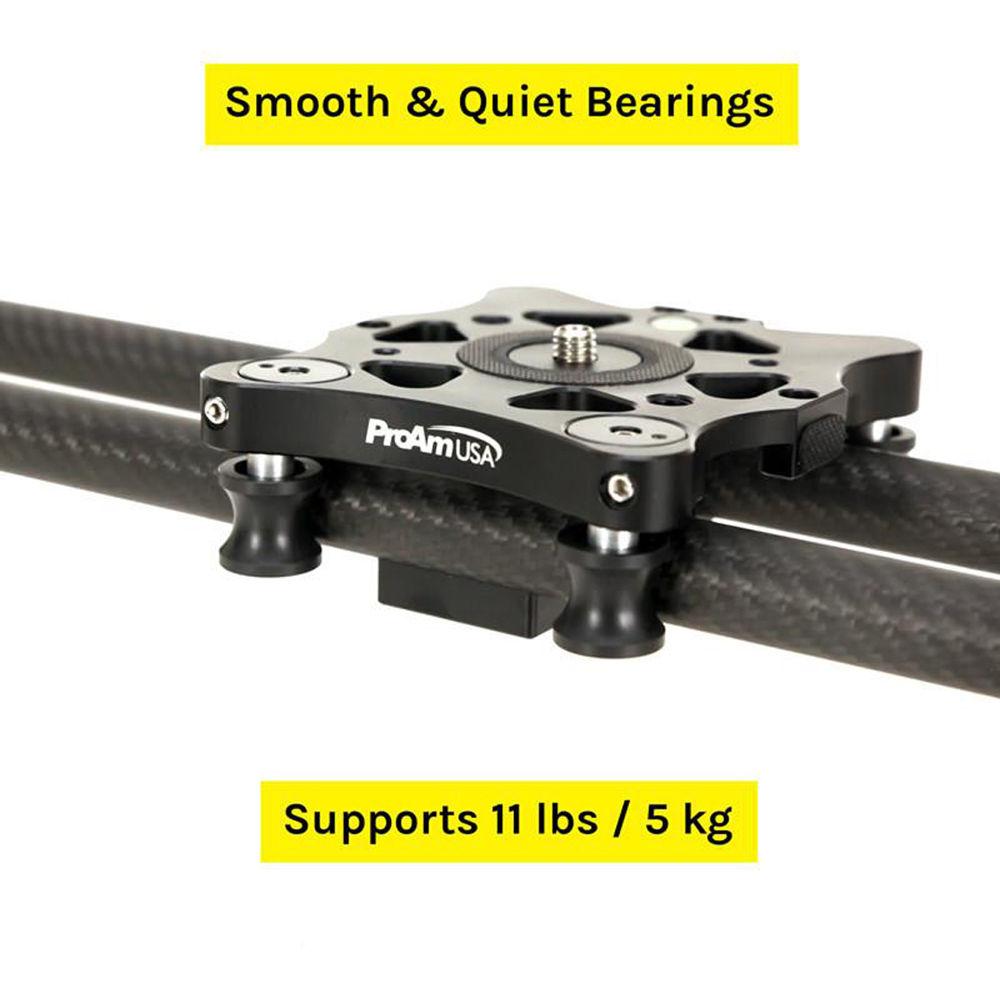

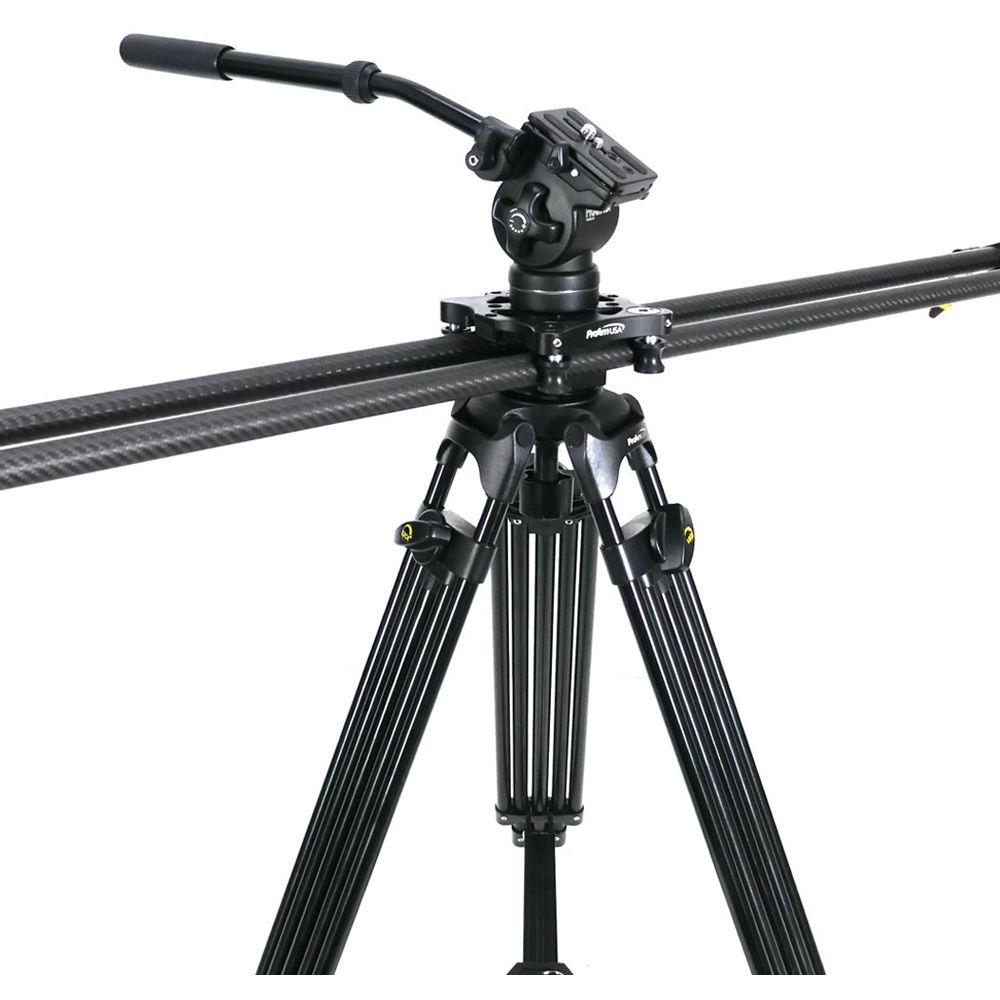

Product description The Slideways Pro Slider Kit from ProAm USA includes the 48" Slideways Slider, Tandem Leg Tripod, and Flat Base Tripod Fluid Head. The carbon fiber slider's heavy-duty camera platform with integrated bearings can support a load up to 11 lb. There are multiple 1/4"-20 or 3/8"-16" mounting threads in the center, and 3/8"-16 on the ends, for attaching to tripod heads. The slider features a sliding locking knob on the camera platform and two height-adjustable ends with collapsible feet.

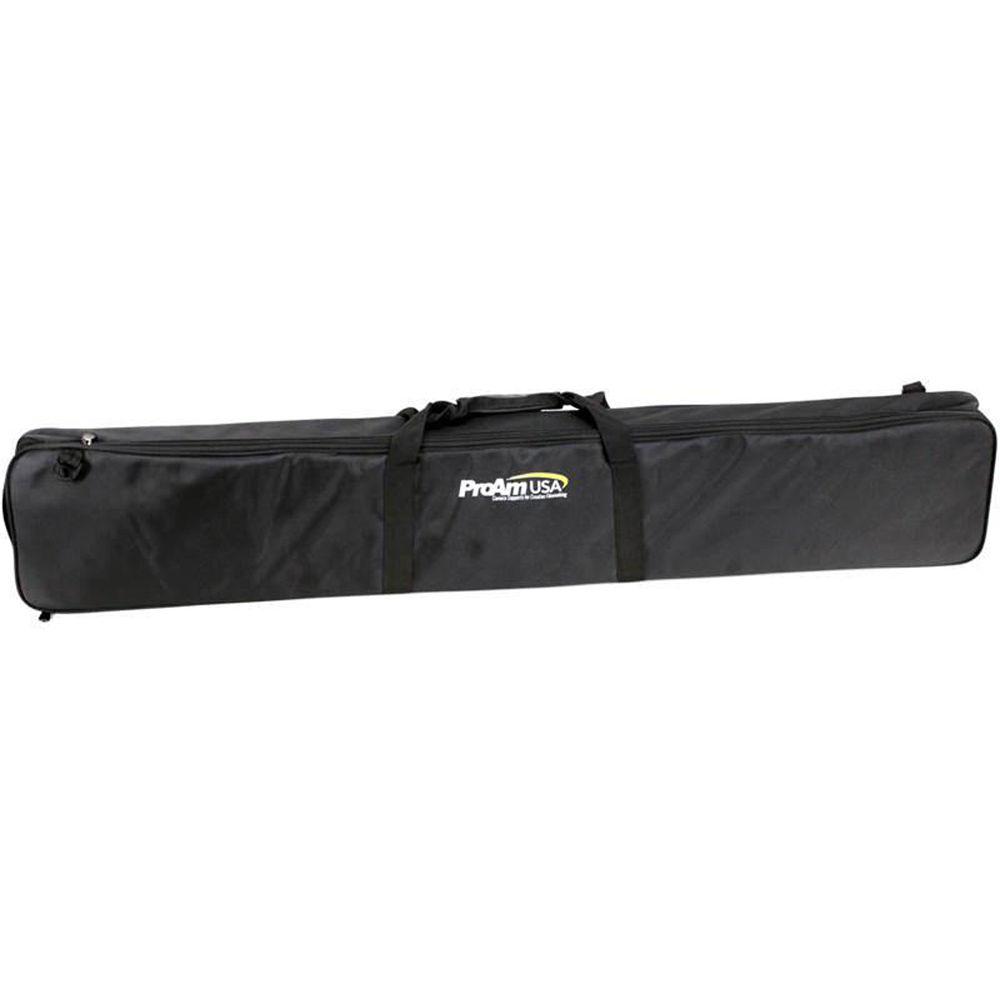

The Tandem-Leg tripod has a 75mm bowl mount with a 3/8"-16 adapter. It features three-section extending aluminum legs, and supports loads up to 40 lb. The height of the tripod extends from 25.5 to 58". The Flat Base Professional Fluid Tripod Head provides smooth, controlled pan and tilt movement for loads weighing up to 13.2 lb. It attaches to the tripod via a 3/8"-16 mounting screw and features 360° panoramic rotation, a bubble spirit level, and independent pan and tilt locks. Included with the head is a quick release plate for camera attachment. UPC: 013964711561 In the Box ProAm USA Slideways Pro Slider Kit with Tandem Leg Tripod & Fluid Head (48") Pan Handle Quick Release Plate Carry Bag for Tripod Carry Bag for Slider Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProAm USA Slideways Pro Slider Kit with Tandem Leg Tripod & Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

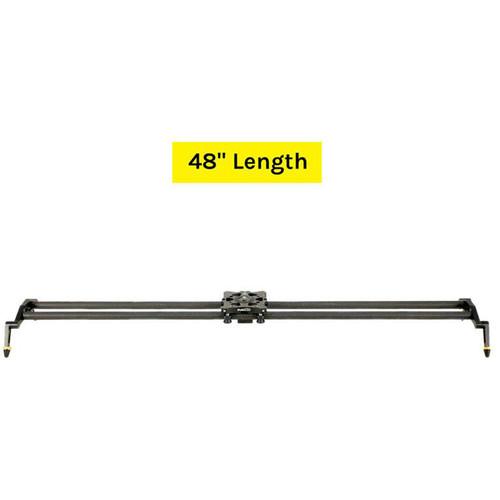

Technical parametersProAm USA SLDJY48-TRIJY-TH38 Specs | | | Length | 48.0" / 122.0 cm | | Load Capacity | 11.0 lb / 5.0 kg | | Mounting Threads | Center: 1/4"-20 and 3/8"-16
Ends: 3/8"-16 | | Material | Carbon fiber rails | | Weight | 3.3 lb / 1.5 kg | | | | Bowl | 75 mm | | legs | Triple-section extending aluminum legs | | Load Capacity | 40.0 lb / 18.0 kg | | Height | Maximum Height: 58.0" / 147.3 cm
Minimum Height: 25.5" / 64.8 cm
Collapsed Height: 27.5" / 69.9 cm | | Weight | 6.8 lb / 3.0 kg) | | | | Camera Mounting Screws | 1/4"-20 and 3/8"-16 | | Base Mount Thread Size | 3/8"-16 | | Lock | Pan and tilt | | Rotation | 360° | | Load Capacity | 13.2 lb / 6.0 kg | | Working Height | 4.74" / 12.3 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 21.75 lb | | Box Dimensions (LxWxH) | 22.8 x 14.0 x 7.8" |
