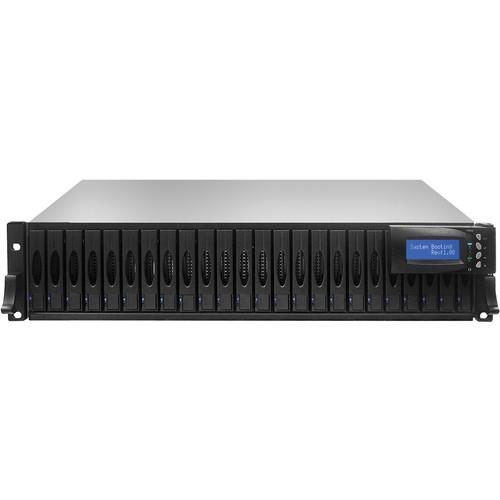

User Manual for Proavio DS240FS 4.8TB 24-Bay SSD RAID Array with Dual Controllers Click to enlarge the picture
Contents of the user manual for the Proavio DS240FS 4.8TB 24-Bay SSD RAID
- Product category: Hard Drive Arrays Proavio
- Brand: Proavio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Proavio Hard Drive Arrays
|
User manual for the Proavio DS240FS 4.8TB 24-Bay SSD RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Proavio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Proavio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Proavio product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The DS240FS 4.8TB (24 x 200GB) 24-Bay SSD RAID Array with Dual Controllers from Proavio combines a dual active RAID design and twenty four 200GB 2.5" SAS SSDs for capturing, editing, and rendering full resolution videos without compromising on quality. This array offers four high-speed 16 Gb/s SFP optical ports on two controllers which deliver data at full performance and redundancy that is expected of an enterprise solution. It is designed in a 2RU form factor and includes 16GB of RAM.
The hot-swappable SSDs can be configured in a wide variety of RAID modes that offer performance, redundancy, or both. This array supports SAN network configurations such as VMware, Xsan, and more. These features provide real-time file sharing in IT infrastructures as well as postproduction workflows. These enterprise class SSDs are designed for 4K media formats such as DPX, RED R3D, ARRIRAW, and more. Furthermore, a dual-port 6 Gb/s SAS expansion bus allows data growth capacities up to 192TB with multiple expansion nodes.
This storage array comes equipped with redundant hot-swappable modules that offer power and cooling with dual power supplies and smart cooling fans. This feature provides redundancy and reliability for critical and intensive data applications. In addition to the modules, this array is compatible with Thunderbolt-to-FC bridging technologies to add support for both Fibre and Thunderbolt users. - Dual-Active Storage Platform
- The DS240FS provides continuous, fail-safe access to your valuable media
- Capacity
- This storage array comes preinstalled with twenty-four 200GB SSDs offering up a total capacity of 4.8TB
- Leverage SSD Technology
- Powered by enterprise class 2.5" SSDs to deliver performance
- Optimized for Cinema
- Designed for 4K resolution file formats and workflows
- Performance Solution
- Experience read and write speeds up to 2,975 MB/s
- Thunderbolt-Ready
- The DS240FS is compatible with Thunderbolt systems via an optional external adapter
- Fibre Channel Workgroup Solution
- Compatible with Xsan, MetaSAN, Stornext, Fibrejet, and SANmp.
In the Box Proavio DS240FS 4.8TB (24 x 200GB) 24-Bay SSD RAID Array with Dual Controllers Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Proavio DS240FS 4.8TB 24-Bay SSD RAID Array with Dual Controllers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProavio DS240 Specs | Total Raw Capacity | 192 TB | | Maximum Number of Drives Supported | 120 | | Included Storage Capacity | 4.8 TB
24 x 200 GB 2.5" enterprise SAS SSDs | | Form Factor | 2 x dual active-active controllers
24-Disk, 2 RU storage/SAN array | | Memory | 16 GB (2 x 8 GB) | | Ports | 4 x 16 Gb/s FC, SFP, optical
2 x 6 Gb/s SAS ports | | Disk Support | 2.5" / SAS SSD / 6 Gb/s and 12 Gb/s
2.5" / 10 K enterprise SAS / 6 Gb/s | | Storage Protocols | 16 Gb/s Fibre Channel | | RAID & Volume Operation | RAID level 0 ( 0+1 ), 3, 5, 6, 10, 30, 50, 60, and JBOD
Multiple array support
Up to 128 logical volumes
Hot-swap drive support
Global and dedicated spare drive assignment
Online volume expansion | | High Availability | Dual-active RAID controller
Flexible RAID group ownership management
Multi-path and load-balancing support | | Expansion | 6 Gb/s SAS Expansion Bus (SFF8088), Up to 96 Disks | | Infrastructure Support | Direct attached or SAN | | OS Support | Windows 7, Windows Server 2012, Windows Server 2008, Linux, Mac OS X, VMware VSphere/ESX | | Performance | Read: up to 2,975 MB/s
Write: up to 2,815 MB/s | | Hot-Swap Support | 2 x 400 W, 80 PLUS, load-balancing, hot-swap power modules | | Power Requirements | 90 to 264 VAC
7.5 to 4 A, 47 to 63 Hz (each module) | | System Cooling | 2 x hot-swap smart fan modules | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Relative Humidity | 10 to 85% non-condensing | | Compliance | RoHS, CE, TUV, FCC | | Certifications | VMware VSphere 5 | | SAN Software Compatibility | FibreJet, MetaSAN, SANmp, Stornext, and Xsan | | Dimensions | 22.0 x 19.0 x 3.5" / 55.9 x 48.3 x 8.9 cm | | Weight | 44 lb / 20.0 kg (32 lb / 14.5 kg without disk drives) |
