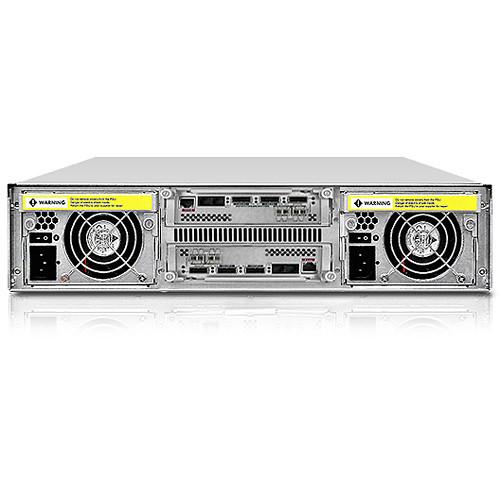

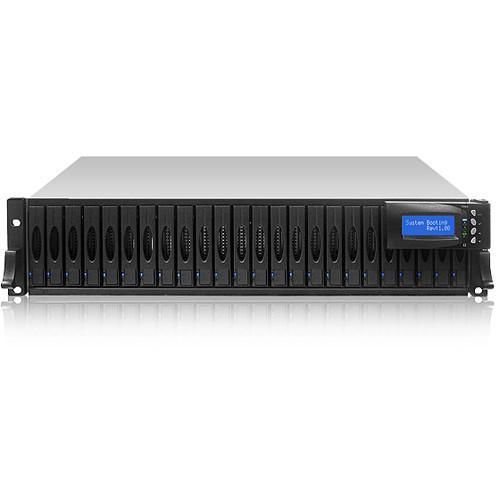

User Manual for Proavio DS240FS Series 24-Bay 2.5" Enterprise SAS SSD Powered SAN Storage Solution Click to enlarge the picture
Contents of the user manual for the Proavio DS240FS Series 24-Bay 2.5" Enterprise
- Product category: Hard Drive Arrays Proavio
- Brand: Proavio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Proavio Hard Drive Arrays
 |
User manual for the Proavio DS240FS Series 24-Bay 2.5" Enterprise contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Proavio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Proavio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Proavio product will considerably shorten its lifespan!
|

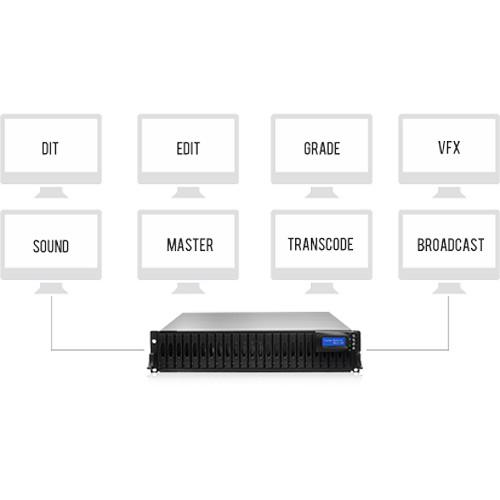

Product description RAID Arrays for Photography and Pro Video Read More The 24-bay DS240FS Series Enterprise SAN Storage Solution is an ultra-dense 2U rack storage solution that leverages 2.5" SSD and delivers the good system reliability and performance for mission critical production workflows. An active-active, 16G Fibre controller system design provides users with continuous availability of media files at data transfer rates up to 3,500 MB/s (RAID 5). A dual-port, 6G SAS expansion provides instantaneous capacity growth capabilities by adding JBOD expansion nodes (available separately). User can extend compatibility with Thunderbolt-to-FC bridging technology and add simultaneous support for both Fibre and Thunderbolt users. From HD to 4K, the DS240FS is suitable for high resolution media formats such as DPX, RED R3D, ARRIRAW, Arri Alexa, uncompressed HD, DSLR RAW and more. - Fail-safe RAID protection
- Designed for 4K resolution file formats and workflows
- Professional-grade, hot-swap components for 24/7 operation
- Instantly add high-speed FC storage to any Thunderbolt enabled system
- Compatible with Xsan, MetaSAN, Stornext, Fibrejet and SANmp
In the Box Proavio DS240FS Series 24-Bay 2.5" Enterprise SAS SSD Powered SAN Storage Solution (2U, 4.8TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Proavio DS240FS Series 24-Bay 2.5" Enterprise SAS SSD Powered SAN Storage Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProavio DS240FS Specs | Capacity | 4.8 TB | | Form Factor | 2 x Active-active controllers
24-disk, 2 RU storage/SAN array | | Memory | 16 GB (2 x 8 GB) | | Data I/O Ports | 4 x 16G FC, SFP, optical | | Disk Support | 2.5", SAS SSD, 6 Gb/s & 12 Gb/s | | Storage Protocols | 16G fibre channel | | RAID & Volume Operation | RAID level 0 (0+1), 3, 5, 6, 10, 30, 50, 60 & JBOD
Multiple array support
Up to 128 logical volumes
Hot-swap drive support
Spare drive assignment
Online volume expansion | | High Availability | Dual-active RAID controller
Synchronized cache
Flexible RAID group ownership management
Multi-path & load-balancing support (Microsoft MPIO) | | Expansion | 6 Gb/s SAS Expansion Bus (SFF8088), up to 96 disks | | OS Support | Mac OS, Windows Server 2008, Windows Server 2012, Windows 7, Linux, VMware, ESX | | Certifications | VMware VSphere 5 | | Compliance | RoHS, CE, TUV, FCC | | SAN Compatibility | FibreJet, MetaSAN, SANmp, Stornext, Xsan | | System Cooling | 2 x Hot-swap smart fan modules | | Hot-Swap Power Modules | 2 x 400 W, 80+, PFC, load-balancing, hot-swap power modules | | Power Requirements | 90 to 264 VAC full range
8 to 4 A, 47 to 63 Hz | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Relative Humidity | 10 to 85% non-condensing | | Dimensions | 22.0 x 19.0 x 3.4" / 55.9 x 48.3 x 8.6 cm | | Weight | 34.0 lb / 15.4 kg |
