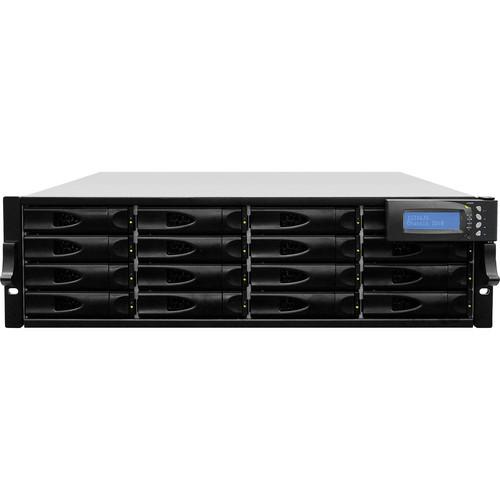

User Manual for Proavio DS316JS 16TB 16-Bay SAS-3 RAID Array with PCIe Controller Card Click to enlarge the picture
Contents of the user manual for the Proavio DS316JS 16TB 16-Bay SAS-3 RAID
- Product category: Hard Drive Arrays Proavio
- Brand: Proavio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Proavio Hard Drive Arrays
|
User manual for the Proavio DS316JS 16TB 16-Bay SAS-3 RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Proavio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Proavio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Proavio product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The DS316JS 16TB 16-Bay SAS-3 RAID Array from Proavio is a 16TB direct-attached storage solution that is designed to handle 2K and 4K media workflows. The DS316JS is outfitted with sixteen hot-swappable bays that can hold 2.5" and 3.5" drives with a SATA or SAS interface. Each of these bays has a 1TB hard drive that features a SATA interface and a rotational speed of 7200 rpm.
Proavio has outfitted the DS316JS with a PCIe 2.0 x8 hardware RAID controller, so you can configure these drives in a RAID 0, 1, 5, 6, or 10 array. Setting up the drives in a RAID 5 configuration can provide data transfer rates of up to 2,000 MB/s. Moreover, SAS-3 12 Gb/s interfaces are on board to deliver this data quickly to your workstation.
The DS316JS sports two redundant 500W PSUs that powers the drives and system. For cooling, it comes with a self-monitoring, thermal-controlled cooling system. Proavio lets you expand this solution's storage capacity with multiple DS316JS arrays, offering up to 384TB. Additionally, this DS316JS is compatible with Thunderbolt-equipped systems with an optional Thunderbolt 2 adapter. General Features - Storage Solution for 4K Media
- Upgrade your editing, grading, or visual effects studio with the 4K-capable storage solution. The DS316JS features an easy-to-use hardware design, which allows users to spend more time being creative and less time optimizing computer technology to meet their workflow demands. Empower your workstation with the speed and reliability needed for today's high-resolution post production and VFX workflows. It achieves smooth, real-time playback of complex visual effects compositions and previews projects at full native resolution and gains higher track counts in the edit process, all while provide fail-safe RAID protection of your digital assets.
- Optimized for High Resolution Workflows
- With a sustained throughput of up to 2,000 MB/s (RAID 5), the DS316JS unlocks your workstation's creative potential by giving facilities the option to take on a wide range of projects, formats, and possibilities. From HD to 4K, the DS316JS is a suitable storage solution for high resolution media formats such as DPX, RED R3D, ARRIRAW, Arri Alexa, uncompressed HD, DSLR RAW, and more.
- Enterprise-Class Reliability
- The DS316JS professional storage solution includes a PCIe hardware RAID controller that is fully optimized for digital video and large file size applications. An easy-to-use web interface and selectable RAID levels make the DS316JS a flexible solution for a media application that requires data bandwidth in excess of 1200 MB/s. A high-speed PCIe-based RAID design delivers data rates up to 2000 MB/s in RAID 5 for your storage intensive media applications.
- Scalable Storage Capacity
- The DS316JS is engineered to accommodate your facility's growing capacity requirements. It has 16TB of storage capacity and can be expanded up to 384TB by simply connecting multiple DS316JS arrays. Select from cost-effective SATA disk drives or high-performance Enterprise SAS drives to meet application and budget requirements.
- Thunderbolt-Ready Solution
- Proavio offers instant compatibility with Apple and Thunderbolt equipped systems. DS316JS users can take full advantage of Proavio SAS storage solutions for an optimal reliability or performance.
In the Box Proavio DS316JS 16TB 16-Bay SAS-3 RAID Array with PCIe Controller Card (16 x 1TB) Package of SAS Cables Limited 3-Year Warranty Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Proavio DS316JS 16TB 16-Bay SAS-3 RAID Array with PCIe Controller Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProavio IS316JS Specs | Capacity | 16 TB (16 x 1 TB) | | Form Factor | 3U, 16-disk, SAS-3 12 Gb/s, direct attached storage solution for HD/2K/4K production | | System Configuration | SAS-3 12 Gb/s JBOD SAS expander array
PCIe RAID Controller-based solution
SFF-8644 connectivity | | Storage Expansion | SAS-3 12 Gb/s SAS expander port
Supports four DS316JS units | | Disk Support | 3.5" 7200 rpm SATA disks, 6 Gb/s and 12 Gb/s
3.5" 7.2K/10K/15K SAS disks, 6 Gb/s and 12 Gb/s
2.5" 6 Gb/s and 12 Gb/s SSD, (SAS/SATA) | | RAID Controller | PCIe: AC-1882x, PCIe, x8 Lane Host Interface, Mac OS, Windows, and Linux | | RAID | RAID 0, RAID 1, RAID 10, RAID 5, and RAID 6 | | Enclosure Management | In-band SES system monitoring/disk, power, and cooling status LED indicators | | Thunderbolt | Requires an optional SAS-to-Thunderbolt adapter | | General OS Support | Mac OS, Windows Server 2008, Windows Server 2012, Windows 7, Linux, VMware, ESX | | Hot-Swap Power Modules | 2 x Redundant 500W PSU modules
Input: 90 to 264 VAC, full range, 9 to 4.5 A, 47/63 Hz | | Power Requirements | 90 to 264 VAC full range
8 to 4 A, 47/63 Hz | | System Cooling | Self-monitoring, thermal-controlled cooling system | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Relative Humidity | 10 ~ 85% (non-condensing) | | Compliance | RoHS, CE, TUV, FCC | | Dimensions (WxD) | 18.97 x 23.22" / 48.18 x 58.98 cm | | Weight | 78.0 lb / 35.4 kg |
