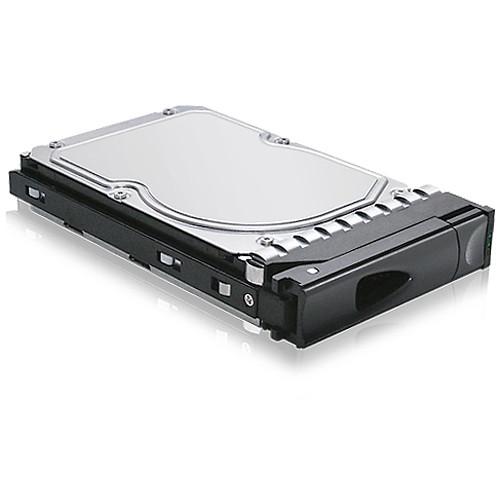

Product description RAID Arrays for Photography and Pro Video Read More The DS320 96TB 16-Bay Fibre Channel RAID Array (16 x 6TB) from Provaio continuously delivers up to 96TB of media data via two active-active RAID controllers. This array is suitable for post-production environments such as a SAN or a direct-attached storage solution by utilizing its four high-speed 16 Gb/s SFP Fibre Channel optical ports on two controllers. With the included sixteen 6TB 7200 rpm SAS 3.5" hard drives, it transfers data at a rate of up to 3,500 MB/s when the drives are configured into a RAID 5 array. In addition to RAID 5, the RAID controller supports RAID 0, 0 + 1, 6, and JBOD.
Provaio has designed this array with sixteen bays that support 2.5" and 3.5" hard drives or SSDs. You can connect optional expansion units via its SAS Expansion bus port to access up to 80 total drives, including the base unit. It features a 3RU form factor and includes 16GB of RAM. There is also support for network configurations such as VMware, Xsan, and more.

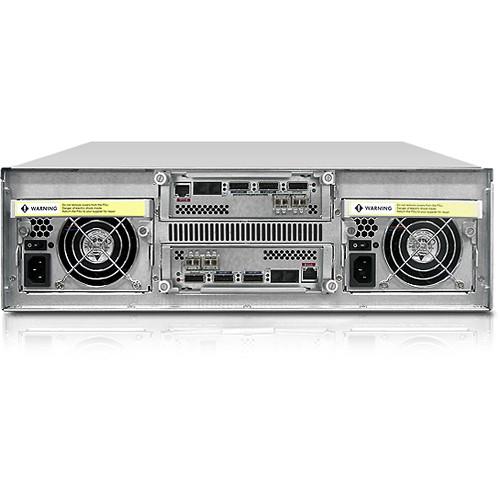

This storage array comes equipped with redundant hot-swappable modules that offer power and cooling with dual 500W power supplies and smart cooling fans. This feature provides redundancy and reliability for critical and intensive data applications. Another notable feature is compatibility with Thunderbolt-to-FC bridging technologies to add support for both Fibre Channel and Thunderbolt users. General Features - Storage Solution for 4K Media
- The DS320 features an easy-to-use hardware design, which allows users to spend more time being creative and less time optimizing computer technology to meet their workflow demands. Empower your workstation with the speed and reliability needed for today's high-resolution post-production and VFX workflows. Achieve smooth, real-time playback of complex visual effects compositions, preview projects at full native resolution, and gain higher track counts in the edit process—all while enjoying fail-safe RAID protection of your digital assets.
- Optimized for High-Resolution Workflows
- With a sustained throughput of over 3,500 MB/s (RAID 5), the DS320 unlocks your workstation's creative potential by giving facilities the option to take on a wide range of projects, formats, and possibilities. From HD to 4K, the DS320 is a suitable storage solution for high-resolution media formats such as DPX, RED R3D, ARRIRAW, Arri Alexa, uncompressed HD, DSLR RAW, and more.
- Active-Active, Enterprise-Class Storage Solution
- The DS320 incorporates RAID technology with active-active storage engines that deliver unimpeded performance and reliability.
- Thunderbolt-Ready Solution
- Proavio offers instant compatibility with Apple and Thunderbolt equipped systems. DS320 users can take full advantage of Proavio SAS storage solutions for optimal reliability or performance with an optional external FC-to-Thunderbolt adapter.
In the Box Proavio DS320 96TB 16-Bay Fibre Channel RAID Array with Dual-Active Controllers (16 x 6TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Proavio DS320 96TB 16-Bay Fibre Channel RAID Array with Dual-Active Controllers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProavio DS320 Specs | Included Storage Capacity | 96 TB
16 x 6 TB 7200 rpm, 3.5" SAS hard drives | | Total Raw Capacity | 256 TB | | Maximum Number of Drives Supported | 80 | | Form Factor | Dual 16G FC Controllers
16-disk, 3 RU | | Memory | 16 GB (2 x 8 GB) | | Data I/O Ports | 4 x SFP 16 Gb/s Fibre Channel | | Disk Support | 3.5" 7200 rpm SAS 6 Gb/s hard drives
3.5" 10,000 rpm SAS 6 Gb/s hard drives
2.5" SAS 6 Gb/s / 12 Gb/s SSDs | | Storage Protocols | 16G Fibre Channel | | RAID & Volume Operation | RAID level 0 (0 + 1), 5, 6, and JBOD
Multiple array support
Hot-swap drive support
Global and dedicated spare drive assignment
Online volume expansion | | High Availability | Dual-active RAID controller
Flexible RAID group ownership management
Multi-path and load-balancing support | | Infrastructure Support | Direct-attached or SAN | | OS Support | Windows 7, Windows Server 2012, Windows Server 2008, Linux, Mac OS X, VMware VSphere/ESX | | Performance | Up to 4,000 MB/s | | Hot-Swap Support | 2 x 500 W, 80 PLUS, load-balancing, hot-swap power modules | | Power Requirements | 90 to 264 VAC
7.5 to 4 A, 47 to 63 Hz (each module) | | System Cooling | 2 x hot-swap smart fan modules | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Relative Humidity | 10 to 85% non-condensing | | Compliance | RoHS, CE, TUV, FCC | | Certifications | VMware VSphere 5 | | SAN Software Compatibility | FibreJet, MetaSAN, SANmp, Stornext, and Xsan | | Dimensions | 23.2 x 19.0 x 19.0" / 59.0 x 48.3 x 48.2 cm | | Weight | 78.0 lb / 35.4 kg |
