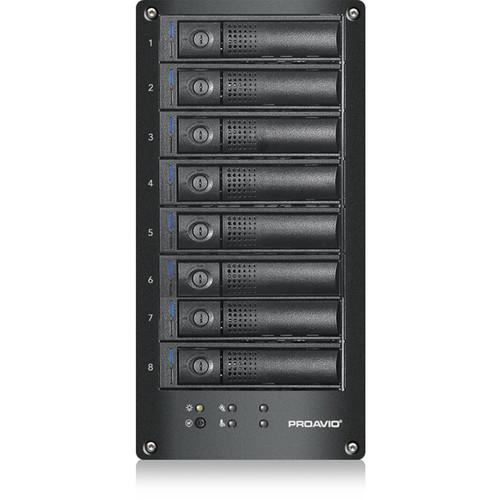

Product description RAID Arrays for Photography and Pro Video Read More Capture, edit, and render DPX, RED R3D, UltraHD, uncompressed HD, Full HD, 2K, and 4K formats and workflows using the EB800MS V2 16TB 8-Bay SAS-3 RAID Array with PCIe 3.0 Controller Card from Proavio. The EB800MS V2 comes pre-configured with 8 x 2TB 3.5" 7200 rpm SAS hard drives, for a total capacity of 16TB. When configured as in RAID 5 mode, the EB800MS V2 is capable of sustained throughputs of up to 2,200 MB/s.
The EB800MS V2 is equipped with two 12 Gb/s Mini-SAS ports and includes a SAS-3 12 Gb/s RAID controller card so it may be connected to your system, with PCIe 3.0 x16 and x8, as well as PCIe 2.0 configurations being supported. While the included hard drives use a SAS connection, this array also supports 3.5" SATA III 6 Gb/s hard drives, as well as 2.5" SATA/SAS SSDs.

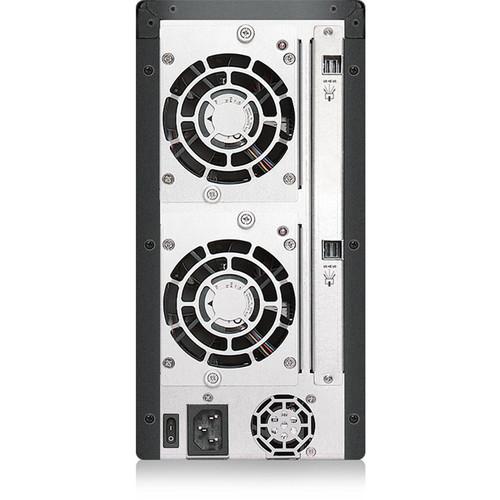

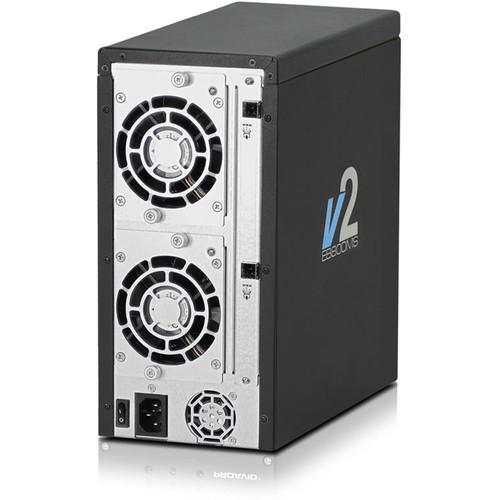

The Proavio EB800MS V2 operates using a single 250W power supply that runs at 90-264 VAC and 46-63 Hz. It is compatible with Windows, Mac, and Linux operating systems and also includes two HDD keys, eight hard disk modules, two external SFF8644 cables, and one standard IEC power cable. It is protected by a limited 3-year factory warranty with 1-year of next business day advanced replacement. General Features - 12 Gb/s SAS storage for 4K Desktop Media
- Drive your creativity with the EB800MS V2. The V2 delivers 12 Gb/s SAS performance for 4K workflows. Proavio's cable-less architecture features a smaller desktop footprint, high efficiency 80+ power technology, and a self-monitoring cooling system with ZERONOISE ASC (Advanced Sound Control)
- Hardware Engineering
- The EB800MS V2 uses the high quality components and design to help ensure strong reliability. Floating drive modules help to reduce shock and rotational vibration, resulting in a longer disk life and reduced signal cross-talk between drives. Proavio's ZERONOISE ASC gives users control over fan noise levels for improved noise to cooling ratios in sensitive studio environments
- Designed for Demanding 4K Media Workflows
- With a sustained throughput of up to 2,200 MB/s when configured in RAID 5 mode, the EB00MS V2 is well-suited for high resolution media formats such as DPX, RED R3D, UltraHD, uncompressed HD, and more. The EB800MS V2 is backed by a standard 3-year factory warranty and next-business day advanced replacement service program on all solution packages
- 12 Gb/s Mini-SAS Interface
- The 12 Gb/s SAS/SATA architecture supports 6 Gb/s disks
- Professional Grade
- The EB800MS V2 uses professional-grade, hot-swap components for 24/7 operation
- Cable-less Design
- High quality engineering features a cable-less design for increased reliability
In the Box Proavio EB800MS V2 16TB 8-Bay SAS-3 RAID Array with PCIe 3.0 Controller Card (8 x 2TB) 8 x 2TB 7200 rpm 3.5" SAS Hard Drives 8 x Hard Disk Modules 2 x HDD Keys Standard IEC Power Cable 2 x External SFF8644 Cables Limited 1-Year Warranty Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Proavio EB800MS V2 16TB 8-Bay SAS-3 RAID Array with PCIe 3.0 Controller Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProavio EB800MS V2 Specs | Capacity | 16 TB (8 x 2 TB) | | Form Factor | 8-Disk, Desktop, 12 Gb/s SAS JBOD Storage Array | | RAID | PCIe 3.0, 12 Gb/s SAS RAID Controller | | Interface Ports | 2 x SFF8644 12 Gb/s SAS Ports | | Disk Support | 3.5", 7200 rpm, SATA III 6 Gb/s
3.5", 7200 or 10,000 rpm, SAS 6 Gb/s
2.5" SATA/SAS SSD | | OS Support | Windows, Mac, and Linux | | System Security | Loading Disk Drive Bays | | Power Supply | Single 250 W, 80PLUS Energy Efficient PSU
90~264 VAC, 46Hz~63 Hz | | System Cooling | 2 x 8CM, Hot Swap, Smart Cooling Modules with Self-Monitoring Fault Detection and ZERONOISE ASC (Advanced Sound Control) for Studio Environments | | System Management | Audible Thermal Alarm, Status LED Indicators. Email Notifications (RAID Models Only) | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Relative Humidity | 5% ~ 85% Non-condensing | | Compliance | RoHS, CE, TUV, FCC | | Dimensions | 11.00 x 5.25 x 9.25" / 27.94 x 13.34 x 23.50 cm | | Weight | 34.0 lb / 15.4 kg |
