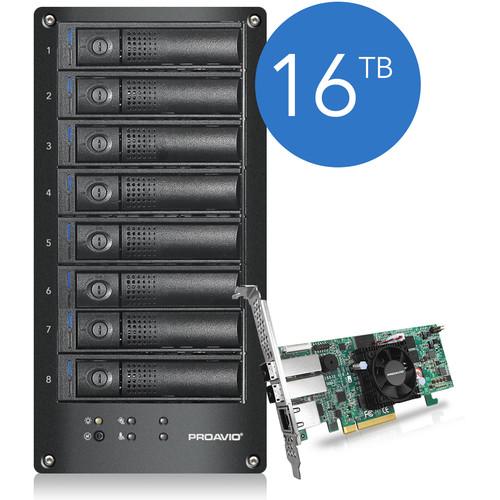

User Manual for Proavio EB800MS V2 16TB 8-Bay SATA RAID Array with Thunderbolt 2 Controller Click to enlarge the picture
Contents of the user manual for the Proavio EB800MS V2 16TB 8-Bay SATA
- Product category: Hard Drive Arrays Proavio
- Brand: Proavio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Proavio Hard Drive Arrays
|
User manual for the Proavio EB800MS V2 16TB 8-Bay SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Proavio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Proavio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Proavio product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More Capture, edit, and render DPX, RED R3D, UltraHD, uncompressed HD, Full HD, 2K, and 4K formats and workflows using the EB800MS V2 16TB 8-Bay SATA RAID Array with Thunderbolt 2 Controller from Proavio. The EB800MS V2 comes pre-configured with 8 x 2TB 3.5" 7200 rpm SATA hard drives, for a total capacity of 16TB. When configured as in RAID 5 mode, the EB800MS V2 is capable of sustained throughputs of up to 2,200 MB/s.
The EB800MS V2 is equipped with two 12 Gb/s Mini-SAS ports and includes a Mini-SAS to Thunderbolt 2 adapter, allowing this array to be used on systems that are compatible with Thunderbolt 2, such as Apple's 2013 Mac Pro. Each of the two Thunderbolt 2 ports provide bi-directional transfer speeds of up to 20 Gb/s and are also backwards compatible with 10 Gb/s Thunderbolt technology. Thunderbolt technology also allows you to daisy-chain additional devices together, such as Thunderbolt storage, Thunderbolt displays, Mini DisplayPort devices, and more.
While the included hard drives use a SATA connection, this array also supports 3.5" SAS-2 6 Gb/s hard drives, as well as 2.5" SATA/SAS SSDs. The Proavio EB800MS V2 operates using a single 250W power supply that runs at 90-264 VAC and 46-63 Hz. It is compatible with Windows and operating systems, is cooled using dual 8cm how swap smart cooling modules, and also includes two HDD keys, eight hard disk modules, two external SFF8644 cables, and one standard IEC power cable. It is protected by a limited 3-year factory warranty with 1-year of next business day advanced replacement. General Features - 12 Gb/s SAS Storage for 4K Desktop Media
- Drive your creativity with the EB800MS V2. The V2 delivers 12 Gb/s SAS performance for 4K workflows. Proavio's cable-less architecture features a smaller desktop footprint, high efficiency 80+ power technology, and a self-monitoring cooling system with ZERONOISE ASC (Advanced Sound Control)
- Hardware Engineering
- The EB800MS V2 uses the high quality components and design to help ensure strong reliability. Floating drive modules help to reduce shock and rotational vibration, resulting in a longer disk life and reduced signal cross-talk between drives. Proavio's ZERONOISE ASC gives users control over fan noise levels for improved noise to cooling ratios in sensitive studio environments
- Designed for Demanding 4K Media Workflows
- With a sustained throughput of up to 2,200 MB/s when configured in RAID 5 mode, the EB00MS V2 is well-suited for high resolution media formats such as DPX, RED R3D, UltraHD, uncompressed HD, and more. The EB800MS V2 is backed by a standard 3-year factory warranty and next-business day advanced replacement service program on all solution packages
- Thunderbolt 2 Connectivity
- Proavio has partnered with connectivity experts to offer connectivity to Thunderbolt equipped systems. EB800MS V2 users can now take full advantage of Thunderbolt connectivity
- 12 Gb/s Mini-SAS Interface
- The 12 Gb/s SAS/SATA architecture supports 6 Gb/s disks
- Professional Grade
- The EB800MS V2 uses professional-grade, hot-swap components for 24/7 operation
- Cable-less Design
- High quality engineering features a cable-less design for increased reliability
In the Box Proavio EB800MS V2 16TB 8-Bay SATA RAID Array with Thunderbolt 2 Controller (8 x 2TB) 8 x 2TB 7200 rpm 3.5" SATA Hard Drives 8 x Hard Disk Modules 2 x HDD Keys Standard IEC Power Cable 2 x External SFF8644 Cables Mini-SAS to Thunderbolt RAID Adapter Limited 1-Year Warranty Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Proavio EB800MS V2 16TB 8-Bay SATA RAID Array with Thunderbolt 2 Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProavio EB800MS V2 Specs | Capacity | 16 TB (8 x 2 TB) | | Form Factor | 8-Disk, Desktop, 12 Gb/s SAS JBOD Storage Array | | RAID | External 12 Gb/s SAS-to-Thunderbolt RAID Controller | | Interface Ports | 2 x SFF8644 12 Gb/s SAS Ports | | Disk Support | 3.5", 7200 rpm, SATA III 6 Gb/s
3.5", 7200 or 10,000 rpm, SAS-2 6 Gb/s
2.5" SATA/SAS SSD | | OS Support | Windows 7 or higher, Mac OS | | System Security | Loading Disk Drive Bays | | Power Supply | Single 250 W, 80PLUS Energy Efficient PSU
90~264 VAC, 46Hz~63 Hz | | System Cooling | 2 x 8CM, Hot Swap, Smart Cooling Modules with Self-Monitoring Fault Detection and ZERONOISE ASC (Advanced Sound Control) for Studio Environments | | System Management | Audible Thermal Alarm, Status LED Indicators. Email Notifications (RAID Models Only) | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Relative Humidity | 5% ~ 85% Non-condensing | | Compliance | RoHS, CE, TUV, FCC | | Dimensions | 11.00 x 5.25 x 9.25" / 27.94 x 13.34 x 23.50 cm | | Weight | 34.0 lb / 15.4 kg |
