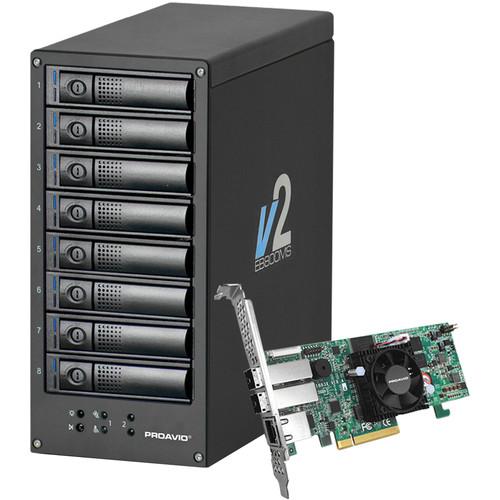

User Manual for Proavio EB800MS V2 24TB 8-Bay RAID Storage Solution with PCIe Controller Card Click to enlarge the picture
Contents of the user manual for the Proavio EB800MS V2 24TB 8-Bay RAID
- Product category: Hard Drive Arrays Proavio
- Brand: Proavio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Proavio Hard Drive Arrays
|
User manual for the Proavio EB800MS V2 24TB 8-Bay RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Proavio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Proavio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Proavio product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The EB800MS V2 24TB 8-Bay RAID Storage Solution with PCIe Controller Card from Proavio is equipped with eight 3TB hard drives for capturing, editing, and rendering full resolution videos without compromising on quality. Each 3.5" SATA drive spins at 7,200 rpm and is mounted on a floating module that reduces shock and vibration. This module provides longer disk life and reduces signal cross-talk between drives. The drives can be configured in various RAID modes for performance, redundancy, or both with the included PCIe 3.0 RAID controller card. This card occupies a PCI express x16 or x8 slot in your computer system. When the drives are configured in RAID 5, they offer reads up to 1300 MB/s and writes up to 1400 MB/s. This configuration allows the EB800MS to better handle 4K video formats such as DPX, RED R3D, UltraHD, and more.
This storage solution is powered with an energy efficient 80 PLUS power supply. It is cooled with two self-monitoring fans, which features ZERONOISE Advanced Sound Control, so you can use this storage solution in sound sensitive environments. Furthermore, this storage solution comes with two 12G SAS ports for connecting to Windows, Mac, or Linux systems. Included also with the EB800MS V2 are two hard drive keys, power cord, quick start CD, and two SFF8644 SAS cables. - Capacity
- This storage solution comes preinstalled with eight 3TB hard drives offering up a total capacity of 24TB.
- 12G MiniSAS Interface
- This version of the EB800MS is built with SAS architecture that features up to 12 Gb/s transfer speeds. It also supports SATA III 6 Gb/s disk drives.
- Optimized for Cinema
- Designed for 2K/4K resolution file formats and workflows.
- Thunderbolt-Ready
- The EB800MS is compatible with Thunderbolt systems via an optional external SAS to Thunderbolt 2 RAID Adapter.
- Cable-Less Design
- Each drive connects directly to the EB800MS without the need of cables for increased reliability.
In the Box Proavio EB800MS V2 24TB (8 x 3TB) 8-Bay RAID Storage Solution with PCIe Controller Card PCIe 3.0 12G SAS RAID Controller Card 2 x Hard Drive Keys 2 x SFF8644 Cables Power Cable Quick Start Guide CD Limited 3-Year Warranty Limited 1-Year Advanced Replacement Table of Contents
|
Upload User Manual
Have you got an user manual for the Proavio EB800MS V2 24TB 8-Bay RAID Storage Solution with PCIe Controller Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProavio EB800 Specs | Form Factor | Desktop 12 Gb/s storage array | | Interface Ports | 2 x 12G SAS ports SFF8644 | | Disk Support | 3.5" 7,200 rpm SATA III 6 Gb/s
3.5" 7,200 rpm / 10,000 rpm SAS 6 Gb/s
2.5" SATA/SAS SSD | | Included Disks | 8 x 3 TB 3.5" SATA hard drives | | Read / Write Speeds | Based upon RAID 5 using 8 x 4TB hard drives
Read: up to 1355.1 MB/s
Write: up to 1420.5 MB/s | | OS Support | Mac
Windows
Linux | | System Security | Locking disk drive bays | | Power Supply | Single 250 W 80 Plus energy efficient PSU
90 to 264 VAC
46 to 63 Hz | | System Cooling | 2 x 8 cm fans, hot swap, smart cooling modules with self-monitoring fault detection and ZERONOISE ASC | | System Management | Audible thermal alarm
Status LED Indicators
Email notifications | | Operating Temperature | 50.0 to 104.0 °F / 10.0 to 40.0 °C | | Relative Humidity | 5 to 85% non-condensing | | Compliance | RoHS, CE, TUV, FCC | | Dimensions (HxWxD) | 11.0 x 5.3 x 9.3" / 27.9 x 13.3 x 23.5 cm | | Weight | 34.0 lb / 15.4 kg | | | | Package Weight | 33.9 lb | | Box Dimensions (LxWxH) | 18.6 x 15.9 x 10.8" |
