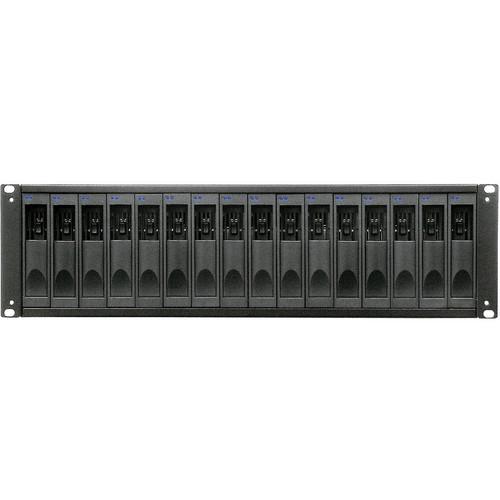

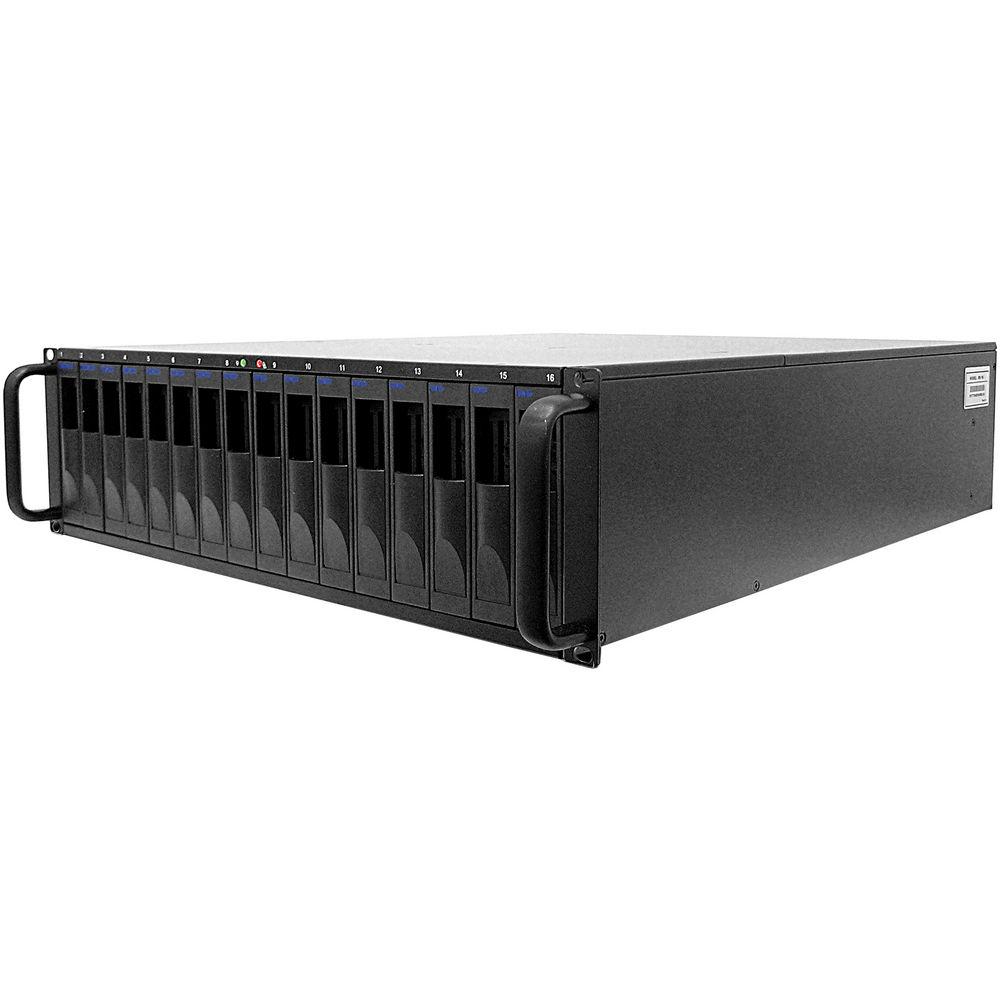

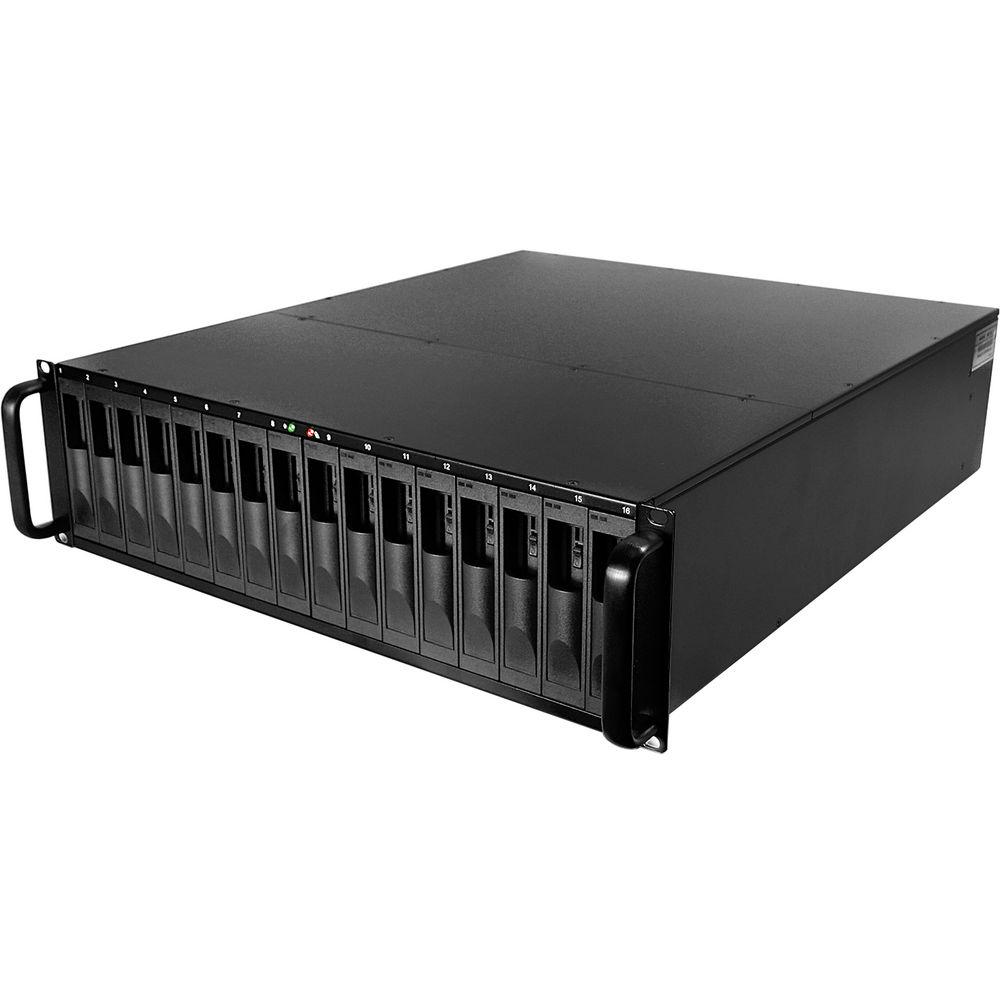

User Manual for Proavio UltraStor RS16JS 48 TB SATA Enterprise Class JBOD Storage System Click to enlarge the picture
Contents of the user manual for the Proavio UltraStor RS16JS 48 TB SATA
- Product category: Hard Drive Arrays Proavio
- Brand: Proavio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Proavio Hard Drive Arrays
 |
User manual for the Proavio UltraStor RS16JS 48 TB SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Proavio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Proavio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Proavio product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The UltraStor RS16JS 48 TB SATA Enterprise Class JBOD Storage System from PROAVIO is designed to provide storage expansion to the UltraStor RS series models. The UltraStor RS16JS, utilizes point-to-point host/disk connectivity and high performance SAS disks. It also offers enterprise-grade fault tolerance solution and improved performance for applications that demand superior reliability. It is designed to support both high reliability SAS disks as well as high capacity SATA disks. - UltraStor Versatility
- The UltraStor RS16JS Storage System features two SAS channels and one SAS expandable port, providing expandability that is critical to a company's IT infrastructure. It is ideal for data intensive applications and is powered by dual cutting edge SAS host connections that maximizes disk performance allowing for a broader range of storage possibilities. The Storage System works best when connected to an advanced UltraStor RS series RAID system with dynamic on-line RAID expansion. This allows additional capacity to be added without total system downtime, thus increasing your department's productivity.
- Appliance-Based Storage
- The UltraStor RS16JS is a host dependent JBOD storage system that connects either to a host system/server based JBOD, RAID HBA or to an advanced UltraStor RS series RAID system. It is a flexible way of adding RAID protected storage to an existing IT infrastructure, regardless of your operating system or hardware. The UltraStor RS16JS provides easy scalability for the UltraStor RS16 IP-4, RS16 SS and RS16 FS systems. It is designed to easily integrate into an elaborate SAN fabrics or point-to-point centralized storage. The Storage System offers a flexible and powerful solution that will increase your capacity, productivity and add unprecedented data protection.
- Powerful Storage Management
- The UltraStor RS16JS Storage System offers multiple management options to match your workflow. It can be completely auto configured in minutes using the convenient rear LCD control panel and monitored or reconfigured through a remote connection. A comprehensive menu screen facilitates the setup process and lets you reconfigure the system as storage needs change. A Web Graphic User interface gives you access to advanced features such as multiple array settings, iSCSI parameters (connection mode, ID, LUN mapping and more), SNMP features and security options. A network interface is also available for remote web browser based management and includes the essential tools required to manage and monitor your systems.
- Multi-Path I/O
- The UltraStor RS16JS Storage System supports Microsoft Multipath I/O (MPIO) that integrates with the Microsoft Windows family of products and their architectures. High reliance on the Internet and e-commerce means that organizations increasingly require their data to be available 24x7. Multi-pathing, the ability of a system to use more than one read/write path to a storage device, is a high availability solution that provides fault tolerance against single-point-of failure in hardware components. Multi-pathing can also provide load balancing of I/O traffic, thereby improving system and application performance.
- Power and Cooling
- The UltraStor RS16JS Storage System's deployment of robotic power and cooling management, specifically its redundant hot-swappable power supplies and fans, keeps your workloads and critical applications running 24x7 without hardware failure interruption.
- The Storage System features an enterprise-class, cable-less enclosure design.
- The next generation Serial Attached SCSI dual ports produce up to 2,400 MBps bandwidth.
- Its 3U modular rack design easily integrates into existing storage infrastructures.
- The Storage System is designed to support both high reliability SAS disks as well as high capacity SATA disks.
- It features extended storage management through Web GUI via TCP or LCD panel.
In the Box Proavio UltraStor RS16JS 48 TB SATA Enterprise Class JBOD Storage System Double Box Protection Heavy Duty Foam Protection Accessory Box:
- One Standard Power Cord
- Slide-Rail Set
- Screws for Mounting Hard Drives
- User Manual CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Proavio UltraStor RS16JS 48 TB SATA Enterprise Class JBOD Storage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProavio RS16JS Specs | HDD | 16x 3 TB SATA | | HBA | 8 port PCIe 2.0 external 6G RAID controller | | HDD Tray | 16x hot-swap removable HDD tray | | Form Factor | - 3U low profile 19” (48.26 cm) rackmount
- 16x SAS / SATA disk drive bays
| | System Architecture | - SAS drive to dual Mini-SAS connectors
- SATA drive to dual Mini-SAS connectors
- Up to 4x RS16JS SAS JBOD can be cascaded for a total of 80 drives and 80 TB storage capacity (requires RS16 FS/RS16 IP-4/RS16 SS)
- Support Windows Clustering
| | Interface Configuration | - 2x SFF8088 12 Gbps Mini-SAS “IN” connections
- 1x SFF 8088 12 Gbps Mini-SAS JBOD expansion
| | Disk Drive Interface | - HDD: Serial Attached SCSI (SAS)
- HDD: Serial ATA (SATA)
- RPM: 7,200-15,000
| | Controls and Architecture | - Enterprise SAS JBOD engine
- LSI SAS expander board
| | Controls and Indicators | - Backlit LCD control panel
- Status indicators for system and host ports
- Built-in environment alarm with mute button
- System monitoring for fan speed, power supply, voltages, temperatures and drive failure
| | Data Protection | Hot swap fan modules and redundant power supplies | | Alarm E-mail Notification | - Email notification and event log
- SNMP trap (remote notification)
- Internal buzzer alarm
| | Power Supply | - 2x 460 W autosensing redundant power supplies
- 3x removable (triple input) industrial grade modules
- AC Input: 100 to 240 V AC, 46 to 63 Hz
- Continuous Output Power: Dual 2x 460 W redundant
| | Certifications | - CE
- FCC Class A
- UL1950
- CSA #950
- TUV/EN60950
| | Operating System | Windows, Linux, MAC OS and Sun Solaris | | Dimensions (LxWxH) | - Length: 21” (53.34 cm)
- Width: 17.5” (44.45 cm) without rack ears [19” (48.26 cm) with rack ears]
- Height: 5.25” (13.34 cm) (3U)
| | Weight | - 60 lb (27.22 kg) without drives
- 106 lb (48.08 kg) with drives
|
