PRODUCTION BOT Switch 4 Portable Live

Search your instruction manual in PDF to download

User Manual for PRODUCTION BOT Switch 4 Portable Live Production Switcher and Control Surface Kit

Click to enlarge the picture
PRODUCTION BOT Switch 4 Portable Live Production Switcher and Control Surface Kit Contents of the user manual for the PRODUCTION BOT Switch 4 Portable Live
  • Product category: Production Switchers PRODUCTION BOT
  • Brand: PRODUCTION BOT
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for PRODUCTION BOT Production Switchers

PRODUCTION BOT Switch 4 Portable Live Production Switcher and Control Surface Kit PRODUCTION BOT Switch 4 Portable Live Production Switcher and Control Surface Kit PRODUCTION BOT Switch 4 Portable Live Production Switcher and Control Surface Kit
User manual for the PRODUCTION BOT Switch 4 Portable Live contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any PRODUCTION BOT product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official PRODUCTION BOT user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a PRODUCTION BOT product will considerably shorten its lifespan!



Product description

The Switch 4 Portable Live Production Switcher and Control Surface Kit from B&H is a suitcase-style, all-in-one live streaming system supporting up to DCI 4K resolution. It features a built-in 17.3" screen but can be expanded via DVI, HDMI, or DisplayPort outputs for multiviewer applications. Switch 4 provides four HD-SDI live inputs and four matching outputs as well as a 4K HDMI output. It can be used for live production, mobile editing, and as a DIT station. Other features include 500GB of internal storage and pre-installed vMix software. The compact tactile control surface features a T-bar and 12 backlit program, preview, and overlay buttons that work with the vMix interface. It has four downstream delegation buttons for quickly activating overlays, and it offers assignable function buttons that can be set to vMix shortcuts for customized control.
  • PRODUCTION BOT Switch 4 Portable Live Production Switcher The Switch 4 Portable Live Production Switcher from PRODUCTION BOT provides four video inputs to control up to four live HD-SDI video sources simultaneously with imbedded audio. This video switcher can be used as a live production studio, mobile editing station, and a DIT station. The Switch 4 has a built-in 17.3" screen with a removable cover and a resolution of up to 4096 x 2160p. It has an internal storage of 500GB and features four SSD internal removable drive bays.

    This system comes pre-installed with vMix live streaming software and supports custom graphics including overlays, chroma key, and transition effects. You can stream your output live to many streaming platforms such as Facebook, Periscope, and Twitch. While the Production Bot is ideal for a small footprint, the screen real estate can be expanded with vMix's Multiview options. A keyboard, mouse, and a soft travel case are included.
      Built-In Display
    • The built-in display eliminates the need for external monitors but can still be expanded via DVI, HDMI, or DisplayPort for multiviewer and other application access using external monitors.
      I/O Cards
    • The Production Bot Switch 4 is equipped with an AJA capture card including eight HD-SDI inputs/outputs. You can group four inputs together to provide one 4K input. When using the card in 4K mode, standard 1080 and 720 resolutions are unavailable. With up to two SDI outputs, producers can send multiple high-resolution feeds. For example, a "dirty" version complete with overlays for broadcast, and a "clean" version for recording and reuse later. Alternatively, one output can be dedicated to connect a broadcast-grade preview monitor to supplement the Production Bot's built-in screen.
      Removable SSD Slots for ISO Recording
    • Four removable SSD hot swap bays enable ISO recording of any input. When finished, unplug the drives to move your footage to another machine for post-production or archiving.
      vMix Call and NDI Capable
    • vMix Call simplifies adding remote guests to your live production. With a web browser and webcam, your guest can connect into your live show with HD video and high-quality audio from anywhere in the world. Send and receive multiple channels of broadcast quality low-latency video over a gigabit Ethernet network utilizing NDI with vMix.
      Balanced XLR/TRS Audio I/O
    • Two channels of audio over balanced XLR/TRS are supported in addition to the 16 channels of embedded SDI. The included XLR outputs allow for a custom audio monitoring solution. If analog audio isn't available, the Production Bot Switch 4 can interface with USB audio inputs and outputs, as well as Dante (separate software required).
In the Box
  • Switch 4 Portable Live Production Switcher zudwxatferafezdccsrzcxcrreeqvcbc
  • USB Keyboard and Mouse Kit
  • Mouse Pad
  • Windows 10 Pro 64-Bit DVD
  • Hardware for Drive Cage
  • AC Power Cord

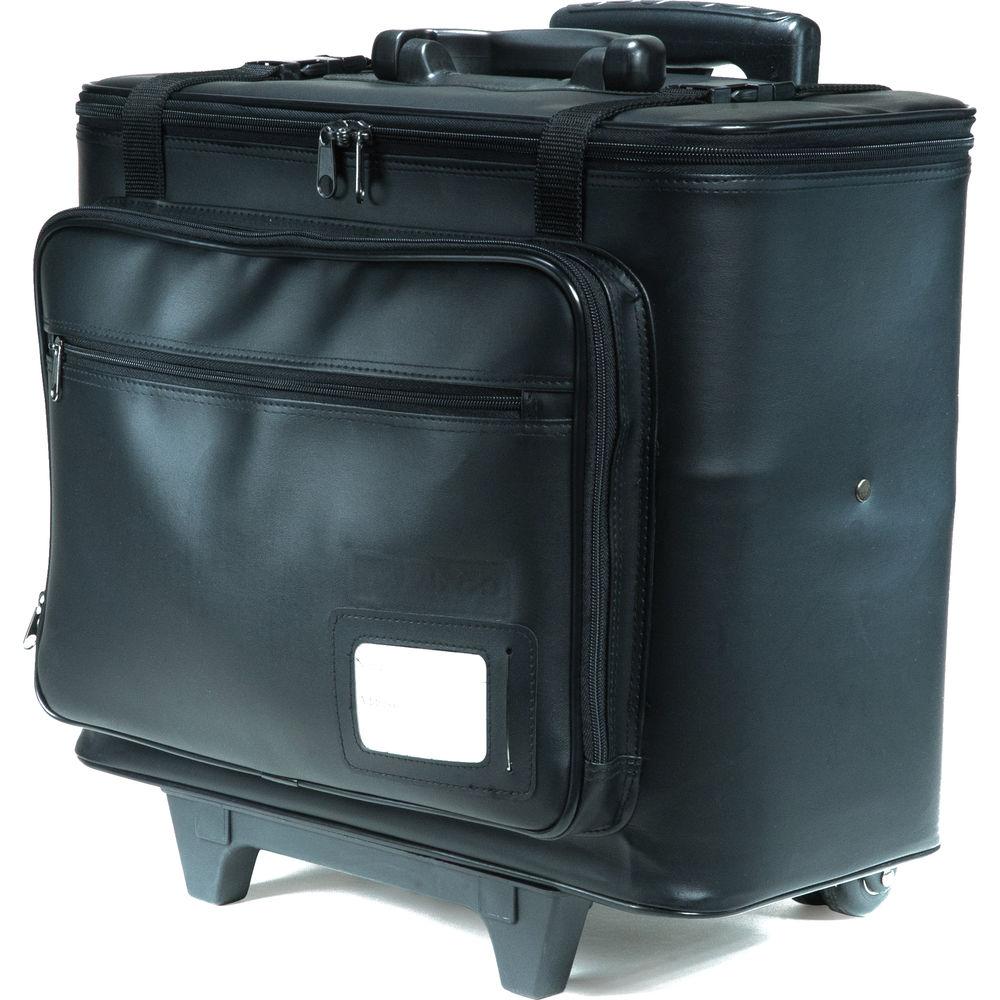

  • Padded Carrying Case
  • Limited 1-Year Warranty

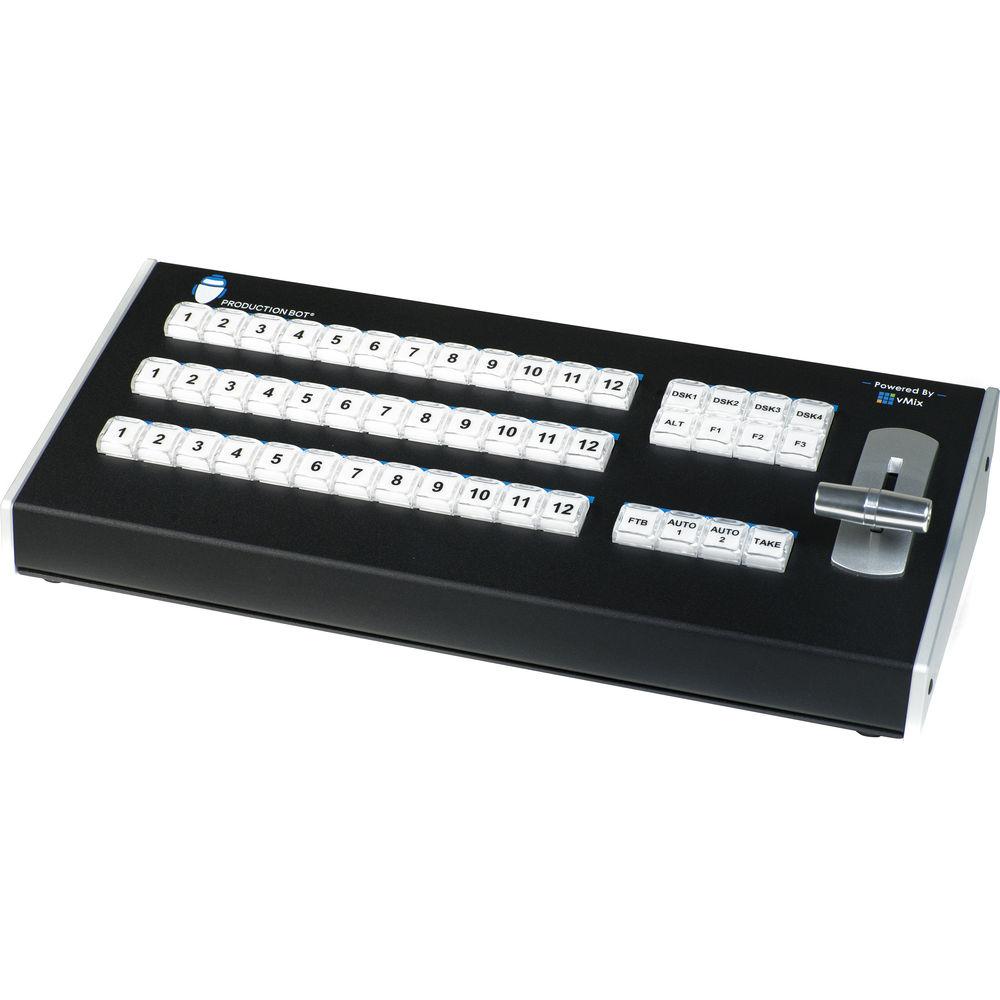

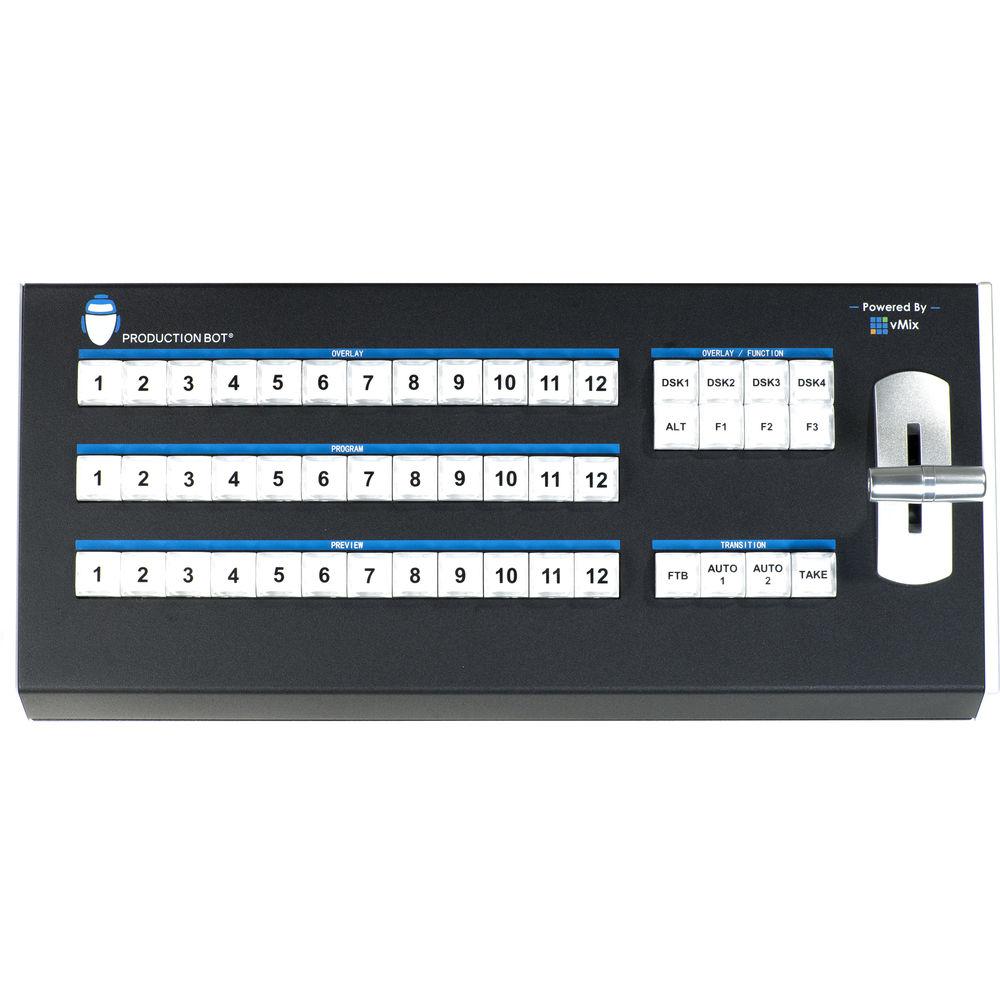

  • Control Surface For Switch Systems
Table of Contents




Upload User Manual

Have you got an user manual for the PRODUCTION BOT Switch 4 Portable Live Production Switcher and Control Surface Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • PRODUCTION BOT Switch 4 Portable Live Production Switcher
    CPU Intel Core i7-7700K
    GPU Model: Nvidia GTX 1050 Ti
    RAM: 4 GB
    Memory 16 GB DDR4
    System Drive Primary: 500 GB SSD
    Media Storage 4 x Removable SSD (sold separately)
    Size 17.3" (43.9 cm)
    Brightness 400 cd/m²
    Contrast Ratio 600:1
    Video Inputs 4 x HD-SDI on BNC with up to 16-channel embedded audio (depends on I/O selection)
    Video Outputs 4 x HD-SDI on BNC with up to 16-channel embedded audio (depends on I/O selection)
    Audio Inputs 2 x Balanced line level XLR/TRS combo jack
    1 x 3.5 mm unbalanced stereo
    Audio Outputs 2 x Balanced line level XLR/TRS combo jack
    1 x 3.5 mm unbalanced stereo
    GPU 1 x HDMI
    1 x DisplayPort
    Supported Resolutions 4096 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    3840 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    4K 29.97p (max 2 inputs)
    1080p: 23.98, 24, 25, 29.97, 30
    1080PsF: 23.98, 24, 25, 29.97, 30
    1080i: 25, 29.97, 30
    720p: 50, 50.94, 60
    625i: 25
    525i: 29.97
    Dimensions 7.0 x 14.0 x 16.8" (17.8 x 35.6 x 42.5 cm)
    Weight 22.5 lb (10.2 kg)
