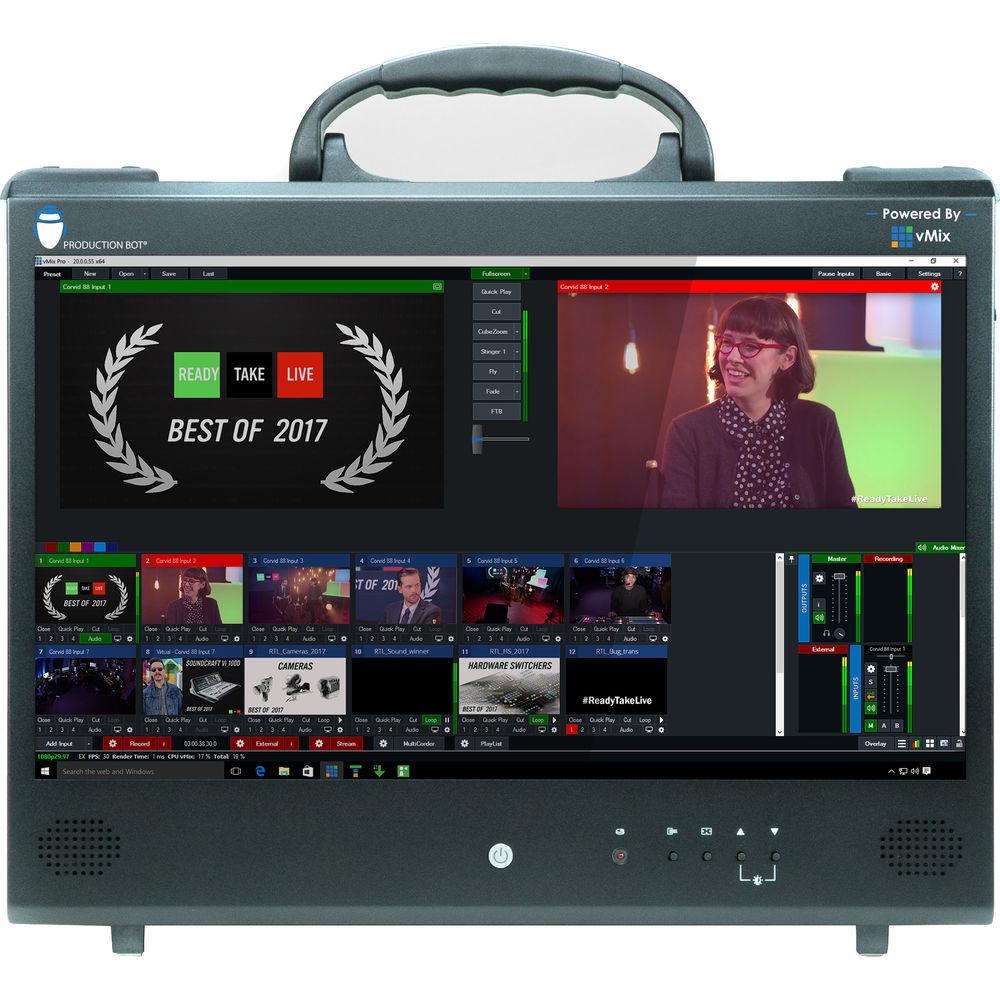

Product description The Switch 8 Portable Live Production Switcher from PRODUCTION BOT provides eight video inputs to control up to eight live HD-SDI video sources simultaneously with imbedded audio. This video switcher can be used as a live production studio, mobile editing station, and a DIT station. The Switch 8 has a built-in 17.3" screen with a removable cover and a resolution of up to 4096 x 2160p. It has an internal storage of 500GB, a 1TB SSD removable hot swap bay storage, and three additional drive bays.
This system comes pre-installed with vMix live streaming software and supports custom graphics including overlays, chroma key, and transition effects. You can stream your output live to many streaming platforms such as Facebook, Periscope, and Twitch. While the Production Bot is ideal for a small footprint, the screen real estate can be expanded with vMix's Multiview options. A keyboard, mouse, and a soft travel case are included. - Built-In Display
- The built-in display eliminates the need for external monitors but can still be expanded via DVI, HDMI, or DisplayPort for multiviewer and other application access using external monitors.
- I/O Cards

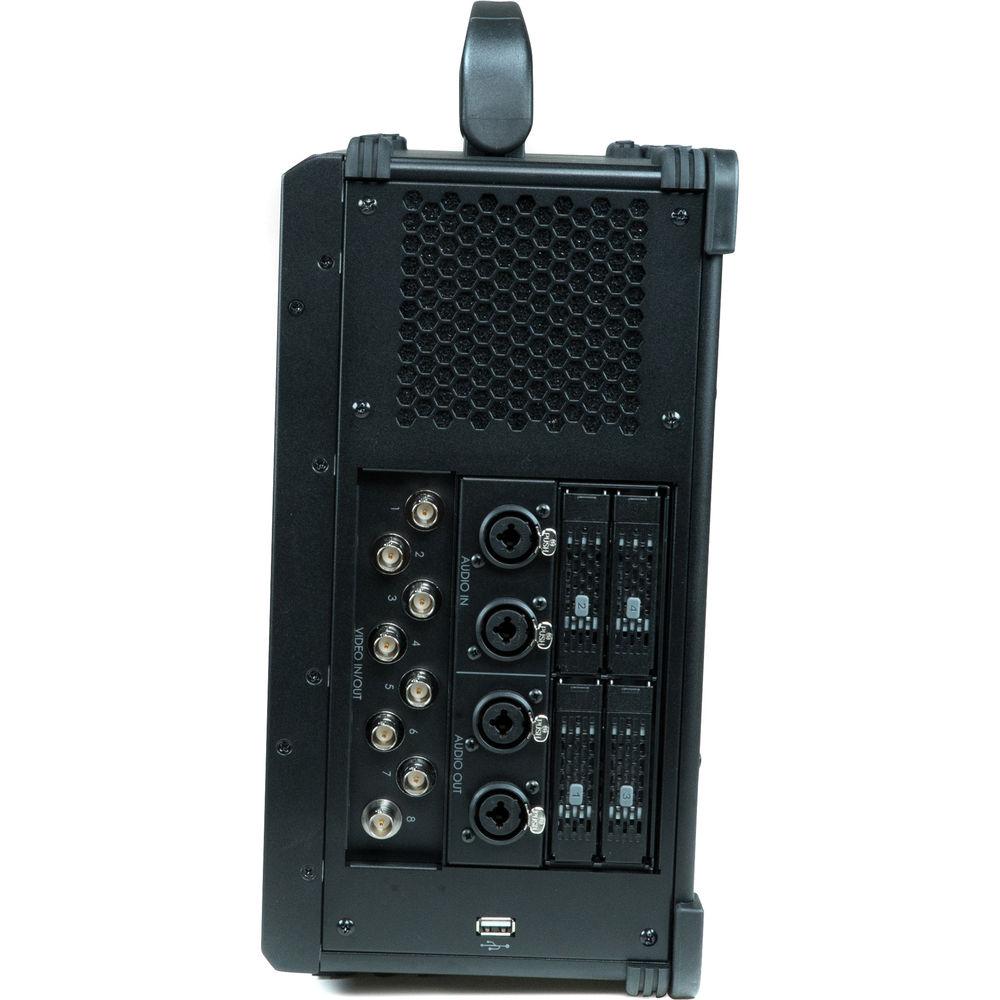

- The Production Bot Switch 8 is equipped with an AJA capture card including eight HD-SDI inputs/outputs. You can group four inputs together to provide two 4K inputs. When using the card in 4K mode, standard 1080 and 720 resolutions are unavailable. With up to two SDI outputs, producers can send multiple high-resolution feeds. For example, a "dirty" version complete with overlays for broadcast, and a "clean" version for recording and reuse later. Alternatively, one output can be dedicated to connect a broadcast-grade preview monitor to supplement the Production Bot's built-in screen.
- Removable SSD Slots for ISO Recording
- A 1TB SSD drive is pre-loaded in one of the four removable SSD hot swap bays that enable ISO recording of any input. When finished, unplug the drives to move your footage to another machine for post-production or archiving.
- vMix Call and NDI Capable
- vMix Call simplifies adding remote guests to your live production. With a web browser and webcam, your guest can connect into your live show with HD video and high-quality audio from anywhere in the world. Send and receive multiple channels of broadcast quality low-latency video over a gigabit Ethernet network utilizing NDI with vMix.
- Balanced XLR/TRS Audio I/O
- Two channels of audio over balanced XLR/TRS are supported in addition to the 16 channels of embedded SDI. The included XLR outputs allow for a custom audio monitoring solution. If analog audio isn't available, the Production Bot Switch 8 can interface with USB audio inputs and outputs, as well as Dante (separate software required).
In the Box PRODUCTION BOT Switch 8 Portable Live Production Switcher USB Keyboard and Mouse Kit Mouse Pad Windows 10 Pro 64-Bit DVD Hardware for Drive Cage AC Power Cord Padded Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PRODUCTION BOT Switch 8 Portable Live Production Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPRODUCTION BOT Switch 8 Specs | | | CPU | Intel Core i7-7700K | | GPU | Model: Nvidia GTX 1060

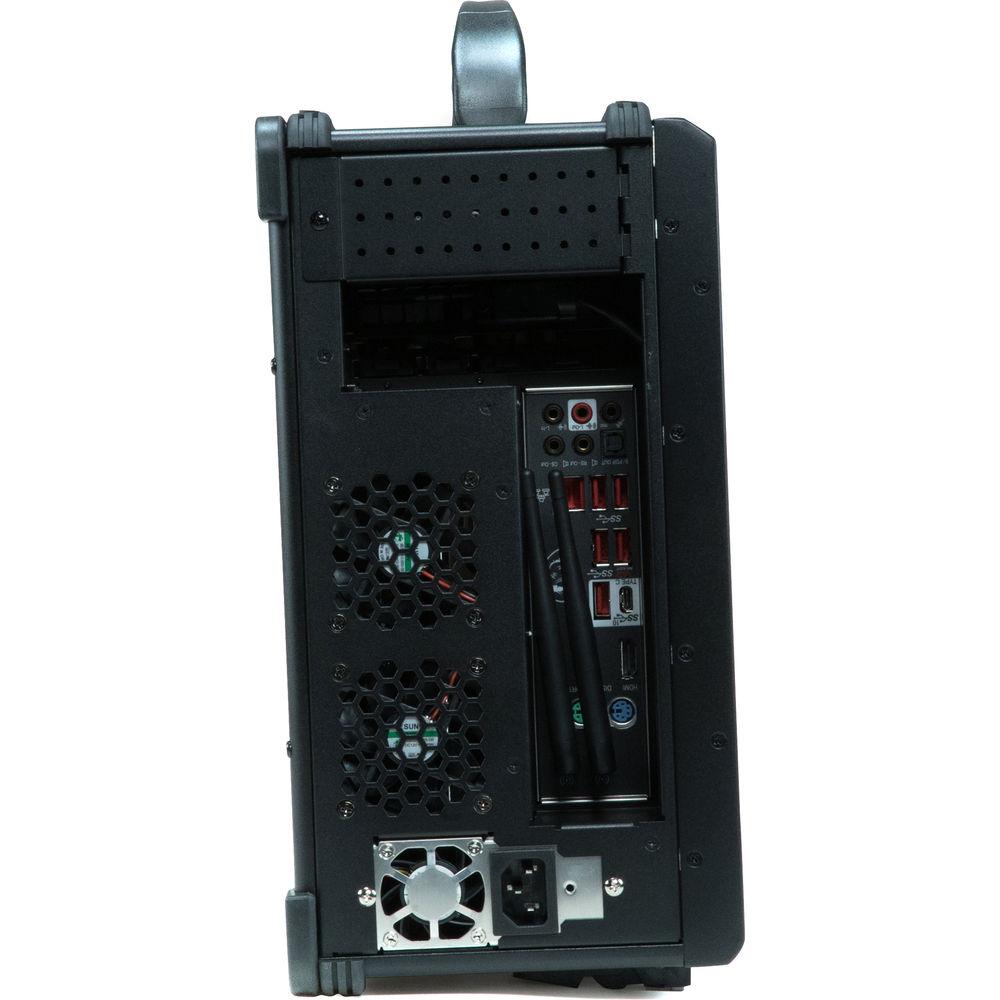

RAM: 6 GB | | Memory | 32 GB DDR4 | | System Drive | Primary: 500 GB SSD | | Media Storage | 1 TB SSD | | | | Size | 17.3" (43.9 cm) | | Brightness | 400 cd/m² | | Contrast Ratio | 600:1 | | | | Video Inputs | 8 x HD-SDI on BNC with up to 16-channel embedded audio (depends on I/O selection) | | Video Outputs | 8 x HD-SDI on BNC with up to 16-channel embedded audio (depends on I/O selection) | | Audio Inputs | 2 x Balanced line level XLR/TRS combo jack
1 x 3.5 mm unbalanced stereo | | Audio Outputs | 2 x Balanced line level XLR/TRS combo jack
1 x 3.5 mm unbalanced stereo | | GPU | 1 x HDMI
1 x DisplayPort | | | | Supported Resolutions | 4096 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
3840 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
4K 29.97p (max 2 inputs)
1080p: 23.98, 24, 25, 29.97, 30
1080PsF: 23.98, 24, 25, 29.97, 30
1080i: 25, 29.97, 30
720p: 50, 50.94, 60
625i: 25
525i: 29.97 | | | | Dimensions | 7.0 x 14.0 x 16.8" (17.8 x 35.6 x 42.5 cm) | | Weight | 22.5 lb (10.2 kg) |
