User Manual for Profoto Acute 2-D4 Flash Head Click to enlarge the picture
Contents of the user manual for the Profoto Acute 2-D4 Flash Head
- Product category: Power Pack Heads Profoto
- Brand: Profoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Profoto Power Pack Heads
 |
User manual for the Profoto Acute 2-D4 Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Profoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Profoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Profoto product will considerably shorten its lifespan!
|

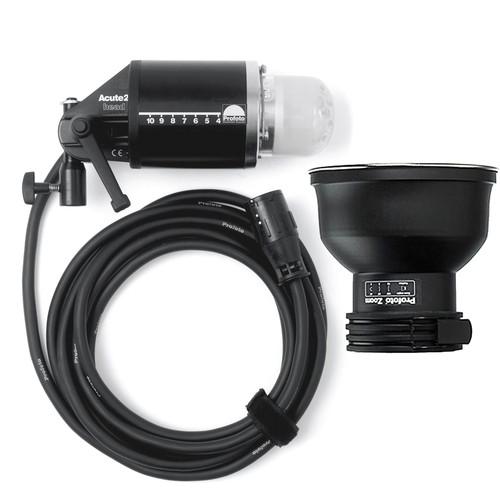

Product description The Profoto Acute 2-D4 modular flash head design features a circular, heavy duty, quartz flash tube and UV coated protection dome that surrounds both the flash tube and the 250W modeling light. It provides even, consistent illumination. All lamp head cables feature Profoto special connectors for arc-proof performance. All Acute 2-D4, 2, and Acute heads accept the same modular light shaping tools. The flash tube in this head can handle up to 4800 w/s, when used with a D4 series power pack. The modeling lights for this unit are readily available in a variety of voltages for use all over the world.This Acute 2-D4 Head produces a color temperature of 5400°K as supplied. There are other optional domes that are more heavily coated, for a warming effect of 300 or 600° increments, for a color temperature of 5100 or 4800°, respectively. A power supply for this flash head is required. - Compact Design
-
- Virtually indestructible
- Simple cylindrical design makes it easy to set up, and transport
- Easy to Control
-
- Supplied with a 5/8" stand adapter to mount the units onto any standard light stand.
- A built-in tilt-control lever makes for easy angle adjustment

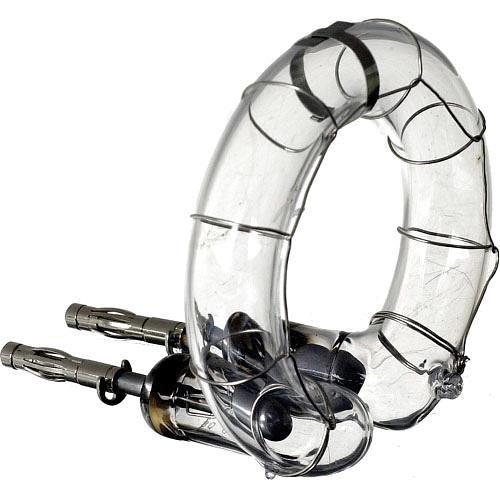

- Easily Replaceable Flashtube
-
- Heavy duty, plug-in quartz flashtube
- Protective UV, frosted glass dome surrounds the flashtube for even illumination and an added margin of safety
- Optional glass domes with a variety of coatings for added color temperature control are available

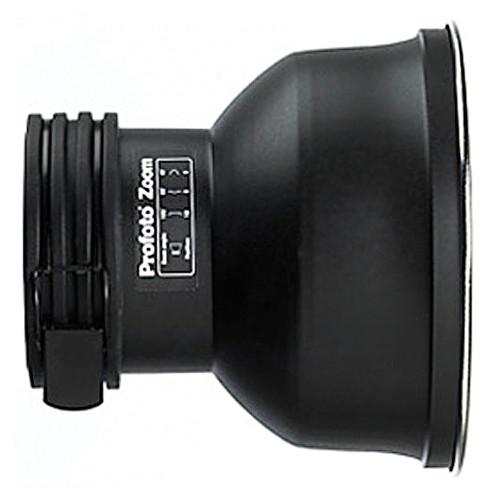

- Removable Reflector
-
- Unique adjustable zoom reflector varies the focus of the light emitted
- Reflector lip accepts optional grids without the need for adding an adapter
- Many other reflectors are available, for additional shaping of light
- Fan Cooled
- Fan cooled for increased protection during the most demanding applications
- Modeling Light
-
- Bright 250W quartz halogen model light is included
- 500W modeling light available separately
- Long-Reaching Cable
-
- Resists twisting, trampling and cracking
- Extension cables are available for light heads placed at longer distances from the power pack
In the Box Profoto Acute 2-D4 Flash Head Heavy Duty Quartz Flash Tube (502218) 250W Modeling Light (701221) Frosted Glass Dome for Profoto (+300 K) wucwuwedyd 16.4' (5m) Heavy Duty Head Cable Zoom Reflector 2 (100785) Plastic Transport Cap (501112) 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Profoto Acute 2-D4 Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProfoto Acute/D4 Head Specs | Maximum Watt/Seconds | 3000 - 4800 | | User Replaceable Flashtube | Yes | | Changeable Reflector | Yes, accepts all Profoto light shaping tools | | Circuit Protection | Thermostatic overload protection if the ventilation is obstructed | | Cable Length | 16.4' (5m) | | Modeling Light Wattage | 250W 110V (701221) included
250W, 240V (701226) available | | Modeling Light On/Off Switch | Yes | | Protective Glass Dome | Yes- UV Frosted as supplied, others available | | Fan Cooled | Yes | | Dimensions | 3.9 x 9.8" (10 x 25cm) | | Weight | 5.1 lbs (2.3kg) | | | | Package Weight | 6.95 lb | | Box Dimensions (LxWxH) | 16.55 x 11.2 x 9.05" |
