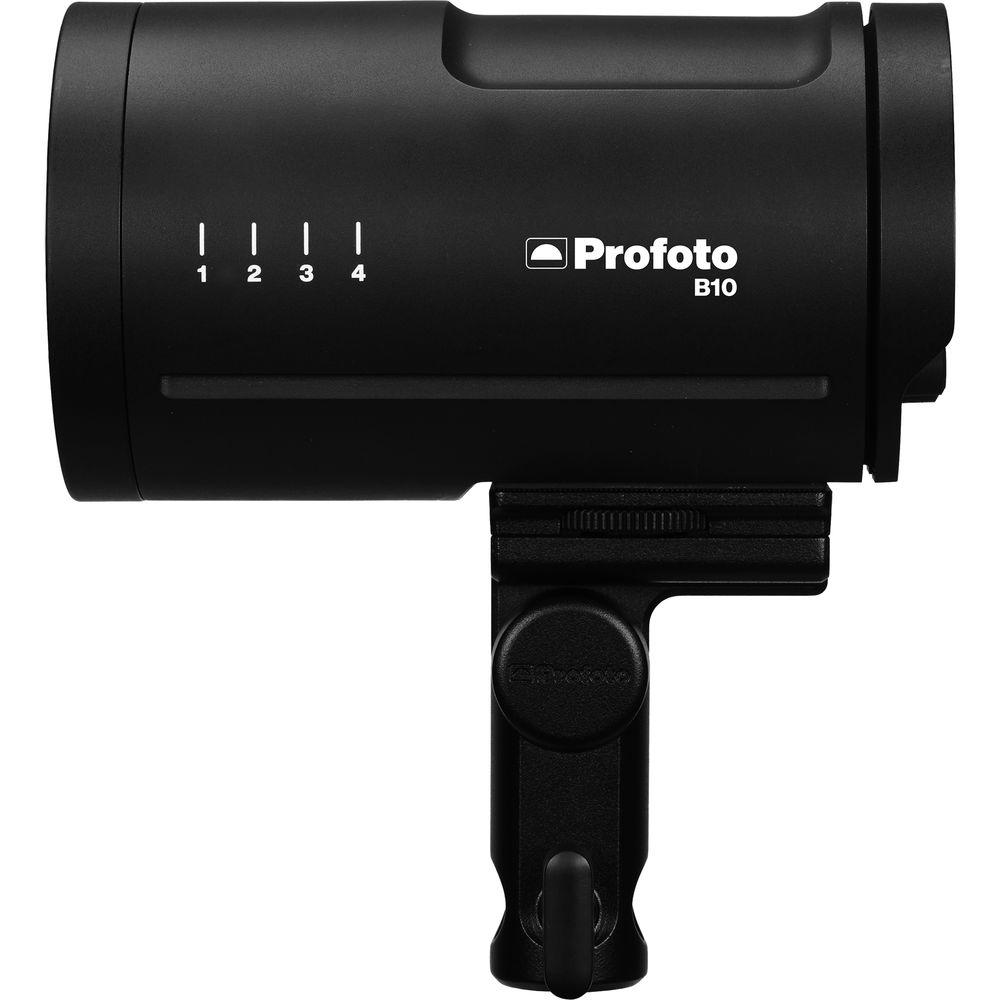

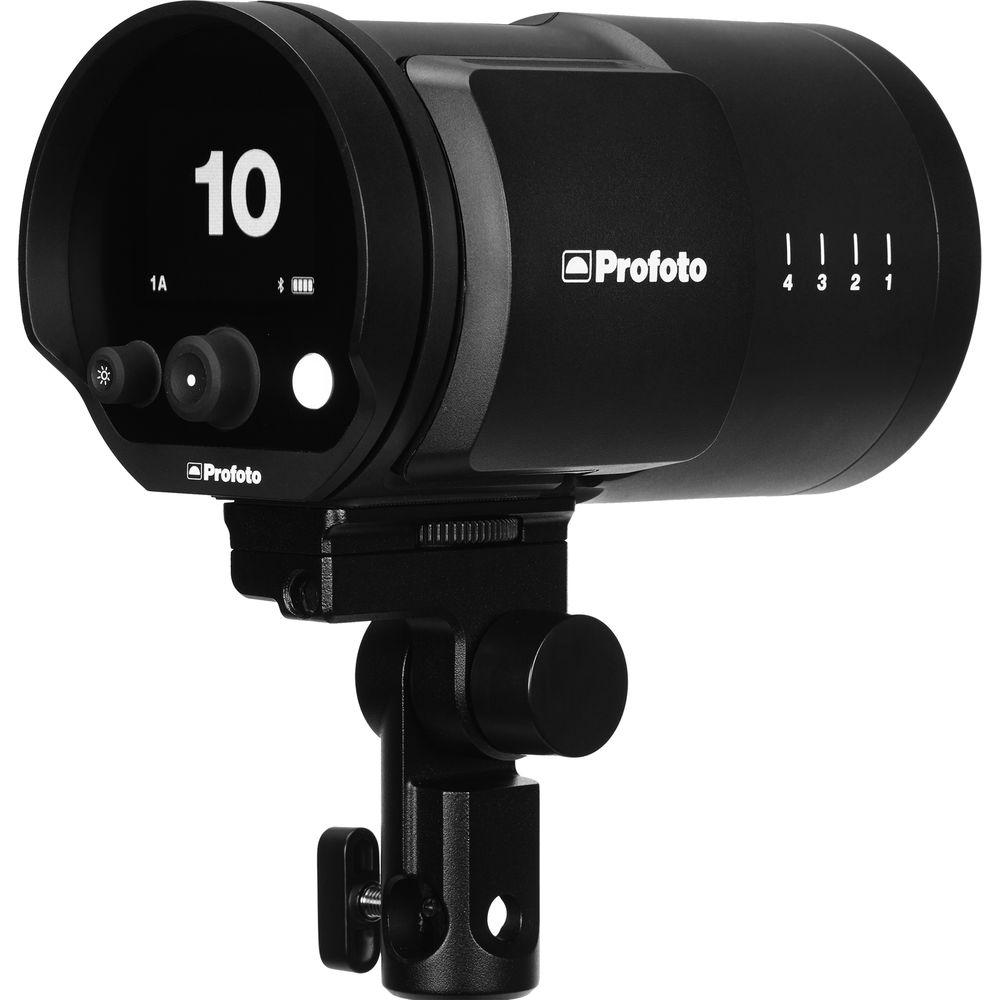

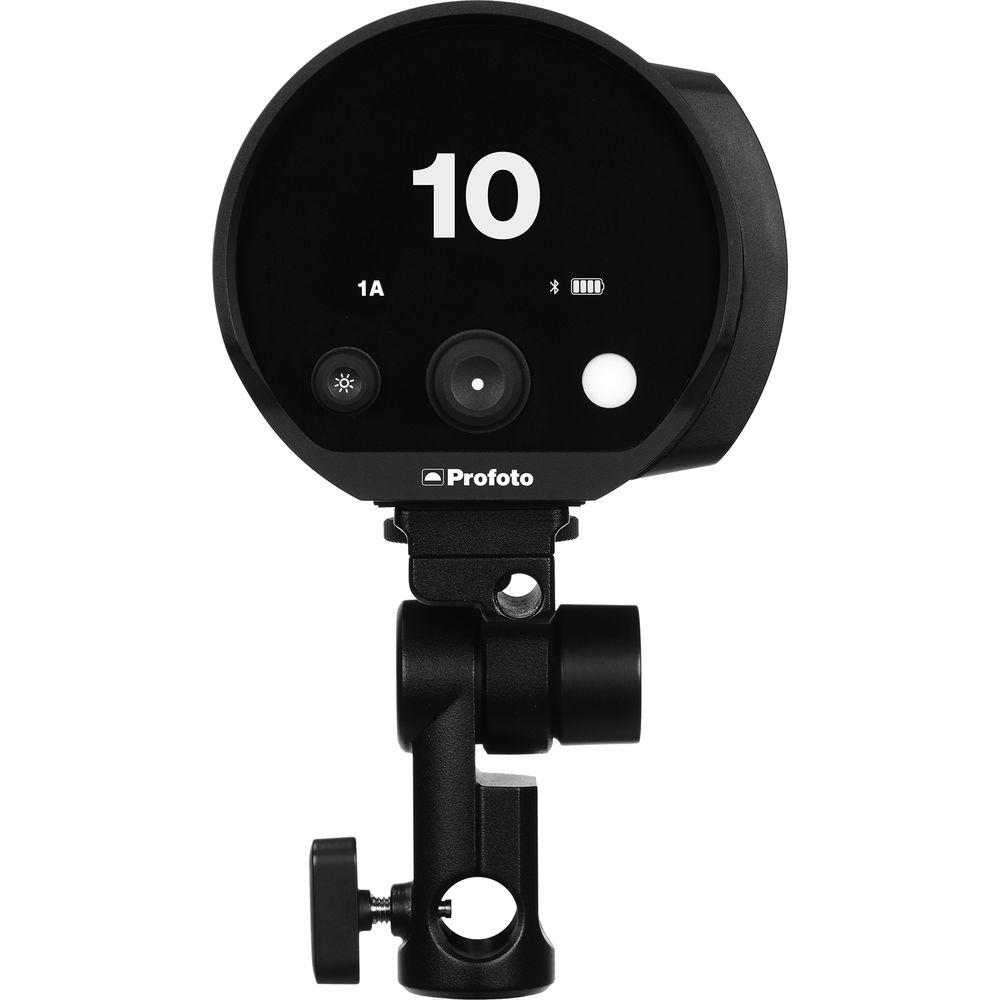

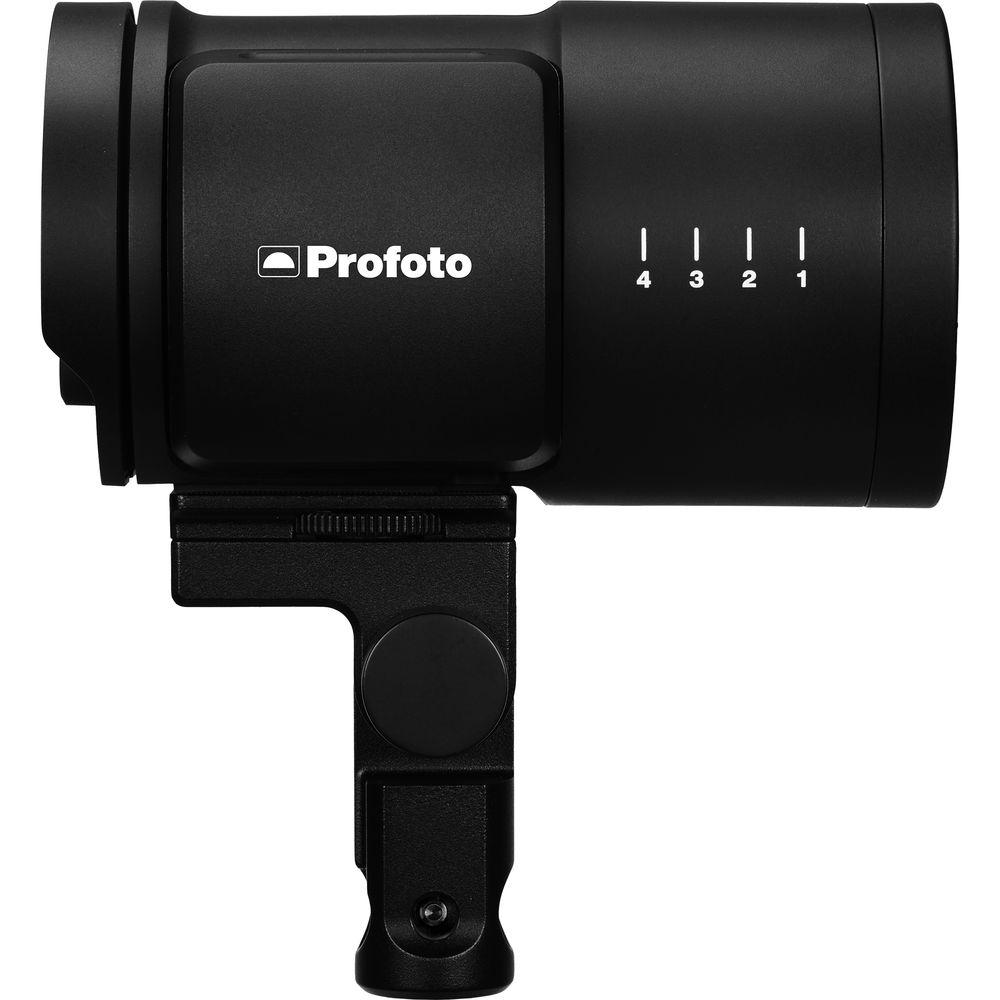

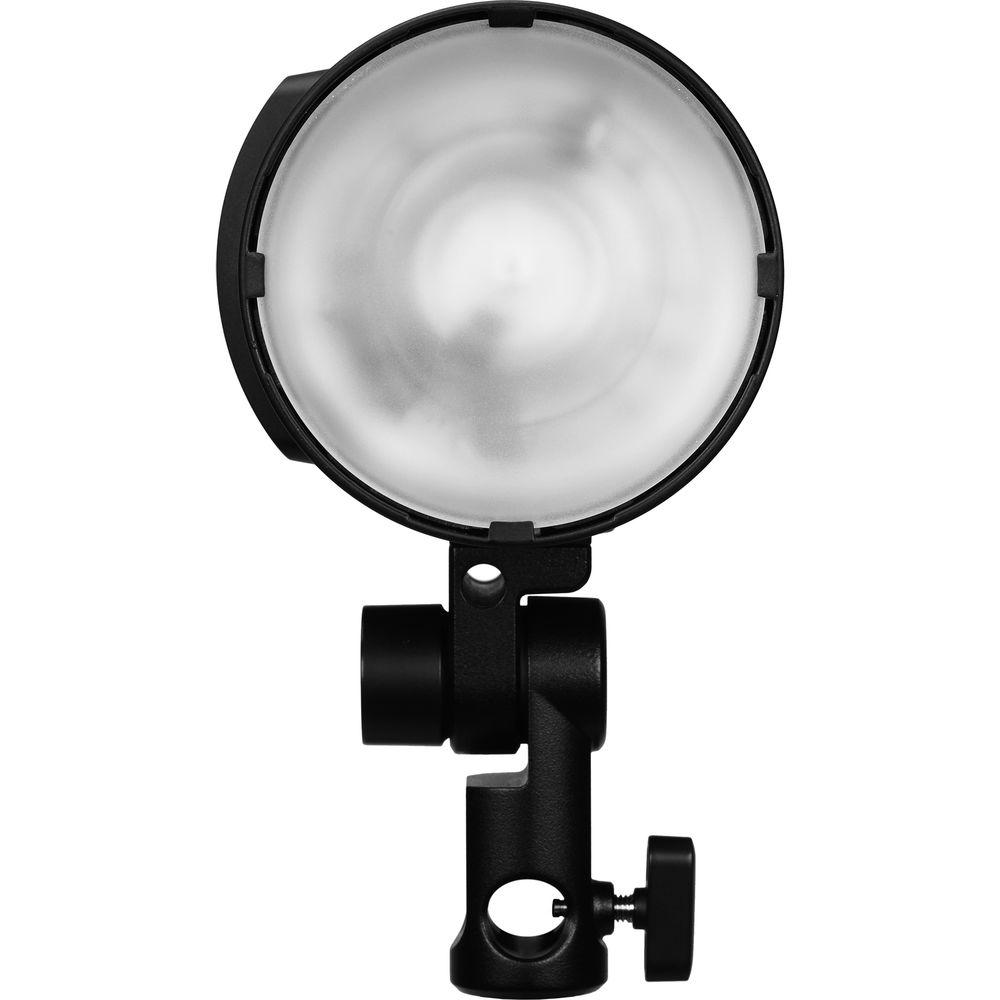

User Manual for Profoto B10 OCF Flash Head Click to enlarge the picture
Contents of the user manual for the Profoto B10 OCF Flash Head
- Product category: Monolights Profoto
- Brand: Profoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Profoto Monolights
 |
User manual for the Profoto B10 OCF Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Profoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Profoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Profoto product will considerably shorten its lifespan!
|
Product description WPPI 2019: A Quick Look at the New Profoto B10 Read More - Profoto B10 | First Look
- Profoto B10 - A big light in a small package
- The power of small with Two Mann Studios, Joseph Radhik and the Profoto B10
Profoto continues to affirm their commitment to full-featured flash systems with onboard TTL capability with the introduction of the impressive, battery-powered B10 OCF Flash Head. Part of the OCF family which began with the reduced-size B2 power pack, continued with the full-sized B1X monolight, and most recently the A1 shoe-mount Studio Light, the B10 combines the best characteristics of the monolight with those of auto-exposure, on-camera flashes. In a move that's consistent with their ongoing "techno-logic" Profoto packs all the features of the previous OCF lights into the 7" B10. The 250Ws light has a 10-stop variable power range and swift recycle times of 0.05 to 2.2 seconds. Flash duration is an action-stopping 1/7,000 second but there's a Freeze Mode that prioritizes flash duration resulting in a very short 1/50,000 second at minimum power. The B10 is powered by a lithium-ion battery that gives a notable 400 full-power flashes on a 90 minute charge, while 60 minutes will top up the battery to 80% if you're short of time. Of course, one of the B10's most exciting features is TTL technology that takes advantage of your DSLR's flash auto-exposure system and significantly shortens the time between inspiration and execution and capture. The path to this great feature is purchase of an optional wireless radio Air Remote TTL controller which is currently made for Nikon, Canon, Fujifilm, Olympus, and Sony cameras. The hot-shoe-mounting controller has 8 channels and 3 groups, ensuring minimal interference with other nearby systems and equipment. Each group can be controlled independently from one another, permitting +/-2 EV adjustment of power ratios for TTL systems and nine stops of manual control. It can trigger the B10 in manual mode at distances up to 1000 feet and in TTL mode up to 300 feet - the length of a football field. The B10 and the Air Remote TTL also support High Speed Sync with shutter speeds as quick as 1/8000 sec to give the photographer complete control of background illumination or to allow use of wide apertures for creative work. There's also a Profoto Smartphone App that allows you to capture well-lit images wirelessly with your phone. Besides this multitude of features, the B10 has an LED modeling light with the equivalent power of a 150W incandescent lamp that's not only dimmable, but has color temperature that's variable from 3000 to 6500K. Its high CRI of 90-96 makes it usable for video. The battery will give you 75 minutes run time on full power. A small form factor, battery power, remote control, photo and video compatibility, and smartphone connectivity make the B10 another impressive entry in the OCF roster. - Benefits
-
- Size and shape of a camera lens
- Lightweight and cordless
- Flash with the power of 5 speedlights
- Continuous light with adjustable brightness and color temperature
- Flexibility to set up on camera tripods or light stands
- Compatibility with 120+ Profoto light shaping tools including the full OCF range
- Compatibility with all Profoto Air TTL Remotes, including the Profoto A1
- Smartphone connectivity with the Profoto app
- Freeze Mode prioritizes flash durations as short as 1/50,000 sec
In the Box Profoto B10 OCF Flash Head Li-Ion Battery for B10 OCF Flash Head ztrxvvbvwtaaystewvaquewxzstt 3A Charger for B10 OCF Li-Ion Battery Stand Adapter for B10 OCF Flash Head Protective Cap for B10 OCF Flash Head Case for B10 OCF Flash Head Limited 2-Year Warranty Profoto Unleashes the Power of Small with the B10 Off-Camera Flash Shawn C. Steiner 09/12/2018 User Manual PDF 590.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Profoto B10 OCF Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProfoto B10 Specs | | | Maximum Power | 250 Ws | | Power Control | 10 Stops | | Guide Number | 72.51' / 22.1 m at 6.56' / 2 m, ISO100 with Reflector With optional OCF Magnum Reflector | | Flash Duration | t.1: 1/4900 to 1/400 Sec (Full Power)
t.5: 1/7000 to 1/1300 Sec (Full Power)
t.1: 1/14,000 to 1/400 Sec (Full Power)
t.5: 1/50,000 to 1/1300 Sec Normal Mode (1st spec) Freeze Mode (2nd spec) | | Recycle Time | 0.05 to 2.2 Sec (Full Power) | | Color Temperature | 5600K | | Flash Ready Indicator | Audio | | Reflector | 3.9" / 9.91 cm Fixed | | Accessory Fitting Type | Profoto, Profoto OCF | | | | Type | LED | | Wattage | 150 W 150W Incandescent Equivalent | | Control Modes | Free Set | | Color Temperature | 5600K Adjustable from 3000K to 6500K | | | | Sync Type | Button, Optical, Radio | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 8 / 3 | | Wireless Range | 330' / 100.6 m (Radio) | | Interface | USB Type-C | | | | Power Source | External Battery | | | | Battery Chemistry | Lithium-Ion | | Maximum Output Voltage | 14.4 VDC | | Capacity (mAh) | 3000 mAh | | Flashes Per Charge | 400 Flashes (Full Power) | | Recharge Time | 90 Minutes | | Weight | 9.5 oz / 269 g | | | | Display | LCD | | Mount | 5/8" / 16 mm Receptacle Mount is Removable for Packing | | Auto Dump | Yes | | Fan Cooled | No | | Operating Temperature | 32 to 113°F / 0 to 45°C (Recommended) | | Dimensions | H: 3.9 x W: 4.3 x L: 6.9" / H: 9.9 x W: 10.9 x L: 17.5 cm, Including Stand Adapter | | Weight | 3.3 lb / 1.50 kg, Including Battery, Yoke | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 12.2 x 9.9 x 5.7" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
