User Manual for Profoto D1 Air 250W s Monolight Click to enlarge the picture
Contents of the user manual for the Profoto D1 Air 250W s Monolight
- Product category: Monolights Profoto
- Brand: Profoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Profoto Monolights
 |
User manual for the Profoto D1 Air 250W s Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Profoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Profoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Profoto product will considerably shorten its lifespan!
|

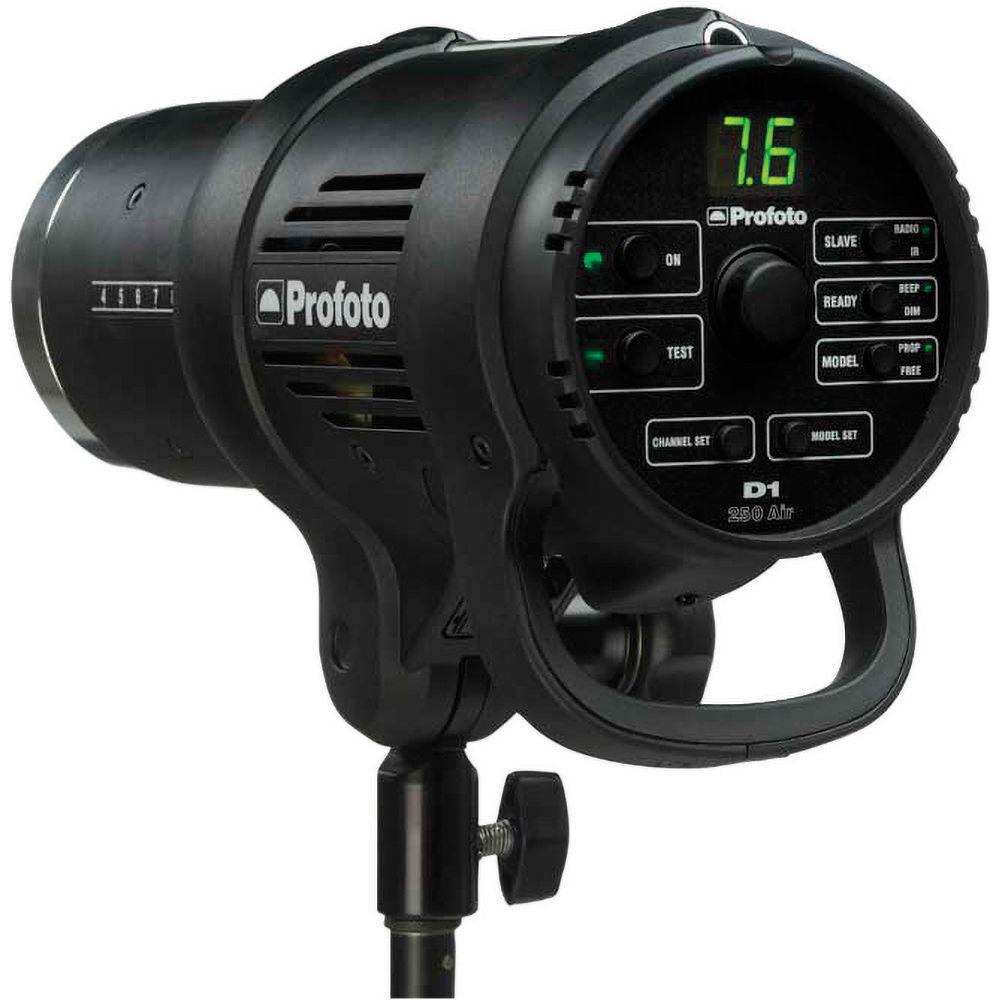

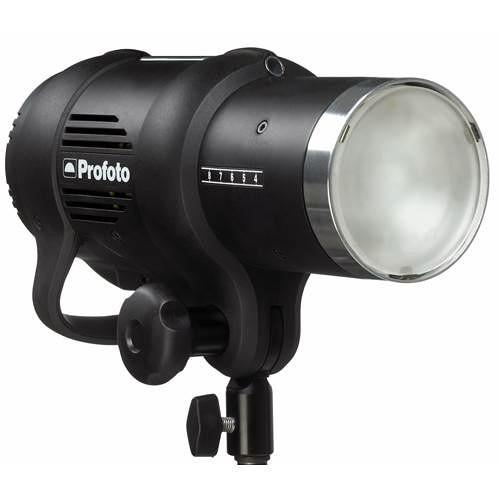

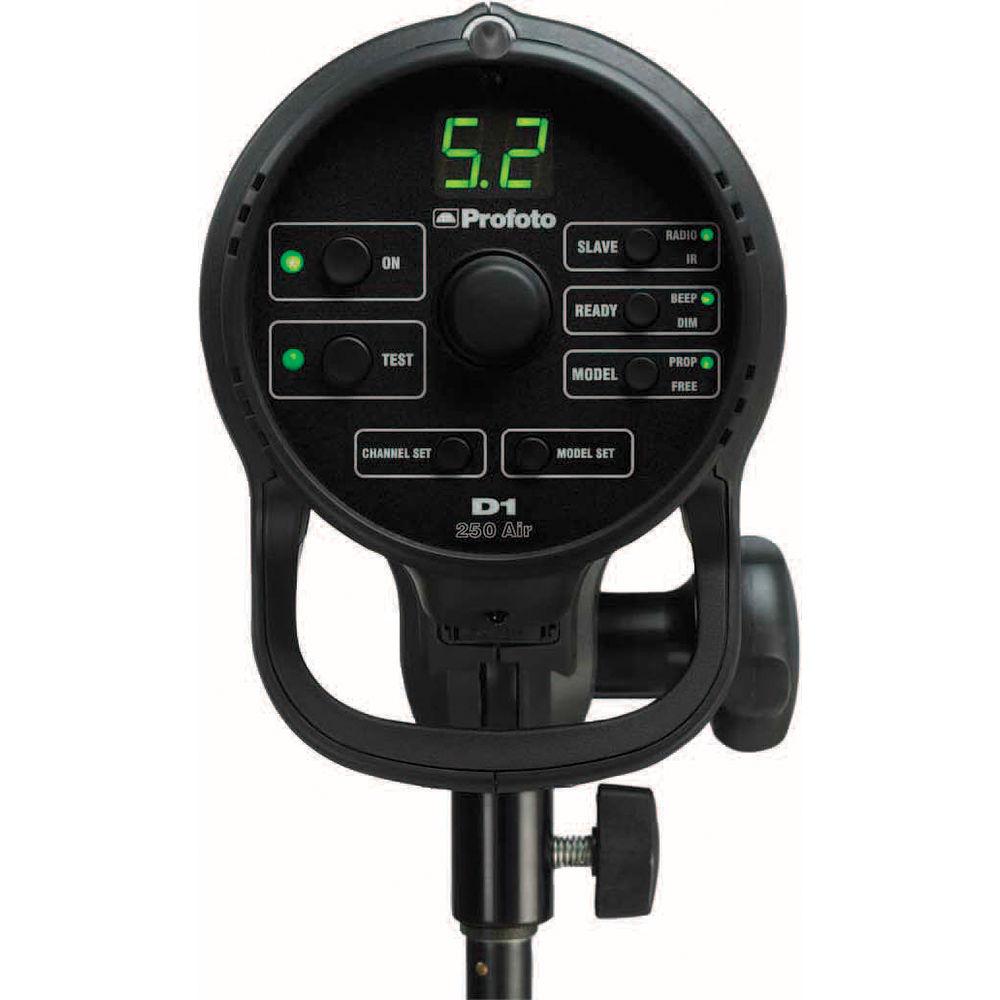

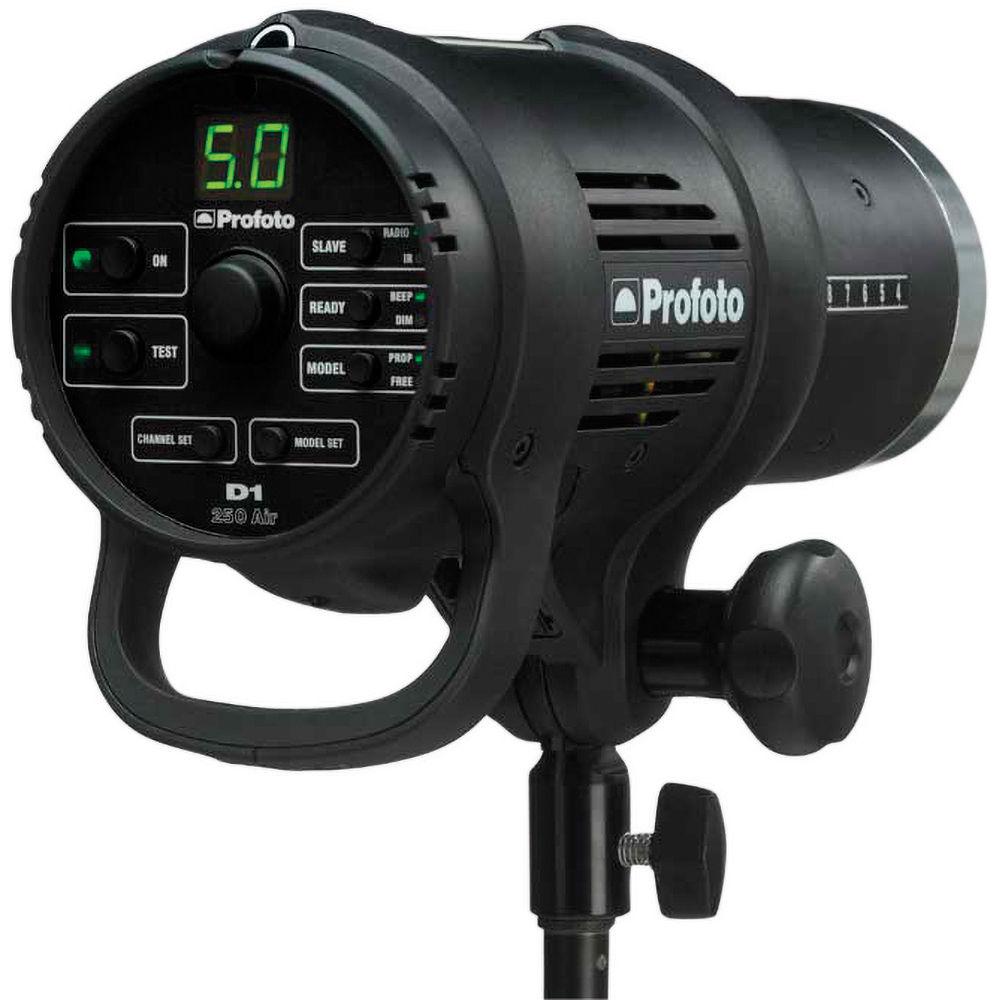

Product description The D1 Air 250W/s Monolight is a significant refinement of the ComPact monolight series from the company which having become synonymous with professional strobe lighting, is now celebrating its 40th anniversary. No stone has been left unturned in the provision of tech and convenience features that seem to derive from professional photographers' wish lists. The sleek matte-black, high-impact polycarbonate finish encases strobe design that goes beyond the highly visible LED readout and is digital from the ground up. The 7 stop power range breaks down to 1/10 stop increments providing flexibility, precision and consistency, made possible by dual mode SMPS capacitor charging.A new built-in 77 degree reflector (5.12" diameter) maximizes case space and is ideal for umbrella and softbox use. Features that we've come to expect from Profoto over the years: short flash duration, rapid recycling, a bright 300W modeling lamp and heavy-duty cabling are all on-board. Profoto Air System technology replaces the sync cord, allowing the head to be remotely triggered from as much as 300 meters (1000 feet) away using a Profoto Air Remote or Air Sync transceiver (sold separately). The Air Sync provides wireless triggering (8 channels) via hot shoe or mini plug, while the Air Remote provides wireless triggering as well as full-function head control over 8 channels in 6 distinct groups. Additionally, the D1 Air's syncing and complete functionality can be wirelessly controlled via your PC or Mac by using Profoto's optional Air USB with the included Studio software. Modeling lamp operation is user-selectable: On/Off/Proportional and Free (manual). There is also a selectable flash confirmation (dimming) feature in addition to an audible, fully-recycled tone. The D1 is compatible with the full line of widely-acclaimed Profoto light-shaping tools. Finally, the self-sensing multi-voltage circuitry allows you to take the D1 anywhere in the world. - High-visibility LED readout with 7 stop range in precise 1/10th stop increments
- Rapid recycling (0.2 - 0.65 sec @ 120V, 0.2 - 0.65 sec. @ 230V) insures that fleeting gestures and defining moments are caught, not lost
- The 300W modeling lamp meets the challenge posed by a high ambient light level on set provides easy pre-visualization of the final shot
- Air System technology makes the sync cord obsolete, allowing remote triggering of your D1 from as much as 1,000' (300 m) away. Alternately, the D1 Air's syncing and complete functionality can be wirelessly controlled via your PC or Mac by using Profoto's optional Air USB and the included Studio software
- Lightweight design with durable polycarbonate shell and built-in 77 degree umbrella reflector
- Self-sensing multi-voltage capability allows you to take the renowned Profoto quality of light anywhere in the world
- Super-short flash duration (1/1,400 - 1/3,700 Sec. t0.5) provides crisp, action-stopping images, and is especially valuable for dance, sports and other highly kinetic subjects
- Connect the D1 to the optional Profoto Air USB for PC and Mac for full control of your entire studio flash system via wireless communication
- Highly consistent shot-to-shot performance within a +/- 0.05 stop range via dual-mode SMPS capacitor technology
- Safety features include auto-diagnostic start-up circuitry, DDP (Deep Discharge Protection), pulse-charging capacitor circuitry temperature control and overload protection
- Fully compatible with the extensive line of renowned Profoto light shaping tools
Note:D1 Air models require use of a Profoto Air remote or Profoto Air Sync for triggering of the strobe from the camera UPC: 734002751713 In the Box Profoto D1 Air 250W/s Monolight Flashtube for D1 Monolight - 250Ws Maximum fsscbazcdttcwytuavx 300W Modeling Lamp Power Cable Glass Plate for D1 and B1 Monolights (Frosted) Plastic Transport Cap for D1 and B1 Heads Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Profoto D1 Air 250W s Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProfoto D1 Air Specs | | | Maximum Power | 3.9 to 250 Ws | | Power Control | 7 Stops in 1/10-Stop Increments | | Guide Number | 216' / 65.8 m at 6.56' / 2 m, ISO100 | | Flash Duration | t.5: 1/3700 to 1/1400 Sec | | Recycle Time | 0.2 to 0.65 Sec () | | Color Temperature | 5600K ± 30K | | Flash Ready Indicator | Audio, Visual | | Reflector | 77° Fixed | | Accessory Fitting Type | Profoto | | | | Type | Tungsten | | Wattage | 300 W | | Control Modes | Free Set, Off, Proportional | | | | Sync Type | Cable, Optical, Radio | | | | AC Input Voltage | 100to240 VAC, 50 / 60 Hz | | Circuit Protection | Adaptive Thermal Control | | Fuse | 10 A (US)
6 A (International) | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions |
