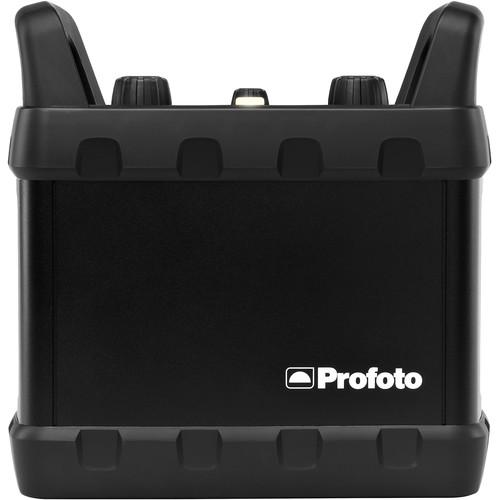

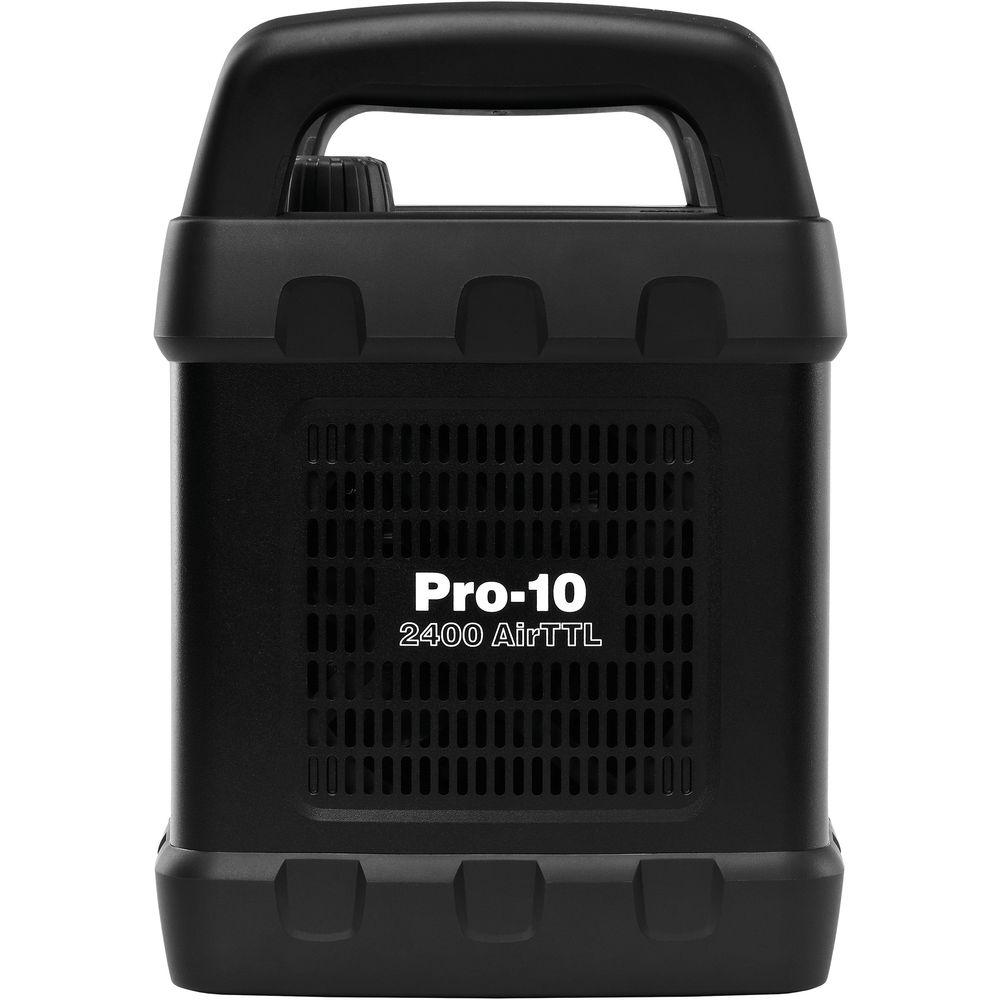

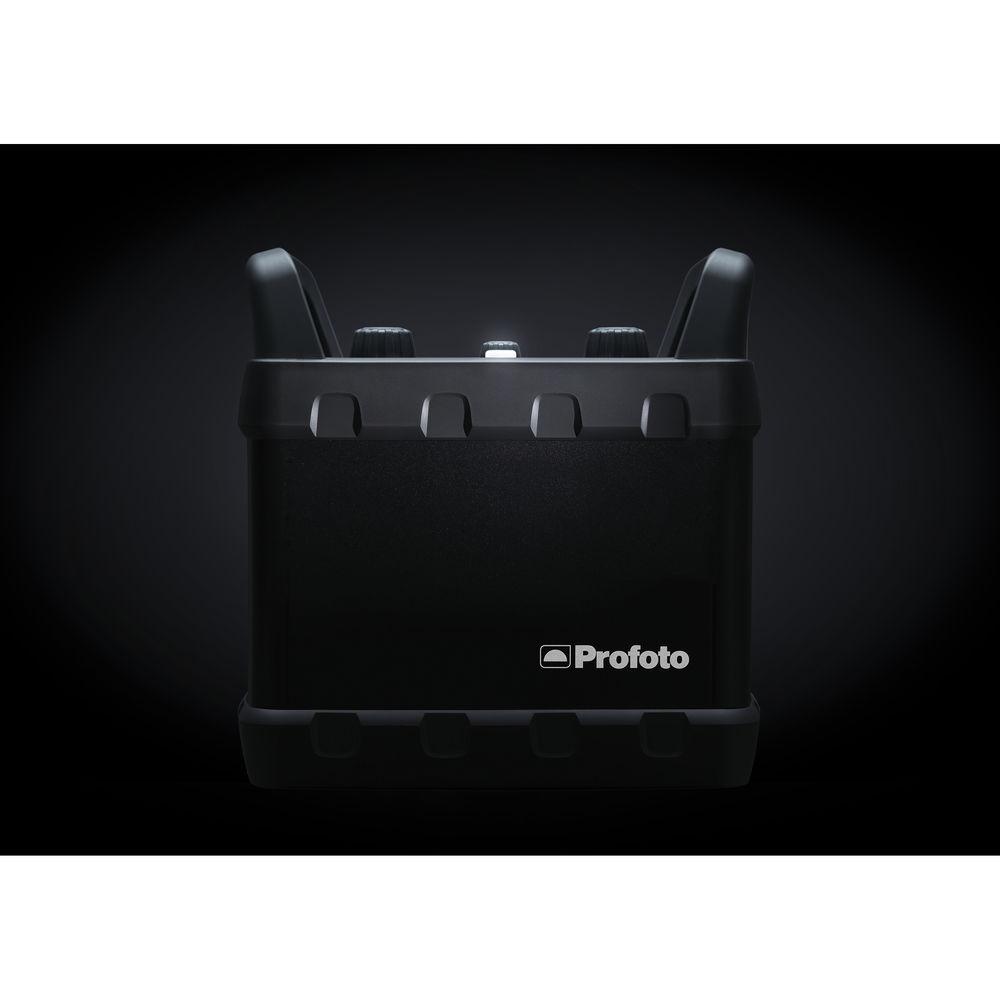

Product description - Profoto Pro-10 - The world's fastest flash
With the introduction of the Pro-10 2400 AirTTL, Profoto satisfies the need for speed while continuing on a TTL roll that gave us the recently debuted D2 monolight. The 2-outlet 2400Ws pack recycles in 0.02 to 0.7 sec, faster than its Pro-8 predecessor, and is capable of quick bursts up to 50 flashes per second. The power range has also expanded to 11 stops (2.4 - 2400Ws), selectable in full or 1/10 stop increments on its high resolution display. Action and special effects shooters will appreciate significantly faster flash durations as short as 1/80,000 sec. The pack also supports High Speed Sync (HSS) up to 1/8000 sec for managing output in full daylight, creative use of wide apertures or freezing action. Firmware updates are easily installed via the pack's USB port.To streamline your workflow, the Pro-10's fully integrated TTL lets you concentrate on inspiration rather than exposure calculation. The Pro-10 is fully compatible with the optional Air Remotes TTL-S/N/C for Sony, Nikon, or Canon which allow wireless TTL and exposure compensation at distances up to 330'. You can also shoot manually if you prefer with +/- 9 stop exposure adjustments and a 1000' wireless range. For maximum flexibility, the Pro-10 AirTTL is compatible with 11 different Pro and special application heads. In the Box Profoto Pro-10 2400 AirTTL Power Pack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Profoto Pro-10 2400 AirTTL Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProfoto Pro-10 Specs | Maximum Watt/Seconds | 2400 | | Guide Number | At 6.5' (2.0 m), 100 ISO with ProHead and Magnum Reflector: 128 | | Recycle Time | 0.02 to 0.7 sec
Quick burst up to 50 flashes per sec | | Flash Duration | Normal Mode (t0.5): 1/12,000 - 1/800 sec min/max power
Freeze Mode (t0.5): 1/80,000 - 1/1000 sec min/max power | | Flash Variability | 2.4 to 2400Ws over an 11-stop range in 1/10 or 1/1 step increments | | Voltage Stabilization | Not specified by manufacturer | | Distribution | Fully asymmetric | | Head Outlets | 2 | | Flash Ready Indicator | Audible and visible | | Operating Voltage | 100 - 240 VAC, 50/60 Hz | | Sync Voltage | Compliant to ISO 10330 standard | | Built-in Slave Cell | IR/Slave photocell
Built-in AirTTL Receiver
Fully integrated with other AirTTL flashes such as B1, B2, and D2. Requires separate purchase of an Air Remote TTL for Nikon, Canon, or Sony. | | Circuit Protection | Slow-blow fuse 16A/230V, 20A/110V | | Fan Cooled | Yes | | Auto Dump | Yes | | Dimensions | 11.4 x 8.3 x 11.8" (29 x 21 x 30 cm) | | Weight | 29.8 lb (13.2 kg) | | | | Package Weight | 33.8 lb | | Box Dimensions (LxWxH) | 15.591 x 14.882 x 11.417" |
