User Manual for Profoto ProHead Plus Flash Head with Zoom Reflector Click to enlarge the picture
Contents of the user manual for the Profoto ProHead Plus Flash Head with
- Product category: Power Pack Heads Profoto
- Brand: Profoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Profoto Power Pack Heads
 |
User manual for the Profoto ProHead Plus Flash Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Profoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Profoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Profoto product will considerably shorten its lifespan!
|

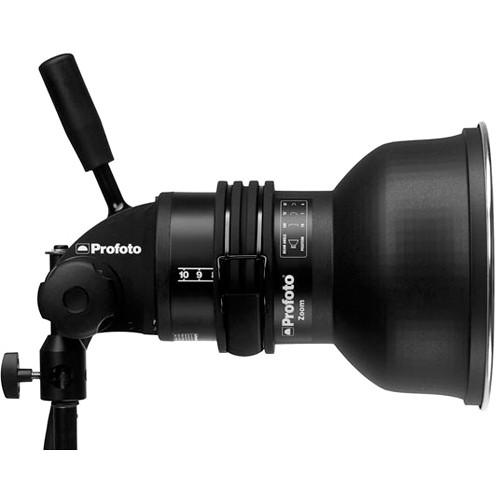

Product description Building on the foundation of the high performance ProHead, the ProHead Plus Flash Head with Zoom Reflector by Profoto raises the bar on the definition of "professional" equipment. Power has always been at the heart of the ProHead's design and the ProHead Plus doesn't disappoint with its fan cooled 4,800W/s capacity and heavy duty cabling that allows for intense shooting sessions hour after hour. The ProHead Plus has a heavy duty, sealed head connector capable of safely pumping very large amounts of juice to the upgraded "Perfect Arc" flash tube that offers improved triggering at low power settings and greater overall flash stability. Even the glass dome has been beefed up to better handle its power. And the head has 500W of modeling light output to match all that power, making it bright enough to shoot video with if needed. The beefed up 13.2' head cable is twist and crack resistant. The ProHead Plus comes with Zoom Reflector 2 that can provide 45 - 100 degree beam angles to suit your needs. Its folding handle makes for space-efficient packing and storage. - Safety Lamp Head Connector
- The safety lamp head connector is the most visible upgrade in the ProHead Plus line. The connector is sealed, helping to prevent dust and moisture from entering the generator. Note that the safety lamp head connector is 100% backward compatible.

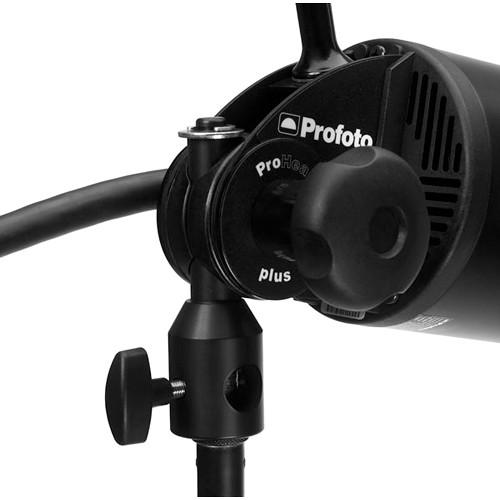

- Improved Stand Adapter
- The stand adaptor has been upgraded with a fixed screw. Unlike the previous version, it cannot be unintentionally screwed off. In addition, the stand adaptor is now equipped with an additional hole, which creates improved mounting options.
- Patent Pending "Perfect Arc" Flash Tube
- The "Perfect Arc" flash tube has a patented design that vastly improves the triggering capabilities on low power settings. This also provides better color and energy stability from flash to flash on all power settings. Note that the flash tube is compatible with all previous generations of ProHead and Pro-7 Heads.
- Improved Protective Glass Cover
- The glass cover has been made thicker, which makes it even more robust and safe to work with.
- Easy to handle
- A built-in tilt-control lever makes for easy angle adjustment.
- Easily Replaceable Flashtube and Glass Cover
- Plug-and-play flash tube mounting.
- Easy to Control the Light with Profoto Light Shaping Tools
- Comes with a Zoom reflector. Compatible with the entire range of Profoto's Light Shaping Tools.
- Powerful Modeling Light
- Comes with a bright 500W quartz halogen modeling light. The modeling light works worldwide without the needing to swap it out for the local voltage version.
- Long Head Cable
- 13.2' (4.0 m) cable that resists twisting, trampling and cracking. Extension cables are available for flash heads placed at longer distances from the power pack.
In the Box Profoto ProHead Plus Flash Head with Zoom Reflector Zoom Reflector 2 Perfect Arc Flash Tube Halogen Lamp (500W) Removable Frosted Glass Cover Plastic Transport Cap Stand Adapter with Fixed Screw (5/8") Lamp Cable 13.2' (4.0 m) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Profoto ProHead Plus Flash Head with Zoom Reflector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProfoto ProHead Plus Specs | Capacity | 1.0 - 4,800W/s | | Modeling Light Wattage | 250 - 500 | | User Replaceable Flashtube | Yes, quartz | | Guide Number | 2,400W/s at 6.5' (2.0 m) @ ISO 100
With Magnum Reflector @ head position 8: f/128.3
With Magnum Reflector @ head position 4: f/64.3
Zoom Reflector and white umbrella @ head position 7: f/32.3 | | Protective Glass Dome | Frosted UV | | Fan Cooled | Yes | | Cable Length | 13.2' (4.0 m) | | Changeable Reflector | Yes | | Circuit Protection | Yes | | Modeling Light On/Off Switch | Yes | | Compatibility | Generators (Power Packs)
Pro-B2 1200
Pro-B3 1200 AirS
Pro-B4 1000 Air
Pro-8a Air
Pro-7b 1200
Pro-7s 1200
Pro-7s 2400
Pro-7a 1200
Pro-7a 2400
D4 1200
D4 2400
D4 4800 | | Dimensions | Length: 10.25" (26 cm)
Diameter: 4.0" (10 cm) w/o reflector | | Weight | 4.85 lb (2.2 kg) | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 12.5 x 9.0 x 8.75" |
