User Manual for ProMediaGear Arca-Type Bracket Plate for Nikon D500 DSLR Camera

Click to enlarge the picture
ProMediaGear Arca-Type Bracket Plate for Nikon D500 DSLR Camera Contents of the user manual for the ProMediaGear Arca-Type Bracket Plate for Nikon
  • Product category: Tripods & Support ProMediaGear
  • Brand: ProMediaGear
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ProMediaGear Tripods & Support

ProMediaGear Arca-Type Bracket Plate for Nikon D500 DSLR Camera ProMediaGear Arca-Type Bracket Plate for Nikon D500 DSLR Camera ProMediaGear Arca-Type Bracket Plate for Nikon D500 DSLR Camera ProMediaGear Arca-Type Bracket Plate for Nikon D500 DSLR Camera
User manual for the ProMediaGear Arca-Type Bracket Plate for Nikon contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ProMediaGear product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ProMediaGear user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ProMediaGear product will considerably shorten its lifespan!



Product description

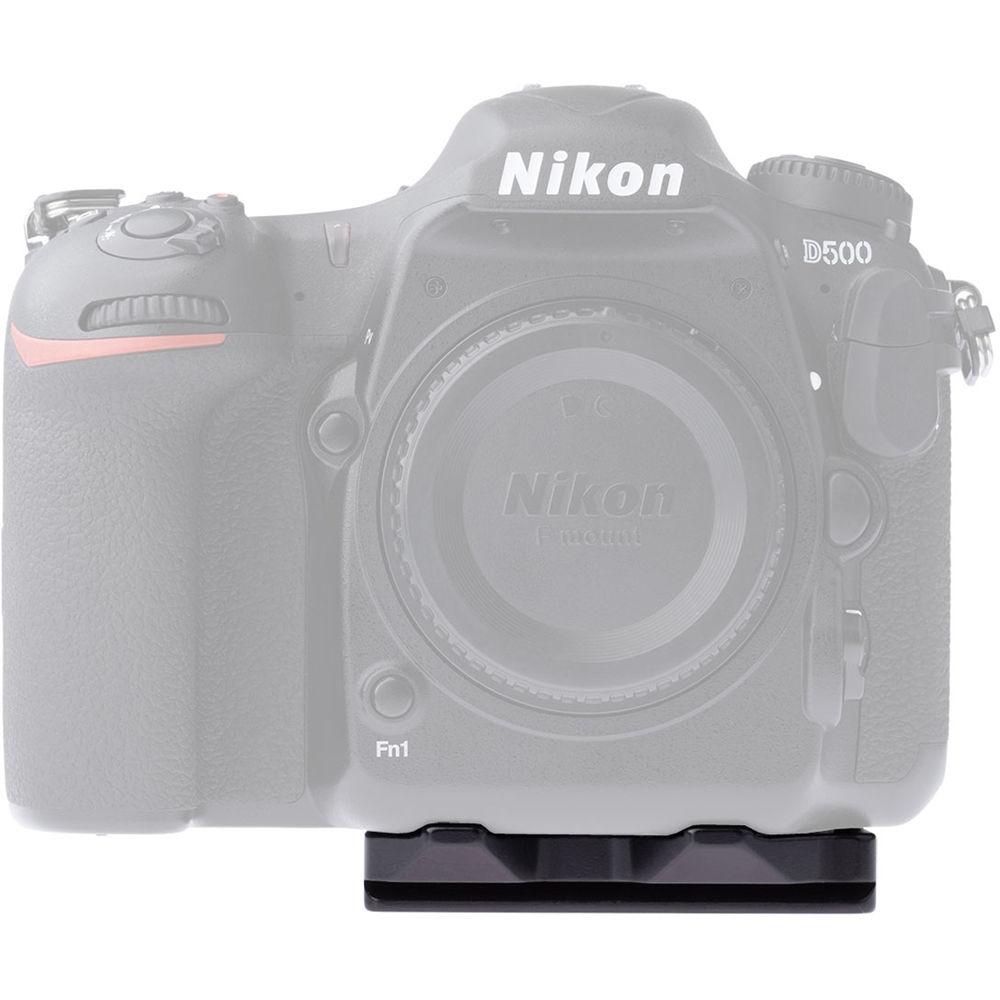

This Arca-Type Bracket Plate from ProMediaGear provides the ability to adapt a Nikon D500 DSLR camera body to an Arca-type compatible quick release clamp. It is also a modular component that can be used in combination with other, separately-available ProMediaGear bracket plates, brackets, handles, strap connectors, or other accessories for additional functionality.

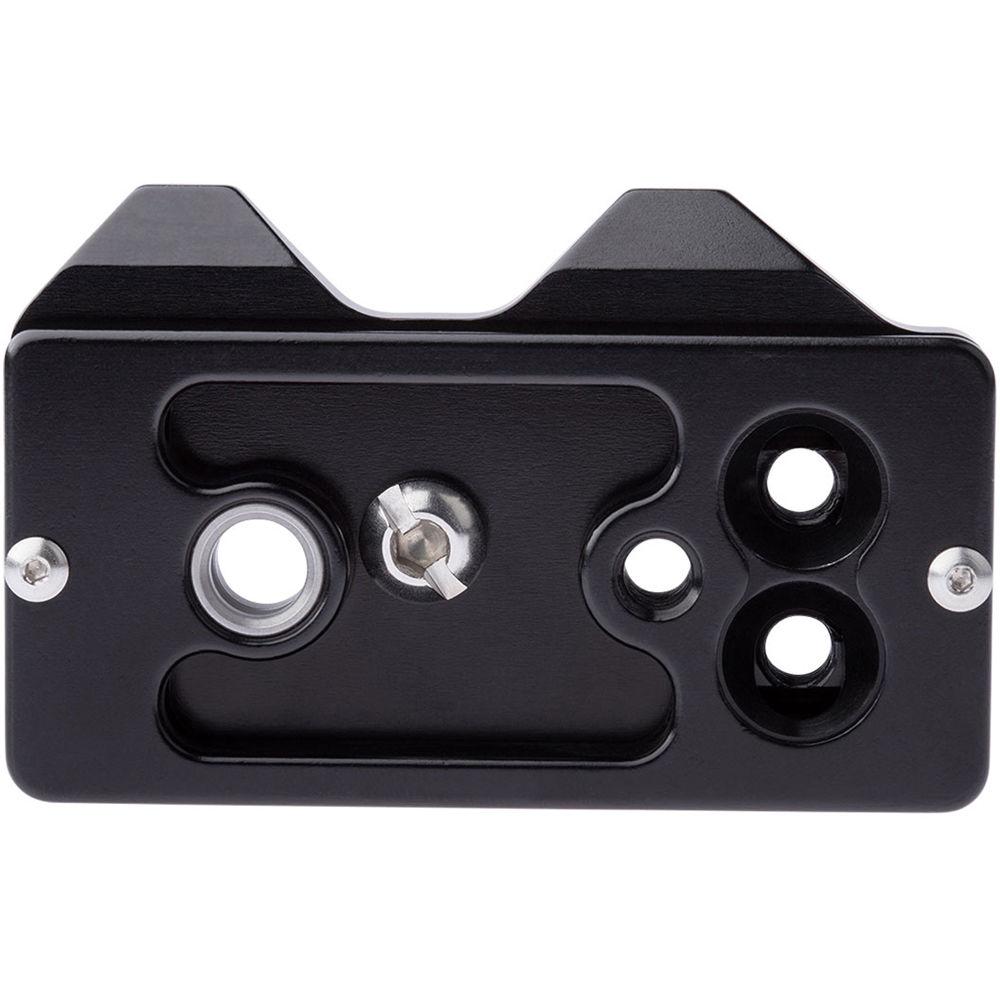

A movable 1/4"-20 mount allows the bracket plate to be connected to the bottom of a Nikon D500 DSLR camera body. While in use, front and rear anti-twist lips along the top surface of the bracket plate create an exact fit and help prevent unwanted rotation of the camera while it is adapted to a clamp. Dual retaining screws are included for use along the underside of the bracket plate. These screws prevent the bracket plate from accidentally sliding off when the clamp it is placed on is opened.

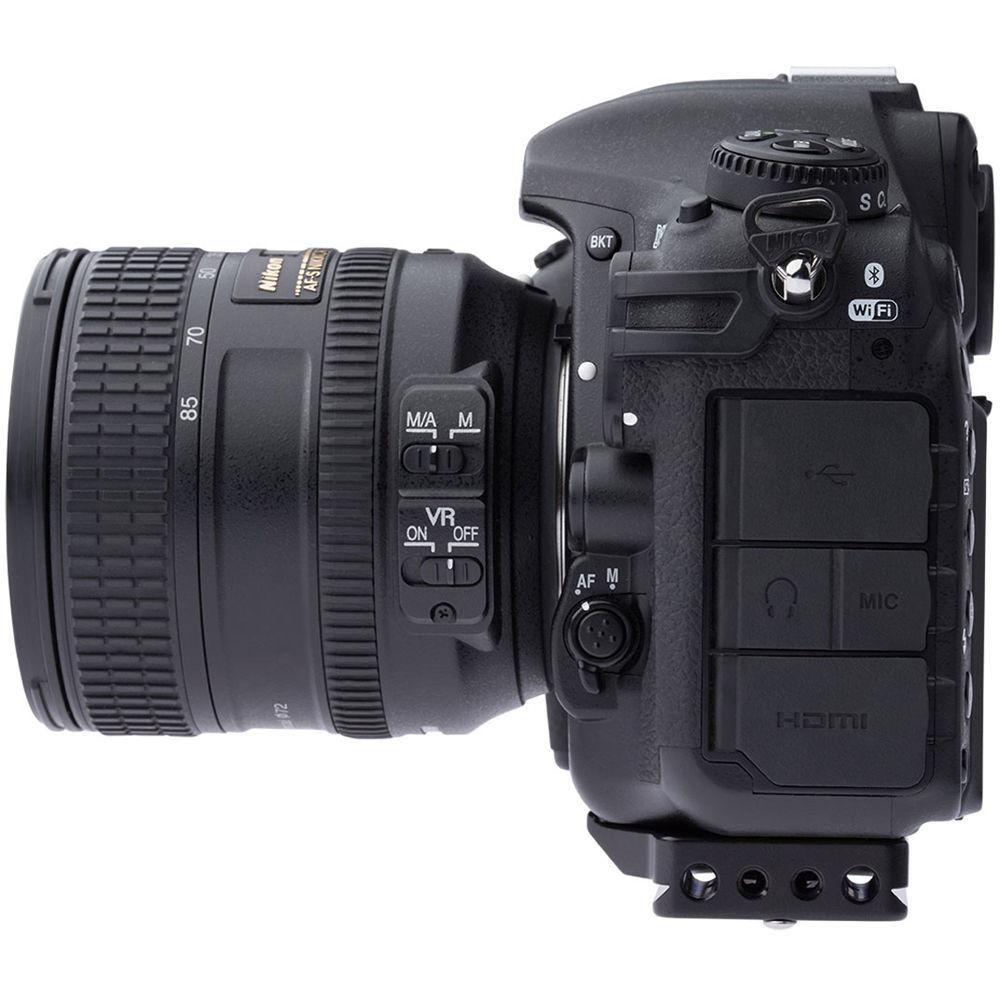

When the bracket plate is installed, its two side-facing accessory holes and the two female accessory threads in between them become oriented away from the camera's shutter-release button and towards the left when looking through the viewfinder. These accessory holes or the female accessory threads can be used to connect items such as a separately-available ProMediaGear expansion bracket or handle. With an expansion bracket, such as a ProMediaGear paparazzi bracket, a configuration can be arranged to place a flash, transmitter, or receiver adjacent to the camera. To simply obtain a more comfortable grip, a ProMediaGear bracket plate handle can be attached instead.

Alternatively, this bracket plate can be combined with a separately-available vertical bracket plate. Together, they allow a Nikon D500 DSLR camera body in the landscape orientation to be quickly put into portrait orientation.

For direct attachment to accessories such as straps, the underside of this bracket plate features a receiver for a ProMediaGear plug connector, while the top surface of the bracket plate includes accessory threads within left and right grooves that each accommodate a ProMediaGear strap loop and its retaining screws. Constructed from aluminum alloy with steel components, this Bracket Plate is durable while remaining lightweight.
    • Provides the ability to adapt a Nikon D500 DSLR camera body to an Arca-type compatible quick release clamp
    • Modular component that can be used in combination with other, separately-available ProMediaGear bracket plates, brackets, handles, strap connectors, or other accessories for additional functionality
    • Movable 1/4"-20 mount allows the bracket plate to be connected to the bottom of a Nikon D500 DSLR camera body
    • Front and rear anti-twist lips along the top surface of the bracket plate create an exact fit and help prevent unwanted rotation of the camera while it is adapted to a clamp
    • Dual retaining screws prevent the bracket plate from accidentally sliding off when the clamp it is placed on is opened
    • Either two side-facing accessory holes or two female accessory threads can be used to connect items adjacent to the camera, including a separately-available ProMediaGear expansion bracket, handle, or Arca-Type vertical bracket plate for a Nikon D500 DSLR camera body
    • One female accessory thread intended for especially frequent use is steel-reinforced
    • When combined with a separately-available, ProMediaGear Arca-Type vertical bracket plate, a Nikon D500 DSLR camera body in the landscape orientation can be removed from an Arca-type compatible quick release clamp and instantly returned to a quick release clamp in the portrait orientation
    • For direct attachment to accessories such as straps that can utilize a ProMediaGear plug connector or strap loops, underside of the bracket plate features a receiver for a ProMediaGear plug connector, while the top surface of the bracket plate includes accessory threads within left and right grooves that each accommodate a ProMediaGear strap loop and its retaining screw

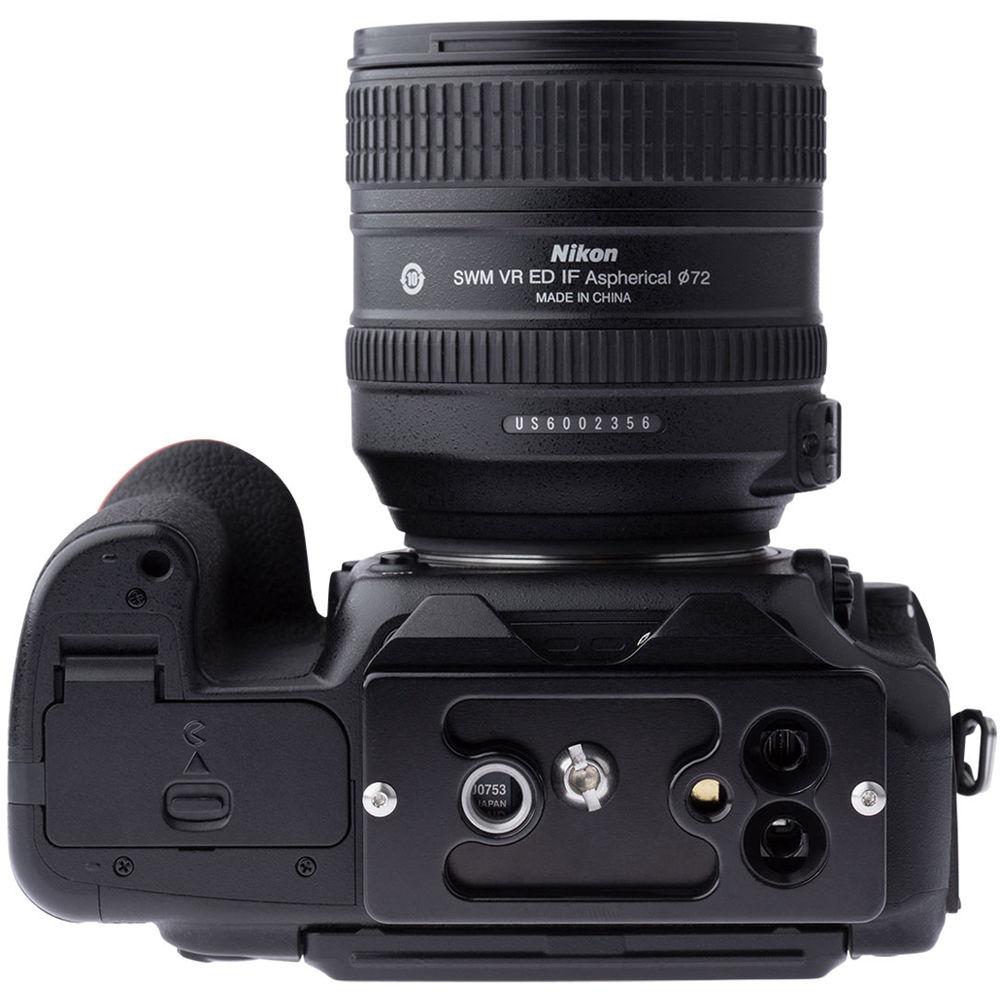

    • Does not obstruct access to camera battery
    • Constructed from aluminum alloy for durability while remaining lightweight
UPC: 609456714655 In the Box ProMediaGear Arca-Type Bracket Plate for Nikon D500 DSLR Camera
  • 1/4"-20 Mount
  • 2 x Retaining Screws
  • Hex Key for Mount
  • Hex Key for Retaining Screws
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ProMediaGear Arca-Type Bracket Plate for Nikon D500 DSLR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ProMediaGear PBND500 Specs

    Compatibility Nikon D500 DSLR Camera
    Material of Construction Aluminum Alloy
    Steel
    Package Weight 0.24 lb
    Box Dimensions (LxWxH) 14.95 x 4.9 x 1.4"

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4 of 5

    This product has already been rated by 12 owners. Add your rating and experience with the product.
