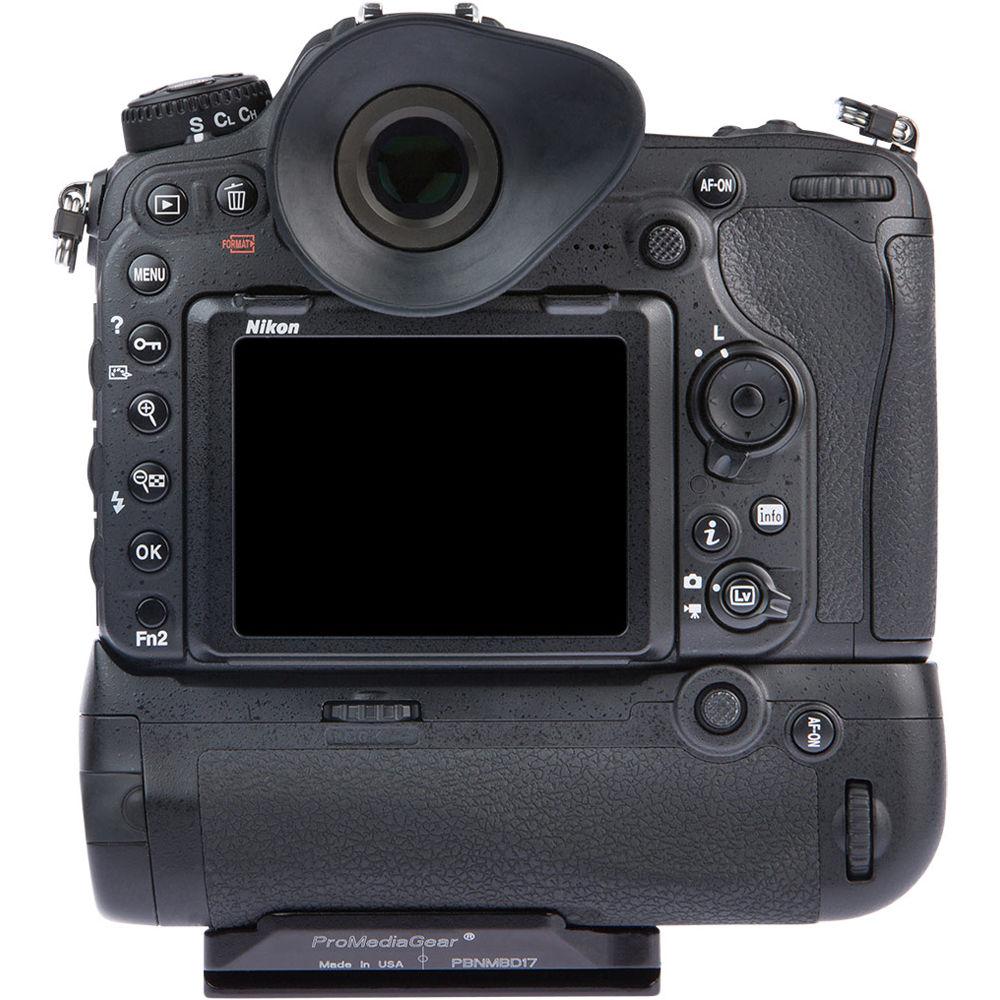

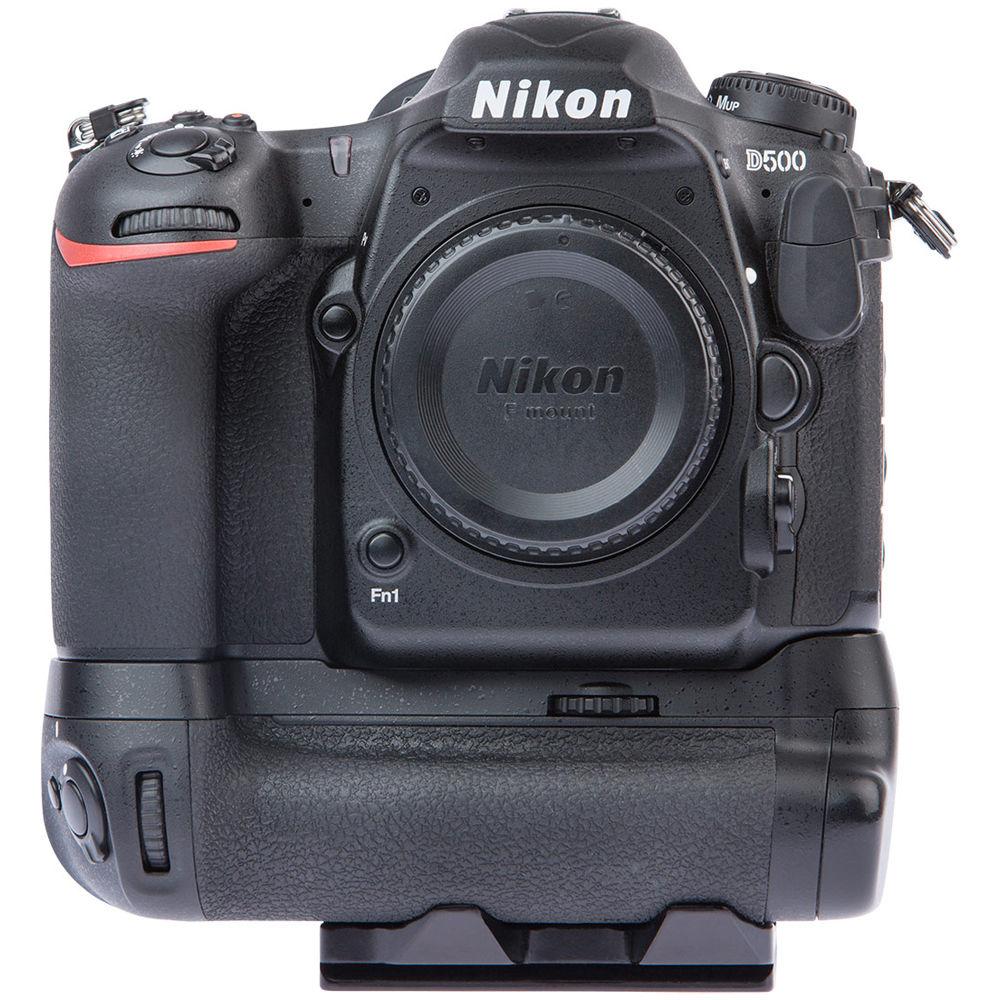

Product description This Arca-Type Bracket Plate from ProMediaGear provides the ability to adapt a Nikon D500 DSLR camera body with an MB-D17 Multi Battery Power Pack to an Arca-type compatible quick release clamp. It is also a modular component that can be used in combination with other, separately-available ProMediaGear bracket plates, brackets, handles, strap connectors, or other accessories for additional functionality.

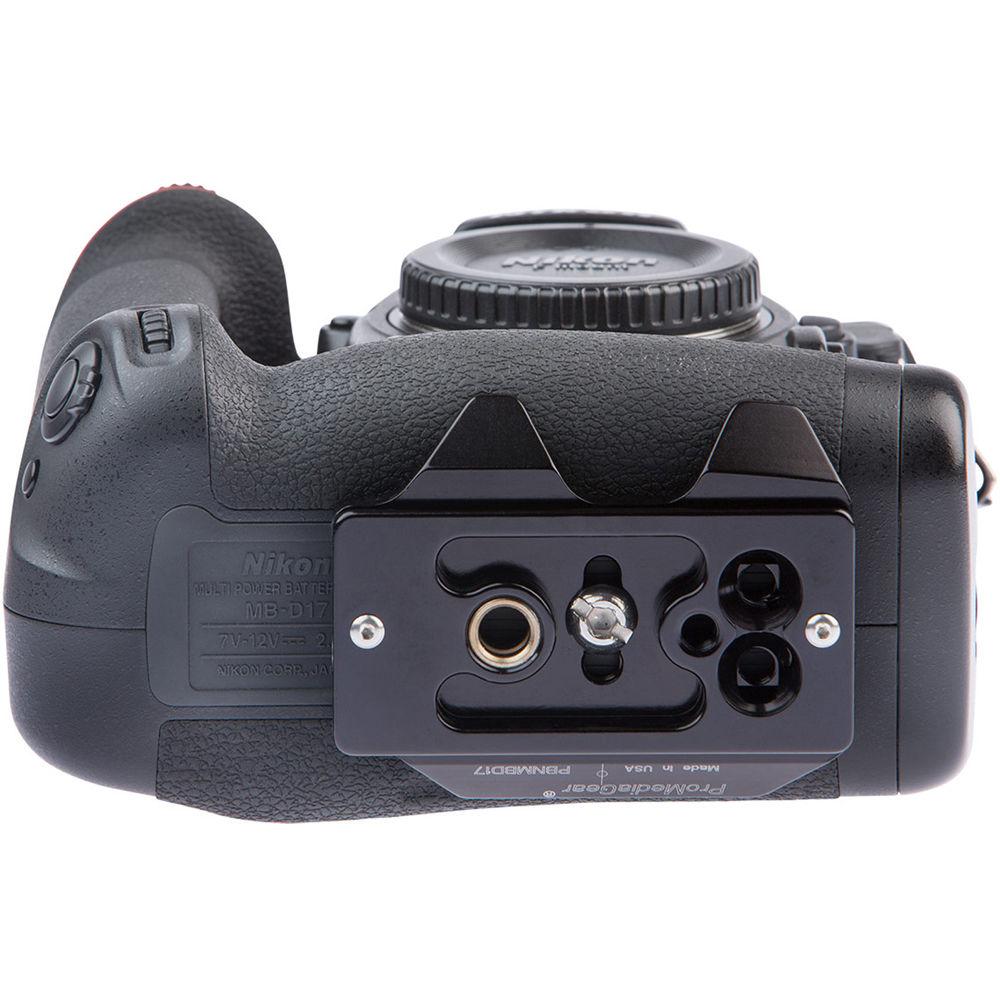

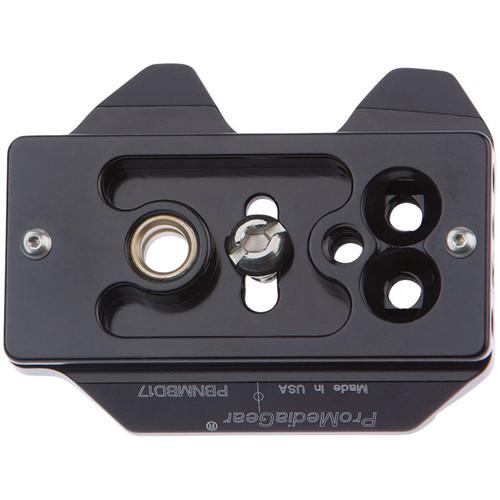

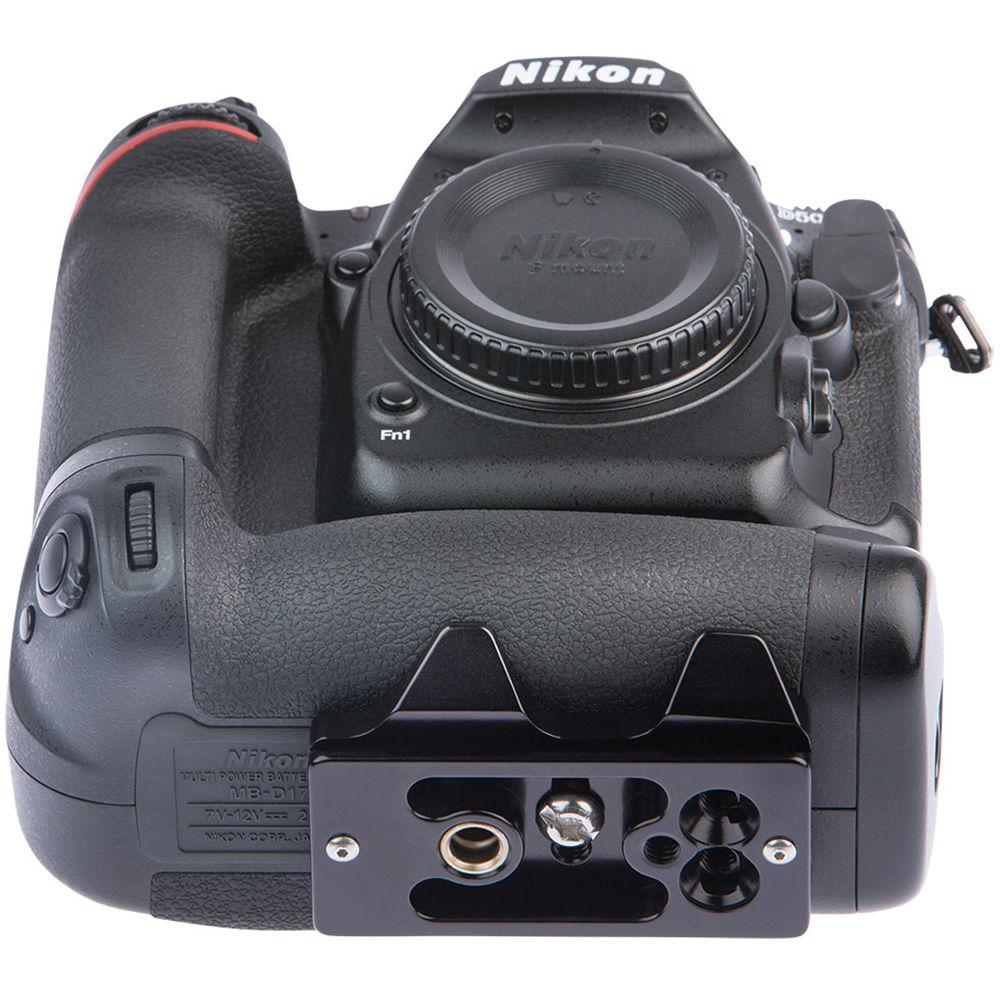

A movable 1/4"-20 mount allows the bracket plate to be connected to the bottom of a Nikon MB-D17 Multi Battery Power Pack. While in use, front and rear anti-twist lips along the top surface of the bracket plate create an exact fit and help prevent unwanted rotation of the power pack while it is adapted to a clamp. Dual retaining screws are included for use along the underside of the bracket plate. These screws prevent the bracket plate from accidentally sliding off when the clamp it is placed on is opened.

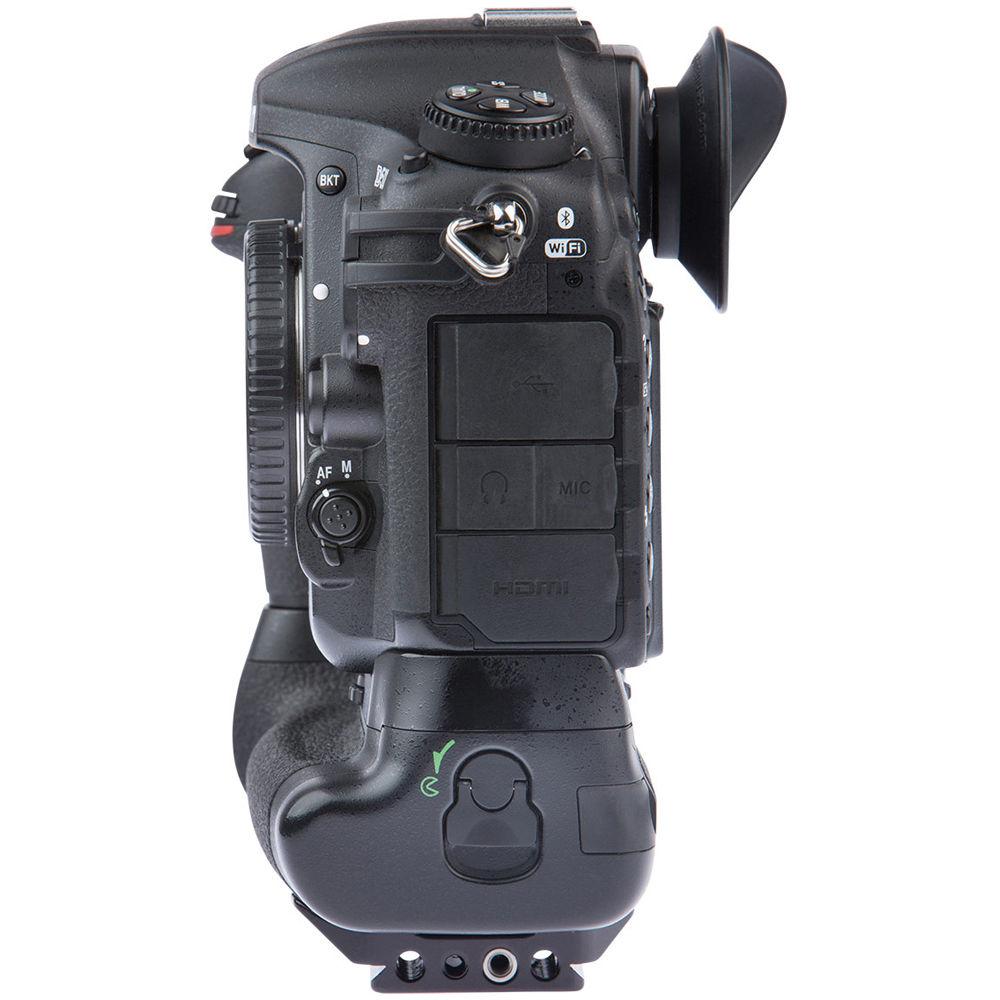

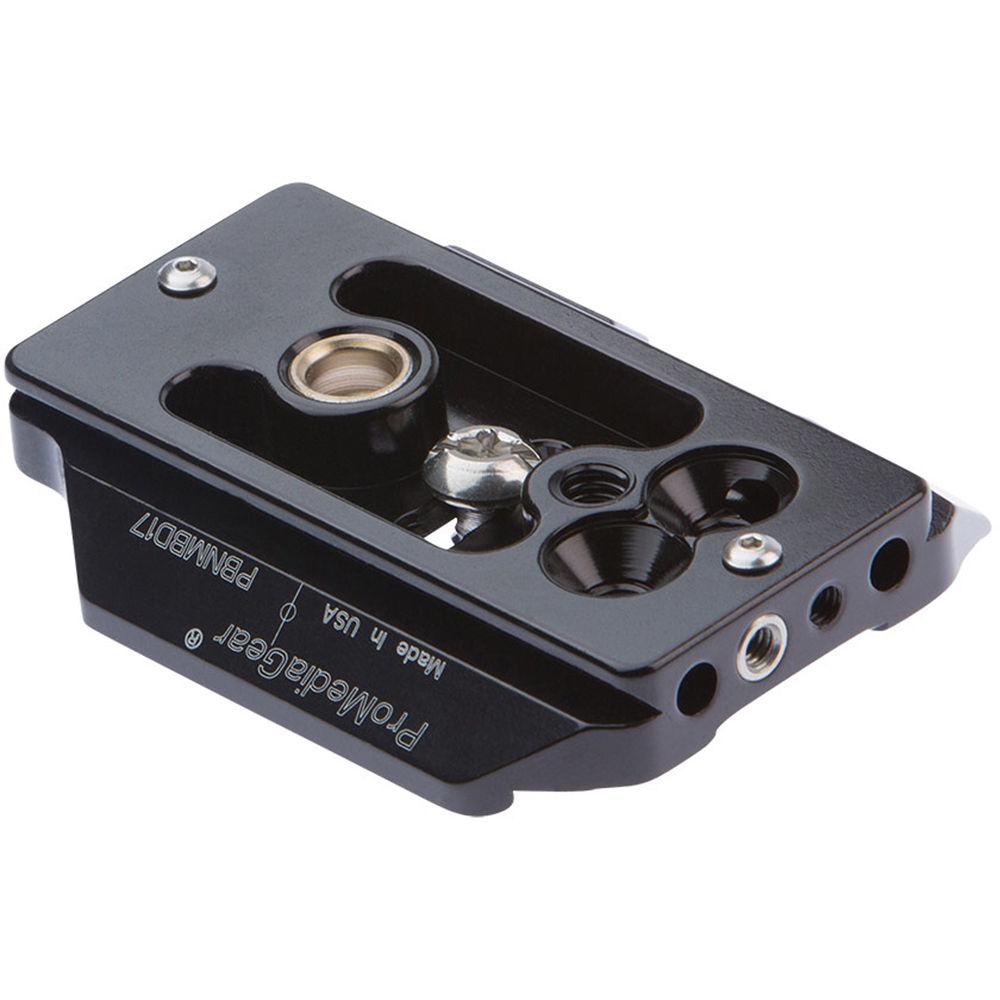

When the bracket plate is installed, its two side-facing accessory holes and the two female accessory threads in between them become oriented away from the camera's shutter-release button and towards the left when looking through the viewfinder. These accessory holes or the female accessory threads can be used to connect items such as a separately-available ProMediaGear expansion bracket or handle. With an expansion bracket, such as a ProMediaGear Paparazzi Bracket, a configuration can be arranged to place a flash, transmitter, or receiver adjacent to the camera and power pack. To simply obtain a more comfortable grip, a ProMediaGear bracket plate handle can be attached instead.
Alternatively, this bracket plate can be combined with a separately-available, ProMediaGear Arca-Type vertical bracket plate. Together, they allow a D500 in the landscape orientation to be quickly placed into portrait orientation.

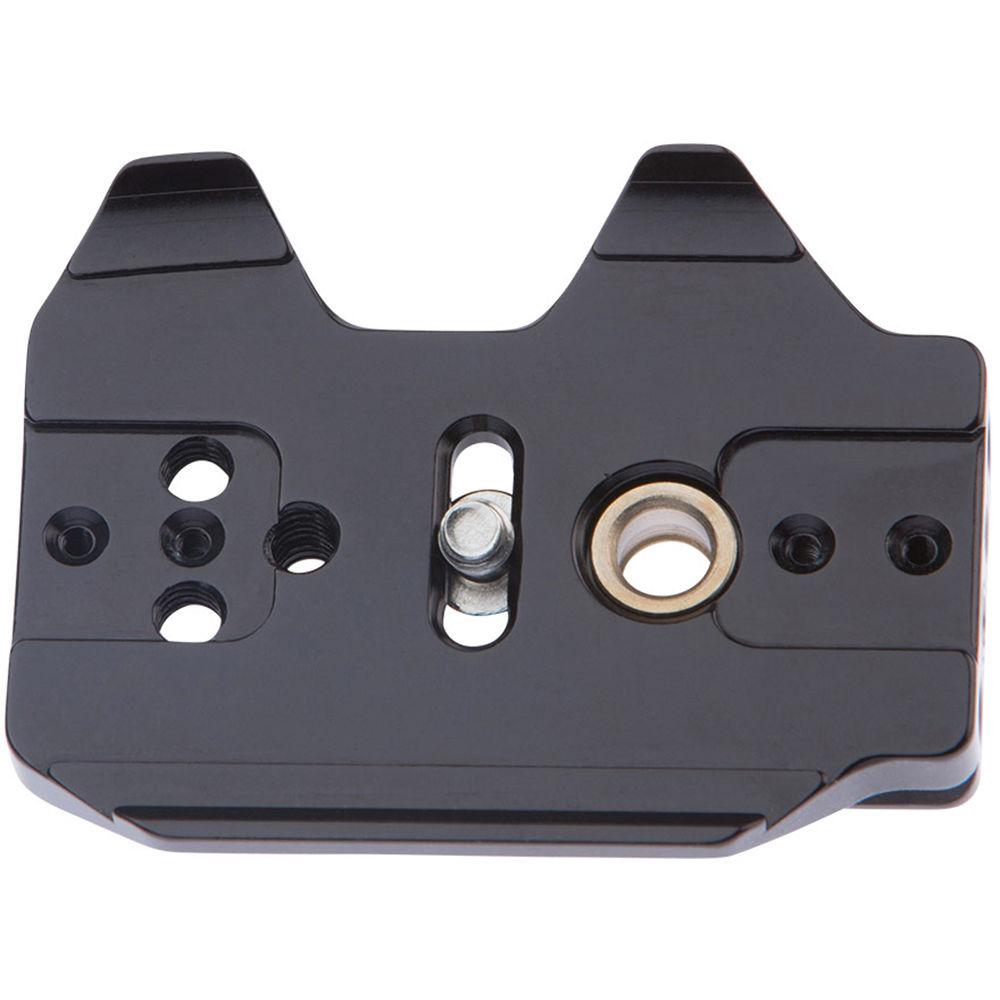

For direct attachment to accessories such as straps, the underside of this bracket plate features a receiver for a ProMediaGear Plug Connector, while the top surface of the bracket plate includes accessory threads within left and right grooves that each accommodate a ProMediaGear Strap Loop and its retaining screws. Constructed from aluminum alloy with steel components, this Bracket Plate is durable while remaining lightweight. -
- Provides the ability to adapt a Nikon D500 DSLR camera body with a Nikon MB-D17 Multi Battery Power Pack to an Arca-type compatible quick release clamp
- Modular component that can be used in combination with other, separately-available ProMediaGear bracket plates, brackets, handles, strap connectors, or other accessories for additional functionality
- Movable 1/4"-20 mount allows the bracket plate to be connected to the bottom of a Nikon MB-D17 Multi Battery Power Pack
- Front and rear anti-twist lips along the top surface of the bracket plate create an exact fit and help prevent unwanted rotation of the power pack while it is adapted to a clamp
- Dual retaining screws prevent the bracket plate from accidentally sliding off when the clamp it is placed on is opened
- Either two side-facing accessory holes or two female accessory threads can be used to connect items adjacent to the camera and power pack, including a separately-available ProMediaGear expansion bracket, handle, or Arca-Type vertical bracket plate for a Nikon D500 DSLR camera body with a Nikon MB-D17 Multi Battery Power Pack
- One female accessory thread intended for especially frequent use is steel-reinforced
- When combined with a separately-available, ProMediaGear Arca-Type vertical bracket plate, a Nikon D500 DSLR camera body and MB-D17 Multi Battery Power Pack in the landscape orientation can be removed from an Arca-type compatible quick release clamp and instantly returned to a quick release clamp in the portrait orientation
- For direct attachment to accessories such as straps that can utilize a ProMediaGear Plug Connector or Strap Loops, underside of the bracket plate features a receiver for a ProMediaGear Plug Connector, while the top surface of the bracket plate includes accessory threads within left and right grooves that each accommodate a ProMediaGear Strap Loop and its retaining screw
- Does not obstruct access to camera battery when combined with separately-available ProMediaGear Arca-Type vertical bracket plate
- Constructed from aluminum alloy for durability while remaining lightweight
UPC: 609456714662 In the Box ProMediaGear Arca-Type Bracket Plate for Nikon D500 DSLR Camera with MB-D17 Multi Battery Power Pack 1/4"-20 Mount 2 x Retaining Screws Hex Key for Mount Hex Key for Retaining Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProMediaGear Arca-Type Bracket Plate for Nikon D500 DSLR Camera with MB-D17 Multi Battery Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProMediaGear PBNMBD17 Specs Material of Construction | Aluminum, Steel | | Package Weight | 0.3 lb | Box Dimensions (LxWxH) | 5.3 x 3.3 x 1.4" |
