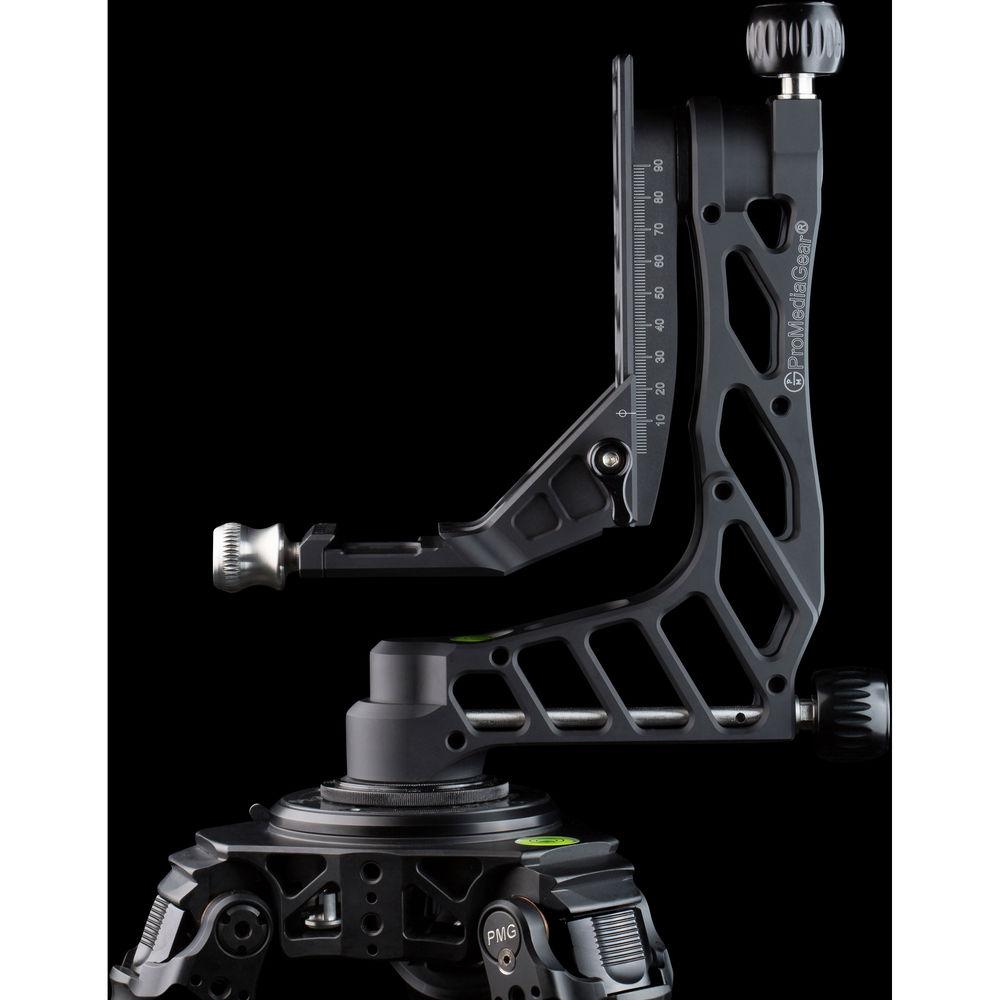

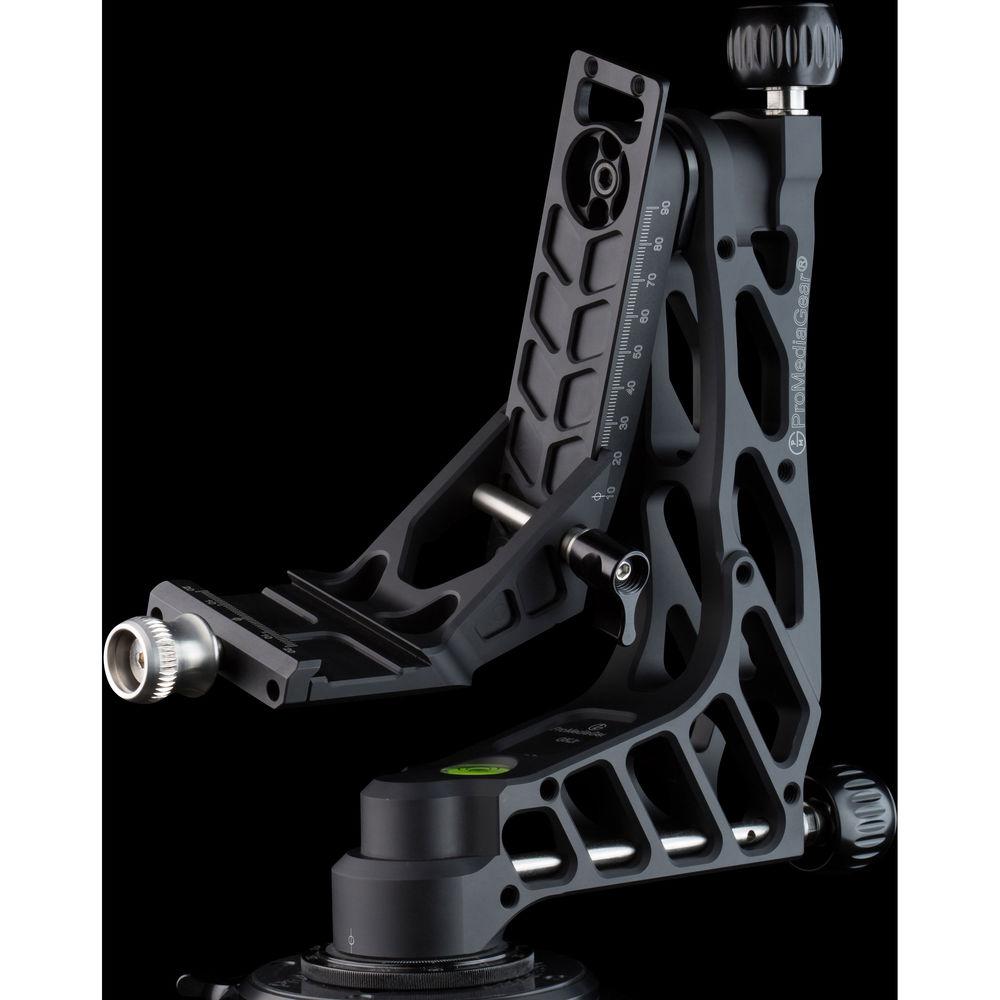

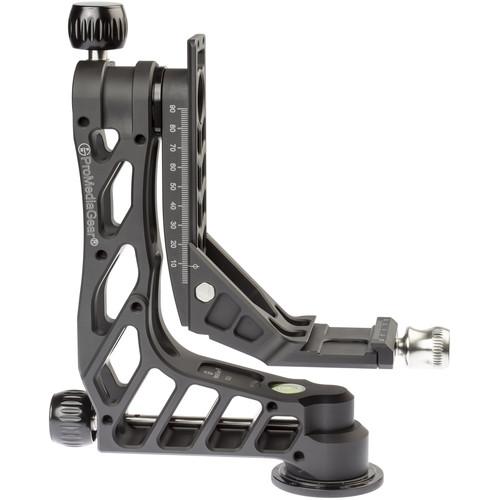

Product description The GKJr. Katana Junior from ProMediaGear is a lightweight, aluminum gimbal head designed with the traveling sports or nature photographer in mind. Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the included, 6" PX6 Double Dovetail Plate, which is secured to the KJr. Katana Junior using an Arca-type clamp
The Katana Junior's black anodized aluminum frame has been precision CNC machined to remove every ounce of unnecessary weight. This new super-strong yet hollow frame weighs an easy-to-carry 2.4 lb while maintaining the ability to support up to 50 lb of gear. Standing at 9.75" tall and using a variable-height, Arca-type compatible support arm, the Katana Junior can hold a wide range of large telephoto lenses all the way up to 600mm.
From a functionality standpoint the Katana Junior functions the same as any common gimbal head, with fluid movement on both the 360° panning axis and the floating tilt. Both axes may also be locked separately via large aluminum control knobs which are easy to grip even when wearing gloves.
With the expectation that the user will likely subject the Katana Junior to the rigors associated with the great outdoors, the head has been designed to be extra durable to ensure maintenance free operation. Its hard anodized aluminum coating makes the entire frame scratch and nick resistant, preventing the likelihood of creating reflections that might alert wildlife to your presence. Additionally, the head's fluid joints use sealed ball bearing cases which make them considerably less susceptible to corrosion or malfunction due to moisture, dirt, and debris. It is also worth noting that the Katana Junior is designed and constructed right here in the USA. UPC: 609456714488 In the Box ProMediaGear GKJr. Katana Junior Aluminum Gimbal Head PX6 Double Dovetail Plate (6") Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProMediaGear GKJr. Katana Junior Aluminum Gimbal Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProMediaGear GKJR Specs | | | Head Type | Gimbal Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Load Capacity | 50 lb / 22.7 kg | | Number of Bubble Levels | 1 | | Independent Pan Lock | Yes | | Material | Aluminum | | | | Dimensions | H: 9.8 x W: 3.1" / H: 24.7 x W: 7.8 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 12.2 x 9.1 x 4.2" |
