User Manual for ProMediaGear Katana Gimbal Head Click to enlarge the picture
Contents of the user manual for the ProMediaGear Katana Gimbal Head
- Product category: Tripod Heads ProMediaGear
- Brand: ProMediaGear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ProMediaGear Tripod Heads
 |
User manual for the ProMediaGear Katana Gimbal Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ProMediaGear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ProMediaGear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ProMediaGear product will considerably shorten its lifespan!
|

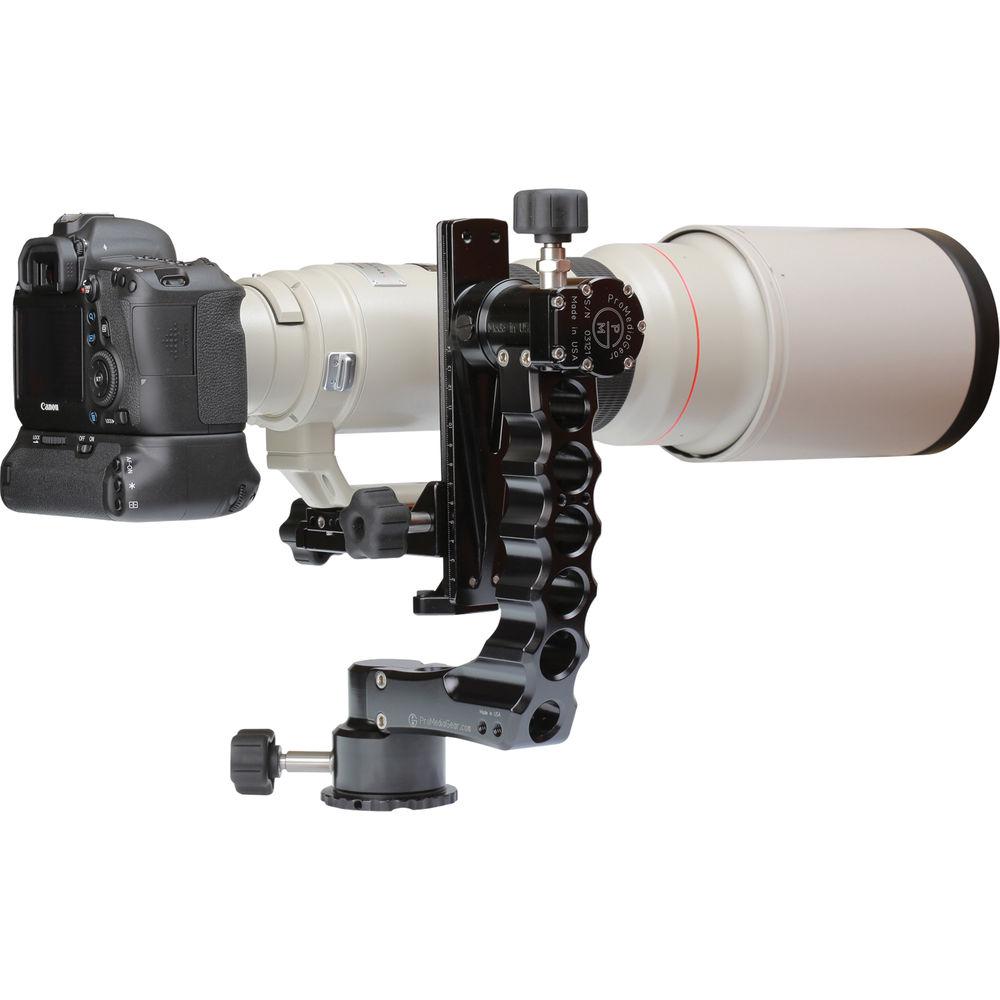

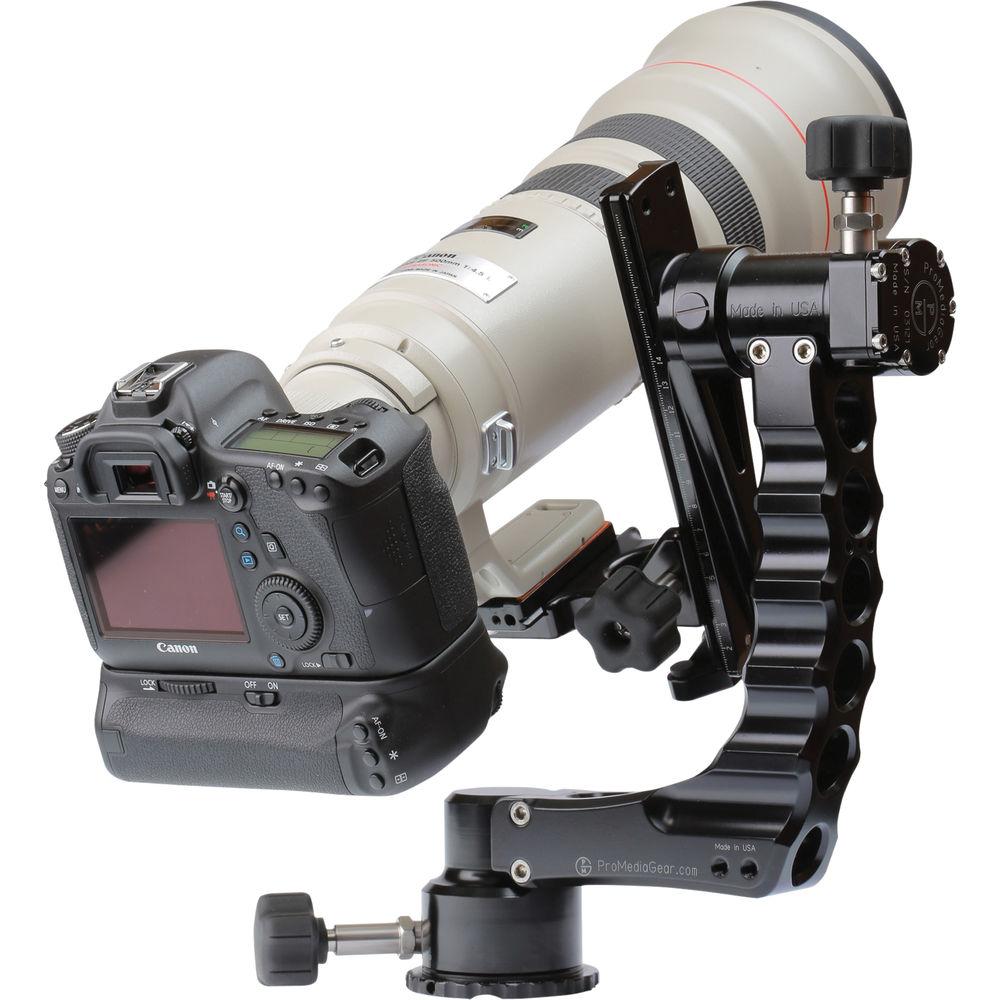

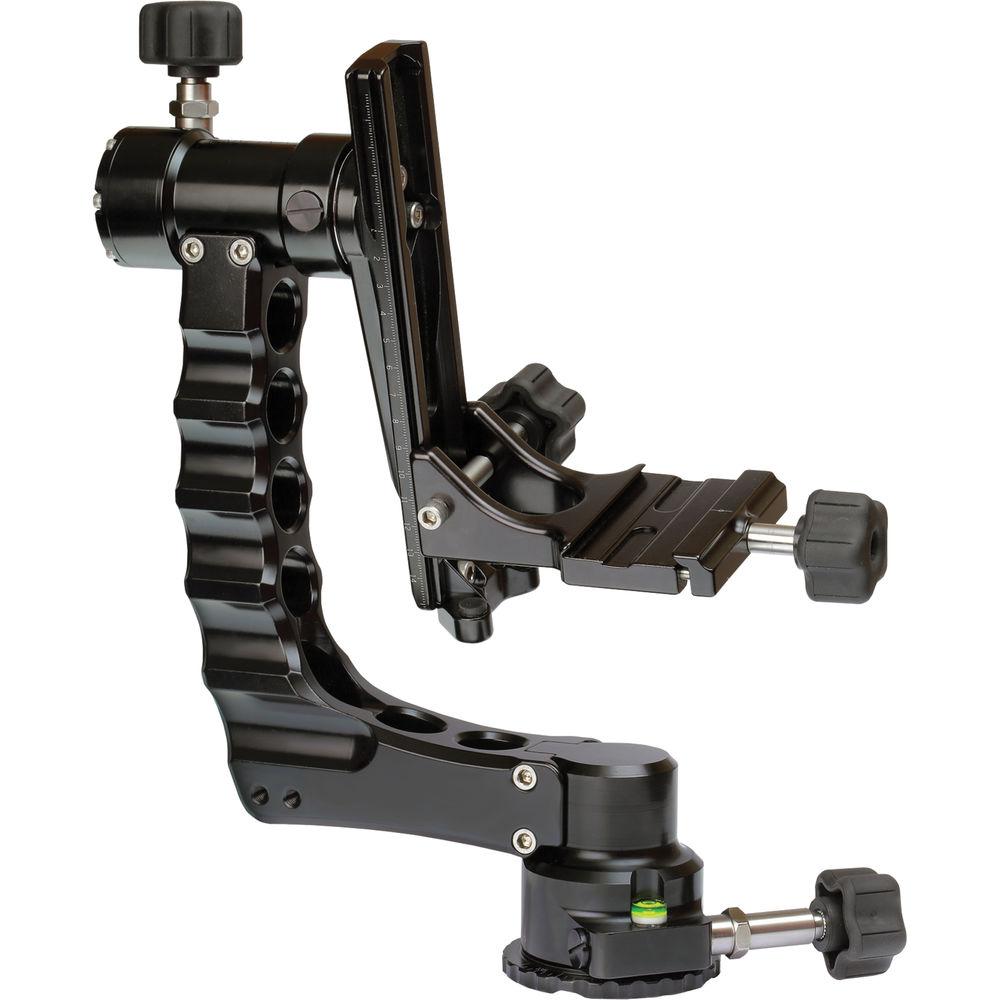

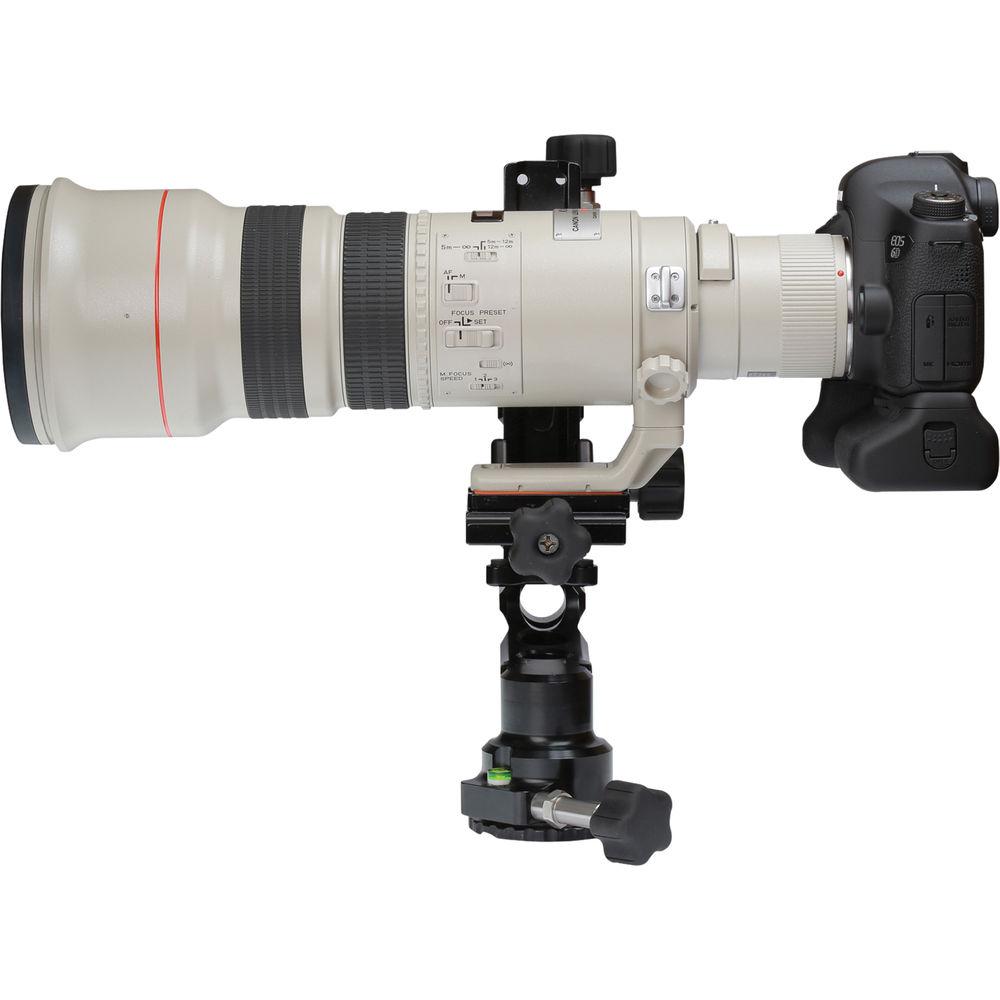

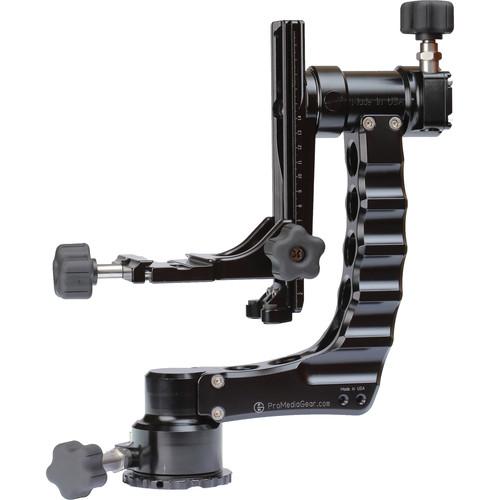

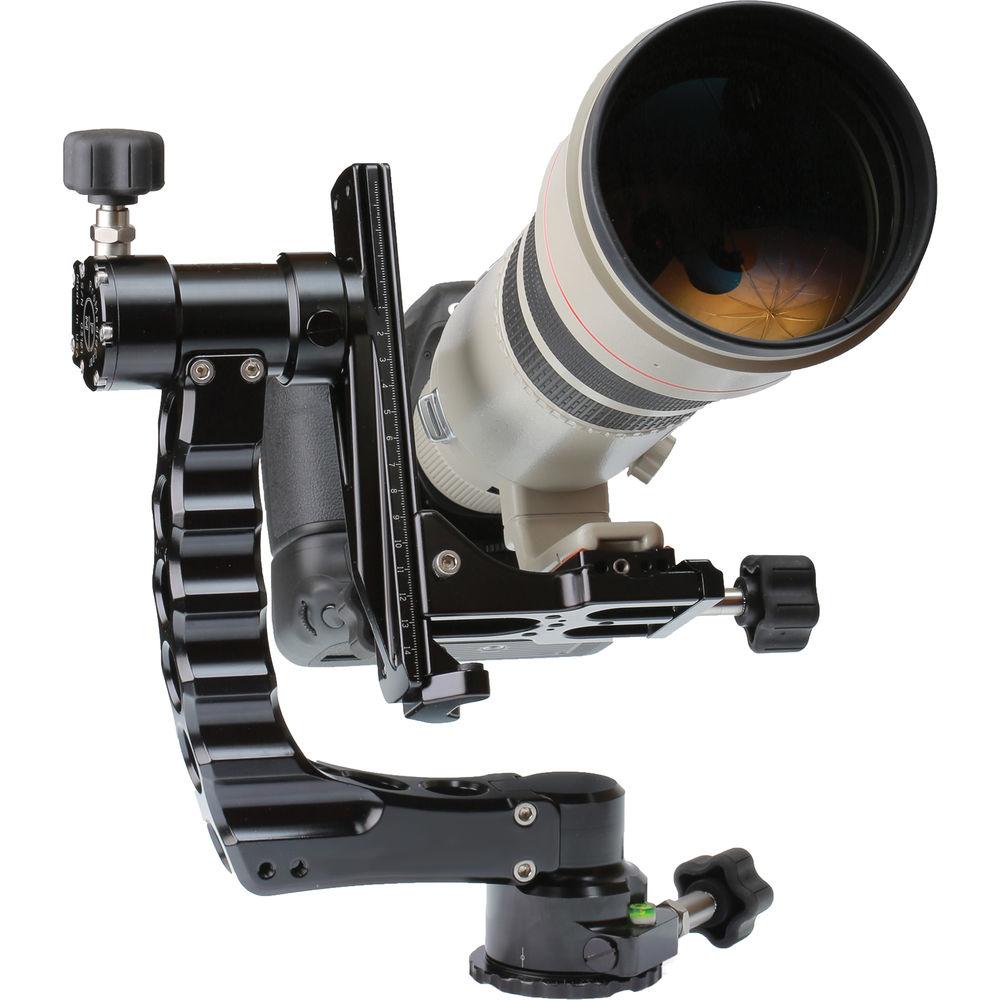

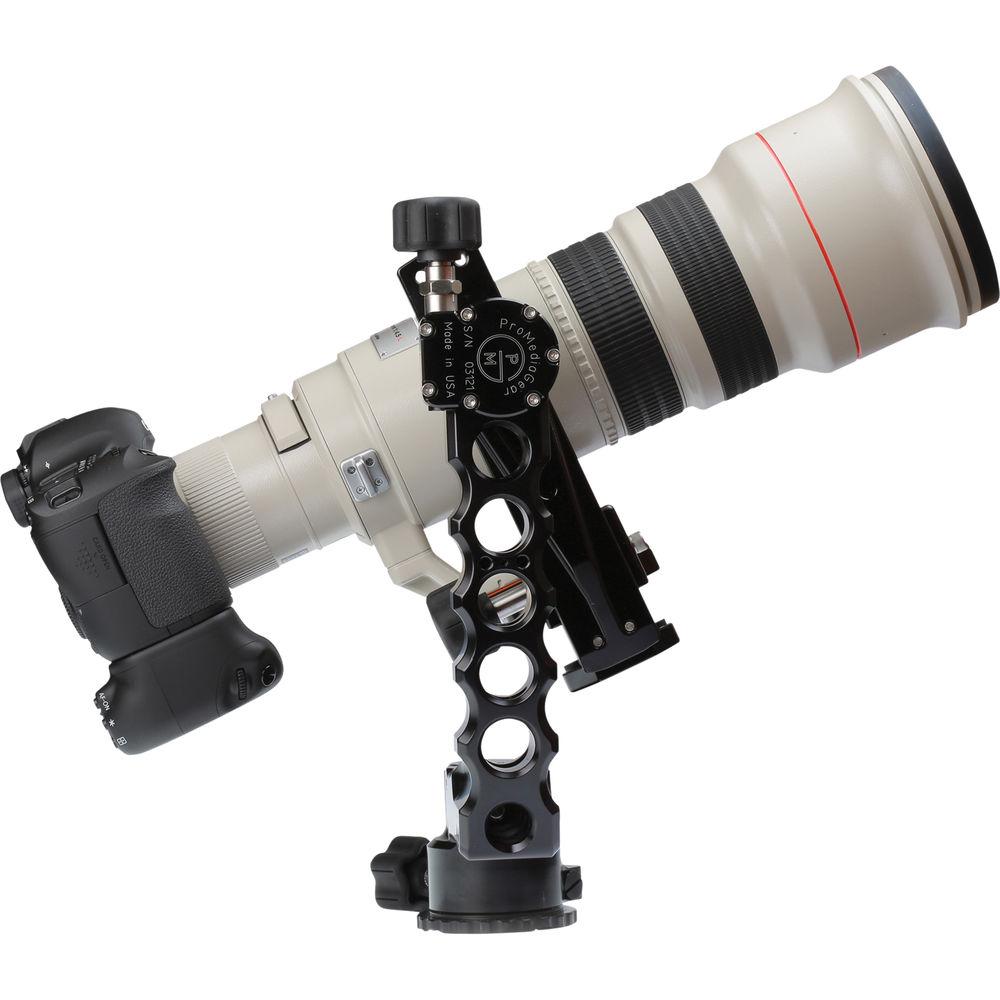

Product description The Katana Gimbal Head from ProMediaGear is capable of supporting up to 50 lb of equipment and provides smooth movement and stable support for even the longest telephoto lenses. An Arca-Swiss type clamp mount enables the attachment of a compatible plate to the head. Separate locking and adjustment mechanisms allow friction adjustment without instability or parts coming apart. Camera and lens positions can be adjusted smoothly with one hand and a balanced position maintained without tightening. The Katana is made of hard anodized, scratch-resistant 6061 aluminum alloy and CNC precision machined parts. Maintenance free, weather-sealed ball bearings enable the head's smooth movements and over-sized knobs can be removed and repositioned for more comfortable adjustments. - 50 lb load capacity; capable of supporting long telephoto lenses
- Smooth panning and tight locking mechanisms, separate from assembly mounts, adjust friction without loosening parts.
- Arca-Swiss type compatible clamp
- Hard anodized 6061 aluminum alloy
- Sealed ball bearings provide smooth movements
- Large knobs are easy to tighten and loosen and be removed or repositioned
- Lenses with tripod collars can be utilized with optional long plate
UPC: 609456713009 In the Box ProMediaGear Katana Gimbal Head Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProMediaGear Katana Gimbal Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProMediaGear GK Specs | | | Head Type | Gimbal Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Load Capacity | 50 lb / 22.7 kg | | Number of Bubble Levels | 1 | | Independent Pan Lock | Yes | | | | Dimensions | H: 13.0L: 9.5" / H: 33.0L: 24.0 cm | | Weight | 5.4 lb / 2.4 kg | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 15.4 x 10.6 x 6.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
