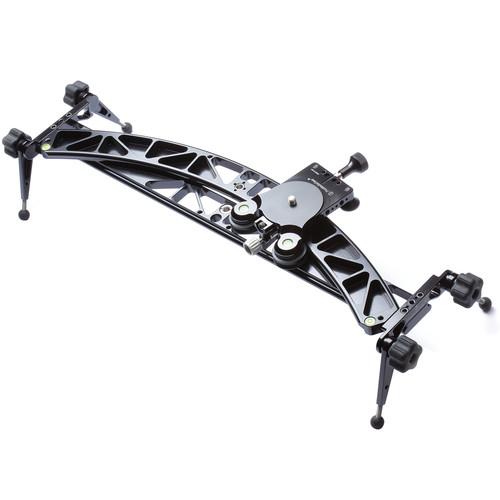

Product description The PMG-DUO 24" Video Slider with Carrying Case from ProMediaGear combines both straight and curved tracks into a single slider body. This dual-action design lets you add traditional slider moves, or dynamic parabolic moves simply by flipping the slider.

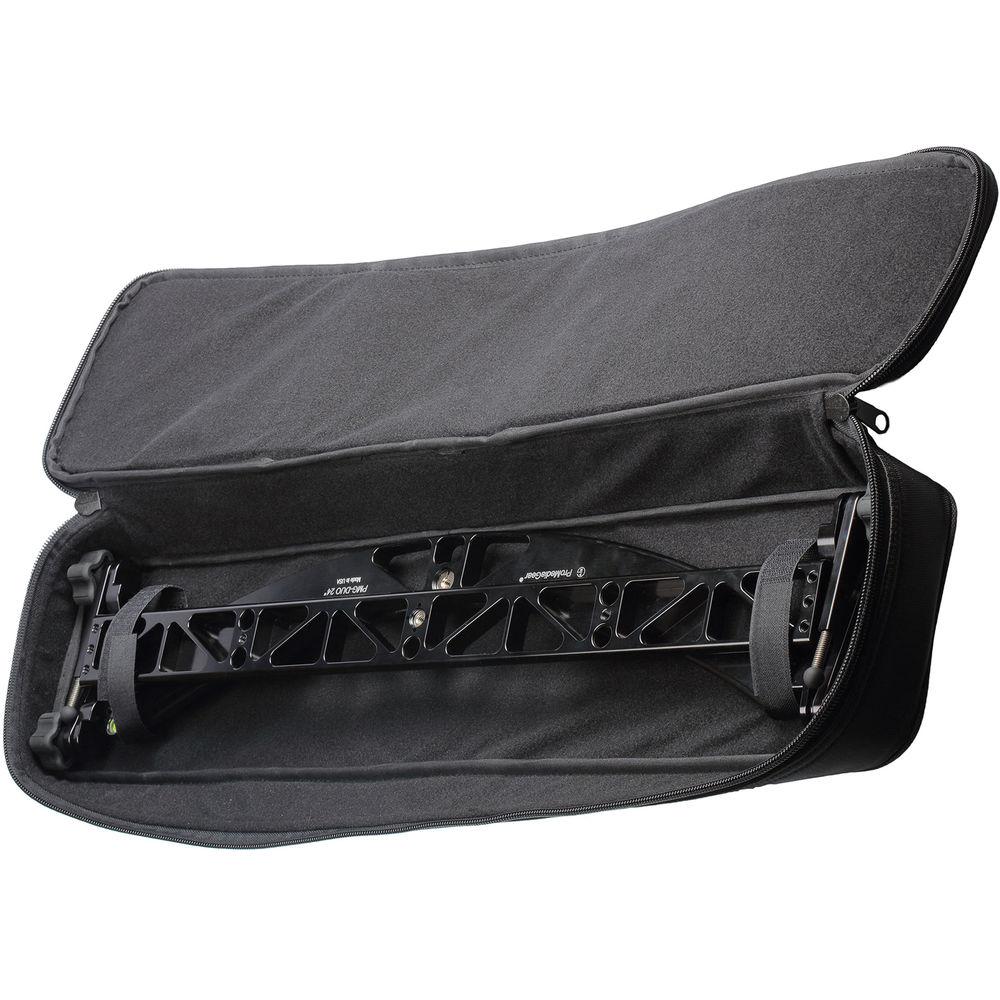

If you want to use the curved side, mount the straight side on your tripod or stand, and the curved side will be on top. Likewise, mount the curved side on your tripod/stand, and the straight side will be on top. If you want to place the slider on the ground or other surface, the built-in legs on the ends adjust to support either side, curved or straight. Moreover, each leg is independently adjustable for leveling the slider on uneven terrain, and both fold for compact storage inside the included carrying case.

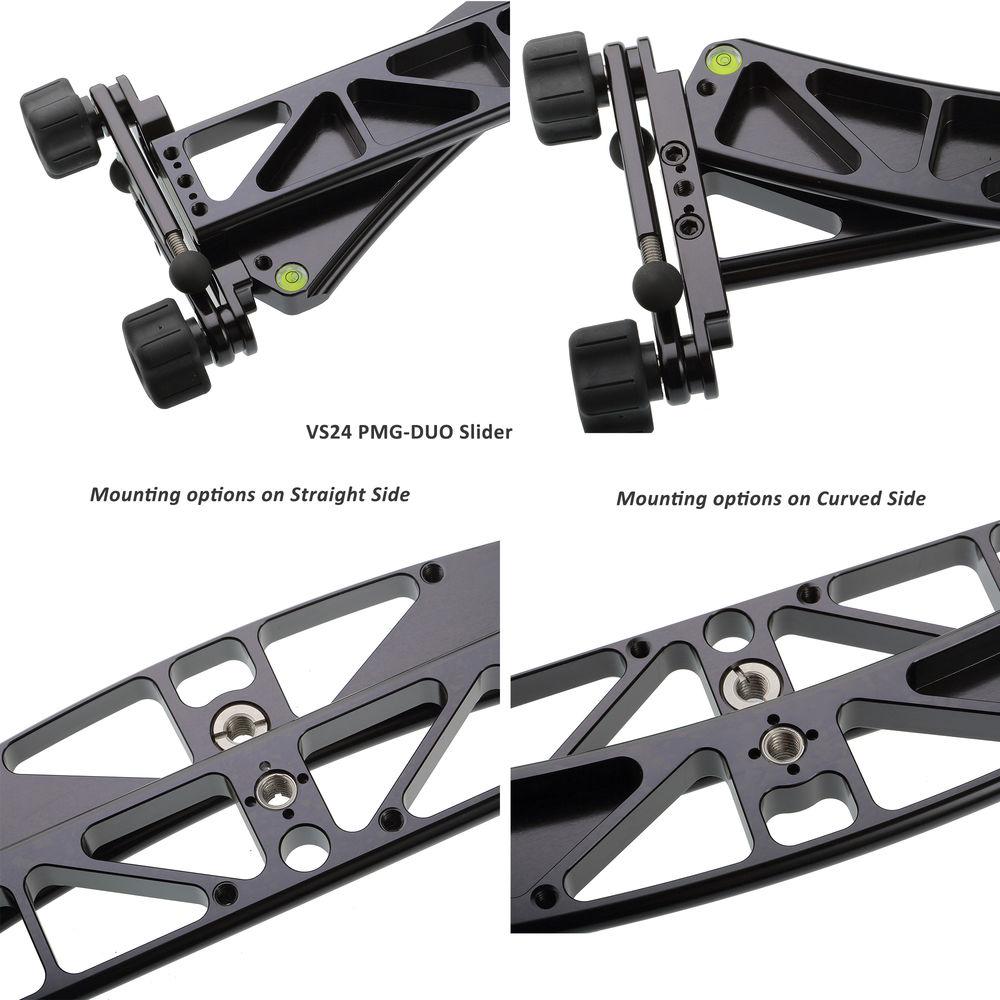

The PMG-DUO offers multiple mounting options. There's a 3/8"-16 threaded hole at the center of both the curved and straight sides, and there are also multiple 1/4"-20 threads across both sides. Additionally, 5/8" baby pin support is provided on both ends of the slider, in either curved or straight mode for mounting on stands.

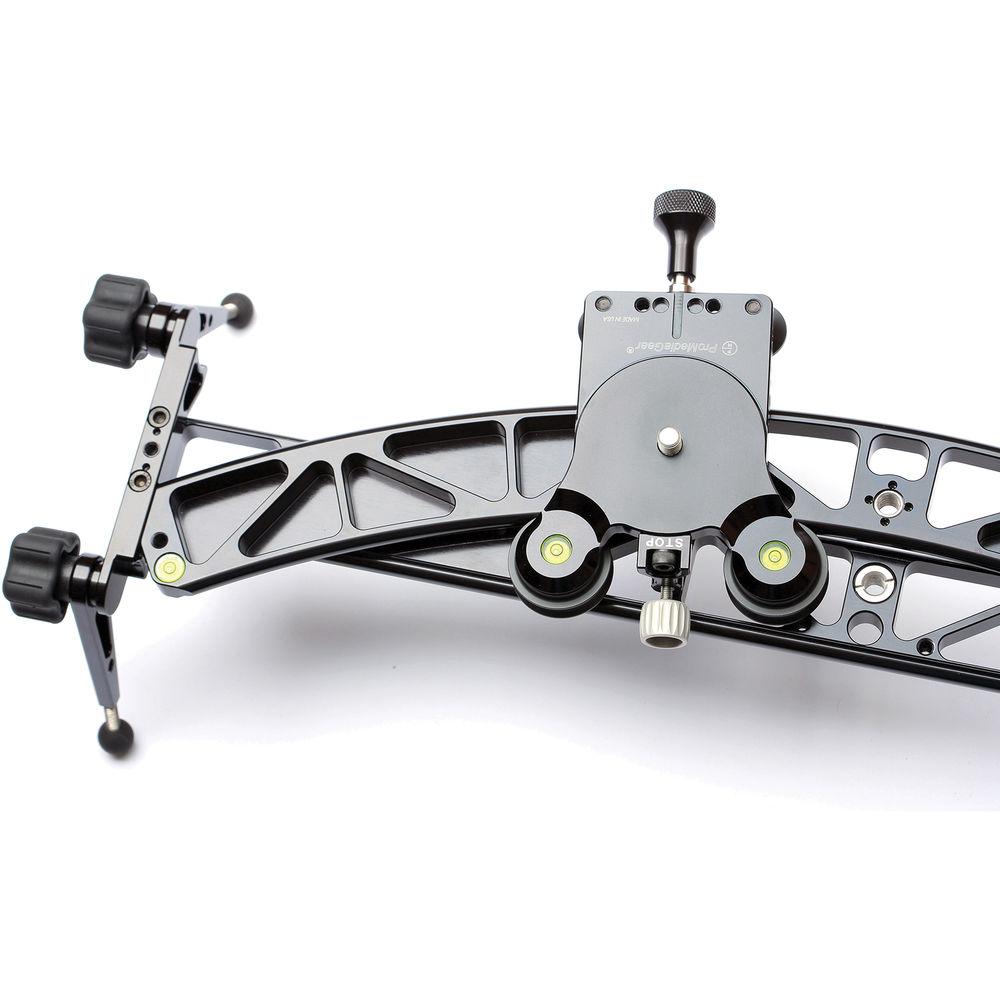

For increased strength and durability, the tracks are CNC machined from a solid block of aircraft grade aluminum. The carriage clamps onto either the straight or curved sides of the track and features three aluminum wheels with precision roller bearings inside each wheel for low resistance and smooth sliding motion. A large knob releases the carriage from the track, for attachment to the other side, while a smaller knob locks it into place. -
- 24" straight track
- Curved track with 20" radius
- Curved parabolic motion keeps the subject in focus and stationary in frame
- Independently adjustable legs for table-top or ground-level use
- There is one 3/8"-16 thread in the center of each side of the slider, multiple 1/4"-20 threads across both sides, and 5/8" baby pin support on the ends for both sides
- Three-wheel carriage with precision roller bearings
- Clamp and locking knobs on carriage
- Legs fold down for easy storage
- CNC machined aluminum track
- Carrying case included
UPC: 609456716116 In the Box ProMediaGear PMG-DUO 24" Video Slider with Carrying Case PMG-Duo 3-Wheel Pro Slider Carriage rzbqxeuyytefcxvyzsfdxssdabfwvwysssau Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProMediaGear PMG-DUO 24" Video Slider with Carrying Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProMediaGear VS24 Specs | | | Travel Distance | 20" / 50.8 cm | | Curve Radius | 20" / 50.8 cm | | Travel Angle | 58° | | | | Tripod Mounting | 1 x 3/8"-16 Female Thread There is one 3/8"-16 thread in the center of each side of the slider, multiple 1/4"-20 threads across both sides, and 5/8" baby pin support on the ends for both sides | | Stand Receiver | 2 x 5/8" One on each end | | | | Body Material | Aluminum | | Track Length | 24" / 61 cm
27" / 68.6 cm, Including Knobs | | Track Width | 5.95" / 15.11 cm | | Track Height | 1.5" / 3.81 cm (Folded) | | Weight | 2.15 lb / 0.975 kg | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 30.0 x 9.0 x 4.0" |
