Product description

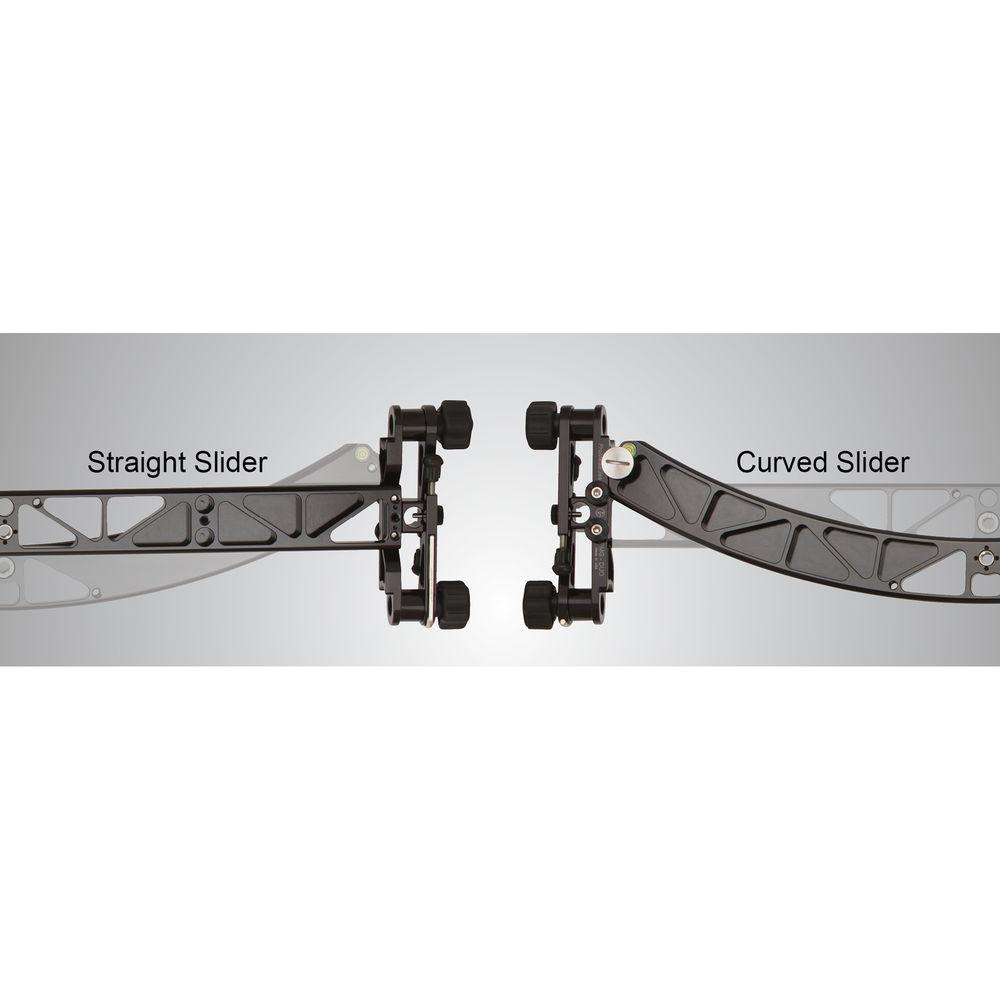

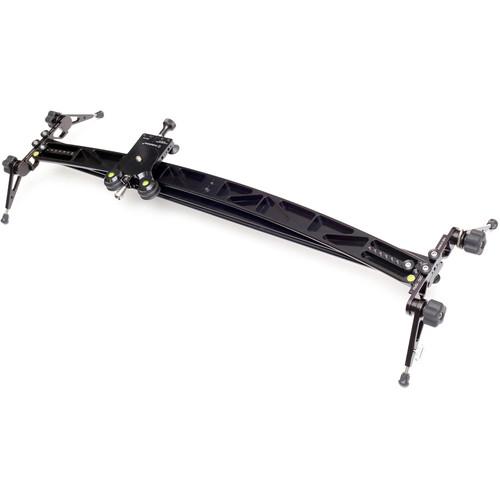

• PMG-DUO 24" Video Slider with Carrying Case The PMG-DUO 24" Video Slider with Carrying Case from ProMediaGear combines both straight and curved tracks into a single slider body. This dual-action design lets you add traditional slider moves, or dynamic parabolic moves simply by flipping the slider.

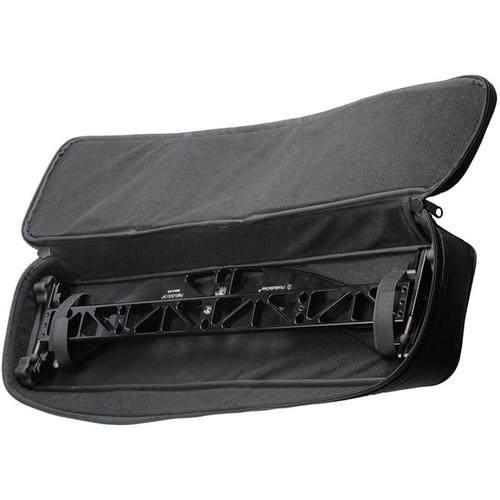

  If you want to use the curved side, mount the straight side on your tripod or stand, and the curved side will be on top. Likewise, mount the curved side on your tripod/stand, and the straight side will be on top. If you want to place the slider on the ground or other surface, the built-in legs on the ends adjust to support either side, curved or straight. Moreover, each leg is independently adjustable for leveling the slider on uneven terrain, and both fold for compact storage inside the included carrying case.

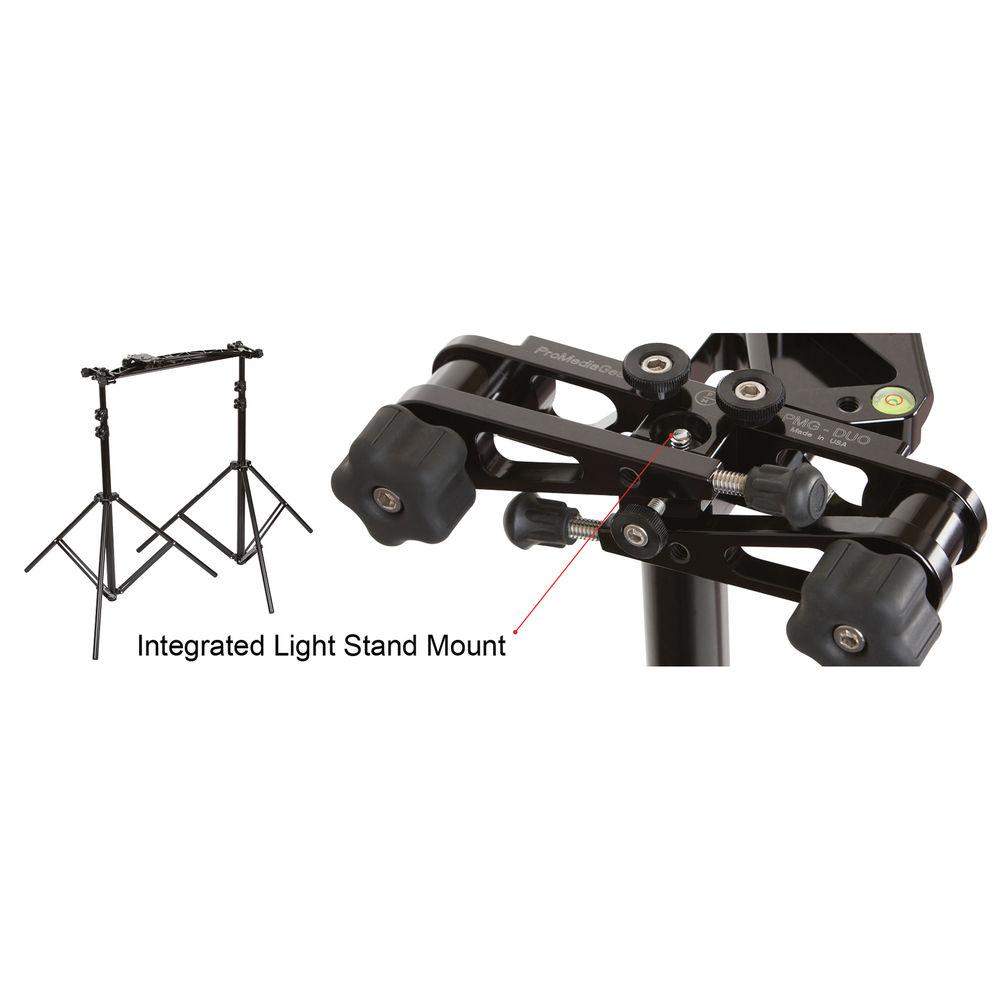

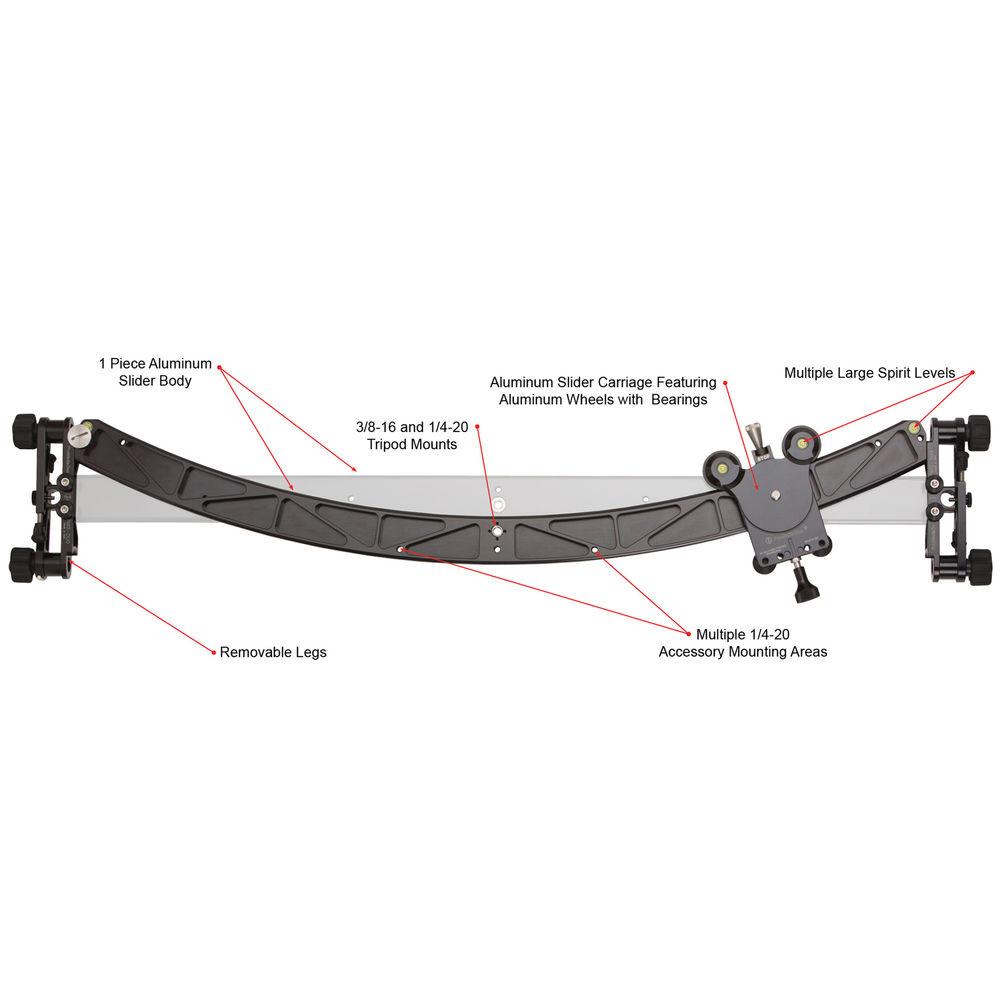

  The PMG-DUO offers multiple mounting options. There's a 3/8"-16 threaded hole at the center of both the curved and straight sides, and there are also multiple 1/4"-20 threads across both sides. Additionally, 5/8" baby pin support is provided on both ends of the slider, in either curved or straight mode for mounting on stands.

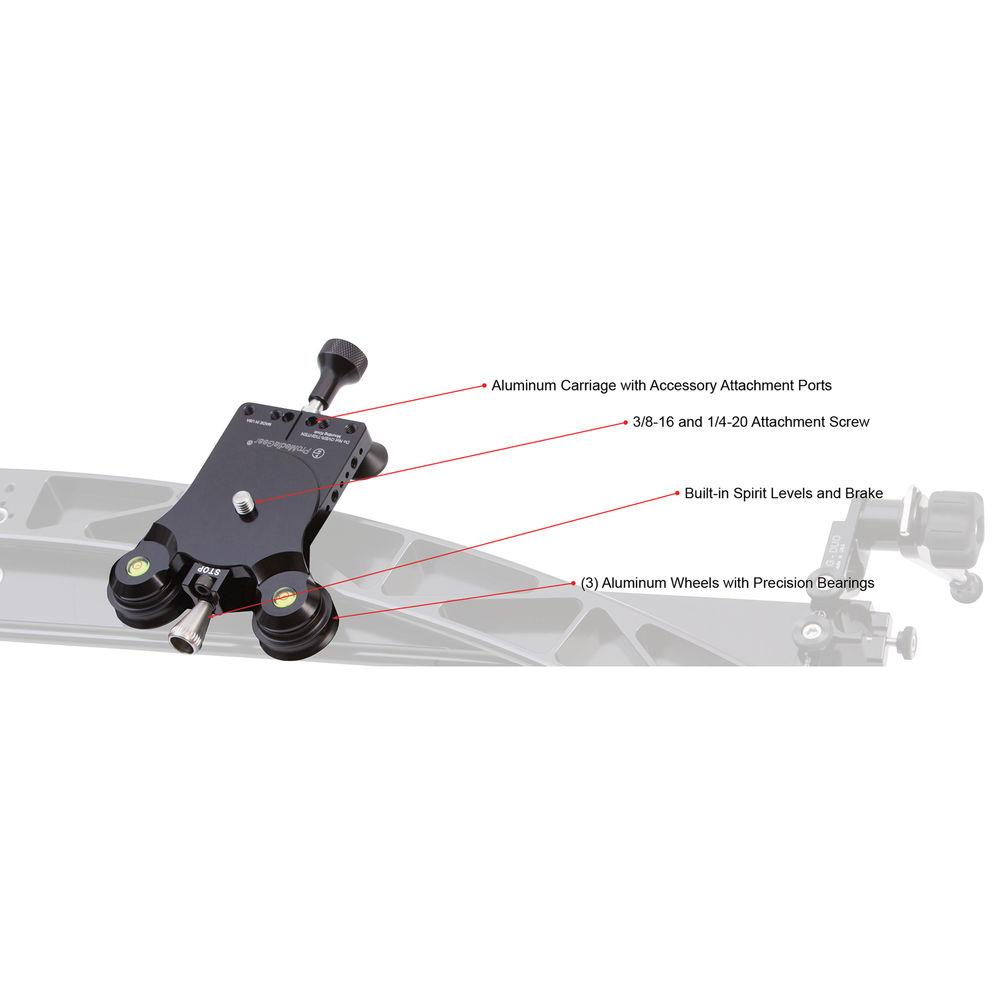

  For increased strength and durability, the tracks are CNC machined from a solid block of aircraft grade aluminum. The carriage clamps onto either the straight or curved sides of the track and features three aluminum wheels with precision roller bearings inside each wheel for low resistance and smooth sliding motion. A large knob releases the carriage from the track, for attachment to the other side, while a smaller knob locks it into place.
  • • 24" straight track
    • Curved track with 20" radius
    • Curved parabolic motion keeps the subject in focus and stationary in frame

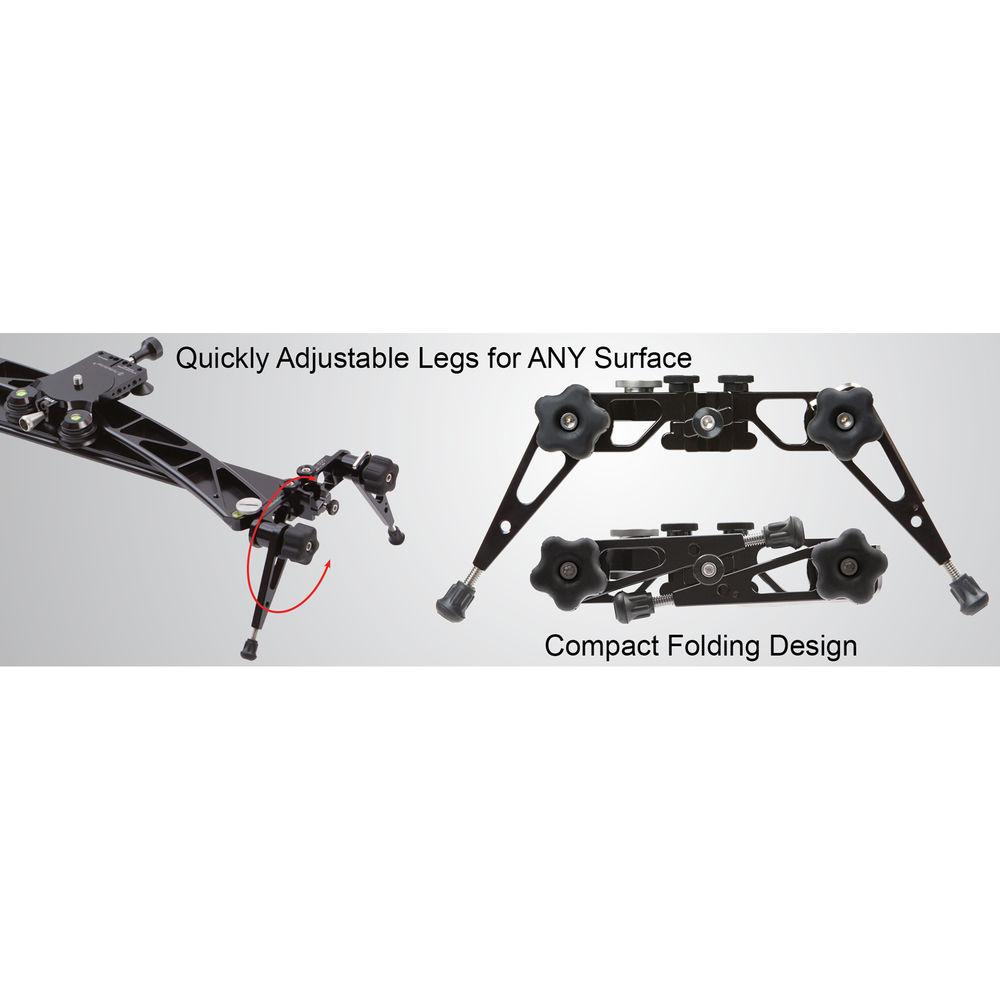

    • Independently adjustable legs for table-top or ground-level use
    • There is one 3/8"-16 thread in the center of each side of the slider, multiple 1/4"-20 threads across both sides, and 5/8" baby pin support on the ends for both sides
    • Three-wheel carriage with precision roller bearings
    • Clamp and locking knobs on carriage
    • Legs fold down for easy storage
    • CNC machined aluminum track
    • Carrying case included
  UPC: 609456716116

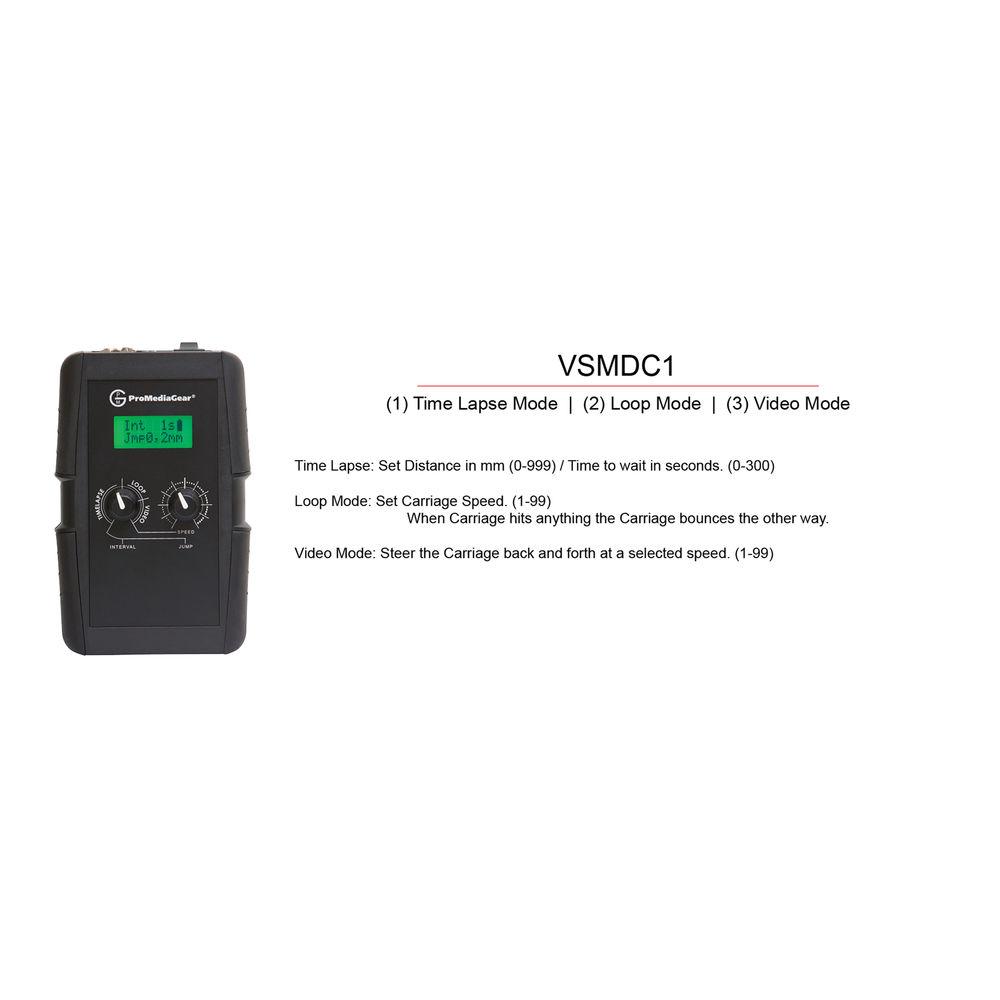

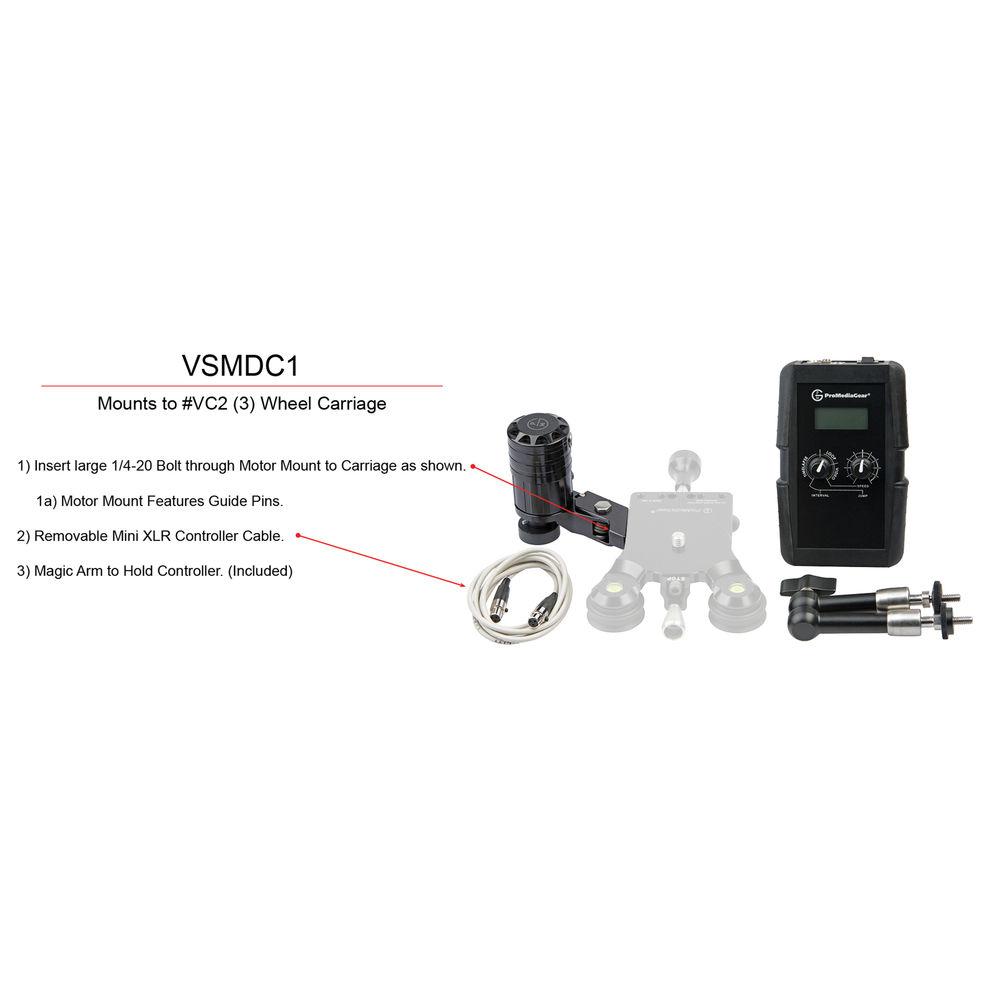

• Motor Control System for PMG-DUO Sliders Add motion control capabilities to your PMG-DUO slider with the ProMediaGear Motor Control System. Making up this system is a controller, a motor, a motor attachment for the VC2 slider carriage, and the required cabling for basic operation. With the controller, you can program precise camera movements for interviews, establishing shots, and other camera movements. For continuous shooting, a loop mode is available that will reverse the movement of the carriage after it reaches the end of the track. A set of 3 AA batteries will power the motor continuously for up to 5 hours. This system can be used with stills cameras, using programmable timed intervals to create time-lapses. In order to achieve full functionality with this system for time-lapse photography, a separately available shutter release cable will be required to operate your specific camera. UPC: 609456716147

• PMG-Duo 3-Wheel Pro Slider Carriage

• Limited 5-Year Warranty

• Motor Controller

• Motor

• Cable Set

• Carriage Attachment

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• PMG-DUO 24" Video Slider with Carrying Case

  Travel Distance	20" / 50.8 cm
  Curve Radius	20" / 50.8 cm
  Travel Angle	58°

  Tripod Mounting	1 x 3/8"-16 Female Thread There is one 3/8"-16 thread in the center of each side of the slider, multiple 1/4"-20 threads across both sides, and 5/8" baby pin support on the ends for both sides
  Stand Receiver	2 x 5/8" One on each end

  Weight	11.36 oz / 322 g

  Body Material	Aluminum
  Track Length	24" / 61 cm 27" / 68.6 cm, Including Knobs
  Track Width	5.95" / 15.11 cm
  Track Height	1.5" / 3.81 cm (Folded)
  Weight	2.15 lb / 0.975 kg

  Box Dimensions (LxWxH)	30.0 x 9.0 x 4.0"

• Motor Control System for PMG-DUO Sliders

  Range of Movement	Intervals: 1 to 300 seconds Interval size: 0.1 to 99" or 0.2 to 999 cm Speed (in video or loop modes): 0.01"(2 mm)/second to 2"(55 mm)/second
  Input Voltage	6 to 12 VDC
  Operating Temperature	14 to 150°F / -10 to 70°C

  Box Dimensions (LxWxH)	8.7 x 6.5 x 4.3"
