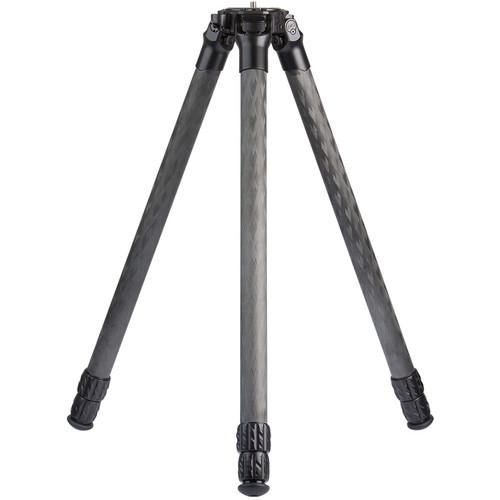

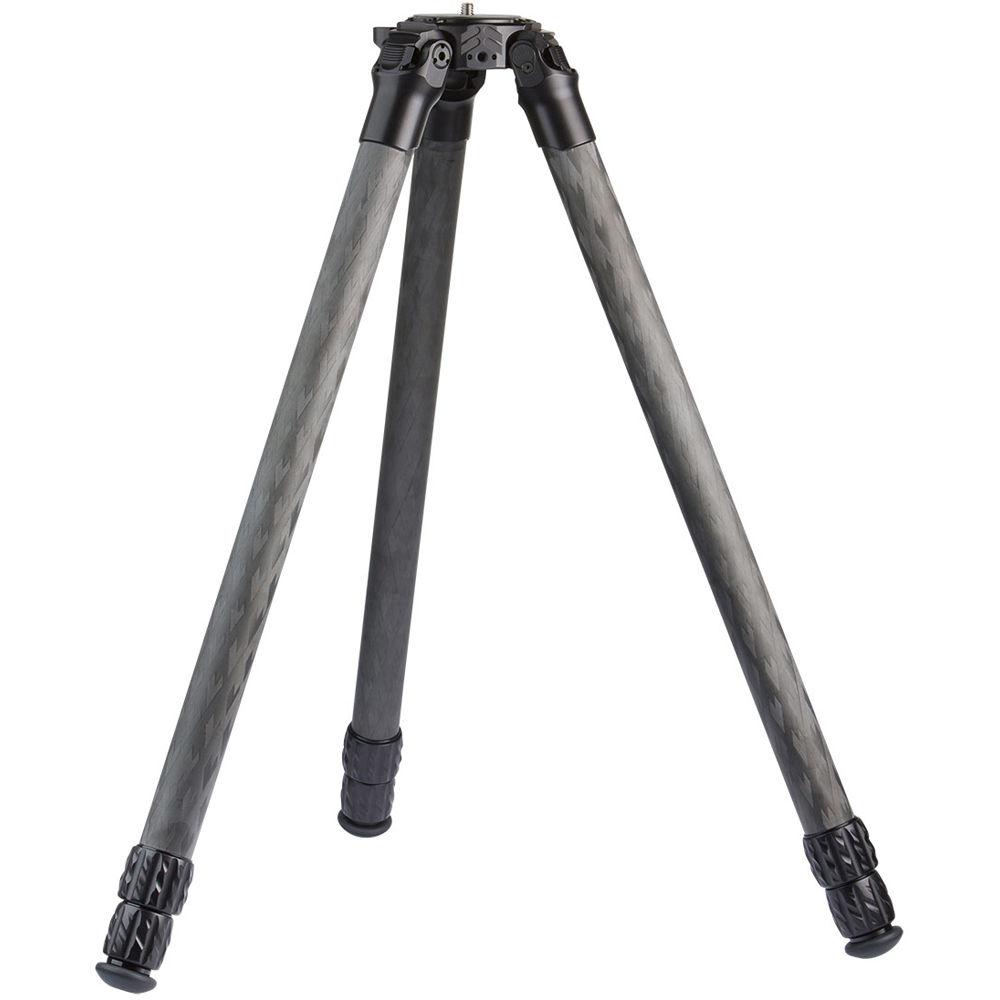

Product description This TR343L 34mm Series 59" Pro-Stix Carbon-Fiber Tripod from ProMediaGear supports up to 60.0 lb, measures 25.1" when folded, and includes a tripod top plate with a 3/8"-16 mount. Each of its 3-section legs has a maximum diameter of 34mm. They also feature an independent spread, a 3-position angle lock, quarter-turn twist locks for rapid deployment, and a rubber foot to enhance stability on a wide variety of surfaces. Together, the three legs can be extended and spread to raise the tripod from a minimum height of 3.8" to a maximum height of 59.3". For use on soft and uneven soil, each of the rubber feet can be unscrewed to access a stow-away metal spike which can be fastened to the bottom of its corresponding foot.
Tripod heads, cameras, lenses, or sport optics that are compatible with a 3/8"-16 mount can be connected to the tripod's removable top plate, which is secured to the tripod's aluminum-alloy apex using six socket screws. The aluminum-alloy apex minimizes weight along with the carbon-fiber construction of the tripod legs.
Alternatively, a separately-available ProMediaGear TRBU75 75mm Tripod Leveling Base with a separately-available TRB3475 75mm Tripod Bowl Insert can be installed within the aluminum-alloy apex. A video tripod head that is directly compatible with the TRB3475 tripod bowl insert or the TRBU75 tripod leveling base's 3/8"-16 mount can be used with the TR343L 34mm Series 59" Pro-Stix Carbon-Fiber Tripod and oriented without adjusting the tripod's legs.
For direct attachment of accessories that feature 1/4"-20 mounts such as the included bubble level, three 1/4"-20 female accessory threads are distributed along the sides of the apex. Alongside each of those 1/4"-20 accessory threads are pin slots that allow them to accommodate ProMediaGear accessories with anti-twist pins, or accessories with only a 1/4"-20 mount. To enhance stability, the underside of the top plate features an accessory loop which can accommodate the included carabiner along with a separately-available ballast such as a sandbag. - Use and Handling
-
- Supports up to 60.0 lb
- Tripod heads, cameras, lenses, or sport optics that are compatible with a 3/8"-16 mount can be connected to the included tripod top plate, which is secured to the tripod's apex using six socket screws
- Alternatively, tripod accepts a separately-available ProMediaGear TRBU75 75mm Tripod Leveling Base with separately-available TRB3475 75mm Tripod Bowl Insert
- A video tripod head that is directly compatible with a separately-available ProMediaGear TRB3475 75mm Tripod Bowl Insert or the 3/8"-16 mount of the separately-available TRBU75 75mm Tripod Leveling Base can be used with the tripod and oriented without adjusting the tripod's legs

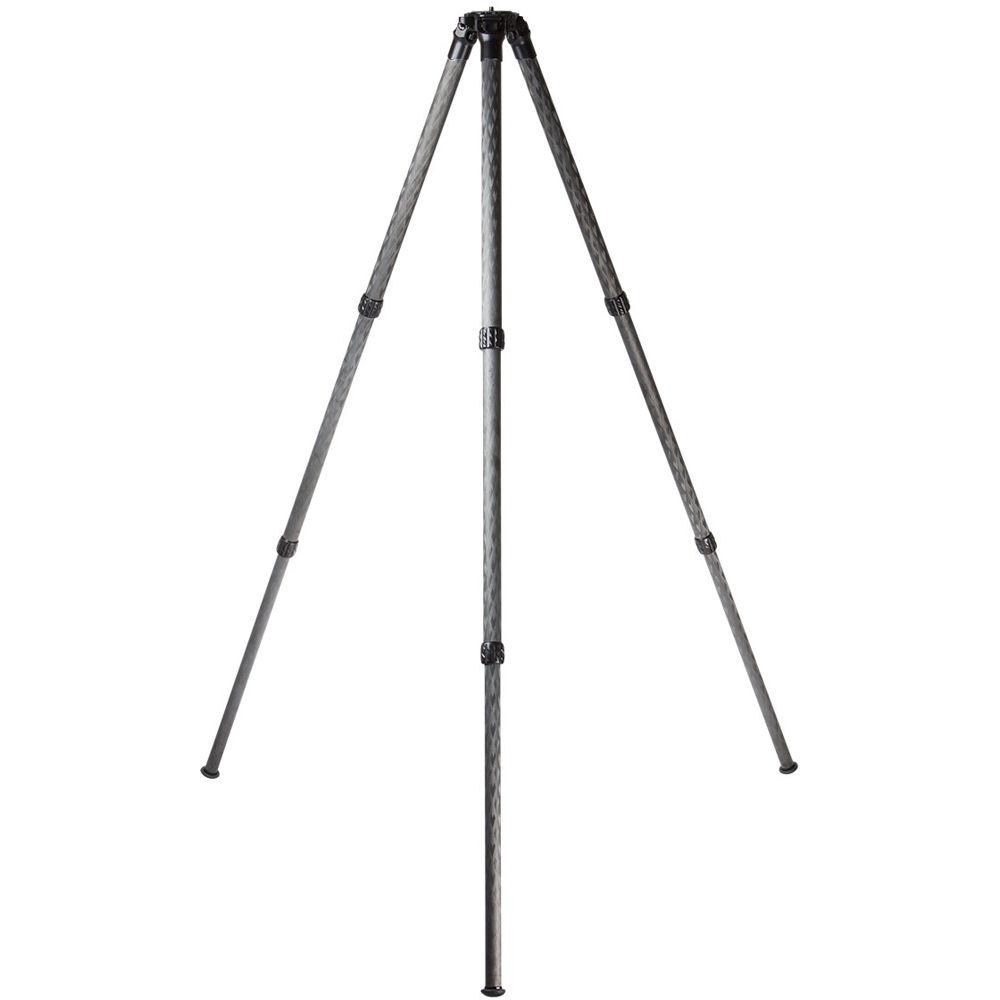

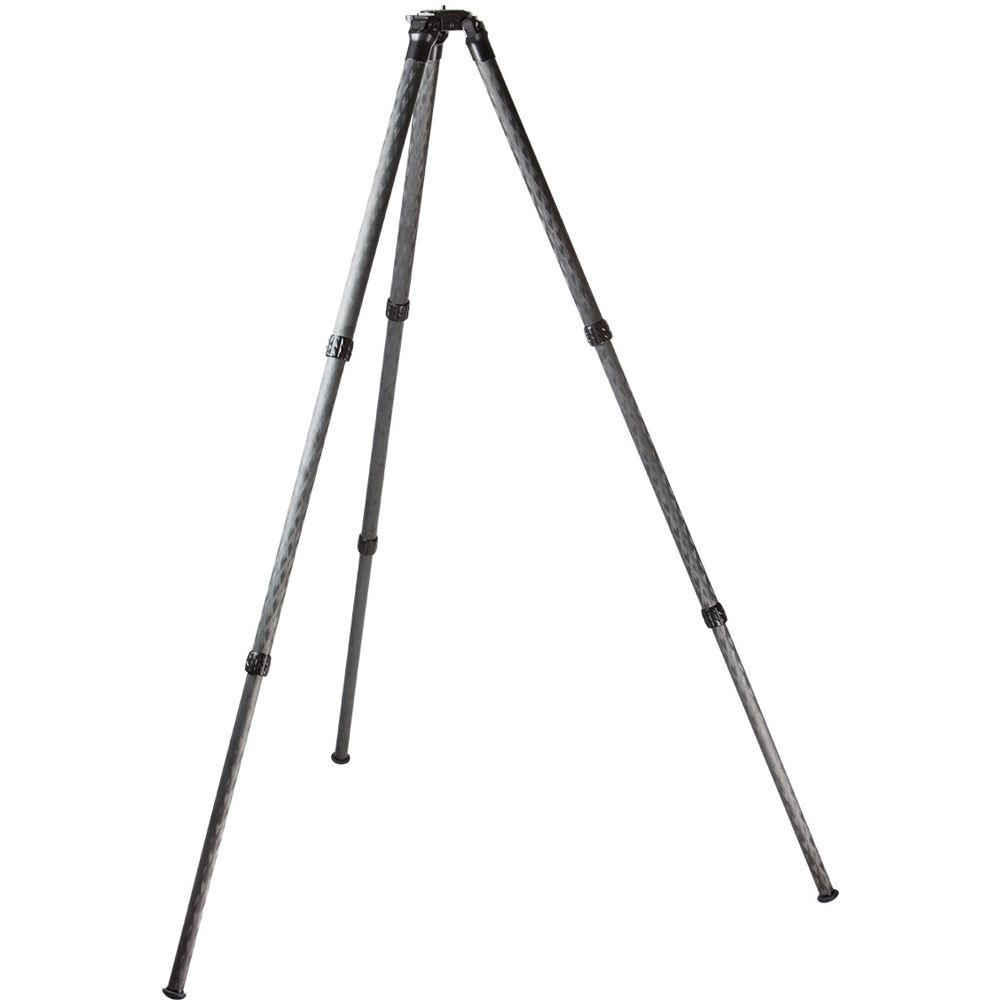

- Can be set for a minimum height of 3.8" to a maximum height of 59.3"
- Legs each feature 3 sections, twist locks for rapid deployment, and can be independently spread
- Legs can be locked at 22.5°, 55.0°, or 89.0° angles
- Rubber feet with stow-away, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil
- Included tripod bubble level
- For direct attachment of accessories that feature 1/4"-20 mounts, three 1/4"-20 female accessory threads distributed along the sides of the apex
- 1/4"-20 accessory threads along the apex have adjacent pin slots that allow them to accommodate ProMediaGear accessories with anti-twist pins, or accessories with only a 1/4"-20 mount
- Underside of the top plate features an accessory loop which can accommodate the included carabiner along with a separately-available ballast such as a sandbag

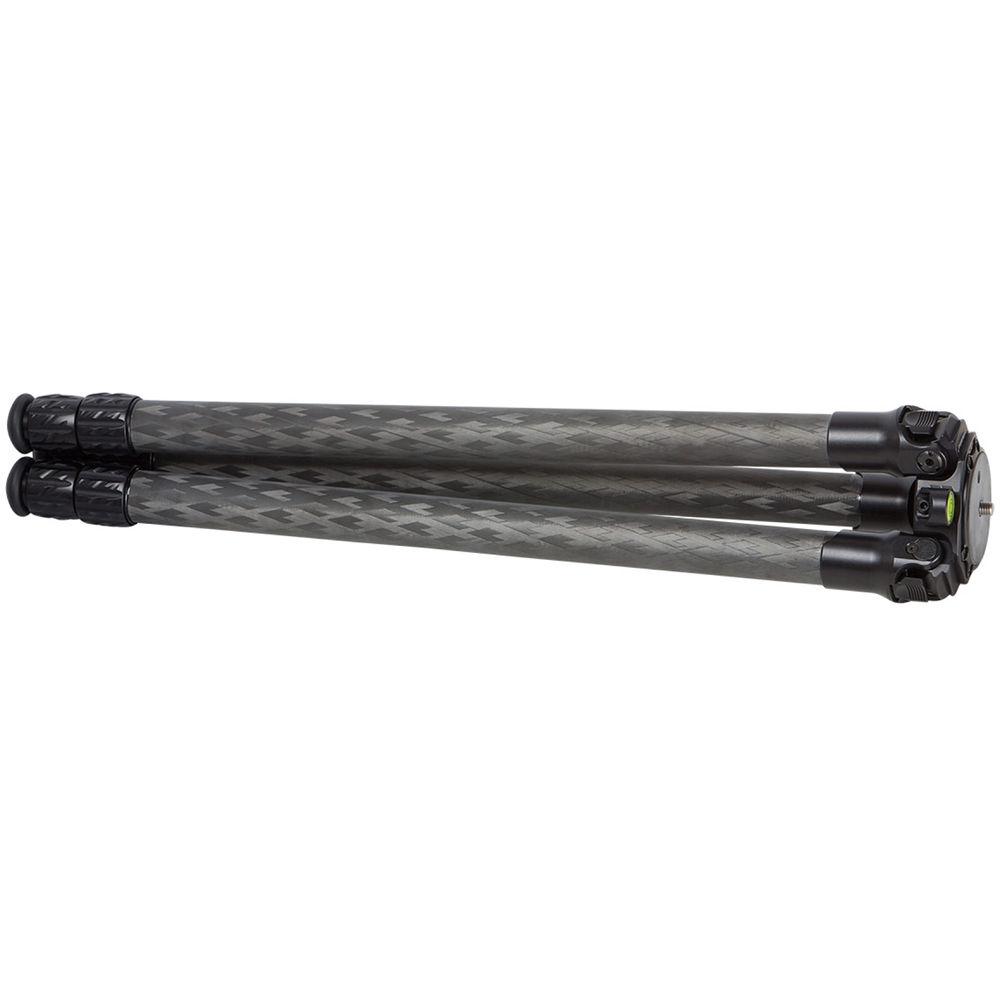

- Weighs 3.9 lb, measures 25.1" when folded
- 5/32 hex key to adjust tension on leg hinges and for removal or installation of tripod top plate
- Construction Details
-
- Carbon-fiber legs with a maximum diameter of 34mm
- Aluminum-alloy tripod apex helps minimize weight
UPC: 609456714594 In the Box ProMediaGear TR343L 34mm Series 59" Pro-Stix Carbon-Fiber Tripod with Top Plate Top Plate Bubble Level Carabiner 5/32 Hex Key Limited 5-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ProMediaGear TR343L 34mm Series 59" Pro-Stix Carbon-Fiber Tripod with Top Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProMediaGear TR343L Specs | | | Load Capacity | 60.0 lb / 27.2 kg | | Maximum Working Height | 59.3" / 150.6 cm | | Minimum Working Height | 3.8" / 9.7 cm | | Folded Length | 25.1" / 63.75 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 3.9 lb / 1.77 kg | | Materials | Aluminum Alloy, Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Leg Diameter | 1.34" / 34 mm | | Feet Features | Rubber, Removable, Spiked | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 22.0 x 5.8 x 5.7" |
