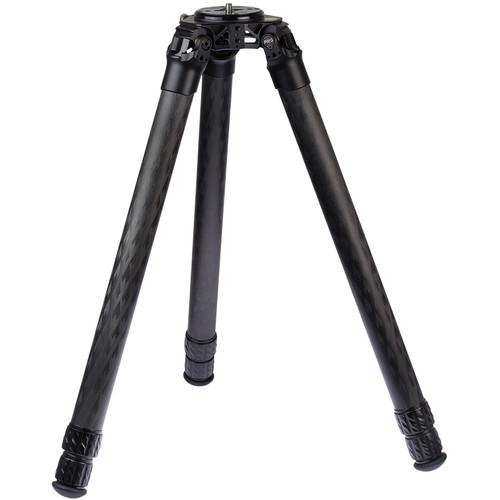

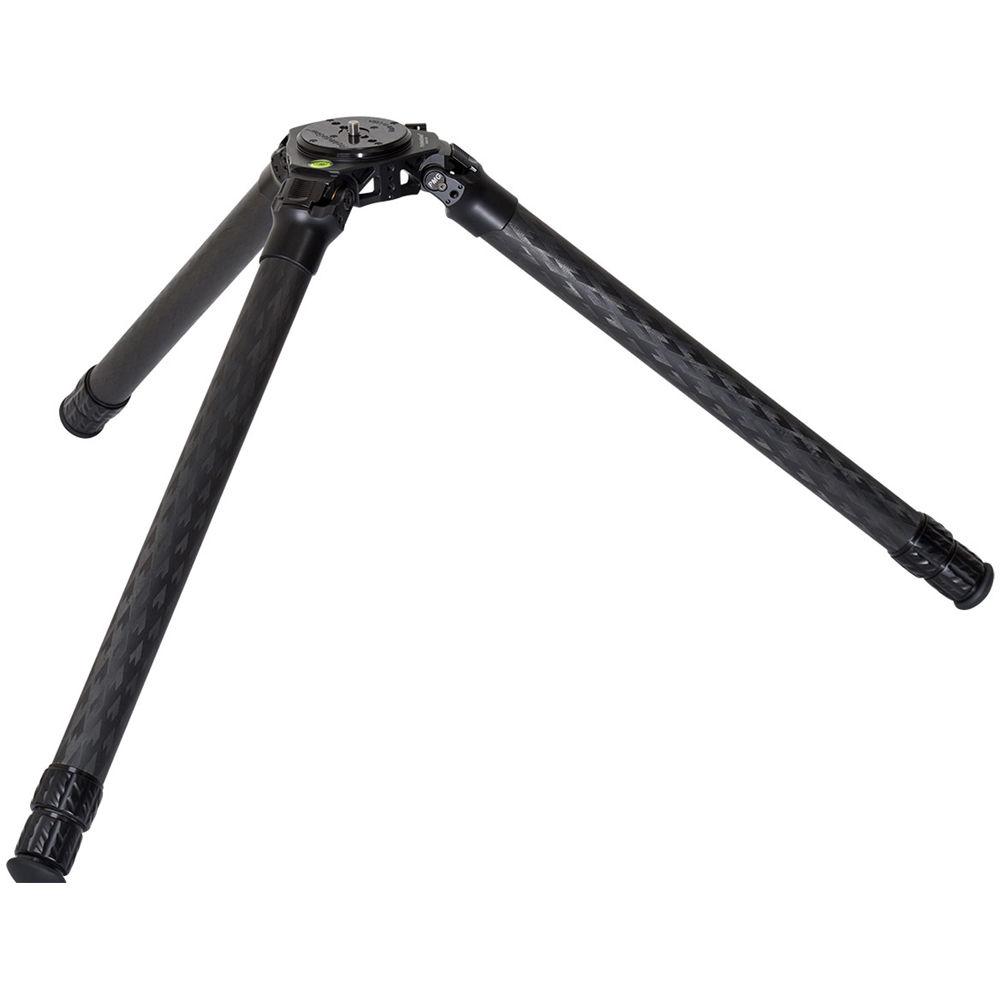

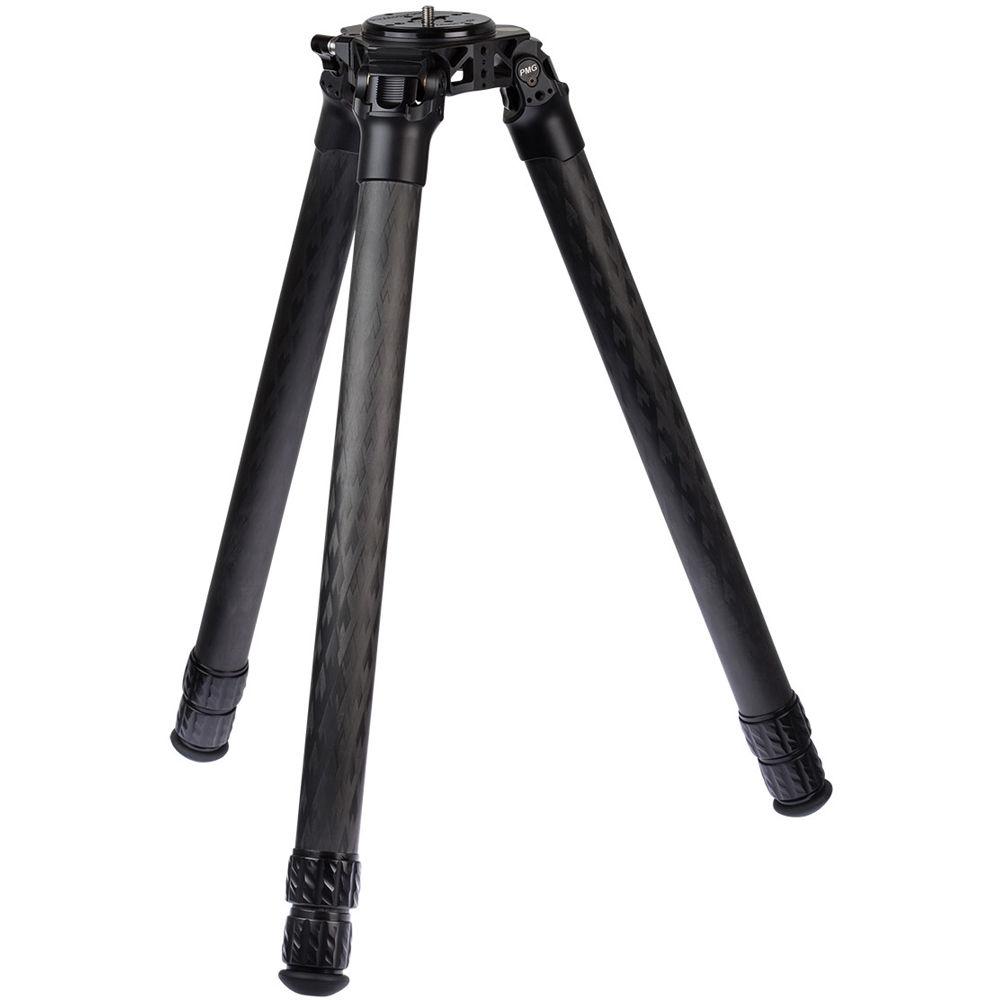

Product description This TR423 42mm Series Pro-Stix Carbon-Fiber Tripod from ProMediaGear supports up to 125.0 lb, measures 26.0" when folded, and includes a tripod top plate with a 3/8"-16 mount. Each of its 3-section legs has a maximum diameter of 42mm. They also feature an independent spread, a 3-position angle lock, quarter-turn twist locks for rapid deployment, and a rubber foot to enhance stability on a wide variety of surfaces. Together, the three legs can be extended and spread to raise the tripod from a minimum height of 6.8" to a maximum height of 58.0". For use on soft and uneven soil, each of the rubber feet can be unscrewed to access a stow-away metal spike which can be fastened to the bottom of its corresponding foot.
Tripod heads, cameras, lenses, or sport optics that are compatible with a 3/8"-16 mount can be connected to the tripod's top plate, which is intended to be clamped onto the tripod's aluminum-alloy head. The head features a durable truss design that minimizes weight along with the carbon-fiber construction of the tripod legs. To further secure the top plate while in use and prevent it from accidentally sliding off when the tripod head's clamp is opened, the head also includes a cam lock with a push-button release.
Alternatively, a separately-available ProMediaGear TRBU75 75mm Tripod Leveling Base with a separately-available TRB75 75mm Tripod Bowl Insert can be installed within the aluminum-alloy head. A video tripod head that is directly compatible with the TRB75 tripod bowl insert or the TRBU75 tripod leveling base's 3/8"-16 mount can be used with the TR423 42mm Series Pro-Stix Carbon-Fiber Tripod and oriented without adjusting the tripod's legs.
For direct attachment of accessories that feature 1/4"-20 mounts, the underside of the top plate is tapped with one 1/4"-20 female accessory thread. Four additional 1/4"-20 female accessory threads are distributed along the sides of the head, and two 1/4"-20 female accessory threads are positioned toward the top of each leg, one along each side of its connecting hinge. ProMediaGear accessories that incorporate a 1/4"-20 mount in between two anti-twist pins can be attached to either of the 1/4"-20 female accessory threads on each of the tripod legs, or to two of the 1/4"-20 accessory threads along the head. Alongside each of those eight 1/4"-20 accessory threads are pin slots that allow them to accommodate ProMediaGear accessories with anti-twist pins, or accessories with only a 1/4"-20 mount. - Use and Handling
-
- Supports up to 125.0 lb
- Tripod heads, cameras, lenses, or sport optics that are compatible with a 3/8"-16 mount can be connected to the included tripod top plate, which is intended to be clamped onto the tripod's head
- Clamping head also includes a cam lock with a push-button release to further secure the top plate while in use and prevent it from accidentally sliding off when the tripod head's clamp is opened
- Alternatively, tripod accepts a separately-available ProMediaGear TRBU75 75mm Tripod Leveling Base with separately-available TRB75 75mm Tripod Bowl Insert
- A video tripod head that is directly compatible with a separately-available ProMediaGear TRB75 75mm Tripod Bowl Insert or the 3/8"-16 mount of the separately-available TRBU75 75mm Tripod Leveling Base can be used with the tripod and oriented without adjusting the tripod's legs

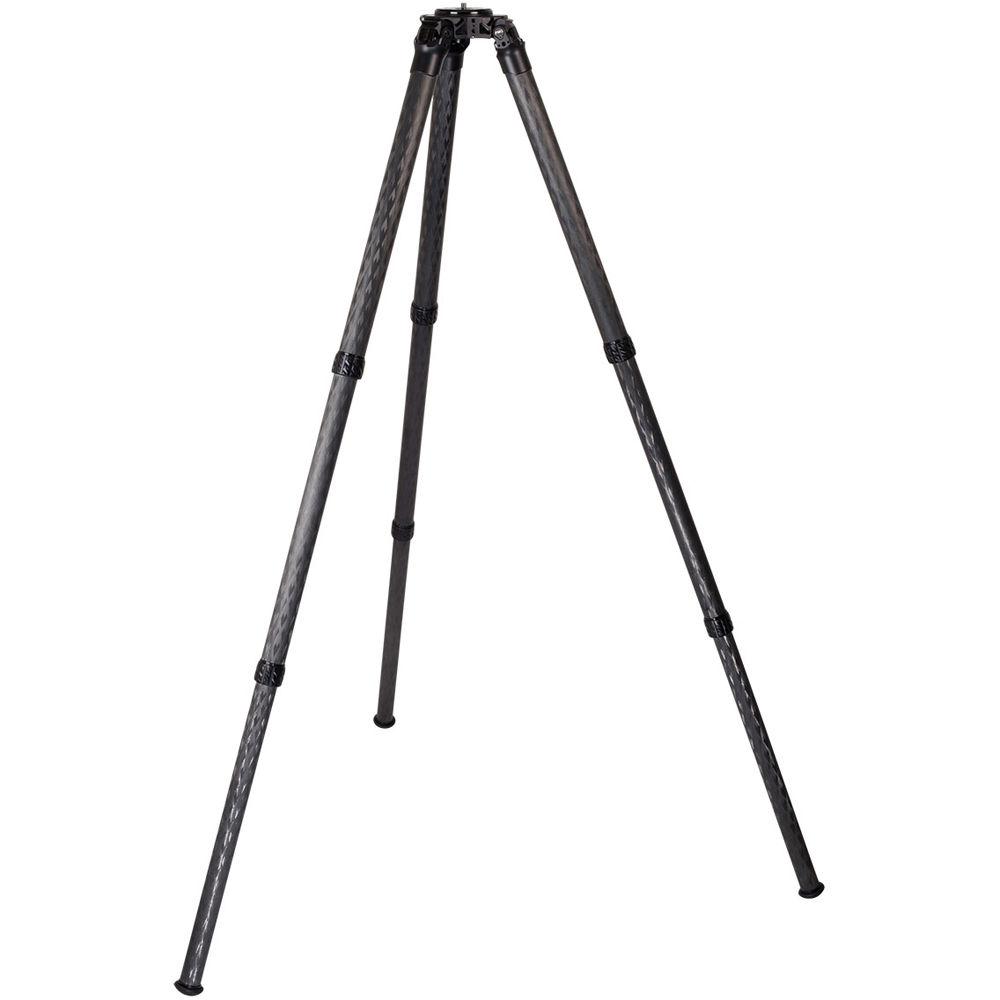

- Can be set for a minimum height of 6.8" to a maximum height of 58.0"
- Legs each feature 3 sections, quarter-turn twist locks for rapid deployment, and can be independently spread

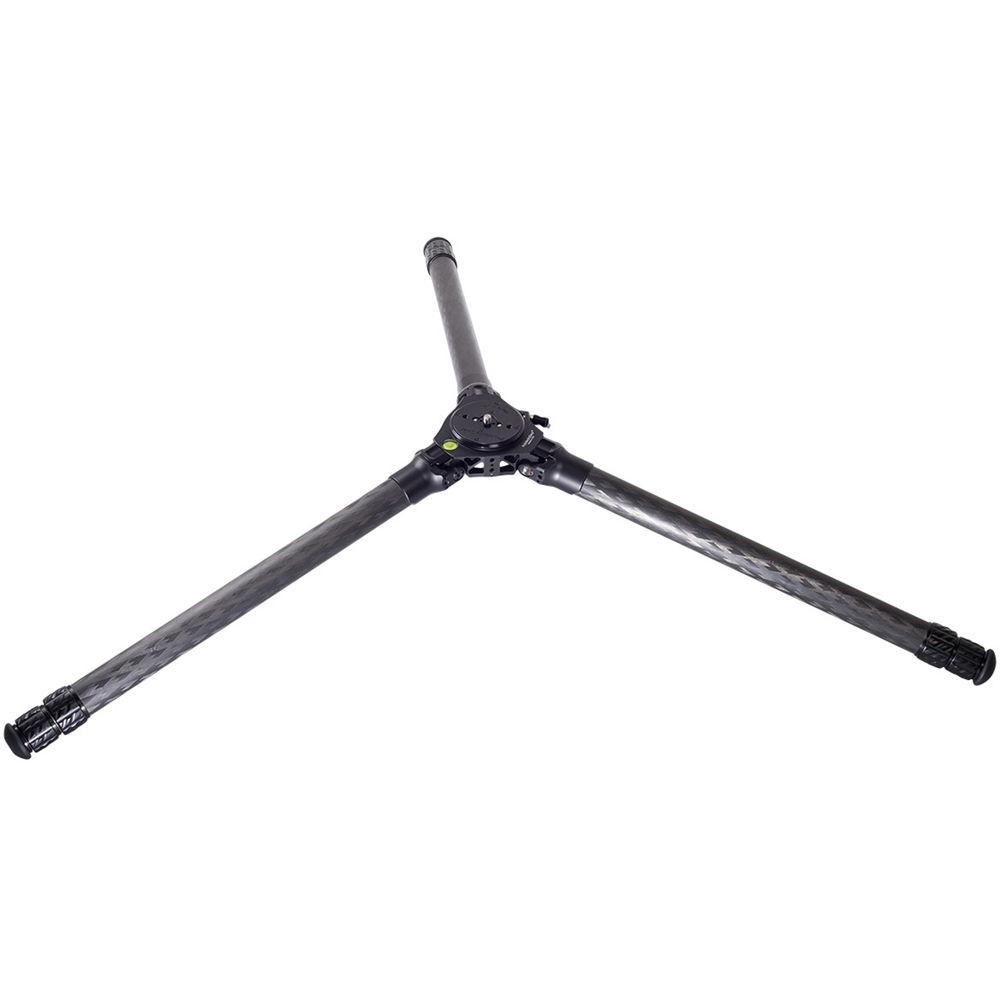

- Legs can be locked at 22.5°, 55.0°, or 89.0° angles
- Rubber feet with stow-away, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil
- Built-in tripod bubble level
- For direct attachment of accessories that feature 1/4"-20 mounts, the underside of the top plate is tapped with one 1/4"-20 female accessory thread, four 1/4"-20 female accessory threads distributed along the sides of the head, and two 1/4"-20 female accessory threads positioned toward the top of each leg, one along each side of its connecting hinge
- Either of the 1/4"-20 female accessory threads on each of the tripod legs, or two of the 1/4"-20 accessory threads along the head have adjacent pin slots that allow them to accommodate ProMediaGear accessories with anti-twist pins, or accessories with only a 1/4"-20 mount
- Weighs 5.8 lb, measures 26.0" when folded
- Hex key to adjust tension on leg hinges
- Construction Details
-
- Carbon-fiber legs with a maximum diameter of 42mm
- Aluminum-alloy tripod head features a durable truss design that minimizes weight
UPC: 609456714556 In the Box ProMediaGear TR423 42mm Series 58" Pro-Stix Carbon-Fiber Tripod with Top Plate Top Plate Hex Key for Leg Hinge Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProMediaGear TR423 42mm Series 58" Pro-Stix Carbon-Fiber Tripod with Top Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProMediaGear TR423 Specs | | | Load Capacity | 125.0 lb / 56.7 kg | | Maximum Working Height | 58" / 147.3 cm | | Minimum Working Height | 6.8" / 17.3 cm | | Folded Length | 26.0" / 66.04 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 5.8 lb / 2.63 kg | | Materials | Aluminum Alloy, Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Leg Diameter | 1.65" / 42 mm | | Feet Features | Rubber, Removable, Spiked | | | | Package Weight | 7.25 lb | | Box Dimensions (LxWxH) | 29.0 x 6.6 x 6.6" |
