User Manual for ProMediaGear TR424 42mm-Series 58" Pro Stix Carbon Fiber Tripod with Top Plate Click to enlarge the picture
Contents of the user manual for the ProMediaGear TR424 42mm-Series 58" Pro Stix
- Product category: Tripod Legs ProMediaGear
- Brand: ProMediaGear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ProMediaGear Tripod Legs
 |
User manual for the ProMediaGear TR424 42mm-Series 58" Pro Stix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ProMediaGear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ProMediaGear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ProMediaGear product will considerably shorten its lifespan!
|

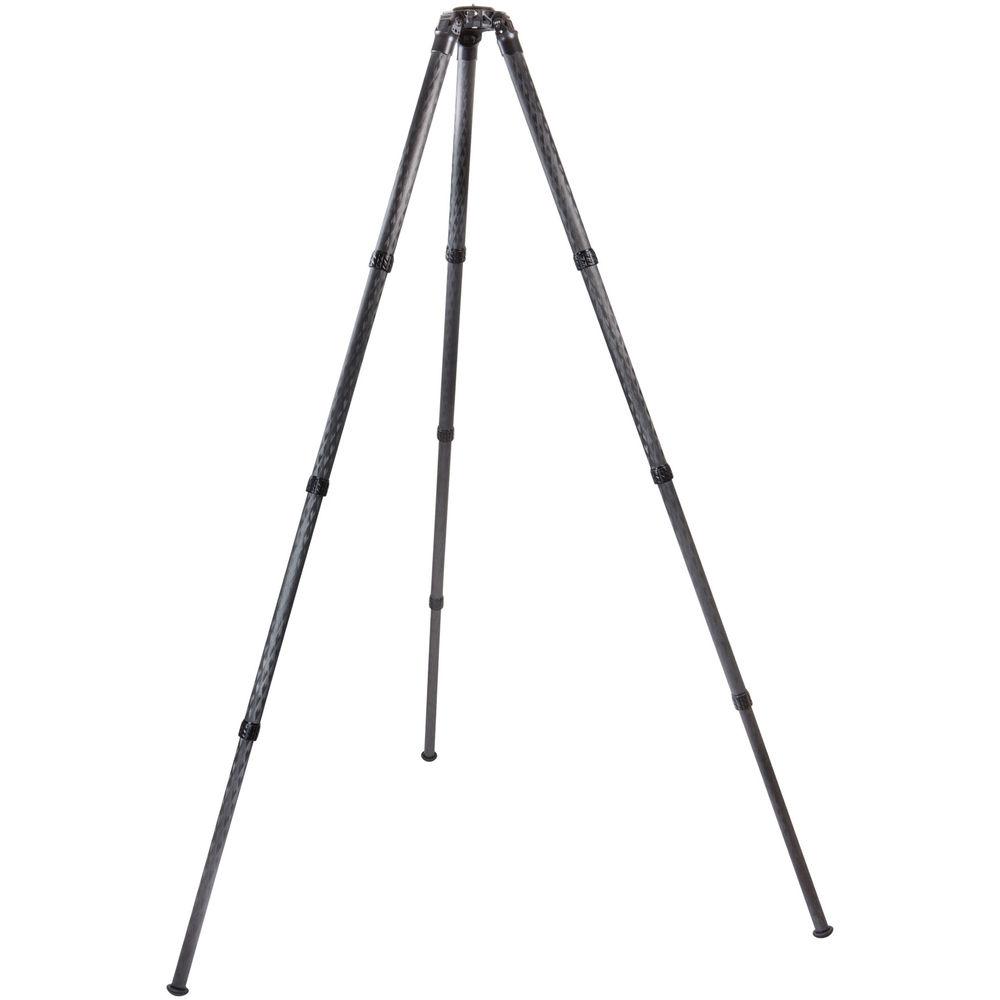

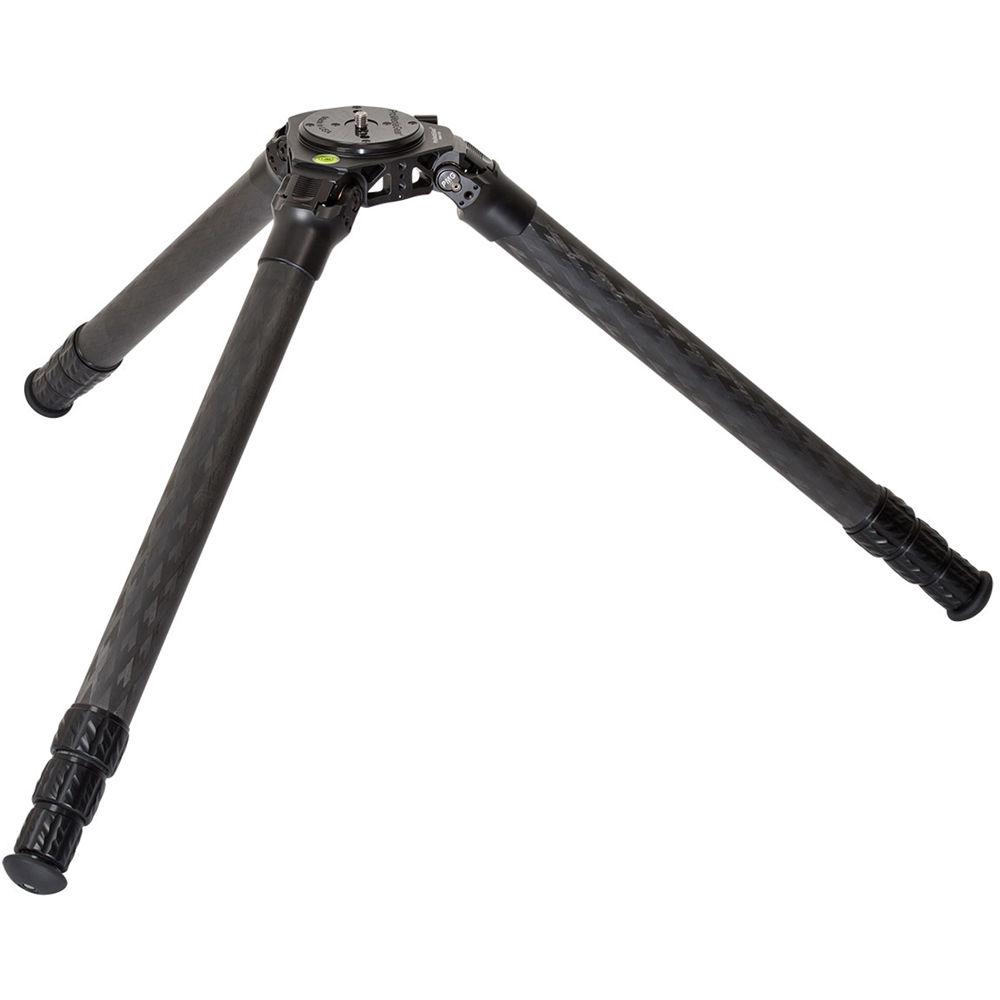

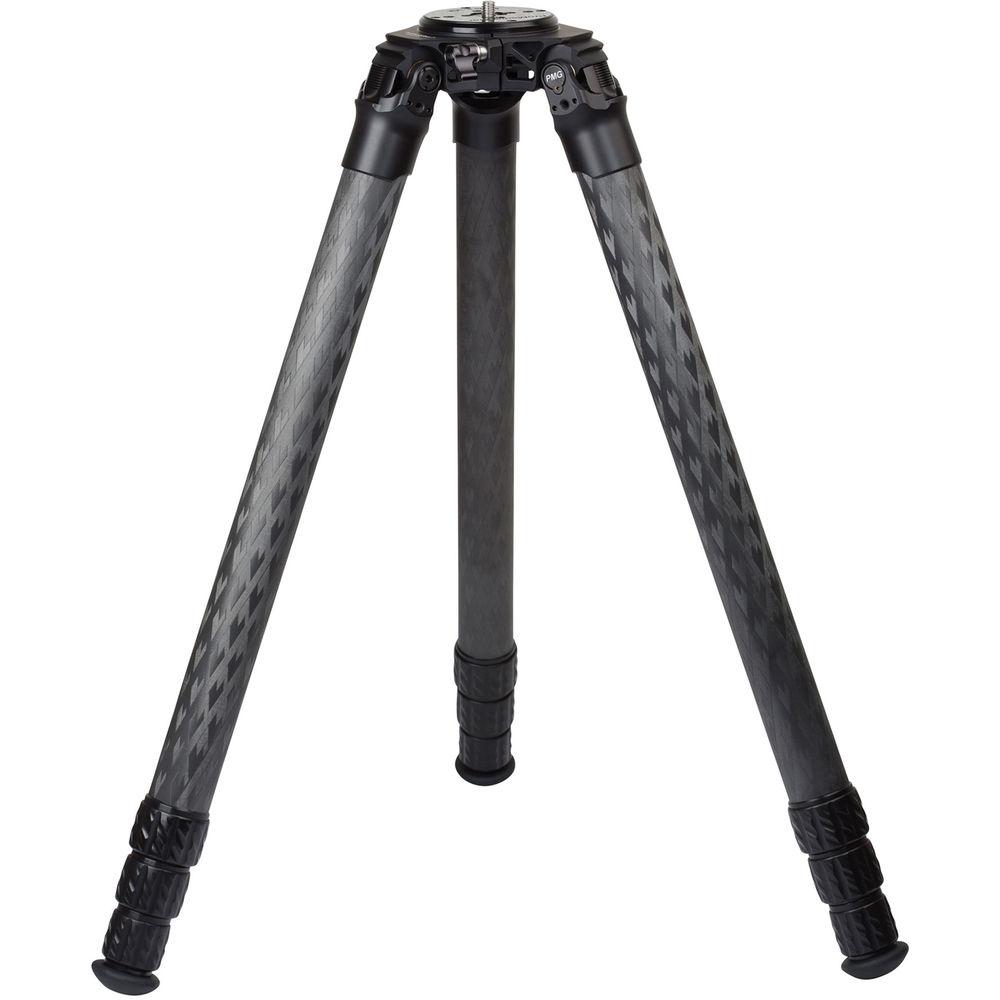

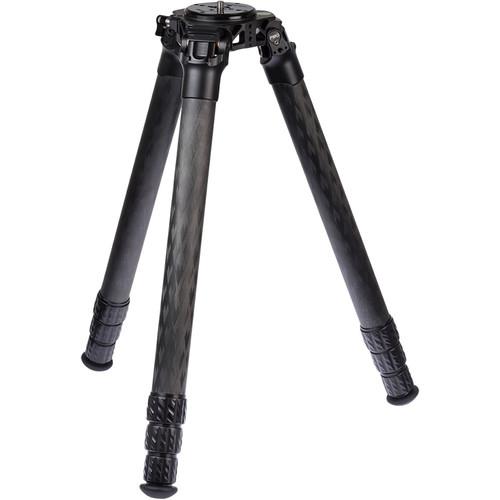

Product description The TR424 42mm-Series 58" Pro Stix Carbon Fiber Tripod with Top Plate from ProMediaGear is a 4-section support, which is suitable for small mirrorless to large format cameras that weigh up to 125 lb. The maximum height of the tripod is 58", and each 42mm leg has 3-variable independent angles that stabilizes against rocky or uneven terrain. Also, because of the variable leg angles, it allows the 5.9 lb tripod to have a minimum height of 6".The truss apex is CNC machined aluminum, and inside the apex sits a 75mm interchangeable top plate that is held in place by a spring-loaded lock and released by the safety button. Meanwhile, an optional 75mm leveling half ball is available and accepts fluid-, ball-, or gimbal-type heads via the 3/8"-16 male thread. A bowl insert is required to adapt the leveling half ball.Around the apex and at the top of each leg, near the apex, there are multiple 1/4"-20 mounting slots with anti-twist pins that allow you to adapt accessories to the side of the tripod. Additionally, the 10x crossed weaved carbon fiber legs collapse down to 21.25" by turning the twist locks a 1/4 of a turn. - The tripod has a load capacity of 125 lb with a maximum height of 58", and it weighs 5.9 lb
- 10x crossed weaved, 4-section carbon fiber legs with twist locks, which collapse down to 21.25"

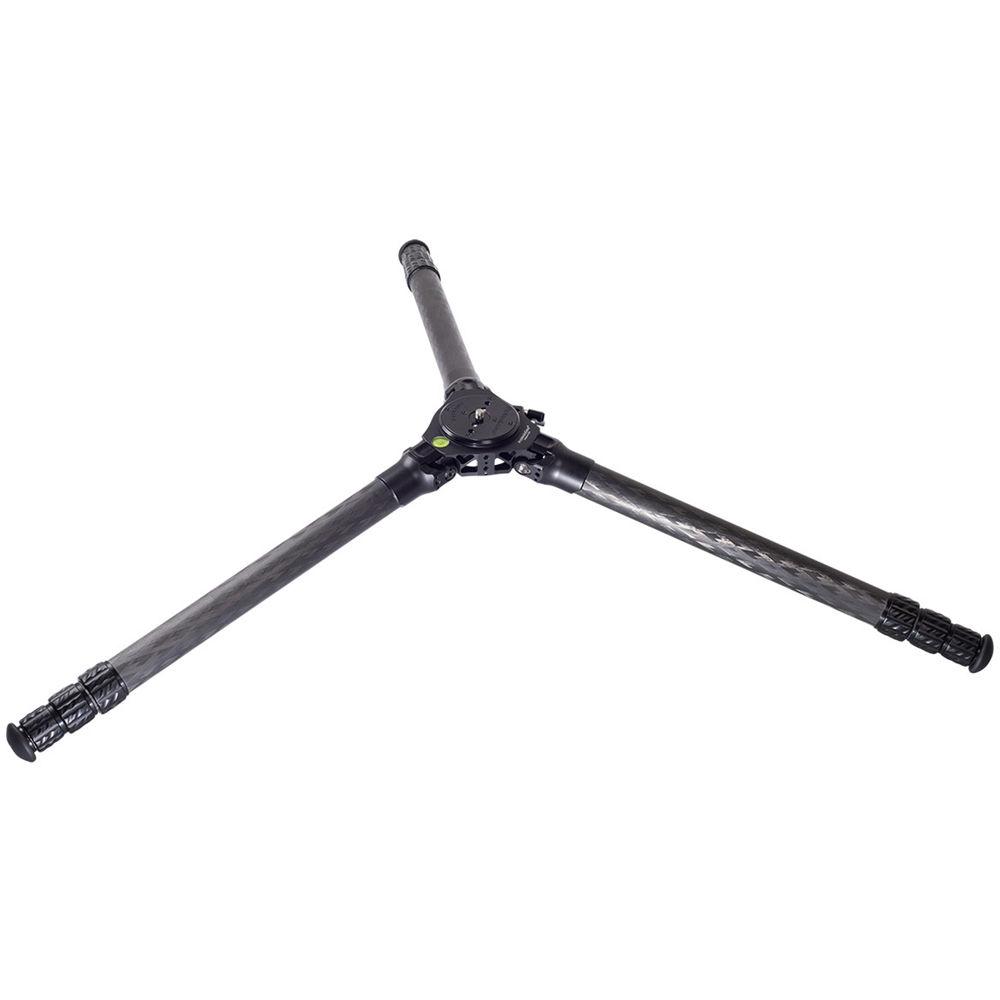

- 3-variable independent leg angles enable the tripod to reach a minimum height of 6"
- CNC machined aluminum truss apex holds an interchangeable top plate with a spring-loaded lock and safety button
- The truss apex has multiple 1/4"-20 mounting slots with anti-twist pins to attach accessories to the side of the tripod
UPC: 609456714563 In the Box ProMediaGear TR424 42mm-Series 58" Pro Stix Carbon Fiber Tripod with Top Plate Limited 5-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ProMediaGear TR424 42mm-Series 58" Pro Stix Carbon Fiber Tripod with Top Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProMediaGear TR424 Specs | | | Load Capacity | 125 lb / 56.70 kg | | Maximum Working Height | 58" / 147.3 cm | | Minimum Working Height | 6" / 15.2 cm | | Folded Length | 21.25" / 53.98 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 5.9 lb / 2.68 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Leg Diameter | 1.65" / 42 mm | | Feet Features | Rubber, Spiked | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 29.0 x 8.0 x 7.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
