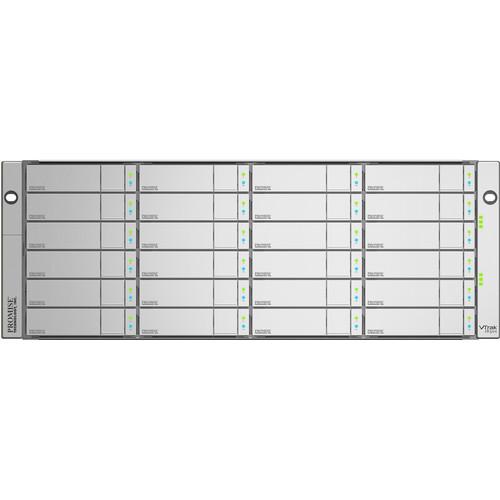

User Manual for Promise Technology 144TB VTrak Jx30 24-Bay Expansion Chassis Click to enlarge the picture
Contents of the user manual for the Promise Technology 144TB VTrak Jx30 24-Bay
- Product category: Hard Drive Arrays Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Hard Drive Arrays
|
User manual for the Promise Technology 144TB VTrak Jx30 24-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The Promise Technology 144TB VTrak Jx30 24-Bay Expansion Chassis delivers a high performance SAS solution with advanced enterprise level reliability and functionality. It features 24 bays that include a 6TB SAS hard drive in each bay to provide a total storage data capacity of 144TB. Additionally, it is built in a 4U form factor and can house 2.5" and 3.5" drives. This chassis offers the full redundancy that is expected of an enterprise solution. Designed with high-availability in mind, the VTrak Jx30 expansion chassis supports dual active-active JBOD I/O modules allowing for redundant data paths to ensure data availability - while dual power supplies and cooling fans are in place to minimize downtime and any disruption to business continuity.
The VTrak Jx30 expansion chassis allows storage applications to access their data at fast speeds using multi-lane 6G SAS architectures. The 6G SAS connectivity paves the way for large multi-lan bandwidth to support the flood of unstructured data now flowing across networks today. Fully backward compatible with 3G SAS/SATA devices, users have the ability to deploy 3G and 6G SAS/SATA hard drives and solid state devices (SSD) in the Jx30 chassis.
VTrak products utilize environmentally friendly production methods and materials as well as a high-efficiency design that saves energy. Efficient power supplies offers provide up to 90% power efficiency that enable the VTrak Jx30 to improve total cost of ownership by conserving power, reducing heat output, and improving cooling costs. The internal 6G SAS expander-based architecture also allows for transparent access to each drive, enabling full utilization of the power management features built in current drives. -
- 4U/24 form factor featuring hot-swappable drive bays in an SBB 2.0 package
- Supports 6G and 3G SAS and SATA drives simultaneously
- Dual active/active SAS JBOD I/O modules
- Provides up to 90% power efficiency
- Multi-ported, multi-lane 6G mini SAS (4x) ports provide large bandwidth capabilities
- Redundant, hot-swappable Field Replaceable Units (FRUs)
- SES-2 compliant enclosure management
- Compatible with leading SAS/SATA drives, HBAs, and RAID controllers
UPC: 704118104802 In the Box Promise Technology 144TB VTrak Jx30 24-Bay Expansion Chassis Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology 144TB VTrak Jx30 24-Bay Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology J830SDQS6 Specs | Form Factor | 4U 24-bay | | Controller | Dual I/O modules | | Drive Support | Up to 24 3.5"/2.5" HDDs or SSDs
NL-SAS 7200 rpm: 6 Gb/s, 3 Gb/s
SATA: 6 Gb/s, 3 Gb/s, and 1.5 Gb/s
SSD | | Drives Included | 24 x 6TB SAS hard drives | | Ports | Each SBB 2.0 I/O module has two SAS ports using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088), one IN and one OUT for cascading JBODs
2 x RJ-11 serial connectors | | Supported Features | Self-configuring expander supports full SAS domain topology management
SMP - SAS Management Protocol
In-band access to Expander and PHY information
Statistic counters and performance monitors
SES EM - SES Enclosure Management (ANSI T10 SES 2 Compliant)
SCSI SES command set over virtual SSP device | | Management Interfaces | LED status indicator support for drives, FRU, and enclosure environmental
In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data, and hardware
Full subsystem management CLI through out-of-band RS232 serial port | | Enclosure Management Protocols | SES over in-band SAS | | Voltage | 100 to 240 VAC Auto-ranging | | Current (Maximum) | 15 A @ 110 VAC
6 A @ 240 VAC | | Power Conversion Efficiency | >80% @ 110 V (>20% load)
>80% @ 240 V (>20% load) | | Temperature | Operational: 41 to 104°F / 5 to 40°C
Non-Operational: -40 to 140°F / -40 to 60°C | | Humidity | Operational: 10% to 90% (Non-Condensing)
Non-Operational: 5% to 95% (Non-Condensing) | | Acoustic Noise Levels | 55 dB (typical)
65 dB (maximum) | | Shock | Operational: 5 G, 11 ms duration
Non-Operational: 10 G, 11 ms duration | | Vibration (5 to 500 Hz) | Operational: 0.3 G
Non-Operational: 1 G | | Certifications | CE, FCC Class A, UL/cUL, TUV, BSMI Class A, VCCI Class A, CB, KCC, NOM, GOST-R, IRAM, C-Tick, S-Mark | | Environmental Standards | RoHS, GreenPC, WEEE | | Power Supply | Dual 750 W
100 to 240 VAC auto-ranging
50 to 60 Hz
Dual hot swap and redundant with PFC
N+1 design | | Dimensions | 6.9 x 17.6 x 20.0" / 17.5 x 44.7 x 50.8 cm | | Weight | 57.3 lb / 26.0 kg |
