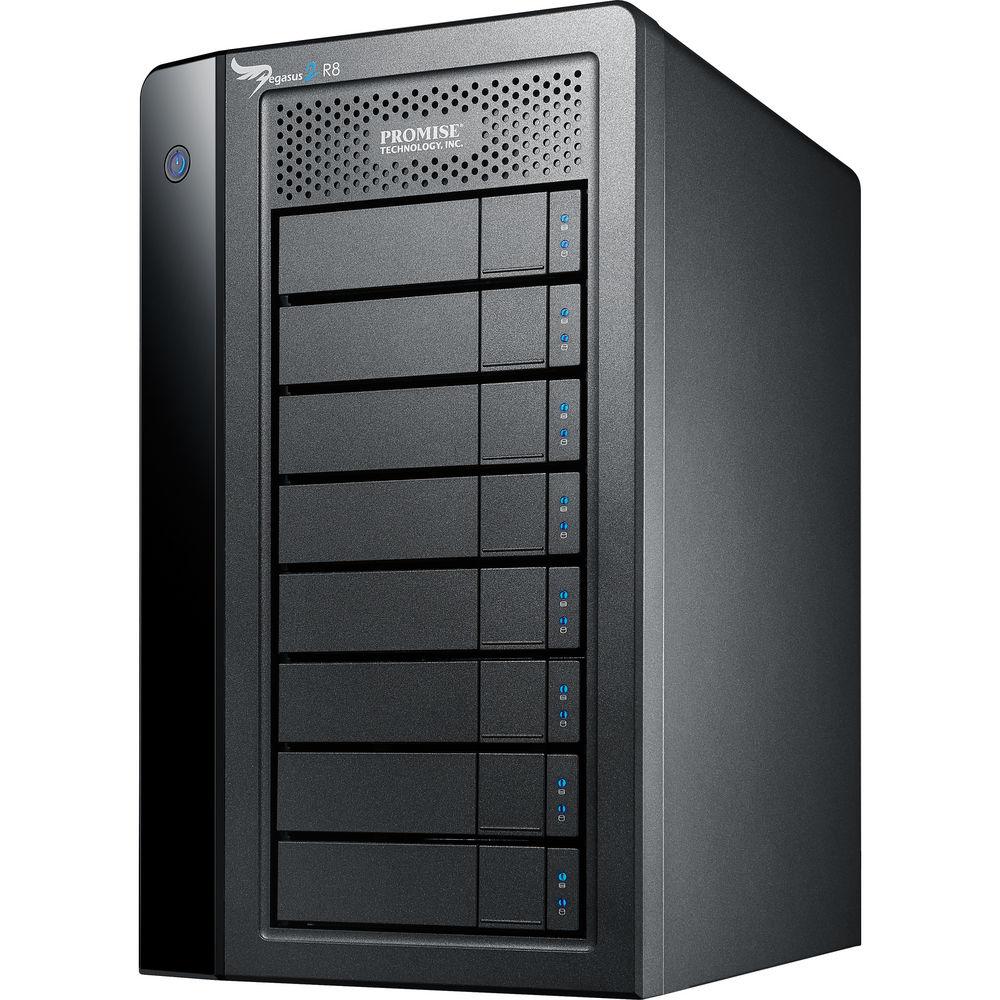

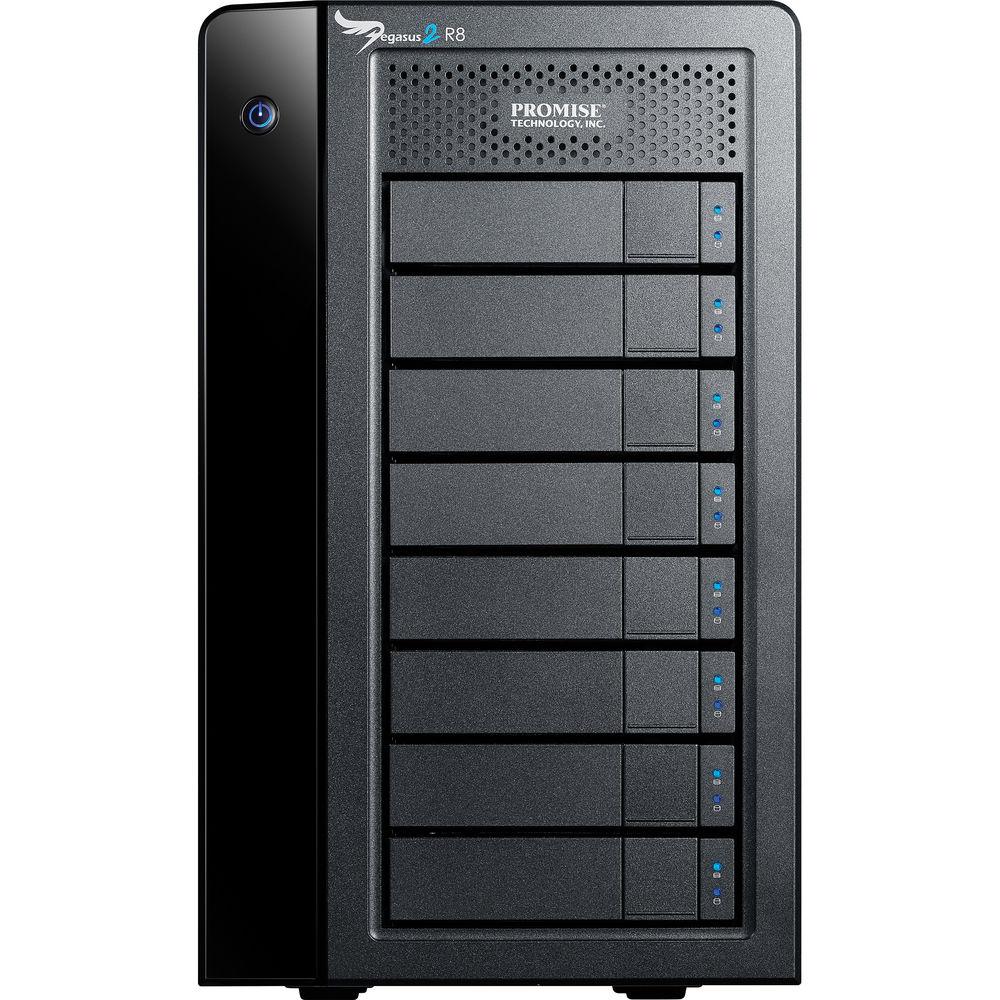

User Manual for Promise Technology 24TB Pegasus2 R8 Thunderbolt 2 RAID Storage Array Click to enlarge the picture
Contents of the user manual for the Promise Technology 24TB Pegasus2 R8 Thunderbolt
- Product category: Hard Drive Arrays Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Hard Drive Arrays
 |
User manual for the Promise Technology 24TB Pegasus2 R8 Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|

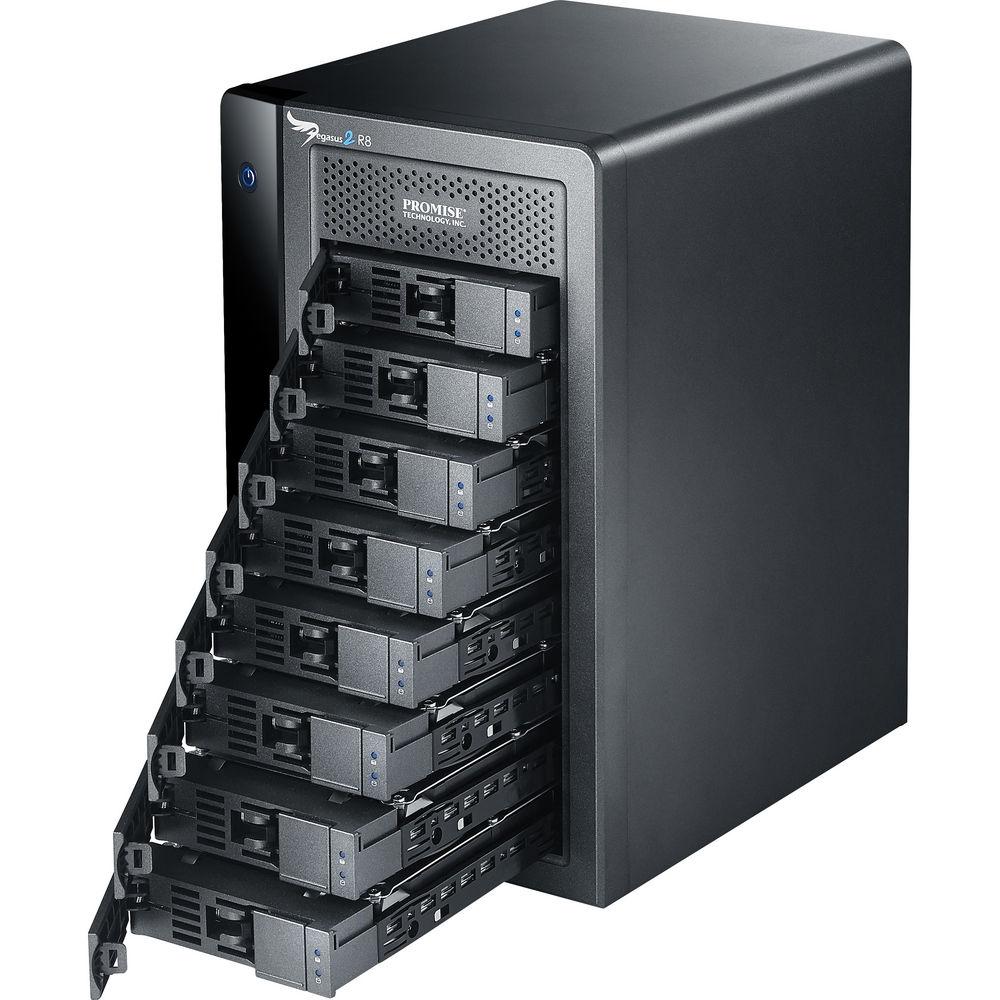

Product description RAID Arrays for Photography and Pro Video Read More The Promise Technology 24TB Pegasus2 R8 is a Thunderbolt 2 RAID storage array designed for simultaneous streaming, editing, and backup of high-resolution videos and large multimedia files. This storage array's Thunderbolt 2 interface offers high-speed connectivity. The Pegasus2 R8 stores up to 24TB of data spread across eight 3TB 7200 rpm SATA drives. Actual storage capacity will differ according to the RAID configuration. These drives are hot-swappable for easy access and come pre-configured in RAID 5 mode, which is optimized for data protection, capacity, and performance. RAID levels 0, 1, 5, 6, 10, 50, and 60 are also supported; each level offers configuration options for capacity, data protection, redundancy, and speed.

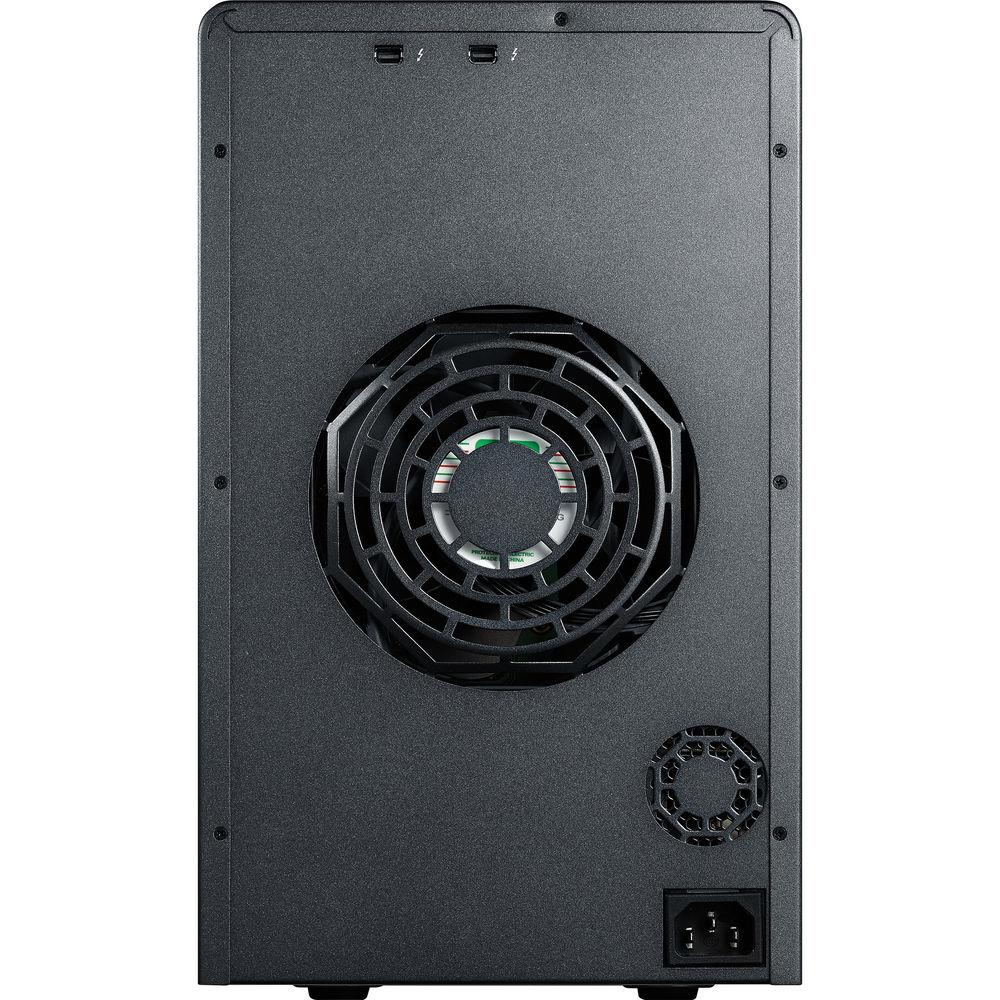

The Pegasus2 R8 storage array has dual Thunderbolt 2 ports, one port for direct system attachment and another port for daisy-chaining up to 6 Thunderbolt 2 devices. This storage is formatted in the HFS+ file system for Mac and is compatible with Time Machine in OS X, which automatically backs up your entire Mac system. - Thunderbolt 2
- The Pegasus2's Thunderbolt 2 interface is sufficient for handling and accelerating 3D or 4K (UHD) workflows. Thunderbolt 2 uses the same cable as the previous generation but has double the available bandwidth for a maximum throughput of 20Gb/s.
- 4K Workflows
- The bandwidth of Thunderbolt 2 and the Pegasus2 is designed to give professionals the ability to edit and view live 4K streams while backing up the same file to a single or daisy-chained Pegasus2 storage array system.
In the Box Promise Technology 24TB Pegasus2 R8 Thunderbolt 2 RAID Storage Array Thunderbolt Cable Limited 2-Year Warranty User Manual PDF 6.3mbacxevtuyfwazxyxz Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology 24TB Pegasus2 R8 Thunderbolt 2 RAID Storage Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology R8 Specs | | | Number of Bays | 8 x 3.5" | | Connections | 2 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s)) | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, 5, 6, 10, 50, 60 | | OS Compatibility | macOS 10.8.5 or Later | | | | Total Raw Capacity | 24 TB (8 x 3 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Initial RAID Configuration | None | | Pre-Format | None | | | | Dimensions (W x H x D) | 12.2 x 9.6 x 7.3" / 31.0 x 24.4 x 18.5 cm | | Weight | 24.2 lb / 11.0 kg | | | | Package Weight | 30.7 lb | | Box Dimensions (LxWxH) | 17.2 x 16.2 x 12.0" |
