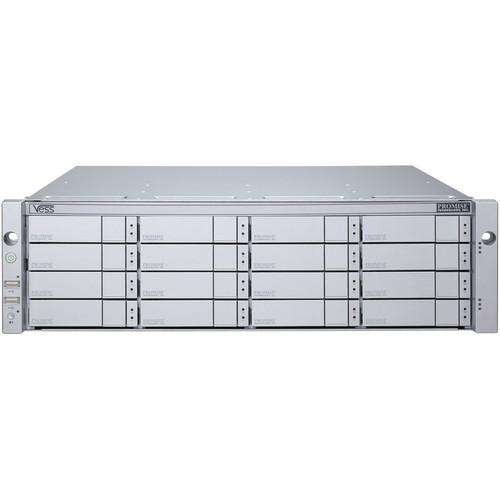

User Manual for Promise Technology 32TB Vess J2600sD 3U 16-Bay 6Gb SAS JBOD Storage Expansion Chassis Click to enlarge the picture
Contents of the user manual for the Promise Technology 32TB Vess J2600sD 3U
- Product category: Hard Drive Arrays Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Hard Drive Arrays
|
User manual for the Promise Technology 32TB Vess J2600sD 3U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The 32TB Vess J2600sD 3U 16-Bay 6Gb SAS JBOD Storage Expansion Chassis from Promise Technology is a robust storage expansion platform that serves as a building block to provide high availability and flexibility in a cost-effective package. It is simple to administer and meets the demands of your application. The Vess J2600sD Expansion Chassis is equipped with hot-swappable redundant power supplies and fans. It also features dual active/active SAS JBOD I/O modules. Furthermore, the expansion chassis supports 6 Gbps and 3 Gbps SAS and SATA drives simultaneously. The Vess J2600sD Expansion Chassis is fully expandable to meet your current and future needs. Up to six additional expansion chassis may be added to each Vess R2000 RAID subsystem, providing expansion for up to 112 drives. - Redundant Hot-Swappable Power Supplies
- The Vess J2600sD Expansion Chassis is equipped with redundant power supplies. The advantage of N+1 power supplies is that should one fail, the other continues to power the subsystem until the faulty one can be replaced. Additionally, the power supplies are hot-swappable, which enables you to leave the subsystem running when you replace the one that failed.
- User-Friendly Design
- Simplicity and ease of use are absolutely crucial for small and medium businesses (SMBs). The Vess J2600sD Expansion Chassis' user-friendly design features the power button on the front panel. This design brings great convenience to users as they don't have to go behind the system and unplug the power cord or access the management GUI console to turn off the machine, but can simply turn the machine on and off through the front panel.
- Reduce Power and Cooling Costs
- The Vess J2600sD Expansion Chassis utilizes environmentally friendly production methods and materials as well as a high-efficiency design that saves energy. Sporting 80 Plus Bronze Certified power supplies delivering up to 85% power efficiency, the Vess J2600sD Expansion Chassis improves total cost of ownership by conserving power, reducing heat output and decreasing cooling costs.
- Other Features
- • Expand Vess R2000 RAID subsystems up to 112 disk drives with Vess J2600sD Expansion Chassis
• Supports 6 Gbps and 3 Gbps SAS and SATA drives simultaneously
• 3U-16 form factor featuring hot-swappable drive bays
• Dual 6 Gbps SAS-wide port over SFF-8088
• Dual active/active SAS JBOD I/O modules
• Two hot-swappable redundant fans UPC: 704118091423 In the Box Promise Technology 32TB Vess J2600sD 3U 16-Bay 6Gb SAS JBOD Storage Expansion Chassis 16 x 2TB NL SAS HDDs RJ11-to-DB9 Serial Data Cable 2 x SAS Cables 3 x Power Cords Sliding Rails HDD Screws Product CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology 32TB Vess J2600sD 3U 16-Bay 6Gb SAS JBOD Storage Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology J2600sD Specs | | | Form Factor | 3U | | Capacity | 32 TB | | Drive Configurations | 16 x 2 TB NL SAS HDDs | | Drive Support | 16 x drives (3.5")
SAS/SATA* (6 Gbps or 3 Gbps), NCQ, TCQ *Additional AA-Mux adapter is required when used with SATA 3G drive, while SATA 6G drive requires BlackJack adapter | | Controllers | Dual | | Host Connectivity | Per Controller: Dual, in/out 6G SAS-wide (x4) port over SFF-8088 | | | | HBA | SAS: Follow Vess J2600s compatibility list | | RAID Storage Subsystem | Vess R2000 Series | | | | Management | Full SAS domain topology management
SAS management protocol
In-band access to expander and PHY
Statistic counters and performance monitors
SES enclosure management
SCSI SES command set over virtual SSP device | | | | Management Interfaces | LED status indicator
In-band SES enclosure management; CLI via RJ-11 serial port | | Management Protocols | SES over in-band SAS | | | | Supported Hardware | Options: SAS cable, 3G SATA AA-Mux adapter, 6G SATA BlackJack adapter | | | | AC Input | 100 ~ 240 VAC, 60 ~ 50 Hz | | Current (Maximum) | 4 A (100 V); 2 A (240 V) | | Power Supply | 3 x redundant 250 W
90 - 264 V full-ranging with PFC, hot-swappable N+1 design | | Fan | Hot-swappable redundant design with battery backup module | | Temperature | Operating: 41 to 104°F (5 ~ 40°C)
Non-Operating: -40 to 140°F (-40 ~ 60°C) | | Relative Humidity | 10 to 80% non-condensing | | Dimensions (WxHxD) | 17.6 x 5.1 x 20" (447 x 131 x 507 mm) | | Weight | 57.8 lb (26.2 kg) with drives |
