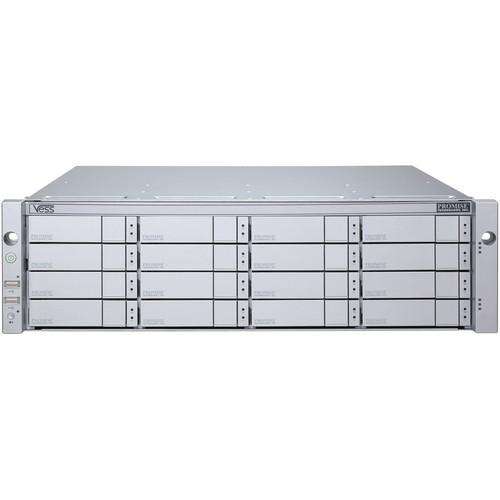

User Manual for Promise Technology 48TB VJ2600SZSAME 3U 16-Bay Expansion Chassis Click to enlarge the picture
Contents of the user manual for the Promise Technology 48TB VJ2600SZSAME 3U 16-Bay
- Product category: Hard Drive Arrays Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Hard Drive Arrays
|
User manual for the Promise Technology 48TB VJ2600SZSAME 3U 16-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The 48TB (16 x 3TB) VJ2600SZSAME 3U/16-Bay Expansion Chassis from Promise Technology consolidates both block and file storage onto a single platform, providing SMBs an effective way to meet performance goals while simplifying administration and adding flexibility. The high availability active-active Vess J2000 expansion chassis is designed for data-intensive industries, including midsize to large-scale surveillance installations or cloud data centers where downtime is unacceptable and where large external storage capacity, support for on-demand expansion, long retention periods, and reliable high bandwidth throughput are a must. The expansion chassis conveniently allows users to select an operation mode optimized for video surveillance or for generic IT environments, delivering customized performance, and expandable capacity for multiple storage requirements, including unstructured data, archiving, and cloud data centers. The Vess J2000 delivers the performance and reliability you demand for your application. Simplicity and ease of use are absolutely crucial for SMBs with limited IT resources. The Vess J2000 is designed specifically with SMBs in mind as it features One Plug Auto Service (OPAS) to reduce maintenance complexity and streamline an easier tech support workflow. Simply plug in a USB drive and the user can retrieve information about the system for tech support, upgrade firmware, reset passwords, and much more. The CacheGuard Data Protection feature and HDD cache backup go that extra mile to ensure your data is safe in case of power loss. Delivering protection of HDD cache data and RAID controller write cache content beyond the standard 72 hours window, you can be rest assured knowing your data is protected even when disaster strikes. - General
-
- Dynamic solution optimized for video surveillance
- Unified storage streamlines administration & adds flexibility
- Designed to meet the growing challenge of unstructured data
- Cutting edge redundant, high capacity archiving solution
- Support for on demand expansion, for cloud data centers
- Fiber Channel 6G SAS host connect port
- Supports 6 Gb/s, 3 Gb/s SAS, & SATA drives simultaneously
- Management tools - WebPAM PROe/SNMP via Ethernet, CLI/CLU via RJ-11 or Ethernet, OPAS/UPS monitor via USB, Ethernet, RJ-11 Serial Port, USB, SNMP, SSH, Telnet, and SLP
- Redundant PSU and hot-swap drive support
- Data Protection Features
-
- Predictive Data Migration (PDM)
- Supports volume copy
- Zero penalty cache mirroring
- Hard Disk Cache Protection
- Asymmetric LUN Unit Access (ALUA)
1 Please Note: Hard disk cache protection feature available in the service release 3 close - Green Features
-
- Compact and lightweight system design
- Efficient 80PLUS certified power supply
- Embedded power consumption module
- Full levels of intelligent power management MAID 2.0
- Energy savings on power scheduling
UPC: 704118093854 In the Box Promise Technology 48TB (16 x 3TB) VJ2600SZSAME 3U/16-Bay Expansion Chassis 16 x 3TB NL SAS HDD RJ11-to-DB9 Serial Data Cable 3 x Power Cords HDD Screws Sliding Rails SAS Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology 48TB VJ2600SZSAME 3U 16-Bay Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology R2600 Specs | | | Form Factor | 3 U | | Drive Support | 16 drives (3.5"/89 mm)
SAS/SATA (6 or 3 Gb/s), NCQ, TCQ Additional AA-Mux adapter is required when use with SATA 3G drive, while SATA 6G drive requires BlackJack adapter | | Host Connectivity | 6 G SAS | | Hard Drive Capacity | Up to 16 HDDs | | Storage Capacity | Up to 48 TB (16 x 3 TB) | | Module | Single IO module | | Controller | Single | | Scalability | Up to 112 drives via cascading Vess J2000 series | | Data Cache | 2 GB standard per controller (maximum 16 GB) | | | | RAID Levels | JBOD | | Supported OS | HBA dependent | | | | AC Input | 100 to 240 VAC, 50 to 60 Hz | | Current (Maximum) | 4 A (100 V), 2 A (240 V) | | Power Supply | Three redundant PSU 250 W
90 to 264 V full-ranging with PFC, hot swappable N+1 design | | Fan | 2 x hot swappable redundant fans | | Temperature | Operational: 41 to 104°F (5 to 40°C)
Non operational: -40 to 140°F (-40 to 60°C) Operational Temperature should be between 41 to 95°F (5 to 35°C) if BBU is installed or use 15K-RPM SAS HDDs | | Relative Humidity | 10 to 80% non-condensing | | Dimensions (H x W x D) | 5.1 x 17.6 x 20" (131 x 447 x 507 mm) | | Weight | Without Drives: 44.3 lb (20.1 kg)
With Drives: 69.0 lb (31.3 kg) |
