User Manual for Promise Technology Atlas S8 64TB 8-Bay NAS Server Click to enlarge the picture
Contents of the user manual for the Promise Technology Atlas S8 64TB 8-Bay
- Product category: Network Attached Storage Drives Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Network Attached Storage Drives
 |
User manual for the Promise Technology Atlas S8 64TB 8-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|

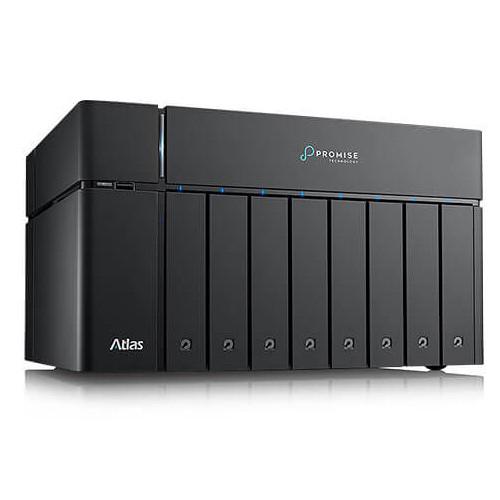

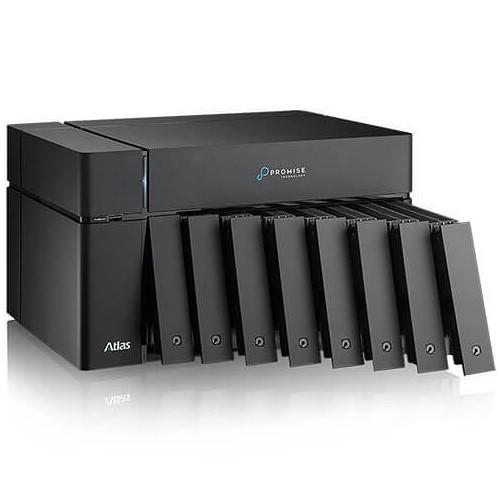

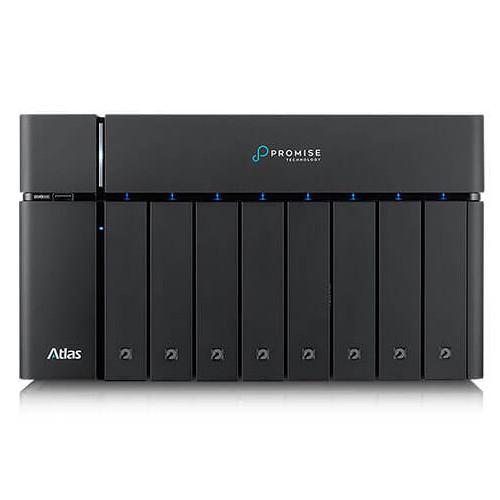

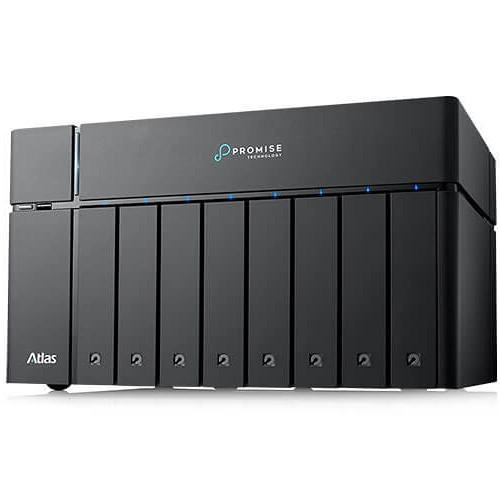

Product description This Atlas S8+ 64TB 8-Bay NAS Server from Promise Technology is configured with 32TB of storage using eight 8TB 7200 rpm hard drives. Once connected to your system via 10 GbE, it can then be connected to other clients using its multiple Gigabit Ethernet ports. Utilizing a 2.7 GHz Intel Core i5 quad-core processor and 16GB of DDR4 RAM, the Atlas S8+ is capable of handling multiple clients with demanding workloads. Moreover, you can even add a SSD for faster loading times with the included flash cache feature. As an enterprise-class server, it also includes advanced data services, complete backup solutions, encryption, Cloud access, and virtualization all behind an easy-to-use interface. - General WG Backend Storage
-
- NAS application server (Gigabit/10GbE NIC)
- iSCSI storage (Gigabit/10GbE NIC)
- FTP Server
-
- Supports data access from remote location via FTP
- FTP with SSL/ TLS (explicit) mode
- FXP supported
- FTP bandwidth control and connection control
- Passive FTP port range control
- Backup Server
-
- 3rd party backup software support: Acronis True Image, CA Brightstor ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie Silverkeeper
- Snapshot replication
- Time Machine backup server
- External storage device backup
- Block-level real time remote replication supports instant, schedule backup management
- AMirror (Multi-side data synchronization)
- Cloud backup: Amazon S3
- Cloud synchronization: Google Drive, Windows, OneDrive, Dropbox
- NAS Discovery
-
- Easy and convenient device discovery utility and web browser applet included
- Networking
-
- VLAN
- Link aggregation (support 7 bonding modes)
- Multi-IP settings
- Gigabit Jumbo Frame
- File Server
-
- File sharing across Windows/Mac/Linux/UNIX and centralized management
- Disk Management
-
- Single disk, RAID0 , 1 , 5, 6, 10, 50, 60 and JBOD (Linear Disk Volume)
- Multiple volume and storage pool
- User defined storage (Generic, Media, Database)
- Online pool/volume Capacity Expansion
- Pool/ volume usage threshold notification
- Self-encrypting drives (SED) pool level protection
- Pool write cache
- Scrub pool
- Convert cloned volume
- Virtual volume (mount disk from remote iSCSI target)
- Set free and replace disk
- HDD S.M.A.R.T.
- Built-in iSCSI target and initiator service
- External device management
- Global and dedicate hot spare disk
- Zero time RAID creation and quick rebuilding
- Auto Tiering
- SSD read/write cache
- Deduplication (volume and LUN)
- Snapshot (folder and LUN)
- Compression (volume and LUN)
- Thin Provision for LUN
- SSD Trim
- User Management
-
- Local / domain user and group management
- Local / domain application privilege
- User quota for local and domain user
- Home folder
- Windows AD and LDAP
- Trust domain and support up to 200,000 domain users
- Folder Management
-
- Advance file ACL
- Windows ACL
- Hide shared folder on Windows network
- Unicode support
- WORM (Write Once Read Many protection)
- Folder usage threshold notification
- Folder quota
- System Tool
-
- NTP time settings
- Notification: E-mail alert (SMTP authentication), Syslog, and SNMP
- System firmware upgrade
- Backup, restore, reset system settings
- Import system configuration
- Antivirus
- Smart fan
- IP access control
- Policy-based unauthorized IP blocking
- Secure remote login by SSH connection
- Connection list management
- USB, SNMP, UPS support
- Network recycle bin
- Import SSL certificate
- Real-time Resource (CPU, Memory, Storage, Disk, Process) / Hardware/ service/ network resource monitor
- Power Management
-
- HDD hibernation
- Power schedule
- Wake on LAN
- UPS settings
- Recover from power outage
- Log
-
- System log
- System connection and data transfer log
- Utility
-
- AFinder, Acronis True Image OEM (Windows backup utility)
- File Manager
-
- File preview
- Embedded media player
- Filter capability
- Mount Cloud Drives Support (Google Drive,OneDrive, Dropbox)
- Mount ISO image support
- CIFS, FTP, SFTP and WebDAV client
- Share link
- Team folder sharing
- Publish to Facebook, Twitter, Weibo
- Media library
- Media streaming
- Online document preview and editing
- Transcoding (online/offline)
- Compression support
- Service
-
- File service: CIFS, AFP, NFS, FTP, WebDAV
- Backup service: Rsync
- Discover service: Bonjour
UPC: 704118136100 In the Box Promise Technology Atlas S8+ 64TB 8-Bay NAS Server (8 x 8TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology Atlas S8 64TB 8-Bay NAS Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

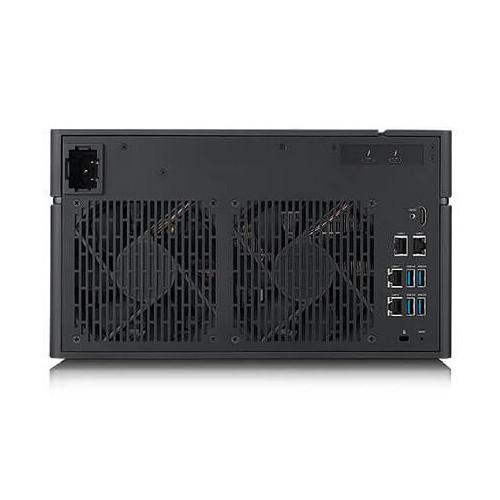

Technical parametersPromise Technology Atlas S8+ Specs | Ports and Connectors | 2 x 10 Gb Ethernet
4 x 1Gb Ethernet
5 x USB 3.0 Type-A
1 x HDMI | | CPU | 2.7 GHz Intel Core i5 Quad-Core Processor (Maximum 3.3 GHz) | | Memory | 16GB DDR4 SODIMM, optional upgrades to 32GB | | Installed Hard Drives | 8 x 8TB SATA 3 7200 rpm | | SSD Support | Optional SSD module | | File System | ZFS, EXT2, EXT3, EXT4, FAT, NTFS | | Connection | IPv4, IPv6, and DDNS domain name registration
Auto port forwarding | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Non-Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 20 to 80% non-condensing | | Non-Operating Humidity | 10 to 90% | | | | Supported Operating Systems | Windows, Mac OS X, Linux (2.6 or later), and UNIX | | Web Browser Support | Internet Explorer, Safari, Firefox, Google Chrome | | Dimensions | 6.9 x 12 x 9.2" / 177 x 310 x 235 mm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 27.4 lb | | Box Dimensions (LxWxH) | 16.0 x 15.0 x 10.0" |
