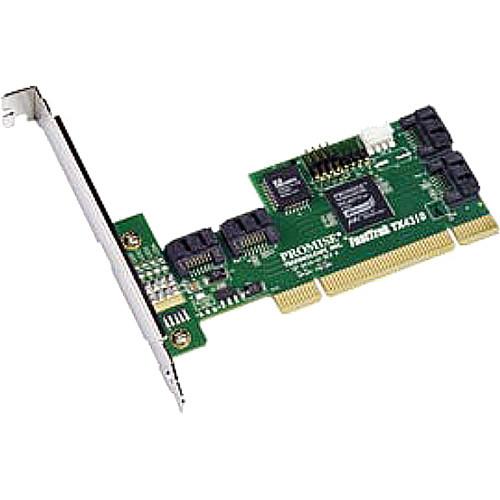

User Manual for Promise Technology FastTrak TX4310 4 Port SATA 3G RAID PCI Controller Click to enlarge the picture
Contents of the user manual for the Promise Technology FastTrak TX4310 4 Port
- Product category: Controller Cards Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Controller Cards
|
User manual for the Promise Technology FastTrak TX4310 4 Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The Promise Technology FastTrak TX4310 4 Port SATA 3G RAID PCI Controller (Pack of 5) offers a low-cost solution for implementing a RAID 0, RAID 1, RAID 5 or RAID 10 storage system with up to four high-performance Serial ATA disk drives. It also supports features like transparent data recovery and drive rebuilds performed in the background for maximum uptime. - FastTrak RAID Engine
- The FastTrak TX4310 leverages Promise Technology's proven RAID 0, 1, 5 and 10 software engine for fast, efficient and reliable RAID. Use RAID 0 for massive capacity and maximum performance, RAID 1 for data protection, RAID 5 for striped data with rotational parity and four-drive RAID 10 for data protection and performance enhancement. Promise Technology's RAID engine also offers performance enhancing technology like elevator seek and load balancing for efficient performance. For maximum uptime, the FastTrak TX4310 supports features like transparent data recovery and drive rebuilds performed in the background.
- SATA 3 Gbps Support
- The controller supports SATA 3 Gbps drives and conforms to Serial ATA II, extensions to SATA 1.0a specification with native command queuing and disk activity LED headers support. Command queuing increases I/O performance by intelligently reordering data requests so that the data can be more quickly accessed than if the commands weren't ordered.
- Advanced HBA Features
- The low-profile form factor FastTrak TX4310 PCI adapter incorporates many of Promise Technology's advanced host bus adapter features. The 66 MHz PCI bus supports up to 266 Mbps burst data transfer rate. The FastTrak TX4310 also includes large LBA support for drives above 137 GB, and its onboard BIOS automatically identifies and configures drive type.
- Sophisticated Array Monitoring Tools
- Web-based Promise Array Management software offers professional management tools in a simple-to-use, straightforward format. Array configurations, management and monitoring features are available via the web based interface. Moreover, the FastTrak TX4310 supports industry standard SNMP so third party management application integration is simplified.
- Easy Upgrade/Migration Path
- The FastTrak TX4310 is designed to maximize flexibility throughout the life of the storage system. For non-RAID SATA users, the FastTrak TX4310 simplifies the transition to a RAID array. For a FastTrak TX4310 RAID user, the software supports online capacity expansion and RAID level migration and as capacity and performance requirements grow, the FastTrak TX4310 supports MetaData on Disk, enabling easy migration to Promise external storage solutions.
In the Box Promise Technology FastTrak TX4310 4 Port SATA 3G RAID PCI Controller (Pack of 5) 4 x Serial ATA Disk Drive Data Cables - 25.6" (0.65 m) 2 x Y Power Splitter Cables CD with Drivers, Promise RAID Management (WebPAM) Software and FastTrak Controller User Manual Quick Start Guide 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology FastTrak TX4310 4 Port SATA 3G RAID PCI Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology TX4310 Specs | | | Device Support | Storage capacity up to 4.0 terabytes (4x 500 GB drives x2 controller system)
4 SATA 3 Gbps ports for up to 4 serial ATA devices | | RAID Levels Supported | 0, 1, 5, 10, JBOD | | Data Transfer Rate | Up to 266 Mbps (performance may vary depending upon drive make, motherboard and PCI bus speed) | | Features | - Data handling optimizations include elevator seek and load balancing
- Supports hot-swap of failed drives
- Offers transparent data recovery and rebuilds drive in background
- Online capacity expansion - add capacity on the fly
- RAID level migration - change array levels on the fly
- MetaData on disk for drive roaming
- Quick initialization
- Arrays are bootable with built-in BIOS
- Upgrades your current disk drive to a RAID array by migrating existing data to the array
- Low-profile form factor
- BIOS flash upgradeable for future updates
- Built in SMBus connector for Promise SuperSwap 4100/1100
- Supports ACPI (S1, S3, S4)
| | | | Boot Support | WebPAM local and remote monitoring for Windows and Linux: - Monitors status of arrays, hard drives and controller via TCP/IP
- Warns of drive failure
- Allows rebuilds of mirrored arrays
- Synchronizes data in fault-tolerant arrays
- Email notification for array events
- S.M.A.R.T. compatible status reporting
| | Notification | Email, audible and visible alarms | | Operating System Support | Microsoft Windows XP, Windows Server 2003, Windows 2000 RedHat Linux; SuSE Linux Linux partial open source code | | | | Serial ATA 3G Support | - Supports serial ATA II: 3 Gbps specification
- Supports serial ATA II: Extensions to serial ATA 1.0a, including native command queuing, staggered drive spin-up, HDD activity indication
| | Multiple Controllers Support | Up to 2 controllers in the same system are supported | | PCI Support | 32-bit / 66 MHz PCI interface compliant to PCI Rev 2.3 (backward compatible with PCI 33 MHz) | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Relative Humidity | 5 - 95% non-condensing | | Agency Certifications | UL, cUL, CE, FCC Class B, BSMI, MIC, C-Tick, VCCI | | Dimensions (H x W) | 2.00 x 4.69" (51 x 119 mm) | | Weight | Not Specified by the Manufacturer |
