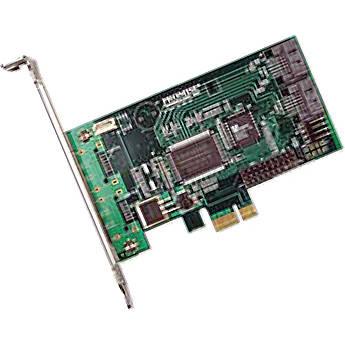

User Manual for Promise Technology FastTrak TX4650 4-Port SAS SATA 3G PCIe x1 Controller Click to enlarge the picture
Contents of the user manual for the Promise Technology FastTrak TX4650 4-Port SAS
- Product category: Controller Cards Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Controller Cards
|
User manual for the Promise Technology FastTrak TX4650 4-Port SAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The Promise Technology FastTrak TX4650 4-Port SAS/SATA 3G PCIe x1 Controller (Pack of 5) delivers fast, efficient and reliable RAID level 0 for maximum capacity performance without any fault tolerance, RAID 1 for maximum data protection, RAID 5 for balance of capacity plus data protection, RAID 10 for drive redundancy plus capacity and performance and JBOD. The FTTX4650 allows you to choose the best that fits your application. It also supports features such as transparent data recovery and drive rebuilds performed in the background for maximum uptime. - Cost-effective SAS/SATA Featuring RAID 0, 1, 5, 10 and JBOD
- The FTTX4650 offers a cost effective solution for implementing a 0, 1, 5, 10 and JBOD storage system with up to four high-performance SAS or SATA disk drives.
- Supports Both SAS and SATA Drives
- The FTTX4650 supports both SAS and SATA drive types, using the latest industry protocols to enhance performance and reliability. It provides a flexible, cost-effective RAID controller board spanning server, workstation and desktop markets.
- Advanced Features
- The low-profile, form-factor FTTX4650 supports both SAS and SATA drive types, using the latest industry protocols to enhance performance and reliability. It provides a flexible, cost-effective RAID controller board spanning server, workstation and desktop markets.
- Sophisticated Array Management Tools
- Web-based Promise Array Management software offers professional management tools in a simple-to-use, straightforward format. Array configurations, management and monitoring features are available via the web based interface. Moreover, the FTTX4650 supports industry standard SNMP to simplify third party management application integration.
In the Box Promise Technology FastTrak TX4650 4-Port SAS/SATA 3G PCIe x1 Controller (Pack of 5) Low Profile Bracket 20x SATA Data to SFF-8482 Data / Power Cables 0.65 m (26") CD with Promise RAID Management (WebPAM) Software, Windows Drivers, Linux Drivers and FastTrak Controller User Manual Quick Start Guide 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology FastTrak TX4650 4-Port SAS SATA 3G PCIe x1 Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology TX4650 Specs | Device Support | 4x SAS/SATA Ports for up to 4 SAS/SATA 3Gb/s Devices | | RAID Levels Supported | 0, 1, 5, 10 and JBOD | | Data Transfer Rate | Up to 250Mb/s Performance may vary depending upon drive make, motherboard and PCI Express bus speed. | | Features | Support Hot-swap of Failed Drives Offers Transparent Data Recovery and Rebuilds Drive in Background Online Capacity Expansion - Adds Capacity on the Fly RAID Level Migration - Changes Array Levels on the Fly MetaData on Disk for Drive Roaming Fast Initialization Arrays are Bootable with Built-in BIOS Upgrades your Current Disk Drive to a RAID Array by Migrating Existing Data to the Array Low-profile Form Factor Flash up-gradable for Future Updates Supports ACPI (S1, S3, S4) | | | | Management Tools | WebPAM Local and Remote Monitoring for Windows and Linux - Monitors Status of Arrays, Hard Drives and Controller via TCP/IP, Warns of Drive Failure, Allows Rebuilds of Mirrored Arrays, Synchronizes Data in Fault-tolerant Arrays, Email Notification for Array Events, S.M.A.R.T. Compatible Status Reporting | | Notification | Email, Audible and Visible Alarms | | Operating System Support | Microsoft Windows Vista, 2000, XP, Windows Server 2003 RedHat Linux SuSE Linux Linux Kernel 2.6 Partial Source Code Supports AMD64 and Intel EM64T | | | | SAS 3Gb/s Support | Supports Serial Attached SCSI 1.1, Including SAS 3Gb/s, SSP Protocol | | Serial ATA 3Gb/s Support | Supports Serial ATA Revision 2.6, Including Native Command Queuing, Staggered Drive Spin-Up and HDD Activity Indication | | PCI Express Support | PCI Express x1 Interface Compliant to PCI Express Specification, Rev.1.0a | | Operating Temperature | 32 - 122° F (0 - 50° C) | | Relative Humidity | 5 - 95% Non-condensing | | Agency Certifications | UL, cUL, CE, FCC Class B, BSMI, VCCI, MIC, C-tick | | Image Dimensions (H x W) | 2.70 x 4.43" (68.5 x 112.5 mm) | | Weight | Not Specified by the Manufacturer |
