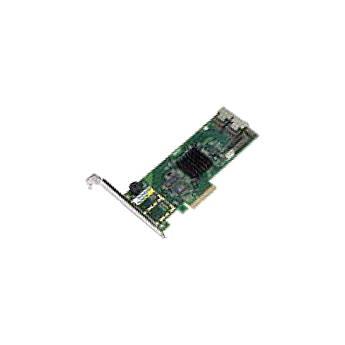

User Manual for Promise Technology FastTrak TX8660 8-Port SAS SATA 3G PCIe x4 Controller Click to enlarge the picture
Contents of the user manual for the Promise Technology FastTrak TX8660 8-Port SAS
- Product category: Controller Cards Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Controller Cards
|
User manual for the Promise Technology FastTrak TX8660 8-Port SAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The Promise Technology FastTrak TX8660 8-Port SAS/SATA 3G PCIe x4 Controller (Pack of 5) offers an economical solution and SPAN storage system with up to eight high-performance SAS or SATA disk drives. In addition to the supported RAID features, the FastTrak TX8660 also supports SAS (Non-RAID) mode for general storage application without RAID. - Single Hardware and Software for RAID and Non-RAID
- The FastTrak TX8660 offers single hardware and software for both RAID and non-RAID storage applications, one system integration and qualification effort plus rich operating system support for various storage applications in the field.
- Enterprise Proven RAID Engine
- The FastTrak TX8660 model delivers fast, efficient and reliable RAID level 0 for maximum capacity and performance without any fault tolerance, level 1 for maximum data protection, level 5 for balance of capacity plus data protection, level 10 for drive redundancy plus capacity and performance, JBOD for single and non-array drive and SPAN for concatenated stripe using Promise Technology's enterprise proven technology. The flexible FastTrak TX8660 allows you to choose the best that fits your application. For maximum uptime, the FastTrak TX8660 supports features like transparent data recovery and drive rebuilds performed in the background.
- Supports Both SAS and SATA Drives
- By supporting both SAS and SATA drive types and using the latest industry protocols to enhance performance and reliability, the FastTrak TX8660 controller provides a flexible cost effective RAID controller board spanning server, workstation and desktop markets.
- Advanced Features
- The FastTrak TX8660 incorporates many of Promise Technology's advanced features. The onboard BIOS automatically identifies and configures drive type. The Web-based Promise Array Management software provides users easy installation, configuration and operation. Promise's Metadata on Disk simplifies disaster recovery efforts by enabling migration to replacement hardware.
- Sophisticated Array Management Tools
- Web-based Promise Array Management software offers professional management tools in a simple-to-use, straightforward format. Array configurations, management and monitoring features are available via the web based interface. Moreover, the TX8660 supports industry standard SNMP to simplify third party management application integration.
In the Box Promise Technology FastTrak TX8660 8-Port SAS/SATA 3G PCIe x4 Controller (Pack of 5) 10x SFF-8087-to-SAS Fanout Cable CD with Promise RAID Management (WebPAM) Software, Windows Drivers, Linux Drivers and FastTrak Controller User Manual Quick Start Guide 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology FastTrak TX8660 8-Port SAS SATA 3G PCIe x4 Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology TX8660 Specs | Device Support | 8x SAS/SATA ports for up to 8 SAS/SATA 3GB/s devices | | RAID Levels Supported | 0, 1, 5, 10, JBOD and SPAN | | Data Transfer Rate | Up to 750 MB/s | | Features | Support hot-swap of failed drives
Transparent data recovery and rebuilds drive in background
Online capacity expansion - Adds capacity on the fly
RAID level migration - Changes array levels on the fly
MetaData on disk for drive roaming
Fast initialization
Arrays are bootable with built-in BIOS
Upgrades your current disk drive to a RAID array by migrating existing data to the array
Low-profile form factor MD2
Flash up-gradable for future updates
Supports ACPI (S1, S3, S4) | | | | Management Tools | WebPAM local and remote monitoring for Windows and Linux - monitors status of arrays, hard drives and controller via TCP/IP, warns of drive failure, allows rebuilds of mirrored arrays, synchronizes data in fault-tolerant arrays, email notification for array events, S.M.A.R.T. compatible status reporting | | Notification | Email, audible and visible alarms | | Operating System Support | Microsoft Windows Vista, XP, 2000, Windows Server 2003/2008 Red Hat Enterprise Linux SUSE Linux Enterprise Linux Linux Kernel 2.6 Partial Source Code Supports x86 and x64 platforms | | | | SAS 3Gb/s Support | Supports serial attached SCSI 1.1, including SAS 3Gb/s, SSP protocol | | Serial ATA 3Gb/s Support | Supports serial ATA revision 2.6, including native command queuing, staggered drive spin-up, HDD activity indication | | PCI Express Support | PCI express x4 interface compliant to PCI express specification, Rev.1.0a | | Operating Temperature | 32 - 122° F (0 - 50° C) | | Agency Certifications | UL, cUL, CE, FCC Class B, BSMI, VCCI, KCC, C-Tick | | Dimensions (H x W) | 2.72 x 6.3" (69 x 159 mm) | | Weight | Not specified by the manufacturer |
