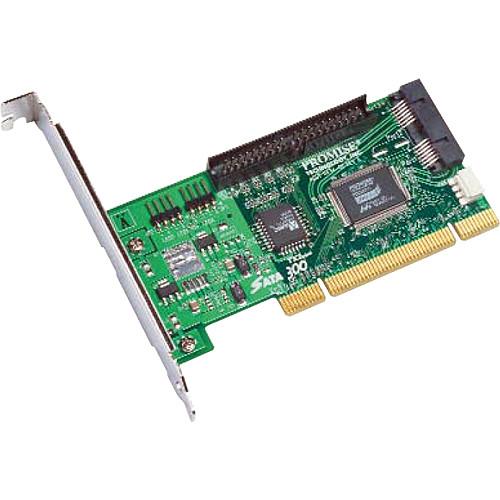

User Manual for Promise Technology SATA300 TX2 SATA PATA 3G PCI Adapter Click to enlarge the picture
Contents of the user manual for the Promise Technology SATA300 TX2 SATA PATA
- Product category: Controller Cards Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Controller Cards
|
User manual for the Promise Technology SATA300 TX2 SATA PATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The SATA300 TX2+ SATA/PATA 3G PCI Adapter (Pack of 5) from Promise Technology offers premier solution for combining the latest high-performance SATA 3.0 Gbps Serial ATA disk drives with existing Parallel (Ultra) ATA drives using the same controller.
The SATA300 TX2+ offers you cost-effective solution for upgrading your existing storage system with SATA 3 Gbps drives. You can also connect up to two SATA drives and two PATA drives using SATA300 TX2+. - SATA 3 Gbps Support
- The SATA300 TX2+ adapter supports Serial ATA 3 Gbps drives and conforms to Serial ATA II, Extensions to Serial ATA 1.0a specification, including Native Command Queuing and Disk Activity LED headers support. In addition to Native Command Queuing, the adapter also supports Tagged Command Queuing with drives that can take advantage of this capability. Command Queuing increases I/O performance by intelligently reordering data requests so that the data can be more quickly accessed than if the commands weren't ordered.
- Parallel ATA from the Industry Leader
- For support of legacy parallel ATA devices, the SATA300 TX2+ supports Ultra/ATA devices up to 133 Mbps data transfer rate. Drawing upon Promise's expertise in ATA, the controller incorporates performance enhancing features such as CRC error checking and separate timing for two devices attached to one ATA channel. The SATA300 TX2+ also supports parallel ATAPI devices.
- Advanced HBA Features
- The low-profile form factor SATA300 TX2+ adapter incorporates many of Promise Technology's advanced host bus adapter features. The 66 MHz PCI bus supports upto 266 Mbps burst data transfer rate. The SATA300 TX2+ also includes large LBA support for drives above 137GB and its onboard BIOS automatically identifies and configures drive type (Serial ATA, Ultra DMA mode). The adapter supports up to two controllers in the same system.
In the Box Promise Technology SATA300 TX2+ SATA/PATA 3G PCI Adapter (Pack of 5) 5 x Low Profile Bracket 5 x IDC 40P/F=>IDC 40P/F+IDC 40P/F Cable 10 x SATA Data Cable 5 x CD 5 x Quick Start Guide 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology SATA300 TX2 SATA PATA 3G PCI Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology SATA300 TX2+5PK ROHS Specs | Product Type | Serial / ultra ATA controller | | Form Factor | Low-profile plug-in card | | Platform Supported | PC | | Data Transfer Rate | Up to 300 Mbps - serial ATA
Up to 133 Mbps - ultra ATA | | | | Interface Type | PCI / 66 MHz | | Ports | 2 x 7-pin serial ATA/300 serial ATA
1 x 44-pin IDC ultra ATA/133 (ATA-7) ultra ATA | | | | Drive Type | Serial ATA/300
Ultra ATA/133 (ATA-7) | | Drive Support | Up to 2x serial ATA/300
Up to 2x ultra ATA/133 (ATA-7) | | Onboard BIOS | Auto-identifies and configures drive and device types
BBS compliant
Flash upgradable | | Large LBA Support | Supports drives larger than 137 GB | | | | PCI Support | 66 MHz PCI bus supports up to 266 Mbps burst data transfer rate
PCI 2.3 compliant | | Serial ATA Support | Supports up to 2 serial ATA devices
Supports up to 300 Mbps transfers with CRC error-checking
Compliant to serial ATA Rev. 1.0a
Compliant to serial ATA II: Extensions to serial ATA 1.0a including
- Native command queuing
- Staggered drive spin-up
- HDD activity indication
Supports serial ATA tagged command queuing
Serial ATAPI support | | Parallel ATA Support | Supports up to 2 ultra ATA devices
Up to 133 Mbps data transfer rate in ultra ATA DMA mode
Supports ATAPI devices
Supports CRC error-checking for ultra ATA drives
Separate timing control for two devices attached to one ATA channel
Supports ATA specification 18" maximum cable length | | | | Operating Temperature | 32 - 122° F (0 - 50° C) | | Relative Humidity | 5 - 95% Non-condensing | | | | Agency Certifications | UL, cUL, CE, FCC Class B, BSMI, MIC, C-tick, VCCI, RoHS | | | | Operating System Support | Windows 2000, Windows Server 2003, Windows XP
Red Hat Linux
SUSE Linux
Linux open source code | | Dimensions (H x W) | 2.3 x 4.7" (5.84 x 11.93 cm) | | Weight | Not Specified by the Manufacturer |
