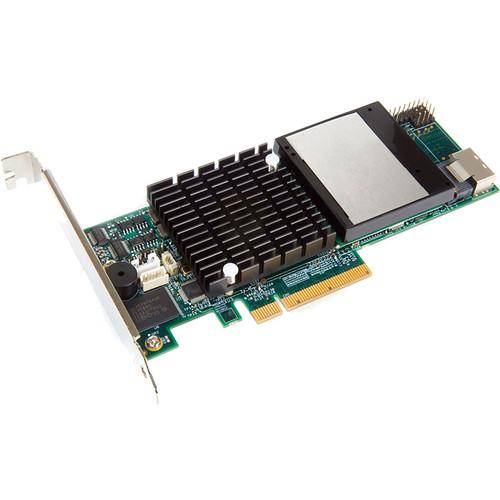

User Manual for Promise Technology SuperTrak STEX4650B5 SAS SATA RAID Controllers Click to enlarge the picture
Contents of the user manual for the Promise Technology SuperTrak STEX4650B5 SAS SATA
- Product category: Controller Cards Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Controller Cards
|
User manual for the Promise Technology SuperTrak STEX4650B5 SAS SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The SuperTrak STEX4650B5 SAS/SATA RAID Controllers (Pack of 5) from Promise Technology offers industry leading performance, scalability and reliability. It runs on Windows and Linux platforms.The SuperTrak EX is a part of a complete line of enterprise storage products that scales with external JBOD connectivity. - Promise Enterprise Class RAID Engine
- Built on a leading edge hardware design, the SuperTrak family is a stable and robust platform that can be trusted. It is supported by a RAID stack that was developed and refined for over more than 15 years. Also incorporates a single chip solution for optimized reliability with up to 256MB data cache onboard, an available 72 hour battery backup module and an x8 PCIe interface to the host.
- Easy and Feature Rich Web Management Tools
- The new web-based Promise Array Manager Professional makes the SuperTrak RAID controller easy to manage for both Windows and Linux environments through the browser based graphical user interface to create, delete, expand and convert disk arrays from anywhere in the world. In the event of a drive or data channel failure, WebPAM PRO supports an array of notification options including text and email. It also features an audio alarm located directly on the STEX RAID controller.
- Flexible and Scalable High Performance Storage for any Environment
- The SuperTrak can easily integrate into a number of performance demanding environments, powering file servers, exchange servers, transactional databases and web servers. Audio, photo and video professionals can rely on SuperTrak to deliver the performance necessary to meet their rigorous daily routines of editing, manipulating, rendering and storage of digital content. SuperTrak supports Windows 2003, Windows 2008 and Windows 7 along with Fedora Core Linux, Free BSD, Miracle Linux, Red Hat, SUSE Linux and VMware.
In the Box Promise Technology SuperTrak STEX4650B5 SAS/SATA RAID Controllers (Pack of 5) 5 x Cable 5 x CD 5 x Quick Start Guide 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology SuperTrak STEX4650B5 SAS SATA RAID Controllers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology STEX4650B5 Specs | Device Type | Storage controller (RAID), Plug-in card | | Interface Type | PCIe x 8 | | Controller Interface Type | Serial ATA-300 / SAS | | Data Transfer Rate | 300 Mbps | | Buffer Size | 128 MB | | Supported Devices | Hard drive, disk array (RAID) | | Channel Quantity | 4 | | Max Storage Devices Quantity | 4 | | RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 1E and RAID 60 | | Processor | Intel IOP348 667 MHz | | Interfaces | 1 x Storage, serial attached SCSI, 36 pin 4i mini multiLane SAS (SFF-8087) (Internal) | | Compatible Card Slots | 1 x PCIe x 8 | | Cables | Internal 1 x serial attached SCSI cable | | Compliant Standards | FCC Class B certified, CE, UL, VCCI, C-Tick, BSMI, cUL, MIC, RoHS | | Software Included | Promise array management | | OS Required | FreeBSD, Red Hat Linux, SUSE Linux, Microsoft Windows Server 2003, Red Hat Fedora Core, Microsoft Windows Vista / 2000 / XP, VMware ESX Server 3.0.1, Miracle Linux, VMware ESX Server 3.0.2 Software and devices that carry the works with Windows Vista logo have been tested for baseline compatibility. | | Minimum Operating Temperature | 32° F (0° C) | | Maximum Operating Temperature | 122° F (50° C) | | Humidity Range Operating | 5 to 95% | | Ports | 1 x SFF-8087 SAS 300-serial attached SCSI internal | | Green Compliance | Yes | | Green Compliance Certificate/Authority | RoHS | | Platform Supported | PC | | Number of Ports | 1 | | Features | - RAID technology for error handling and recovery of media and disk errors
- Multiple logical drive support enables combining different RAID levels on one set of disks
- Automatic/manual rebuild of dedicated and global hot spare drive
- Online capacity expansion and RAID level migration to add capacity as needed
- Enclosure Management supports SES-2, SGPIO, I2C, Direct LED support for individual HDD
- Web-based Promise Array Management
- Optional on-board battery backup unit for data retention up to 72 hours
| | Dimensions (HxD) | 2.7 x 6.6" (6.86 x 16.76 cm) |
