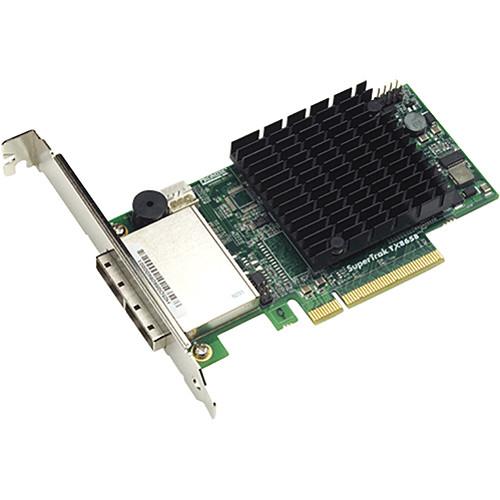

User Manual for Promise Technology SuperTrak TX8658 8-Port SAS RAID Controller Click to enlarge the picture
Contents of the user manual for the Promise Technology SuperTrak TX8658 8-Port SAS
- Product category: Controller Cards Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Controller Cards
|
User manual for the Promise Technology SuperTrak TX8658 8-Port SAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The SuperTrak TX8658 8-Port SAS RAID Controller from Promise Technology offers flexible configuration with 8 external and 8 internal ports, delivering enterprise-class data protection features such as global and dedicated hot spares, RAID level migration, synchronization, media patrol, read check table, and bad sector remapping. The controllers are ideal for workstation and entry server markets that demand high reliability, stability and data-intensive applications, including tiered storage environments like disk-to-disk or disk-to-disk-to-tape backup, and security surveillance. High reliability/performance SAS and high capacity/cost-effective SATA drives are supported, which is ideal for building tier-storage solutions to meet different applications. With a broad range of qualified SAS/SATA drives, the SuperTrak TX line offers the maximum compatibility, allowing you great flexibility to purchase various drives for setup. - Device Type
- Storage controller (RAID), plug-in card, low profile
- Controller Interface Type
- Serial ATA-300 /SAS
- Data Transfer Rate
- 300 Mbps
- Supported Devices
- Hard drive, tape drive, disk array (RAID)
- Max Storage Devices Qty
- 116
UPC: 704118039715 In the Box Promise Technology SuperTrak TX8658 8-Port SAS RAID Controller (One Card) Low-Profile Mounting Bracket Quick Start Guide 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology SuperTrak TX8658 8-Port SAS RAID Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology TX8658 Specs Interface Type | PCIe x 8 | Controller Interface Type | Serial ATA-300 /SAS | Data Transfer Rate | 300 Mbps | Supported Devices | Hard drive, tape drive, disk array (RAID) | Channel Quantity | 8 | Max Storage Devices Quantity | 116 | RAID Level | RAID 0, RAID 1, RAID 10, JBOD | Processor | Intel | Interfaces | 2 x storageSerial attached SCSI26 pin 4 x shielded mini multiLane SAS (SFF-8088)(external) | Compatible Slots | 1 x PCIe x 8, Low-profile | System Requirements | Red Hat Linux, SUSE Linux, Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows Vista, Microsoft Windows Server 2008 | Software Included | Promise WebPAM PROe | Vista Certification | Certified for Windows Vista Certified for Windows Vista software and devices have undergone compatibility tests for ease-of-use, better performance and enhanced security | Compliant Standards | FCC Class B certified, CE, UL, VCCI, C-Tick, BSMI, cUL | Minimum Operating Temperature | 32° F (0° C) | Maximum Operating Temperature | 122° F (50° C) | Humidity Range Operating | 5 to 95% | Dimensions (DxH) | 5 x 2.7" (12.7 x 6.86 cm) | Weight | Not specified by the manufacturer |
