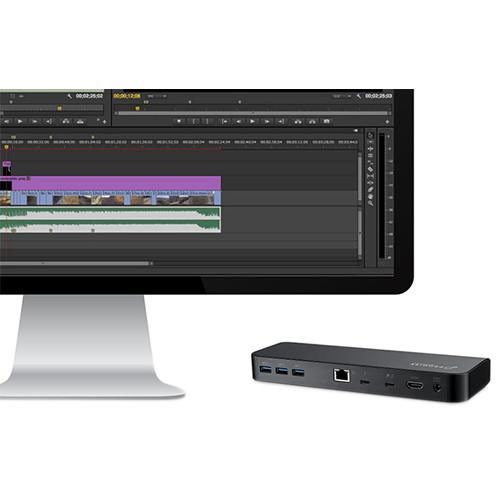

User Manual for Promise Technology Thunderbolt 3 TD-300 Docking Station Click to enlarge the picture
Contents of the user manual for the Promise Technology Thunderbolt 3 TD-300 Docking
- Product category: Docking Stations & Port Replicators Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Docking Stations & Port Replicators
 |
User manual for the Promise Technology Thunderbolt 3 TD-300 Docking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|

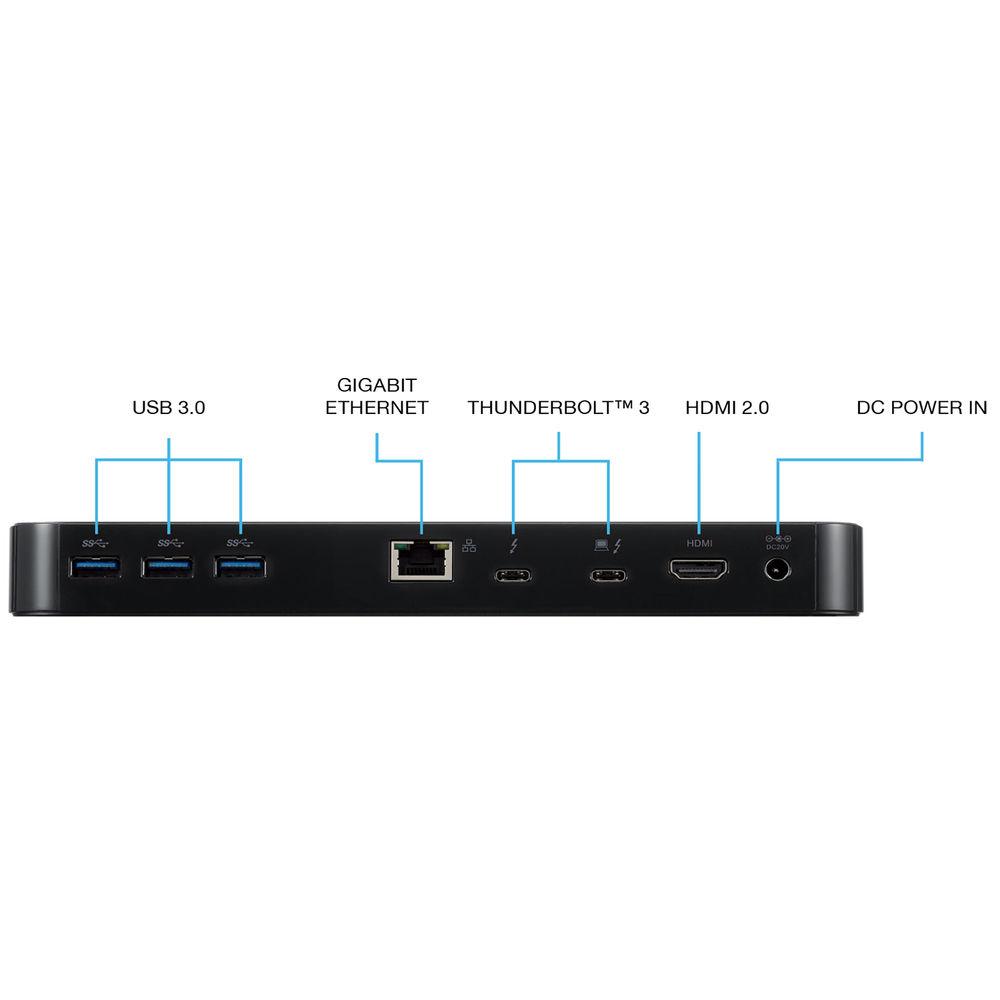

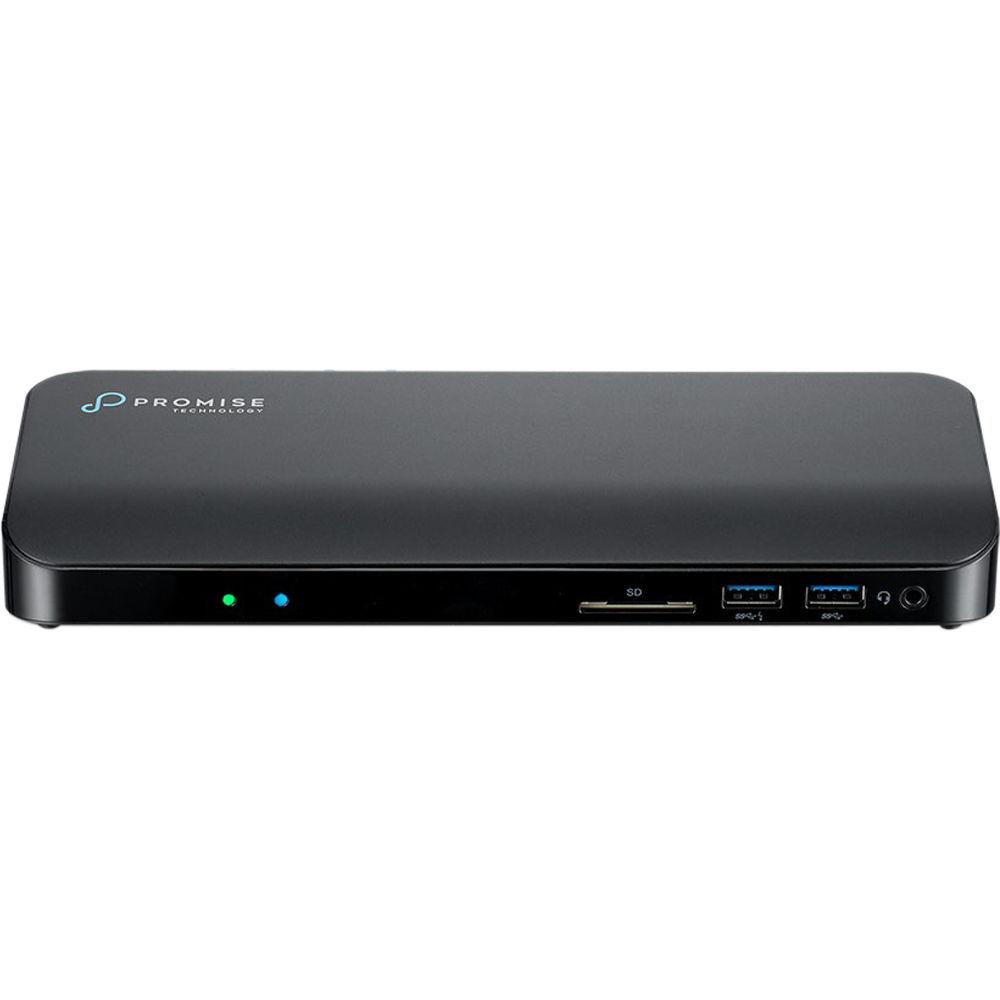

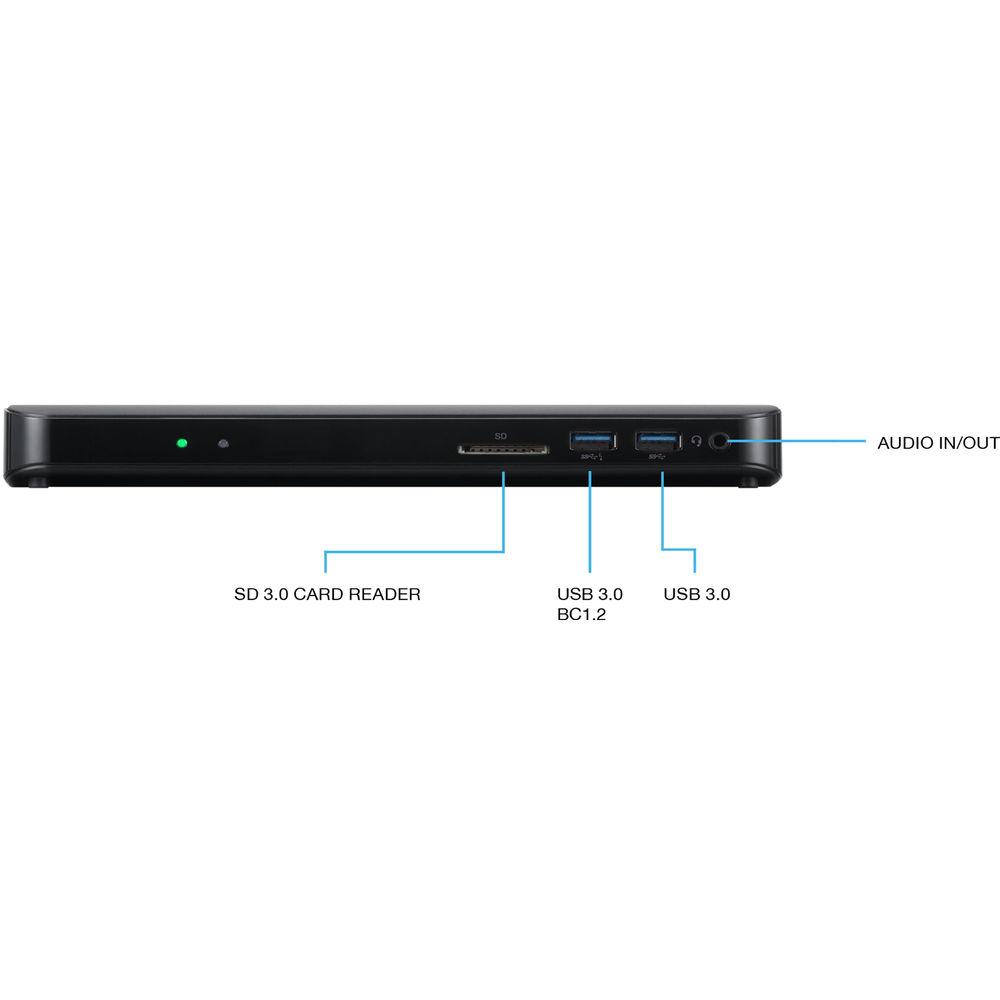

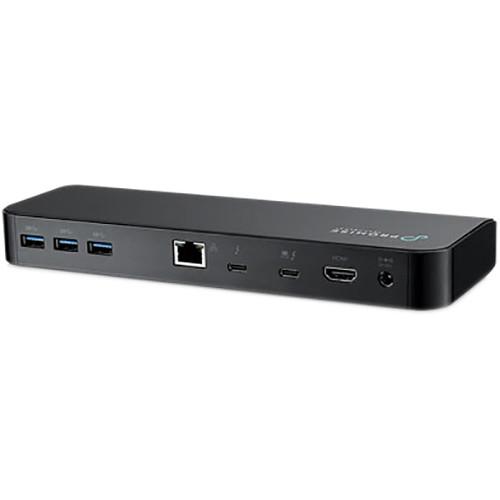

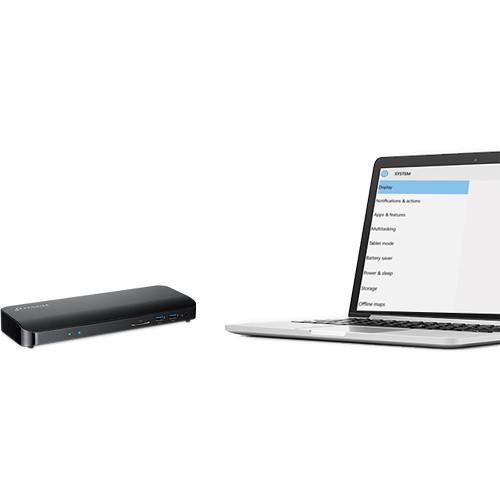

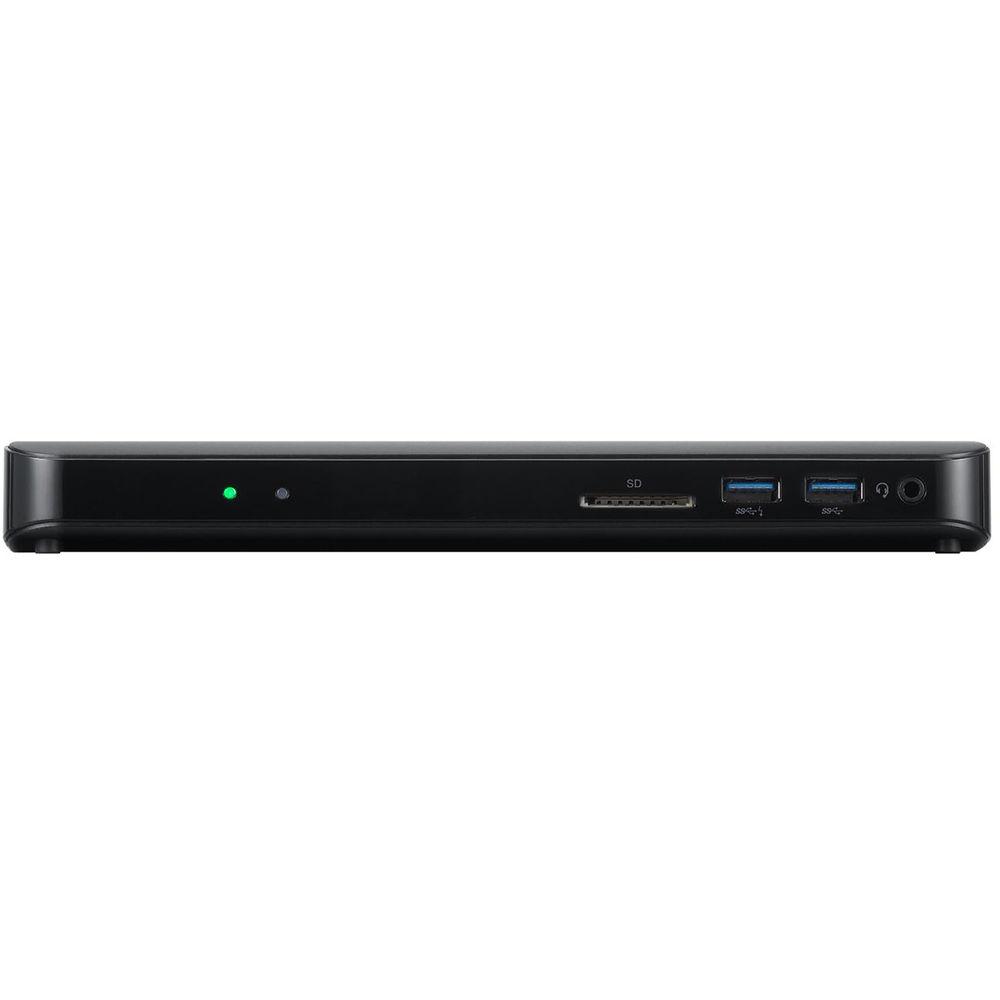

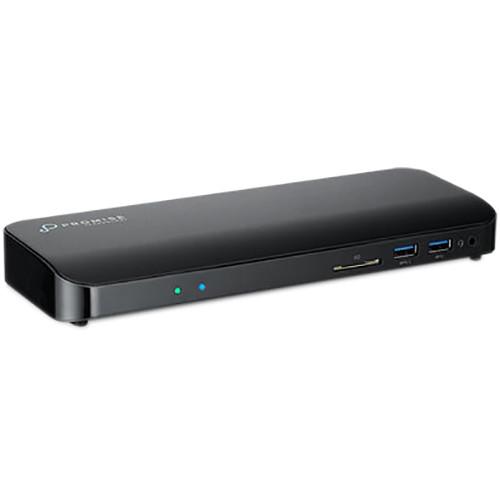

Product description The Thunderbolt 3 TD-300 Docking Station from Promise Technology connects to a host system via a single Thunderbolt 3 connection to provide the computer with five USB 3.0 ports as well as additional connectivity features. With Thunderbolt 3 technology, the dock provides a pass-through Thunderbolt 3 port that can recharge notebooks with up to 60W of power and display resolutions of up to 5K. For multi-monitor setups, there's an HDMI port for supporting two 4K displays when the Thunderbolt 3 port is also used. Other notable features include an audio combo jack, Gigabit Ethernet port, and SDXC card reader. Included along with the TD-300 docking station are a dual-voltage power adapter and 19.7" Thunderbolt 3 cable. - With the built-in audio jack, you can use a microphone, listen to headphones, or connect external speakers and listen to 2.1 audio
- Use the five USB Type-A 3.0 ports for hard drives, cameras, flash drives, and other mobile devices
- The Gigabit Ethernet port lets you connect to your LAN over 10/100/1000 BASE-T
- Import photos from your camera using an integrated SDXC card reader

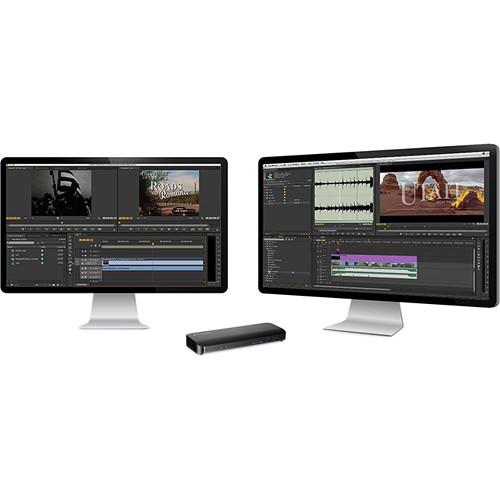

- Use the Thunderbolt 3 port to connect a 5K display or use the HDMI and Thunderbolt 3 ports to access two 4K displays
- Keep your host charged using the Thunderbolt PD charging port that delivers up to 60W of power
UPC: 704118127825 In the Box Promise Technology Thunderbolt 3 TD-300 Docking Station Power Adapter 19.7" (50cm) Thunderbolt 3 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology Thunderbolt 3 TD-300 Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology Thunderbolt3 Dock TD-300 Specs | | | USB | 4 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 1 Type-A (1.5 A) | | Thunderbolt | 2 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x HDMI 2.0 | | Audio | None | | Memory Card Slots | 1 x SDXC | | | | Operating System Support | Windows, macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 20 VDC at 6.75 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | | | Dimensions | 9.1 x 3.5 x 1.1" / 23.1 x 8.9 x 2.8 cm | | Weight | 1 lb / 0.5 kg | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 11.9 x 5.9 x 3.6" |
