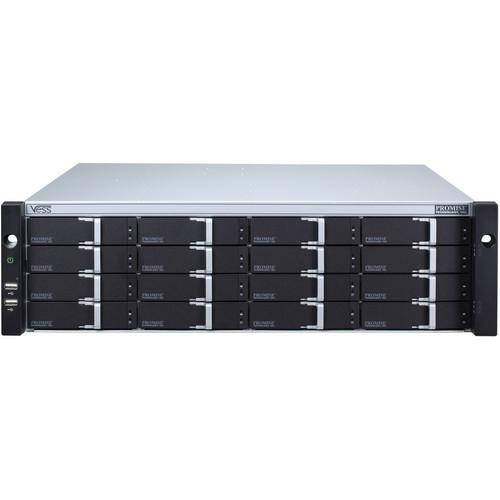

User Manual for Promise Technology VA2600GZSAKE 16-Bay Vess A2600 NVR Storage Appliance Click to enlarge the picture
Contents of the user manual for the Promise Technology VA2600GZSAKE 16-Bay Vess A2600
- Product category: Network Video Recorders (NVRs) Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Network Video Recorders (NVRs)
|
User manual for the Promise Technology VA2600GZSAKE 16-Bay Vess A2600 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The Promise Technology 16-Bay Vess A2600 NVR Storage Appliance (16 x 3TB Enterprise HDD) is engineered to be an efficient solution for midsize to large-scale IP video surveillance deployments. Featuring failsafe protection that provides continuous recording without dropping frames under live playback conditions, it is suitable for 32 to over a hundred full-HD IP cameras, making it a suitable choice for banking, retail, gaming, manufacturing, and many more industries.The Vess A2600 storage reduces support and equipment costs because there is no separate RAID storage unit to manage, eliminating the need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, this Vess unit reduces interoperability conflicts caused when integrating several hardware.The Vess A2600 integrates the recorder and storage in a single solution, making it easier to scale as your business grows. Security practitioners can easily scale with no user configuration; they just need to plug and add. When external storage is a must, easily scale up with this Vess storage unit, creating a total video surveillance solution that combines a recording appliance and external storage.This Storage Appliance can be managed conveniently over the network connection using the user-friendly browser-based GUI, or the text-based command line network terminal interface. Alternately, you can manage it out-of-band with a VGA or HDMI monitor and USB keyboard to access the text- based command line interface.Reliability is paramount for surveillance deployments in order to protect property, assets, or even the safety of individuals. The Vess A2600 features the Promise RAID engine, which has been tested in countless mission-critical applications around the globe. It is suitable for users requiring a reliable and safe data center for video archive protection. - NVR storage appliance optimized for IP video surveillance
- Fully customized - Certified/tested with the world's leading video management software
- Midsize to Large-Scale Solutions - Compatible with over a hundred full-HD IP cameras making it suitable for banking, retail, gaming, manufacturing, and many more industries
- Cost Effective & Scalable - Integrated solution results in less management overhead, plus it's easy to add capacity with the Vess R2000 external storage series (sold separately)
- Easy to Administer & Maintain - Hot swappable drive bays, redundant power supplies, & One-Plug-Auto-Service ensure Vess is easy to administer & maintain
UPC: 704118094073 In the Box Promise Technology VA2600GZSAKE 16-Bay Vess A2600 NVR Storage Appliance (3U, 16 x 3TB Enterprise HDD) 16 x 3TB Enterprise HDD 3 x Power Cord for US Rack Mount Kit Bezel Riser Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VA2600GZSAKE 16-Bay Vess A2600 NVR Storage Appliance in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology A2600 Specs | | | Form Factor | 3 U, 19" (48.26 cm) rackmount | | Number of Drive Bays Supported | 16 (3.5" / 8.9 cm)
SATA (6 or 3 Gb/s), NCQ, TCQ, hot swappable Hard disk drive still runs at 3 Gb/s speed | | Controller | Single | | Host Connectivity | 4 x 1 GbE Ports | | Camera Support | 64 to 128 FHD Camera | | Expansion | Via iSCSI using Vess R2000 series (not included)
Up to 128 drives supported through iSCSI & JBOD expansion | | Processor | Intel Xeon E3-1245V2 @ 3.4 GHz quad-core 8-thread | | Cache | 8 GB (maximum 16 GB) | | Hard Drive Capacity | 16 x 3 TB Enterprise HDD | | Support | VMS: Milestone, Genetec | | I/O Interface | 4 x Gigabit Ethernet | | Other Interfaces | USB Ports: 4 x USB 2.0
PCI Express Ports: 1 x 16-lane Gen 2.0 PCIe, 3 x 8-lane Gen 2.0 PCIe
Graphics: D-sub VGA and HDMI
Serial Interfaces: 2 x RS-232C (D-sub 9-pin)
Audio & Microphone: 2 x 3.5 mm audio jack | | | | Sensor Input | Compatible with DC3 0.3 to 24 V, 8 x photo coupler input | | Alarm Out | Maximum 24 VDC / 1 A, 8 x mechanical relay output | | | | RAID Support | 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
Any combination can exist at the same time | | Hot Spares | Multiple global or dedicated hot-spare drives with revertible option | | LUNs | Maximum per System/Array: 256/32 | | | | Operating System | Pre-loaded Windows Embedded Standard 7 Runtime (WS7P) Standard 64-bit | | Management Tools | Graphical UI/SNMP via Ethernet, CLI/CLU via Ethernet or graphics, OPAS service via USB, SDK or API for integration | | Mode | Appliance Mode: Surveillance optimization @ arrays in normal and degrade | | Notification | Event notification via email, SNMP, Buzzer, and LEDs | | | | AC Input | 100 to 240 VAC, 60 to 50 Hz | | Current (Maximum) | 4 A @ 100 V and 2 A @ 240 V | | Power Supply | Three redundant 250 W, energy-efficient 80PLUS certified, 90 to 264 V full-ranging with PFC, hot swappable N+1 design | | BTU | 1729 BTU/hr | | Fan | Hot swappable design | | Safety/EMC Standard | CE, FCC Class A, BSMI, CB, KC, UL/cUL, and CCC | | Dimensions (H x W x D) | 5.1 x 17.6 x 18.1" (130.1 x 446.2 x 461.0 mm) | | Weight | 35.1 lb (15.9 kg) without drives, 61.5 lb (27.9 kg) with drives |
