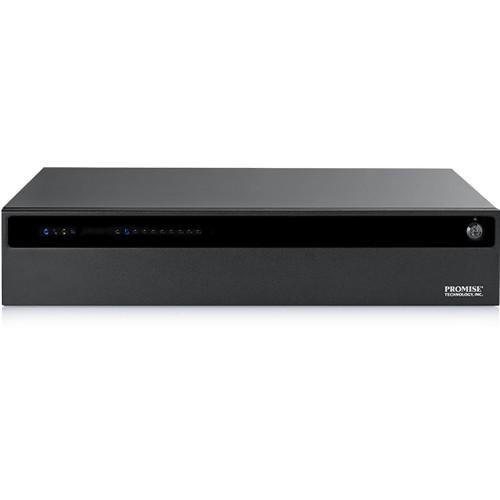

User Manual for Promise Technology Vess A3340 16TB 8-Bay NVR Click to enlarge the picture
Contents of the user manual for the Promise Technology Vess A3340 16TB 8-Bay
- Product category: Network Attached Storage Drives Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Network Attached Storage Drives
|
User manual for the Promise Technology Vess A3340 16TB 8-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The Vess A3340 16TB 8-Bay NVR from Promise Technology is built to offer high levels of performance for IP video surveillance and is well-suited for mid-sized video surveillance installations. It supports up to 80 IP cameras, is powered by an Intel Xeon E3 processor and 8GB of DDR4 RAM, and has a capacity of 16TB that is split over eight 2TB SATA 3.5" hard drives, each of which utilizes one of the NVR's eight drive bays. A 64GB M.2 SSD is built-in and hosts the operating system, and there are also two Gigabit Ethernet ports, six USB 3.0 ports, two USB 2.0 ports, DisplayPort, HDMI and VGA video outputs, one RS-232 serial port, one PCIe 3.0 x8 slot, one PCIe 3.0 x4 slot, and support for RAID 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, and 50. For those who wish to increase the storage capacity of this NVR, expansion is possible through iSCSI and multiple JBOD expansion enclosures. The supported operating systems are 64-bit editions of Windows Embedded Standard 7 Runtime (WS7P), Windows 10, and Windows Server 2012 R2 Standard. This NVR is powered by an internal 350W power supply that runs using 100~240 VAC at 50-60 Hz and includes a power cord. General Features - Reduce Costs and Complexity
- Vess NVR appliances reduce support and equipment costs because there is no separate RAID storage unit to manage, eliminating the need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, Vess NVR appliances reduce interoperability conflicts caused when integrating different hardware.
- Certified By Surveillance Partners
- Vess NVR appliances are compatible with a range of IP cameras and VMS from vendors including Aimetis, Axxonsoft, CamIQ, CSVi, Digifort, Genetec, OnSSI, SeeTec, Sony, and Milestone.
- Integrated with Smooth Scalability
- An SDK library is provided for VMS UI and management integration. Plus, Vess supports the Milestone VMS plug-in enabling it to be managed via the XProtect interface. Additionally, you can easily expand via iSCSI by adding Promise external storage.
- SmartBoost Technologies
- A collection of unique features designed to provide a high level of service and overcome performance bottlenecks to allow Vess NVRs to handle a higher number of IP cameras.
Predictive Playback - utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.
Remote Active Service - proactively detects when the PSU, controllers, or HDDs are going into critical condition and automatically notifies Promise support so the customer can be contacted, spare parts can be sent out, or the unit can be powered up after an outage. All of these are vitally important in environments that cannot risk downtime.
Sequential Pattern Recording - eliminates heavy workloads caused by random write patterns by monitoring recording patterns, collecting data in the cache buffer, and only writing data to the drive once a full stripe is ready. This creates a sequential recording pattern which offers smooth performance. - Simplified Planning
- With just a few clicks of the Promise online planning tool, you can get the whole picture of what you need for your project, including the NVR and storage requirements, how to configure the servers and storage, and see a topology of the interconnecting systems with the most popular and recommended settings.
In the Box Promise Technology Vess A3340 16TB 8-Bay NVR (8 x 2TB) Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology Vess A3340 16TB 8-Bay NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology VA3340HSSWIC Specs | | | CPU | Intel Xeon E (Maximum Boost: 3 GHz) | | Total Installed Memory | 8 GB DDR4 | | # of RAID Controllers | Single | | | | Total Raw Capacity | 16 TB | | Included Drives | 8 x 2 TB 3.5" HDD + 1 x 64 GB M.2 | | Interface | SATA | | | | Connections | 1 x RS-232
3 x 3.5 mm
1 x TOSLINK
1 x DisplayPort
1 x HDMI Type-A
1 x VGA
6 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
2 x USB Type-A (USB 2.0 (480 Mb/s))
2 x RJ45 (Gigabit Ethernet) | | Form Factor | Rackmount (2 RU) | | RAID Modes | RAID 0, 1, 10, 1E, 3, 30, 5, 50, 6 | | Expansion | Up to 112 Drives | | PCI Expansion | 1 x PCIe Gen 3 x8
1 x PCIe Gen 3 x4 | | | | Max LUN | 256 | | Max Cameras Supported | 80 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.5 A | | Power Consumption | 250 W | | PSU Wattage | 1 x 350 W | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Certifications | BSMI, CE, FCC, RCM, UL, VCCI, cUL, as per Manufacturer | | | | Status Monitoring | LED Indicator | | Audible Alarm | Yes | | Dimensions | 3.5 x 17.3 x 16.1" / 88.9 x 439.4 x 408.9 mm | | Weight | 28.4 lb / 12.9 kg with Drives |
