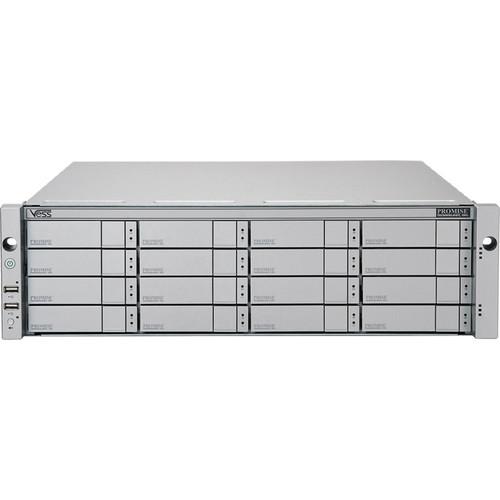

User Manual for Promise Technology Vess R2600fiD 3U 16-Bay SAS SATA RAID Subsystem Click to enlarge the picture
Contents of the user manual for the Promise Technology Vess R2600fiD 3U 16-Bay
- Product category: NAS Enclosures Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology NAS Enclosures
|
User manual for the Promise Technology Vess R2600fiD 3U 16-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The Vess R2600fiD 3U 16-Bay SAS/SATA RAID Subsystem from Promise Technology is a cutting-edge, active-active, high-availability IP SAN solution that consolidates both block and file storage onto a single platform, providing small and medium businesses (SMBs) a cost-effective way to meet performance goals while simplifying administration. It features two 8 Gbps Fibre Channel, four iSCSI 1 Gbps ports and a dual controller design. Furthermore, it supports 6 Gbps and 3 Gbps SAS and SATA drives simultaneously. The Vess R2600fiD RAID Subsystem also features three redundant hot-swappable PSUs and two hot-swappable redundant fans with battery backup units. It supports RAID levels 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50 and 60. The Vess R2600iD Subsystem's PerfectRebuild feature reduces the time required to rebuild an array by more than 400%, delivering the performance and reliability you demand for your application. With CacheGuard Data Protection features, HDD cache backup and advanced battery flash backup, the subsystem ensures your data is safe in case of power loss. - Ultimate in Value, Flexibility and Reliability
- The Vess R2600fiD RAID Subsystem's brilliant design consolidates both block and file storage onto a single platform*, providing SMBs a cost-effective way to meet performance goals while simplifying administration and adding flexibility. The high-availability, active-active Vess R2600fiD RAID Subsystem is designed for data-intensive industries, including mid-size to large-scale surveillance installations or cloud data centers where downtime is unacceptable and where large external storage capacity, support for on-demand expansion, long retention periods and reliable high-bandwidth throughput are a must. 1
Please Note: *10G iSCSI model available in Q3, 2013 close - Optimized for Your Business Needs
- The Vess R2600fiD RAID Subsystem conveniently allows you to select an operation mode optimized for video surveillance or for generic IT environments, delivering customized performance and expandable capacity for multiple storage requirements, including unstructured data, archiving and cloud data centers. With innovative features like PerfectRebuild, which can reduce the time required to rebuild an array by more than 400%, the subsystem delivers the performance and reliability you demand for your application.
- Simplified Management and Support
- Simplicity and ease of use are absolutely crucial for SMBs with limited IT resources. The Vess R2600fiD RAID Subsystem is designed specifically with SMBs in mind as it features One-Plug-Auto-Service (OPAS) to reduce maintenance complexity and streamline an easier tech support workflow. Simply plug in a USB drive and retrieve information about the system for tech support, upgrade firmware, reset passwords and much more.
- Protection of Your Data
- The Vess R2600fiD RAID Subsystem's CacheGuard Data Protection features, HDD cache backup and advanced battery flash backup ensure your data is safe in case of power loss. It delivers protection of HDD cache data and RAID controller write cache content beyond the standard 72-hour window, so you can rest assure knowing your data is protected even when disaster strikes.
- Other Features
- • Cutting-edge, redundant, high-capacity archiving solution
• Two 8 Gbps Fibre Channel and four iSCSI 1 Gbps ports
• High-availability dual controller design
• Supports 6 Gbps and 3 Gbps SAS and SATA drives simultaneously
• Scale up to 112 hard disk drives via Vess J2000 series expansion units
• Supports RAID level 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
• Three redundant hot-swappable PSUs
• Two hot-swappable redundant fans with battery backup units UPC: 704118089857 In the Box Promise Technology Vess R2600fiD 3U 16-Bay SAS/SATA RAID Subsystem Drive Carrier RJ11-to-DB9 Serial Data Cable 3 x Power Cords Sliding Rails HDD Screws Product CD Limited 1-Year Warranty Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology Vess R2600fiD 3U 16-Bay SAS SATA RAID Subsystem in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology R2600fiD Specs | | | Form Factor | 3U | | Drive Support | 16 x drives (3.5")
SAS/SATA* (6 Gb/s or 3 Gb/s), NCQ, TCQ *Additional AA-Mux adapter is required when used with SATA 3G drive, while SATA 6G drive requires BlackJack adapter | | No. of Controllers/CPU | Dual (64-bit 6 core @ 1.1 GHz) | | Host Connectivity | Per Controller:
2 x 8 Gb FC
4 x 1 Gb iSCSI | | Scalability | Up to 112 drives via cascading Vess J2000 series | | Data Cache | 2 GB standard per controller (maximum 16 GB) | | | | RAID Levels | 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60 | | Supported OS | Windows 2003, Vista, 7, 2008, 2012*
RedHat Linux, SuSE Linux, Ubuntu, CentOS, VMWare ESXi 5.x, Citrix XenServer** *Microsoft WHQL for Windows Server 2003, 2008 and 2012
** VMWare ESXi 5.x and Citrix XenServer certifications to be ready in Q2, 2013 | | | | Data Protection | Predictive Data Migration (PDM)
Support volume copy
Zero penalty cache mirroring
PerfectRebuild - reduced rebuild time
Hard disk cache protection*
Asymmetric LUN Unit Access (ALUA)
PerfectFlash non-disruptive image update
Advanced battery flash backup *Feature available in the Service Release 3 | | Green Function | Compact and lightweight system design
Efficient 80PLUS certified power supplies
Embedded power consumption module
Full levels of intelligent power management MAID 2.0
Energy savings on power scheduling | | | | Supported Hardware | Options: Flash Module, 8 Gb SFP Optical Transceiver, 10GBase SFP+ Optical Transceiver, SAS Cable, 3G SATA AA-Mux Adapter, 6G SATA BlackJack Adapter | | | | AC Input | 100 ~ 240 VAC, 60 ~ 50 Hz | | Current (Maximum) | 4 A (100 V); 2 A (240 V) | | Power Supply | 3 x redundant 250 W
90 - 264 V full-ranging with PFC, hot-swappable N+1 Design | | Fan | Hot-swappable redundant design with battery backup module | | Temperature | Operating: 41 ~ 104°F (5 ~ 40°C)*
Non-Operating: -40 ~ 140°F (-40 ~ 60°C) *Operational temperature between 41 ~ 95°F (5 ~ 35°C) if BBU is installed or used 15K rpm SAS HDDs | | Relative Humidity | 10 to 80% non-condensing | | | | Dimensions (WxHxD) | 17.6 x 5.1 x 20" (447 x 131 x 507 mm) | | Weight | 44.3 lb (20.1 kg) | | | | Package Weight | 65.0 lb | | Box Dimensions (LxWxH) | 29.75 x 22.75 x 11.5" |
