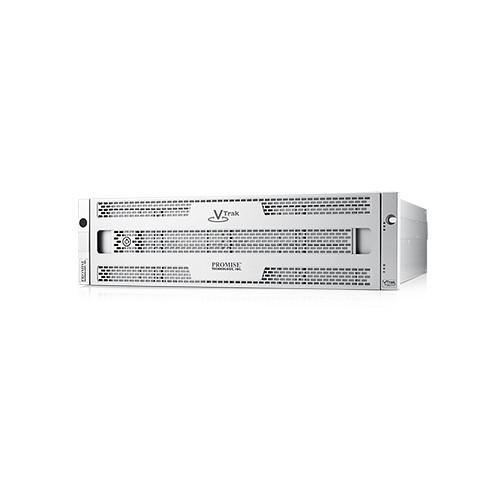

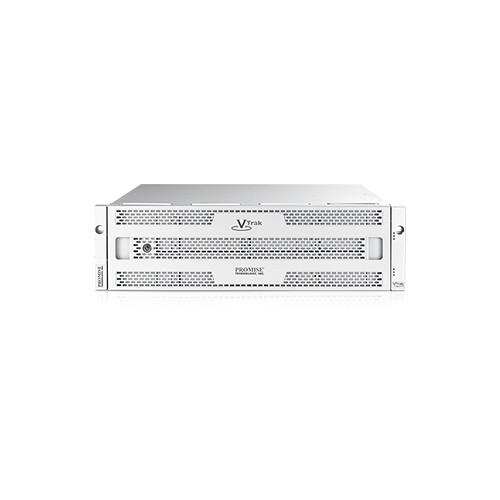

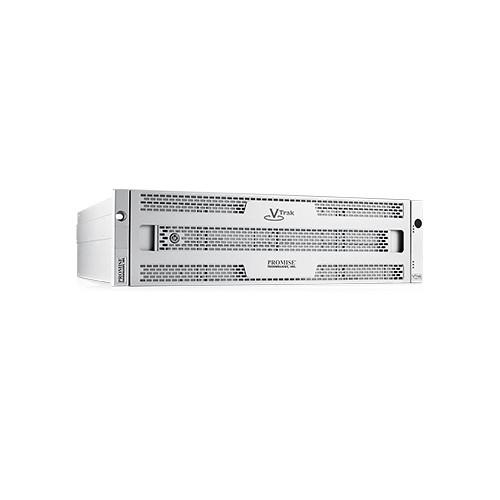

User Manual for Promise Technology VTrak A-Class 16-Bay RAID MDC Shared Storage Server Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak A-Class 16-Bay RAID
- Product category: Network Attached Storage Drives Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Network Attached Storage Drives
 |
User manual for the Promise Technology VTrak A-Class 16-Bay RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description Whether you need added capacity or higher-speed access to your data, the 96TB VTrak A-Class 16-Bay RAID/MDC Shared Storage Server from Promise Technology maximizes the efficiency of your storage infrastructure. The array comes with sixteen 3TB drives preinstalled, and also includes a J630SDQS3 48TB (16 x 3TB) subsystem for a total storage capacity of 96TB. SAN performance is delivered via four SANLink2 8G FC adapters with the ability to expand to NAS access via NFS and CIFS. VTrak A-Class is designed to interoperate seamlessly no matter what set of applications share the storage pool, and is supported by all major operating systems including Mac OS X, Linux, and Windows (five Mac-only client licenses included).
The VTrak A-Class system delivers high-performance file sharing across all aspects of your workflow and supports simultaneous shared reads and writes for online editing, color grading, graphics work, offline editing, transcoding, and more. The appliances combine to create a flexible multi-application ecosystem able to share files across the SAN or LAN. A-Class meets the demands of real-time multi-stream environments for HD, 2K, 4K, and 3D workflows by delivering high-bandwidth, low-latency performance from a single folder or mount point.
The controller/management software is delivered in a single platform. When combined with VTrak x30 storage arrays, the shared file environment can scale up to petabytes of usable storage and billions of files. VTrak A-Class is easy to deploy, configure, and maintain due to the embedded unified management software which combines simple-to-understand dashboards, reporting, monitoring, and administration for the entire VTrak A-Class and VTrak Client ecosystem. - Fully integrated shared storage appliance requiring no extra server hardware
- Embedded unified management using VTrak A-Class SAN management software (via Ethernet)
- On-demand independent performance and capacity expansion
- Embedded I/O performance and power usage monitoring
- Supports Adobe Premiere, Apple Final Cut, Avid Media Composer, and many more applications
- Integrated VTrakFS clustered file system
- Supports up to eight simultaneous file systems
- Flexible, non-disruptive expansion options using VTrak x30 expansion chassis or VTrak x30 FC RAID storage systems (J630SDQS3 included)
- Redundant, hot-swappable controllers
- Hot-swappable disk drives
- Hot-swappable 80 Plus certified power supply units
- Non-disruptive firmware and software updates
- Four levels of advanced power management disk drive (MAID) support
- Advanced online defragmentation tools
- Advanced command line interface (serial port or Ethernet via telnet and SSH)
- Third-party management support via SNMP and CIM
In the Box Promise Technology VTrak A-Class 16-Bay RAID/MDC Shared Storage Server (96TB) J630SDQS3 48TB VTrak x30 Integrated SAN Solution 4 x SANLink2 8 Gb/s FC and Thunderbolt 2 zsdrfyrd 2 x Power Cords Rackmount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak A-Class 16-Bay RAID MDC Shared Storage Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology VTRAK A-Class Specs | | | Total Raw Capacity | 48 TB | | Included Drives | 16 x 3 TB 3.5" HDD | | | | Number of Bays | 16 x 3.5" | | Connections | 4 x LC | | Form Factor | Rackmount (3 RU) | | RAID Modes | RAID 0, 1, 10, 5, 50, 6, 60 | | | | AC Input Power | 100 to 200 VAC, 50 / 60 Hz at 5 to 10 A | | PSU Wattage | 2 x 750 W (Supports Redundancy) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Storage Humidity | 5 to 95% | | Certifications | BSMI, C-Tick, CE, FCC, Kcc, RoHS, TUV, UL, VCCI, WEEE, cUL, as per Manufacturer | | | | Noise Level | 55 to 65 dBA | | Dimensions | 6.9 x 17.6 x 20.0" / 17.4 x 44.7 x 50.7 cm | | Weight | 119.5 lb / 54.2 kg with Drives | | | | Package Weight | 205.0 lb | | Box Dimensions (LxWxH) | 30.5 x 26.0 x 23.5" |
