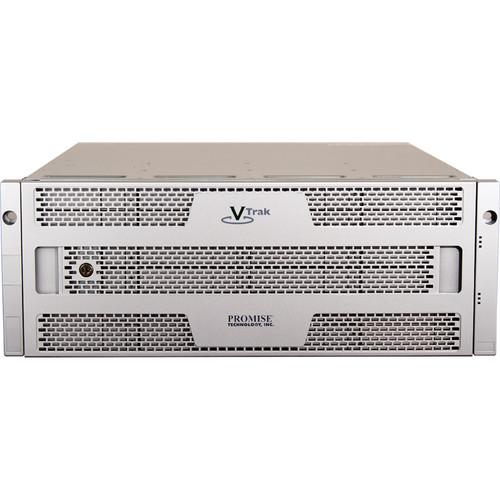

User Manual for Promise Technology VTrak A-Class VTA38HFDM3 Turnkey 48TB SAN Filesystem Solution Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak A-Class VTA38HFDM3 Turnkey
- Product category: Network Attached Storage Drives Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Network Attached Storage Drives
|
User manual for the Promise Technology VTrak A-Class VTA38HFDM3 Turnkey contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The VTrak A-Class VTA38HFDM3 Turnkey 48TB (24 x 2TB) SAN Filesystem Solution from Promise Technology is a scale-out shared SAN that is designed for rich media integrated appliance and post-production/broadcast work. While it is compatible with Mac, Windows, and Linux, this model includes 30 Mac OS X client licenses and four file system licenses. Additionally, Linux client support will be released in a future firmware update.
This SAN has a 4U rackmount form factor and a 48TB capacity that is comprised of 24 x 2TB SAS 6 Gb/s drives. Each of the 2TB drives also has a 3.5" form factor and a 7200 rpm rotational speed. Host connectivity is supported using an 8 x 8G fiber channel, which is made up of dual 4-port controllers with an 8GB cache per controller. There are also dual metadata servers/RAID controllers and RAID support is included for RAID 0, 1, 1E, 5, 6, 10, 50, and 60. There is also an embedded web management tool that uses WebPAM PROe (Ethernet), Command Line Interface (CLI) or Command Line Utility (serial port or Ethernet via telnet, SSH), and Third Party Management support via SNMP and CIM.
For those who wish to expand this SAN, its expansion capabilities will allow cascading of up to 9 JBODs per RAID unit with up to 8 storage nodes for a total of 1,920 HDDs. Included with this SAN are two power cords and a 4U rackmount kit. - High availability design for no single point of failure
- Scale-up and scale-out with online expansion
- Advanced shared file system - high performance with simultaneous multi-user access
- Anti-fragmentation algorithm
- LDAP/Active Directory/Open Directory and ACL Support
- Integrated VTrakFS, requires no extra server hardware
- High performance, low latency access in a multiuser shared environment
- Clustered file system provides full FC bandwidth to each connected client
- Single, streamlined management software administers SAN & storage
In the Box Promise Technology VTrak A-Class VTA38HFDM3 Turnkey 48TB (24 x 2TB) SAN Filesystem Solution 2 x Power Cords Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak A-Class VTA38HFDM3 Turnkey 48TB SAN Filesystem Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology VTA38HFDM3 Specs | | | # of RAID Controllers | Dual | | Storage Controller Cache | 8 GB per Controller | | | | Total Raw Capacity | 48 TB | | Included Drives | 24 x 2 TB 3.5" HDD | | Interface | SAS-2 | | Rotational Speed | 7200 rpm | | | | Number of Bays | 24 x 3.5" | | Form Factor | Rackmount (4 RU) | | RAID Modes | RAID 0, 1, 10, 1E, 5, 50, 6, 60 | | Expansion | Up to 9 Storage Units | | | | Dimensions | 31.1 x 22.5 x 11.3" / 78.9 x 57.2 x 28.7 cm | | Weight | 124.0 lb / 56.2 kg |
